Description
| CPU | AMD Socket AM5 for AMD Ryzenô 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports AMD EXTended Profiles for Overclocking (EXPOô) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. | |
| Graphics | 1 x HDMIÆ port** |
| 2 x USB4Æ ports support USB Type-CÆ display outputs*** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports 4K@60Hz as specified in HDMI 2.1. | |
| *** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| **** Output at USB4_EC1 and USB4_EC2, each requires a USB-CÆ to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | AMD Ryzenô 7000 Series Desktop Processors* |
| 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) | |
| AMD X670 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x2 mode)** | |
| * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). | |
| ** PCIEX16_3 shares bandwidth with M.2_3 slot. Please adjust in BIOS setting to enable PCIEX16_3. | |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzenô 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| AMD X670 Chipset | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** | |
| M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
| ** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 is in operation after adjusting in BIOS settings, M.2_3 slot will only run at PCIe x2 mode. | |
| Ethernet | 1 x MarvellÆ AQtion 10Gb Ethernet |
| 1 x IntelÆ 2.5Gb Ethernet | |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band* | |
| Bluetooth v5.2 | |
| * WiFi 6E 6GHz regulatory may vary between countries. | |
| USB | Rear USB (Total 11 ports) |
| 2 x USB4Æ with IntelÆ JHL8540 USB4Æ controller ports (2 x USB Type-CÆ) | |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) | |
| 7 x USB 3.2 Gen 2 ports (7 x Type-A) | |
| 1 x USB 2.0 port (1 x Type-A) | |
| Front USB (Total 9 ports) | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÆ with up to 60W PD/QC4+) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 3 x USB 2.0 headers support additional 6 USB 2.0 ports | |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* |
| - Impedance sense for front and rear headphone outputs | |
| - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| - Supports up to 32-Bit/192 kHz playback* | |
| Audio Features | |
| - Power pre-regulator reduces power input noise to ensure consistent performance | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| - Audio cover | |
| - Unique de-pop circuit | |
| * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |
| ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |

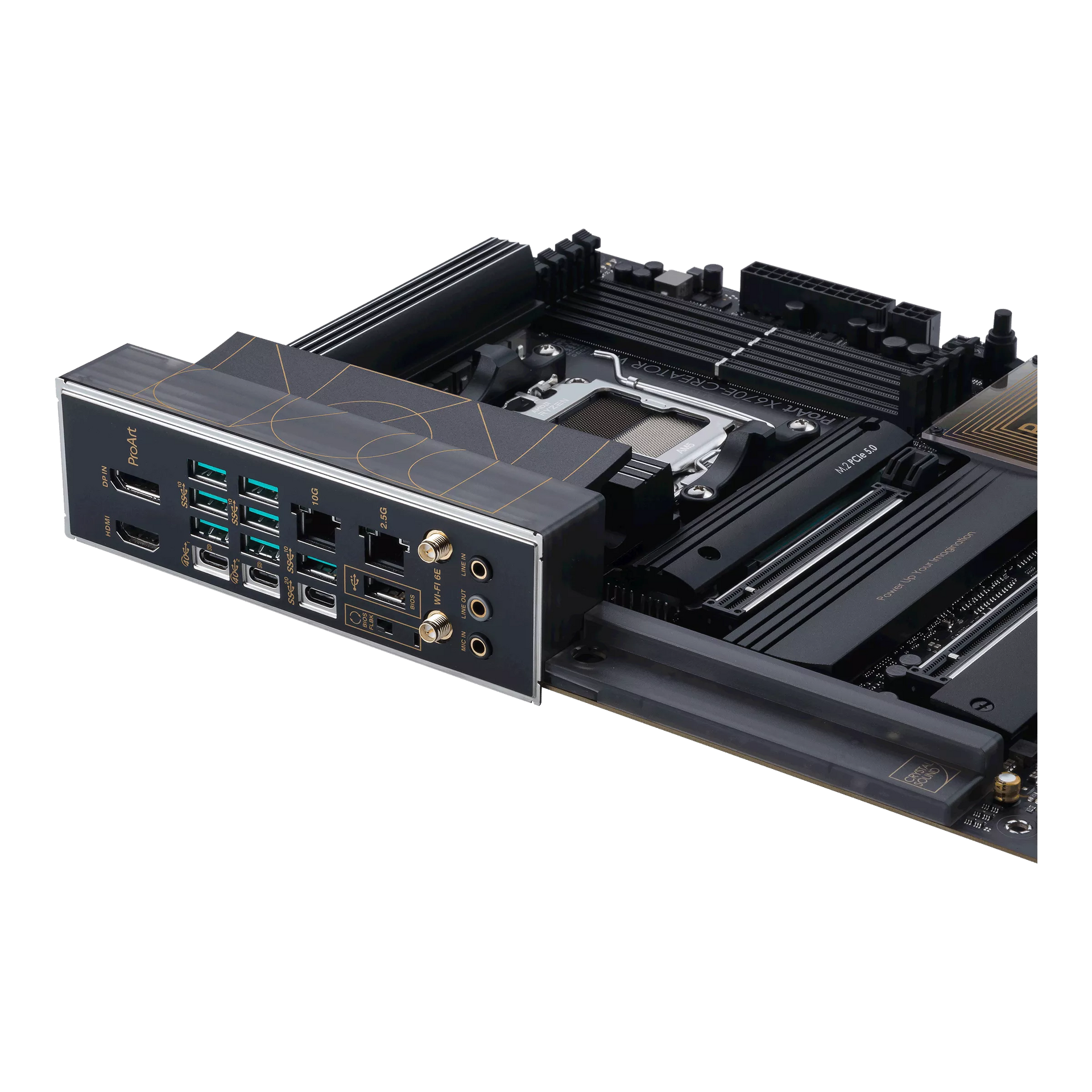

| Back Panel I/O Ports | 2 x USB4Æ with IntelÆ JHL8540 USB4Æ controller ports (2 x USB Type-CÆ) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) | |
| 7 x USB 3.2 Gen 2 ports (7 x Type-A) | |
| 1 x USB 2.0 port (1 x Type-A) | |
| 1 x DisplayPort (Input only) | |
| 1 x HDMIÆ port | |
| 1 x Wi-Fi Module | |
| 1 x MarvellÆ AQtion 10Gb Ethernet | |
| 1 x IntelÆ 2.5Gb Ethernet | |
| 3 x Audio jacks | |
| 1 x BIOS FlashBackô button | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V Power connectors | |
| 1 x 6-pin PCIe Power connector | |
| Storage related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 3 x USB 2.0 headers support additional 6 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal Sensor header | |
| Special Features | ASUS 5X PROTECTION III |
| - DIGI+ VRM (- Digital power design) | |
| - Enhanced DRAM Overcurrent Protection | |
| - ESD Guards | |
| - LANGuard | |
| - Overvoltage Protection | |
| - Safeslot | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - PCIe Slot Q-Release | |
| - Q-Connector | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink backplate | |
| - M.2 heatsinks | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBackô button | |
| - BIOS FlashBackô LED | |
| - ProCool | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| AURA Sync | |
| - Aura RGB header | |
| - Addressable Gen 2 headers | |
| Bespoke Motherboard Design & Business Focused Features | |
| - 24/7 Reliability | |
| - Overcurrent Protection | |
| Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support | |
| - Support: up to 60W charging* | |
| - Output: 5/9/15/20V max. 3A, PPS:3.3ñ21V max. 3A | |
| - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS | |
| * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - Aura Creator | |
| - Aura Sync | |
| - Fan Xpert 4 with AI Cooling II | |
| - Power Saving | |
| - Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| TPU | |
| DIGI+ VRM | |
| Turbo app | |
| ASUS CPU-Z | |
| IT Management software supported | |
| - ASUS Control Center Express(ACCE) | |
| CreationFirst | |
| MyAsus | |
| Norton Anti-virus software (Free Trial version) | |
| ProArt Creator Hub | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 1 x DisplayPort cable | |
| 4 x SATA 6Gb/s cables | |
| Miscellaneous | |

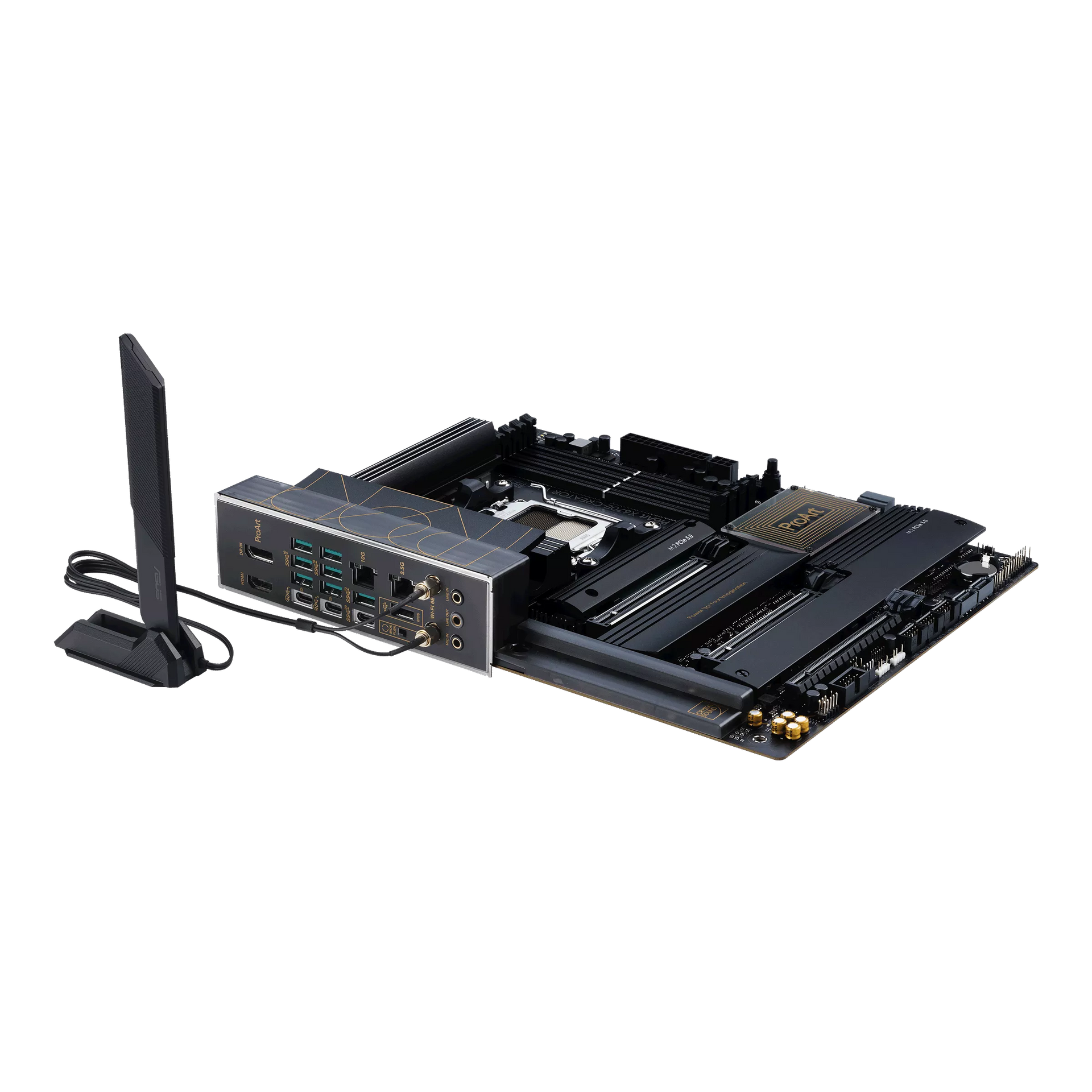

| 1 x ASUS Wi-Fi moving antennas | |
| 1 x Q-connector | |
| 1 x M.2 Q-Latch package for M.2 backplate | |
| 2 x Rubber Packages for M.2 | |
| 1 x Rubber Package for M.2 backplate | |
| 1 x Screw packages for M.2 SSD | |
| 1 x ProArt ruler | |
| Documentation | |
| 1 x ACC Express Activation Key Card | |
| 1 x User guide | |
| Operating System | WindowsÆ 11 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Warranty | 3 Years |
