Description
Shipping & Return

About this item:

Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 socket: Ready for AMD Ryzen 9000, 8000 and 7000 Series desktop processors
Robust performance: 16+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors

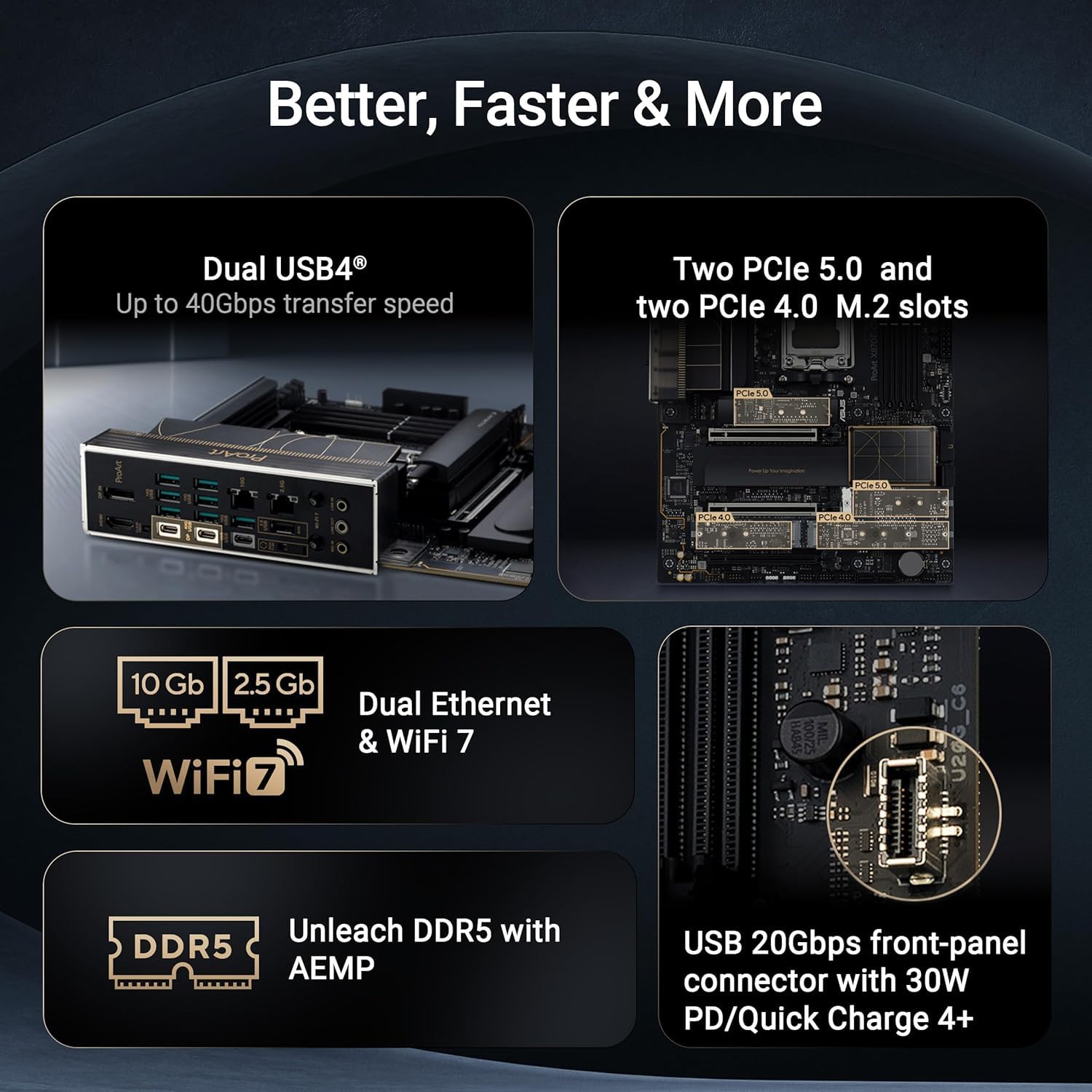

Future-proofed connectivity: Dual USB4 ports, 10 Gb & 2.5 Gb Ethernet, WiFi 7, PCIe 5.0 x16 slot full support for next-gen GPUs, two PCIe 5.0 and two PCIe 4.0 M.2 slots and a USB 20Gbps front panel connector with 30W PD/Quick Charge 4+

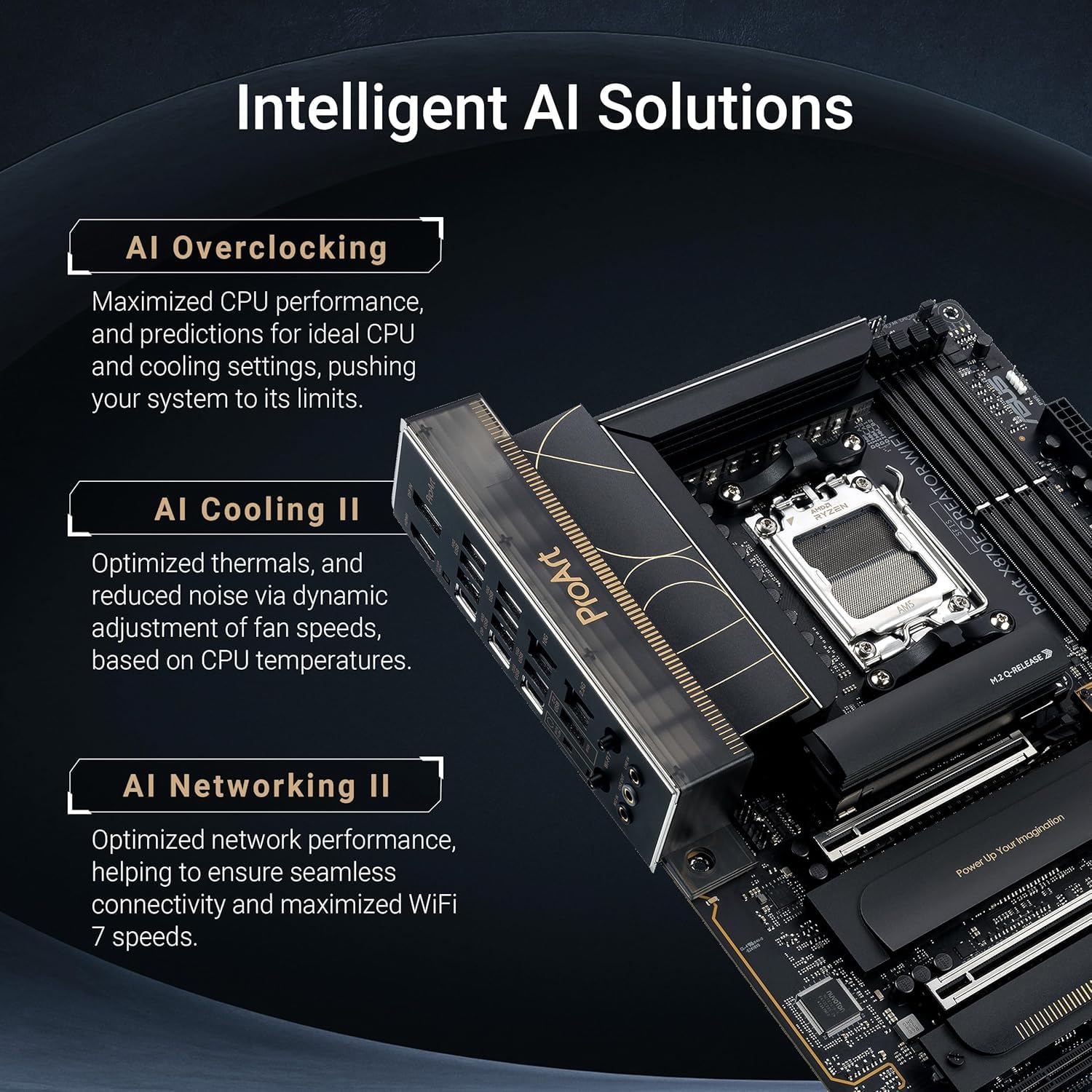

Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling II and AI Networking II, Dynamic OC Switcher and Core Flex
DIY-friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, BIOS FlashBack, Q-Connector
ProArt gives you more: ProArt Creator Hub with the Color Management feature works in conjunction with Pantone’s proprietary utilities for one-stop system control and creation-related settings
Advanced security: ASUS Control Center Express offers USB port management, software blacklisting and Regedit on/off controls

From the manufacturer:

Ultrafast Networking

10 Gb & 2.5 Gb Ethernet

Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

WiFi 7

The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels* on the 6GHz band and 4K QAM**. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

*WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions. **Specifications vary by model.

PCIe 5.0 Expansion Slots

Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.

Four Onboard M.2 Slots

ProArt X870E-Creator WiFi features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

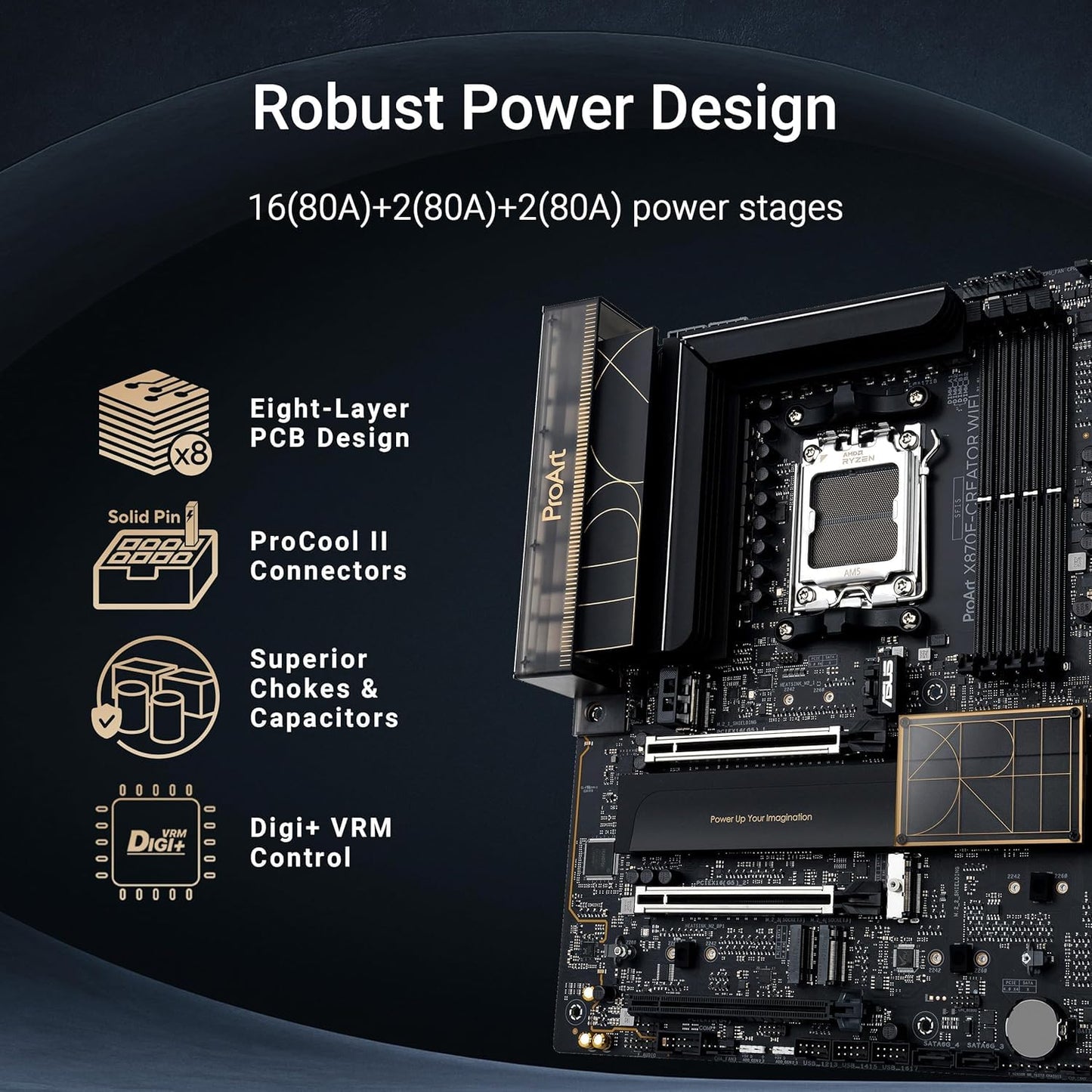

Robust Power Design

Designed to meet the needs of high-core-count CPUs, the ProArt X870E-Creator WiFi features 16(80A)+2(80A)+2 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

AI Overclocking

Maximized CPU performance, and predictions for ideal CPU and cooling settings, pushing your system to its limits.

Technical Details:

Platform	AMD
Socket	AM5
CPU Type	Ryzen 9000,Ryzen 8000,Ryzen 7000
Chipset	X870E
Memory Speed	up to 8000+
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	ECC and Non-ECC Un-buffered DIMM Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Graphics Port	1 x HDMI,2 x USB4
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes) AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled) AMD Ryzen 8500 & 8300 Series Desktop Processors* 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled) AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site. When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each. * PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4.
Wireless Networking	WiFi 7,Bluetooth 5.4
Internal I/O Connector	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Form Factor	ATX
Warranty	3 Years

Shipping Policy

1. General Information

All orders are processed within 1-3 business days. Orders are not shipped or delivered on weekends or holidays. If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.

2. Shipping Rates & Delivery Estimates

Shipping charges for your order will be calculated and displayed at checkout. Delivery delays can occasionally occur.

Standard Shipping: 3-5 business days

3. Shipment Confirmation & Order Tracking

You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.

4. Damages

Vishal Peripherals is liable for any products damaged or lost during shipping. If you received your order damaged, please take the video of unboxing and share through mail at support1@vishalperipherals.com.

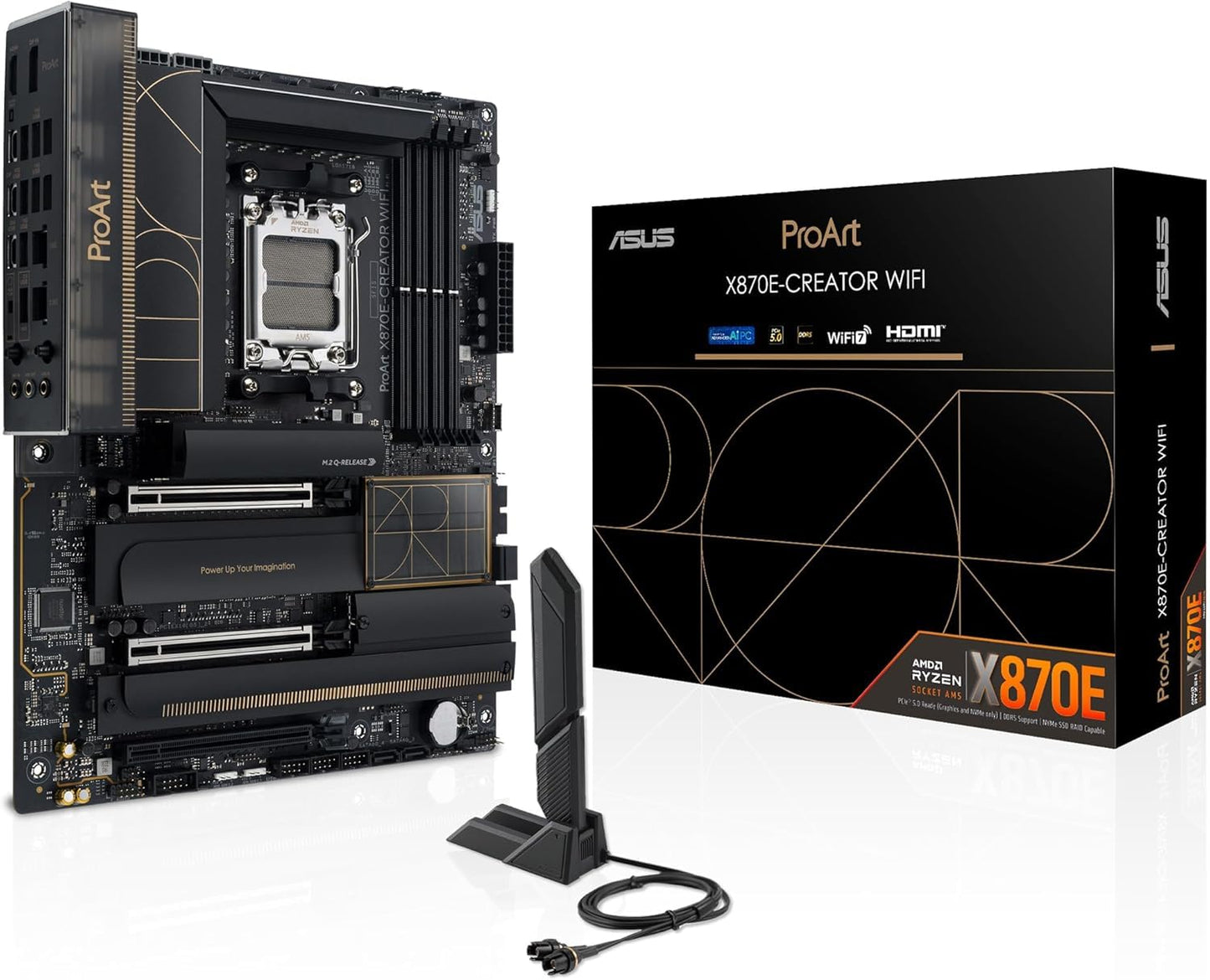

ASUS PROART X870E-CREATOR WIFI AM5 ATX MOTHERBOARD
