Description
Features
- AM4 socket: Ready for 3rd Gen AMD Ryzenô processors
- Robust power solution: 8+4 discrete MOS with high-quality alloy chokes and durable capacitors
- Gaming-optimized connectivity: Dual M.2, USB 3.2 Gen 2, plus HDMIÆ 2.0 and DisplayPortô 1.2 output support
- Smooth networking: M.2 socket with E-key and IntelÆ Gigabit Ethernet with ASUS LANGuard
- Intuitive software: Easy-to-use UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBackô, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable RGB header
- Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec and Sonic Studio III for immersive sound
Specifications
CPU |
AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzenô/2nd and 1st Gen AMD Ryzenô with Radeonô Vega Graphics/Athlonô with Radeonô Vega Graphics Processors |
Chipset |
AMD B450 |
Memory |
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory |
3rd/2nd/1st Gen AMD Ryzenô/ 2nd and 1st Gen AMD Ryzenô with Radeonô Vega Graphics/ Athlonô with Radeonô Vega Graphics Processors |
Dual Channel Memory Architecture |
Graphic |
1 x HDMI 2.0b |
1 x DisplayPort 1.2 |
*Graphics specifications may vary between CPU types. |
Integrated Graphics Processor |
Multi-GPU Support |
Supports AMD 3-Way CrossFireXô Technology |
Expansion Slots |
2 x PCIe 3.0 x16 (x16 or x8/x4) |
1 x PCIe 2.0 x16 (x4 mode) * |
3rd/2nd/1st Gen AMD Ryzenô Processors |
1 x PCIe 3.0 x16 (x4 mode) |
3 x PCIe 2.0 x1 |
AMD Athlonô with Radeonô Vega Graphics Processors |
AMD B450 chipset |
1 x PCIe 3.0 x16 (x8 mode) |
Storage |
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports |
3rd/2nd/1st Gen AMD Ryzenô Processors : |
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)* |
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)* |
2nd and 1st Gen AMD Ryzenô with Radeonô Vega Graphics Processors : |
1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) |
2 x SATA 3Gb/s port(s), |
2 x SATA 6Gb/s port(s), |
2 x SATA 6Gb/s port(s) |
AMD Athlonô with Radeonô Vega Graphics Processors : |
AMD B450 chipset : |
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) |
4 x SATA 6Gb/s port(s), |
Support Raid 0, 1, 10 |
LAN |
IntelÆ I211-AT 1Gb Ethernet |
ASUS LANGuard |
Audio |
ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A |
- Audio Shielding |
- Premium Japanese audio capacitors |
- Audio Cover |
- Optical S/PDIF out header(s) at mid-board |
- SupremeFX Shieldingô Technology |
- Dual OP Amplifiers |
- Impedance sense for front and rear headphone outputs |
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
- High quality120dBSNR stereo playback outputand113dBSNR recording input |
- Supports up to 32-Bit/192kHz playback * |
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
Audio Feature : |
USB Ports |
4 x USB 3.2 Gen 1 port(s)(3 x Type-A +1 x USB Type-CÆ) |
Front USB Port ( Total 4 ) |
2 x USB 3.2 Gen 2 port(s)(2 x Type-A) |
Rear USB Port ( Total 8 ) |
2 x USB 3.2 Gen 1 port(s) |
2 x USB 2.0 port(s) |
Software Features |
ROG Exclusive Software |
| - RAMCache III |
| - ROG CPU-Z |
| - GameFirst VI |
| - Sonic Studio III + Sonic Studio Virtual Mixer |
| - Sonic Radar III |
| - Overwolf |
| - Anti-virus software |
| ASUS Exclusive Software Features |
| Armoury Crate |
| - Aura Creator |
| - Aura Sync |
| Ai noise cancelling microphone |
| AI Suite 3: |
| - 5-Way Optimization by Dual Intelligent Processors 5 |
| TPU |
| EPU |
| DIGI+ VRM |
| Fan Xpert 4 |
| Turbo app |
| - EZ update |
| AI Charger |
| UEFI BIOS |
| ASUS EZ DIY |
| - ASUS CrashFree BIOS 3 |
| - ASUS EZ Flash 3 |
| - ASUS UEFI BIOS EZ Mode |
ASUS Special Features |
Aura Sync |
| - Standard RGB header(s) |
| - Addressable Gen 2 RGB header(s) |
| ASUS Q-Design |
| - ASUS Q-DIMM |
| - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) |
| - ASUS Q-Slot |
| ASUS Thermal Solution |
| - Aluminum M.2 heatsink |
| ASUS EZ DIY |
| -BIOS FlashBackô button |
| -BIOS FlashBackô LED |
| -Clear CMOS header |
| -Pre-mounted I/O shield |
| - SafeSlot |

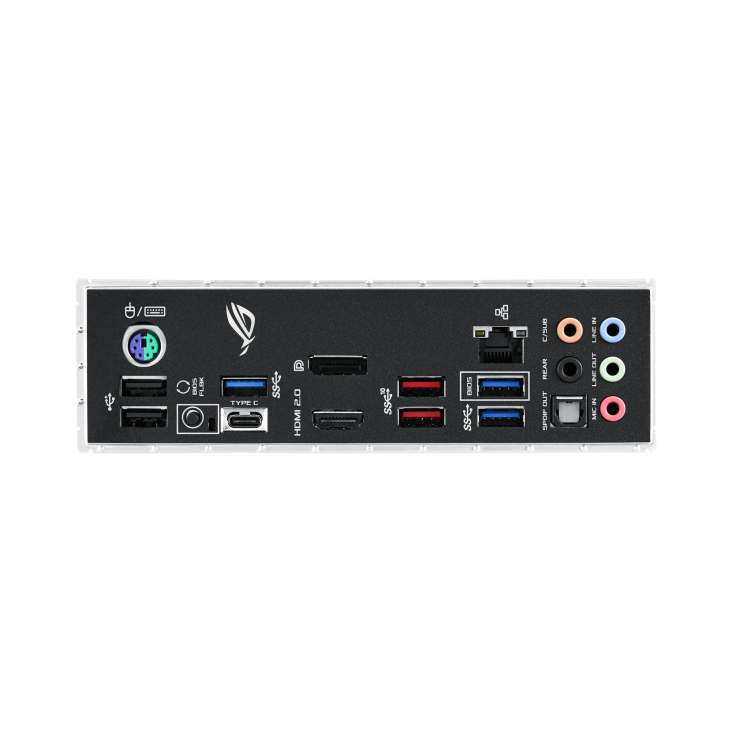

Back I/O Ports |
1 x IntelÆ I211-AT 1Gb Ethernet |
2 x USB 3.2 Gen 2 |
3 x USB 3.2 Gen 1 Type-A |
1 x USB 3.2 Gen 1 USB Type-CÆ |
1 x BIOS FlashBackô Button(s) |
1 x DisplayPort |
1 x Optical S/PDIF out |
5 x Audio jack(s) |
1 x PS/2 keyboard/mouse combo port(s) |
1 x HDMI |
2 x USB 2.0 |
Internal I/O Ports |
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) |
1 x Addressable RGB header |
1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) |
1 x TPM header |
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) |
1 x CPU Fan connector(s) |
1 x CPU OPT Fan connector(s) |
3 x Chassis Fan connector(s) |
1 x AIO_PUMP connector |
1 x AAFP connector |
2 x Aura RGB Strip Header(s) |
1 x COM port(s) connector(s) |
6 x SATA 6Gb/s connector(s) |
1 x 24-pin EATX Power connector(s) |
1 x 8-pin ATX 12V Power connector(s) |
1 x System panel(s) |
1 x Thermal sensor connector(s) |
1 x Clear CMOS jumper(s) |
Accessories |
1 x M.2 SSD screw package(s) |
1 x M.2 Rubber Package(s) |
4 x SATA 6Gb/s cable(s) |
1 x ROG Strix stickers |
1 x Cable ties pack(s) |
1 x Extension Cable for RGB strips (80 cm) |
1 x ROG Thank you card |
User¥s manual |
1 x Supporting DVD |
1 x Extension cable for Addressable LED |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Operating System |
WindowsÆ 10 64-bit |
Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
ATX Form Factor |
Note |
* PCIe x16_3 slot share bandwidth with PCIe x1_1, PCIe x1_2 and PCIe x1_3 |
| * When the M.2_1 Socket 3 is operating in SATA or PCIE mode, SATA6G_5/6 ports will be disabled. |
| *When the M.2_2 is occupied +A1:A163by M.2 device, PCIe x16_1 will run at x8 mode. |
