Description
Features
- AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzenô processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.
- Comprehensive thermal design: Integrated Crosschill EK III, active chipset heatsink, M.2 aluminum heatsink, and ROG Cooling Zone.
- Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
- High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 5G and Gigabit Ethernet courtesy of Aquantia and Intel, both with ASUS LANGuard protection and support for GameFirst V software.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
- DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
- Industry-leading ROG audio: SupremeFX S1220 and ESSÆ ES9023P for enthusiast-grade audio performance driven by Japanese capacitors.
Specifications
| CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzenô/2nd and 1st Gen AMD Ryzenô with Radeonô Vega Graphics Processors |
| Chipset | AMD X570 |
| Memory | AMD X570 |
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Memory | |
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory | |
3rd Gen AMD Ryzenô Processors | |
2nd Gen AMD Ryzenô Processors | |
2nd and 1st Gen AMD Ryzenô with Radeonô Vega Graphics Processors | |
Dual Channel Memory Architecture | |
ECC Memory (ECC mode) support varies by CPU. | |
| 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory | |
| Multi-GPU Support | 3rd and 2nd Gen AMD Ryzenô Processors |
Supports AMD 3-Way CrossFireXô Technology | |
Supports AMD 2-Way CrossFireXô Technology | |
Supports NVIDIAÆ 2-Way SLIÆ Technology | |
| Expansion Slots | 2 x PCIe 4.0 x16 (x16 or dual x8) |
2 x PCIe 3.0 x16 (x16 or dual x8) | |
1 x PCIe 4.0 x16 (x4 mode) | |
1 x PCIe 4.0 x1 | |
1 x PCIe 3.0 x16 (x8 mode) | |
AMD X570 chipset | |
| Storage | 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) |
8 x SATA 6Gb/s port(s), | |
3rd Gen AMD Ryzenô Processors : | |
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support | |
2nd Gen AMD Ryzenô/2nd and 1st Gen AMD Ryzenô with Radeonô Vega Graphics Processors : | |
AMD X570 chipset : | |
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support | |
| Support Raid 0, 1, 10 | |
| LAN | IntelÆ I211-AT |
Aquantia AQC111C 5G LAN | |
ROG GameFirst V Technology | |
ASUS LAN Guard | |
| Wireless Data Network | Up to 2.4Gbps transfer speed |
Supports channel bandwidth: HT20/HT40/HT80/HT160 | |
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz | |
| Bluetooth | BluetoothÆ 5.0 |
| Audio | ROG SupremeFX8-Channel High Definition Audio CODEC S1220 |
- Supports : Multi-streaming, Front Panel Jack-retasking | |
- High quality120dBSNR stereo playback outputand113dBSNR recording input | |
- SupremeFX Shielding Technology | |
- ESSÆ ES9023P | |
- Supports up to 32-Bit/192kHz playback * | |
- Gold-plated jacks | |
- Optical S/PDIF out port(s) at back panel | |
- Sonic Radar III | |
- Sonic Studio III + Sonic Studio Link | |
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. | |
Audio Feature : | |
| USB Ports | 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, Type-A) |
4 x USB 3.2 Gen 1 port(s) (4 at back panel, red, Type-A) | |
1 x USB 3.2 Gen 2 front panel connector port(s) | |
4 x USB 3.2 Gen 2 port(s) (3 at back panel, red, Type-A, 1 x Type-C) | |
8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board) | |
4 x USB 2.0 port(s) | |
3rd Gen AMD RyzenTM Processors : | |
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzenô with Radeonô Vega Graphics Processors : | |
| AMD X570 chipset : | |
| ROG Exclusive Features | USB BIOS FlashBackô |
ROG RGB Armor | |
Start Button | |
Reset Button | |
ROG Aura | |
Extreme Engine Digi+ : | |
- IR3555 PoweIRstageÆ | |
- MicroFine Alloy Chokes | |
- 10K Black Metallic Capacitors | |
ROG Extreme OC kit : | |
- Safe Boot button | |
- Slow Mode | |
- LN2 Mode | |
UEFI BIOS features : | |
- Tweakers¥ Paradise | |
- ROG SSD Secure Erase | |
- Graphic Card Information Preview | |
Crosschill EK III | |
ROG Patented Pre-mounted I/O Shield | |
ROG Exclusive Software | |
- Mem Tweakit | |
- RAMCache III | |
- RAMDisk | |
- CPU-Z | |
- GameFirst V | |
- Overwolf | |
| Special Features | - USB BIOS FlashBackô |
- BIOS FlashBackô Button | |
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : | |
| - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App | |
Gamer¥s Guardian: | |
- DRAM Overcurrent Protection | |
- ESD Guards on LAN, Audio,and USB ports | |
ASUS SafeSlot - Protect your graphics card Investment | |
LiveDash OLED | |
AURA : | |
- Aura Lighting Control | |
- Aura RGB Strip Headers | |
- Addressable Gen 2 Header | |
ASUS Exclusive Features : | |
- AI Suite 3 | |
- Ai Charger | |
- ASUS CrashFree BIOS 3 | |
- Armoury Crate | |
- Pre-mounted I/O Shield | |
- ASUS NODE: hardware control interface | |
- Clear CMOS Button | |
ASUS Q-Design : | |
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
- ASUS Q-DIMM | |
- ASUS Q-Connector | |

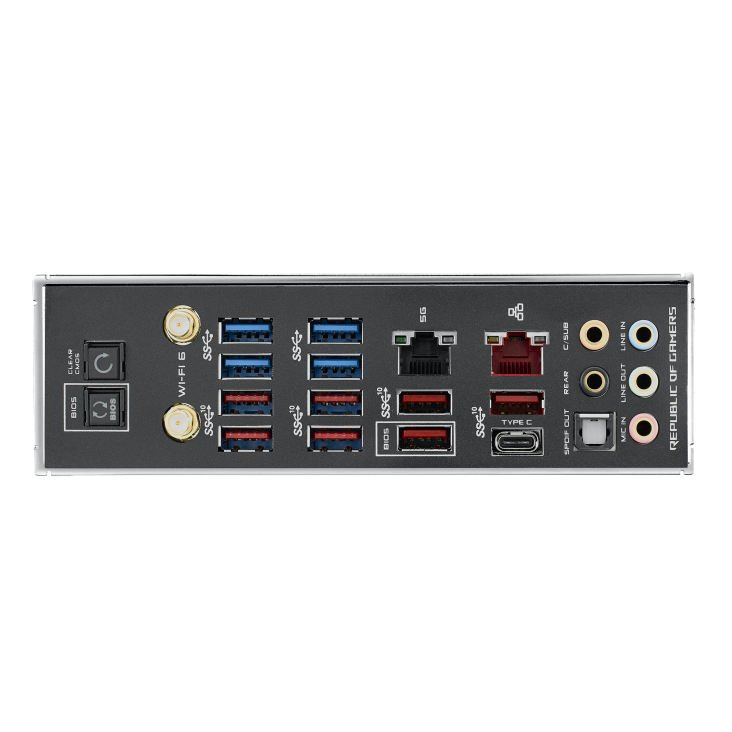

| Back I/O Ports | 1 x USB BIOS FlashBackô Button(s) |
1 x Optical S/PDIF out | |
1 x Clear CMOS button(s) | |
1 x ASUS Wi-Fi Module | |
1 x Gold-plated audio jacks | |
4 x USB 3.2 Gen 1 (up to 5Gbps) ports | |
8 x USB 3.2 Gen 2 (up to 10Gbps) ports () | |
Anti-surge LAN (RJ45) port | |
| 1 x AQC-111C 5G LAN port | |
| Internal I/O Ports | 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports |
1 x PCH_FAN | |
2 x Aura RGB Strip Header(s) | |
2 x Addressable Gen 2 header(s) | |
1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode) | |
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) | |
8 x SATA 6Gb/s connector(s) | |
1 x CPU Fan connector(s) | |
1 x CPU OPT Fan connector(s) | |
3 x Chassis Fan connector(s) | |
1 x Optional Fan connector(s) | |
1 x AIO_PUMP connector | |
1 x H_AMP fan connector | |
1 x W_PUMP+ connector | |
1 x 24-pin EATX Power connector(s) | |
1 x 8-pin ATX 12V Power connector(s) | |
1 x 4-pin ATX 12V Power connector(s) | |
1 x Front panel audio connector(s) (AAFP) | |
1 x Slow Mode switch(es) | |
1 x LN2 Mode header(s) | |
1 x Power-on button(s) | |
1 x Reset button(s) | |
1 x Node Connector(s) | |
1 x Safe Boot button | |
1 x ReTry button | |
1 x System panel connector | |
1 x W_IN header | |
1 x W_OUT header | |
1 x W_FLOW header | |
1 x Thermal sensor connector | |
1 x Speaker connector | |
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
1 x USB 3.2 Gen 2 (up to 10Gbps) connector | |
| Accessories | 1 x ROG logo plate sticker |
4 x SATA power cable | |
1 x ROG big sticker | |
1 x Q-Connector | |
1 x Wi-Fi Antenna(s) | |
1 x Extension Cable for RGB strips (80 cm) | |
1 x ROG coaster(s) | |
2 x ROG weave SATA 6G cable | |
1 x ROG Thank you card | |
User¥s manual | |
1 x M.2 Screw Package | |
1 x Supporting DVD | |
1 x Extension cable for Addressable LED | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Manageability | WOL, PXE |
| Operating System | WindowsÆ 10 64-bit |
| Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
ATX Form Factor |
