Zoom
Description

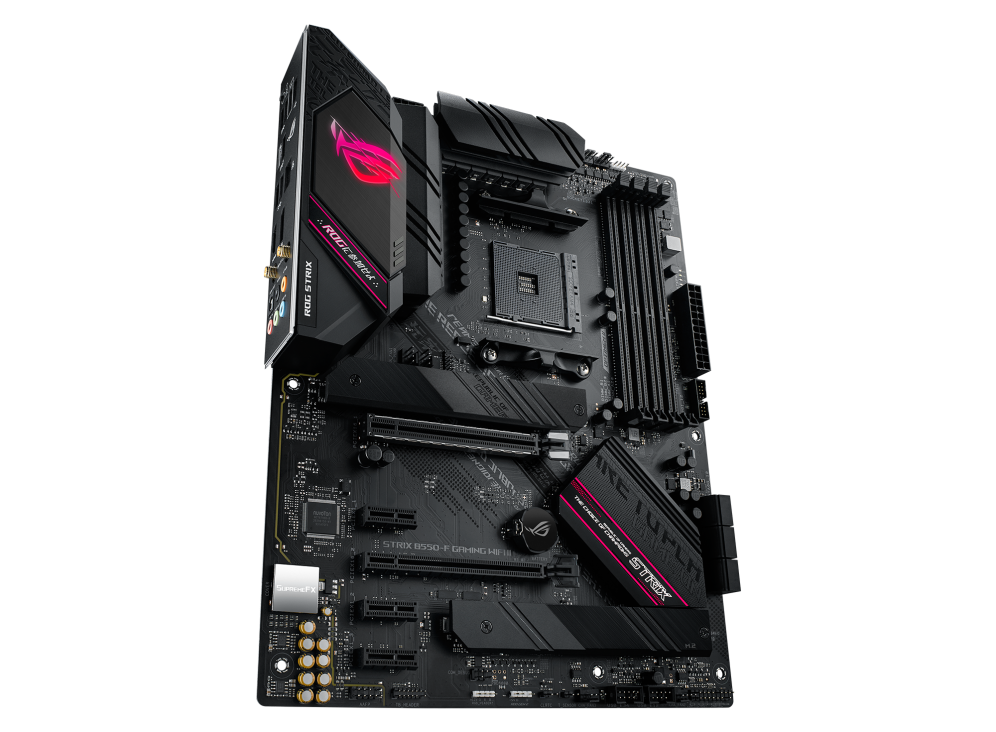

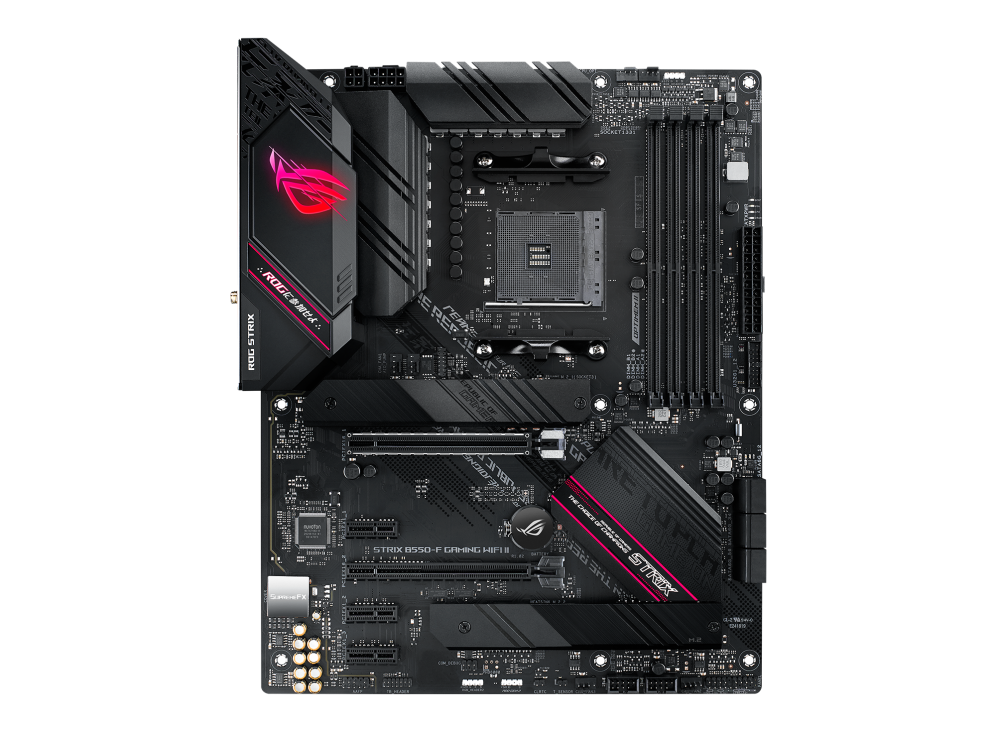

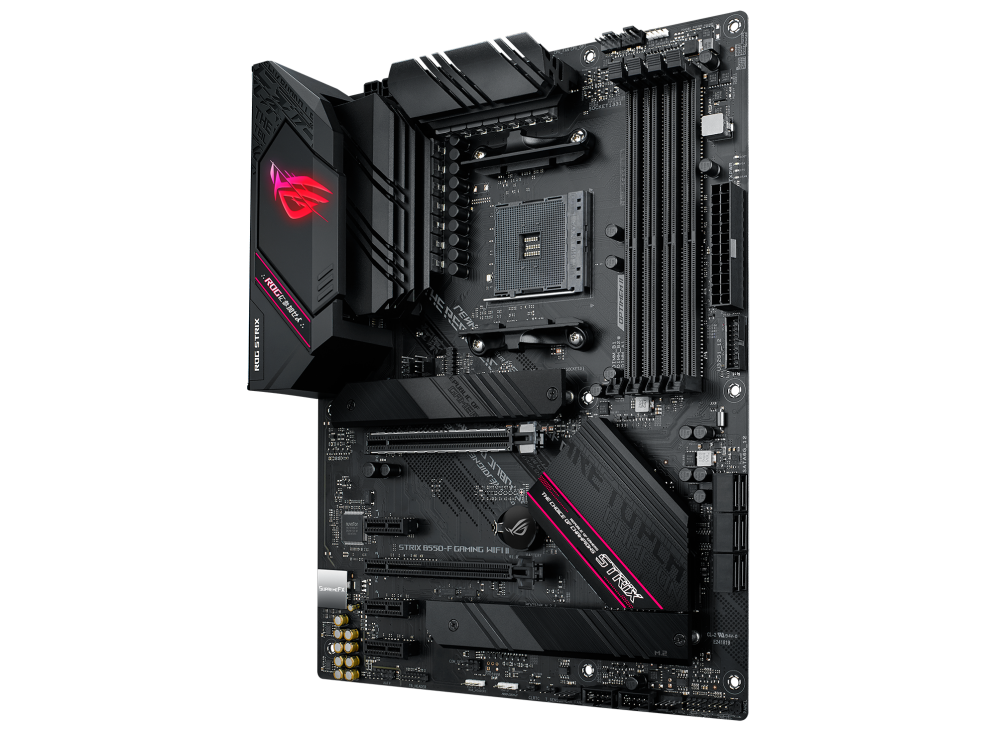

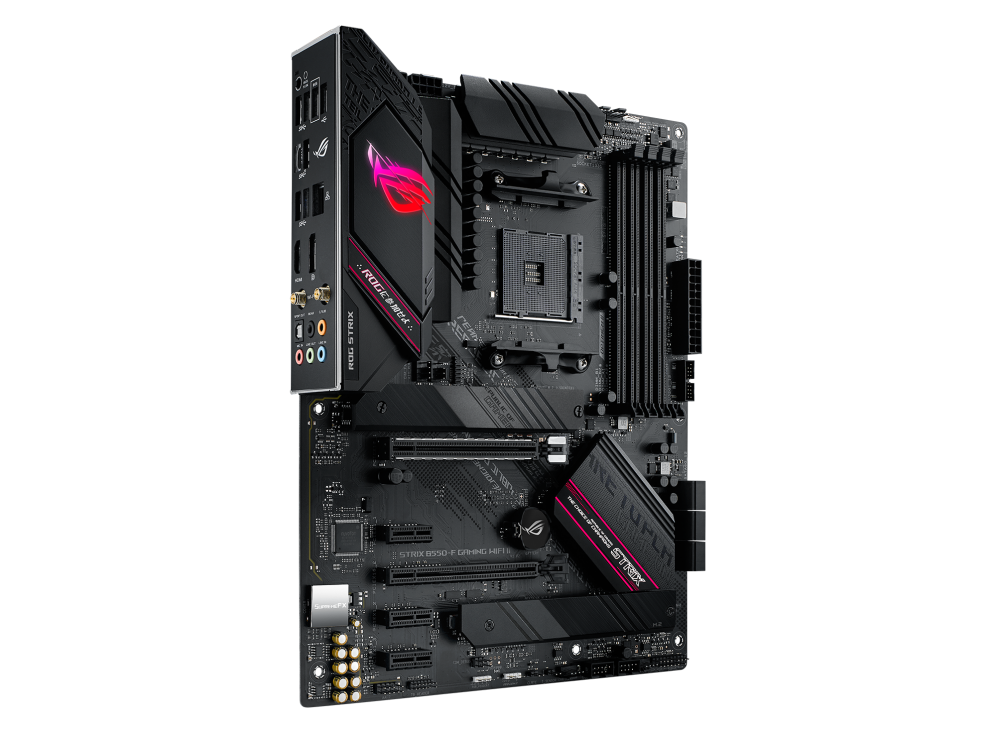

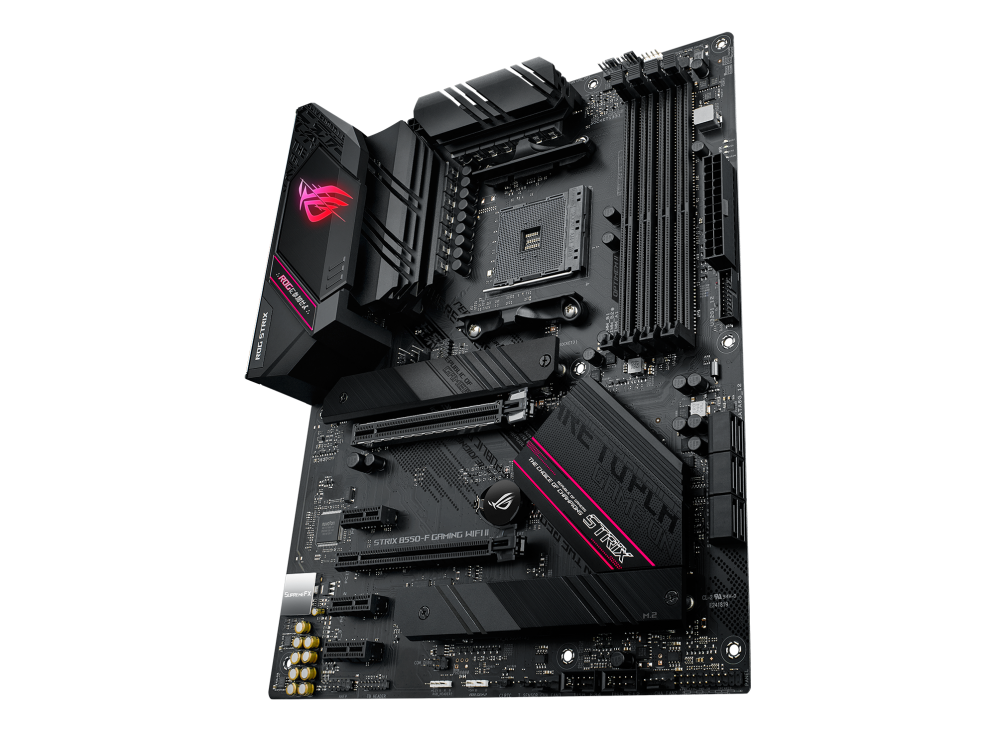

| Model | STRIX B550-F GAMING WIFI II |
| Supported CPU | |
| CPU Socket Type | AM4 |
| CPU Type | Supports AMD Ryzen 5000 / 3000 Series Processors* |
| Supports AMD Ryzen 5000 / 4000 G-Series Processors | |
| Chipset | AMD B550 |
| Memory | |
| Number of Memory Slots | 4◊288pin |
| Memory Standard | DDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors) |
| DDR4 4800(OC) / 4666(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 3000 Series Processors) | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
| Buffer Supported | Un-buffered |
| Expansion Slot | |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* |
| * Supports x4 mode. | |
| * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3. | |
| PCI Express x1 | 3 x PCIe 3.0 x1 |
| Storage Device | |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | AMD Ryzen 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors: |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |
| AMD B550 Chipset: | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* | |
| * When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled. | |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Onboard Audio | |
| Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Intel I225-V |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Wi-Fi 6E |
| 802.11a/b/g/n/ac/ax | |
| Bluetooth | Bluetooth 5.2 |
| Rear Panel Ports | |
| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports | |
| 1 x Wi-Fi Module | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Intel I225-V 2.5G Ethernet | |
| 1 x Optical S/PDIF out | |
| 5 x Audio jacks | |
| 1 x BIOS FlashBack button | |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Other Connectors | Fan and cooling related |
| 1 x 4-Pin AIO_Pump header | |
| 1 x 4-Pin CPU fan header | |
| 1 x 4-Pin CPU_OPT fan header | |
| 3 x 4-Pin Chassis fan headers | |
| Miscellaneous | |
| 1 x Addressable Gen 2 header | |
| 2 x AURA RGB headers | |
| 1 x Clear CMOS header | |
| 1 x Front panel audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal sensor header | |
| 1 x Thunderbolt header | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin EATX Power connector(s) |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x 4-pin ATX 12V Power connector(s) | |
| Features | Special Features: |
| ASUS Q-Design | |
| - ASUS Q-DIMM | |
| - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) | |
| - ASUS Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink | |
| AURA Sync | |
| - AURA RGB headers | |
| - Addressable Gen 2 RGB headers | |
| ASUS EZ DIY | |
| - BIOS FlashBack button | |
| - BIOS FlashBack LED | |
| - Clear CMOS header | |
| - ProCool | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| Software Features: | |
| ROG Exclusive Software | |
| - RAMCache III | |
| - ROG CPU-Z | |
| - GameFirst VI | |
| - Sonic Studio III + Sonic Studio Virtual Mixer | |
| - Sonic Radar III | |
| - DTS Sound Unbound | |
| - Overwolf | |
| - Anti-virus software | |
| ASUS Exclusive Software Features | |
| Armoury Crate | |
| - AIDA64 Extreme (60 days free trial) | |
| - Aura Creator | |
| - Aura Sync | |
| - Two-Way AI Noise Cancelation | |
| AI Suite 3: | |
| - Performance And Power Saving Utility | |
| EPU | |
| DIGI+ VRM | |
| Fan Xpert 4 | |
| TurboV EVO | |
| - EZ update | |
| WinRAR | |
| DAEMON Tools | |
| Norton Anti-virus software (Free Trial version) | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows 10 64-bit, Windows 11 64-bit |
| Warranty | 3 Years |
