Description
| CPU | IntelÆ Socket LGA1700 for 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors |
| Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | IntelÆ Z690 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports IntelÆ Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMIÆ*** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Support 8K@60Hz as specified in DisplayPort 1.4. | |
| *** Support 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | IntelÆ 12th Gen Processors* |
| 1 x PCIe 5.0 x16 slot** | |
| IntelÆ Z690 Chipset*** | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode or x4/x4 mode for ROG HYPER M.2 CARD) | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 3.0 x1 slot | |
| * Please check PCIe bifurcation table in Chapter 1 of user guide. | |
| ** When M.2_1 is occupied with SSD device, PCIEX16(G5)_1 will run x8 only. | |
| *** Supports IntelÆ Optane Memory H Series on PCH-attached PCIe slot. | |
| *** Supports IntelÆ Optane Memory H Series on PCH-attached PCIe slot. | |
| Storage | Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports |
| IntelÆ12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) | |
| - IntelÆ 12th Gen processors support PCIe 5.0 x4 mode. | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| - IntelÆ 12th Gen processors support PCIe 4.0 x4 mode. | |
| Hyper M.2_1 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110*** | |
| - IntelÆ 12th Gen processors support PCIe 4.0 x4 mode | |
| IntelÆ Z690 Chipset** | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes) | |
| Hyper M.2_1 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)**** | |
| Hyper M.2_2 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)**** | |
| 6 x SATA 6Gb/s ports***** | |
| * IntelÆ Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| ** IntelÆ Rapid Storage Technology supports IntelÆ Optane Memory H Series on PCH attached M.2 slots. | |
| *** When ROG Hyper M.2 card is installed on PCIEX16(G5), only Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G3), only Hyper M.2_1 slot can support PCIe 3.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. | |
| **** When ROG Hyper M.2 card is installed on PCIEX16(G5) or PCIEX16(G3), Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. | |
| ***** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports. | |
| Ethernet | 1 x IntelÆ 2.5Gb Ethernet |
ASUS LANGuard | |
| Wireless & Bluetooth | 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 |
| "Wi-Fi 6E | |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band* | |
| Bluetooth v5.2 hardware ready** | |
| * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. | |
| ** Bluetooth v5.2 function will be ready in Windows 11 or later. " | |
| USB | Rear USB: Total 12 ports |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) | |
| 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-CÆ) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB: Total 7 ports | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| - Impedance sense for front and rear headphone outputs | |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| - Supports up to 32-Bit/384 kHz playback" | |
| Audio Features | |
| - SupremeFX Shielding Technology | |
| - ALC4080 + Savitech SV3H712 AMP | |
| - Gold-plated audio jacks | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| - Audio cover | |
| Intrernal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 6 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x AURA RGB header | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt header | |
| Special Features | Extreme Engine Digi+ |
| - 5K Black Metallic Capacitors | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - PCIe Slot Q-Release | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink backplate | |
| - M.2 heatsink | |
| ASUS EZ DIY | |
| - BIOS FlashBackô button | |
| - BIOS FlashBackô LED | |
| - Clear CMOS button | |
| - CPU Socket lever protector | |
| - ProCool II | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| AURA Sync | |
| - AURA RGB header | |
| - Addressable Gen 2 RGB headers | |
| ASUS HYDRANODE | |
| - 1 x Chassis fan support* (CHA_FAN1P) | |
| * Visit ASUS Website for the latest compatibility list. | |
| TPM header | |
| Software Features | ROG Exclusive Software |
| - ROG CPU-Z | |
| - GameFirst VI | |
| - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
| - Sonic Radar III | |
| - DTSÆ Sound Unbound | |
| - Anti-virus software | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - AIDA64 Extreme (60 days free trial) | |
| - AURA Creator | |
| - AURA Sync | |
| - Fan Xpert 4 | |
| - Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| - 5-Way Optimization with AI Overclocking | |
| TPU | |
| EPU | |
| DIGI+ VRM | |
| Turbo app | |
| MyAsus | |
| WinRAR | |
| UEFI BIOS | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| MemTest86 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 4 x SATA 6Gb/s cables | |

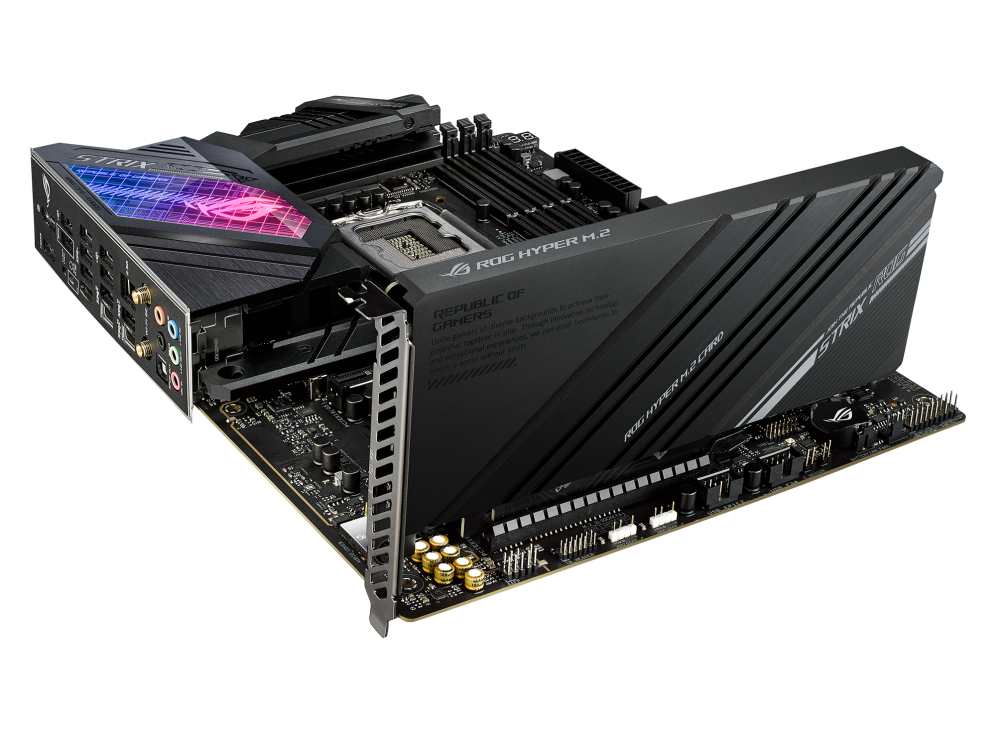

| ROG HYPER M.2 CARD | |
| 1 x ROG HYPER M.2 CARD | |
| Miscellaneous | |
| 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas | |
| 1 x M.2 Q-Latch package | |
| 1 x M.2 Q-Latch package for M.2 backplate | |
| 1 x M.2 Rubber Packages | |
| 2 x M.2 Screw Packages | |
| 1 x ROG Graphics card holder | |
| 1 x ROG key chain | |
| 1 x cable tie | |
| 1 x ROG STRIX stickers | |
| 1 x ROG STRIX thank you card | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x User manual | |
| Operating System | WindowsÆ 11 64-bit, WindowsÆ 10 64-bit |
| Form Factor | ATX |
| 30.5cm x 24.4cm | |
| Warranty | 3 Years |
