Description

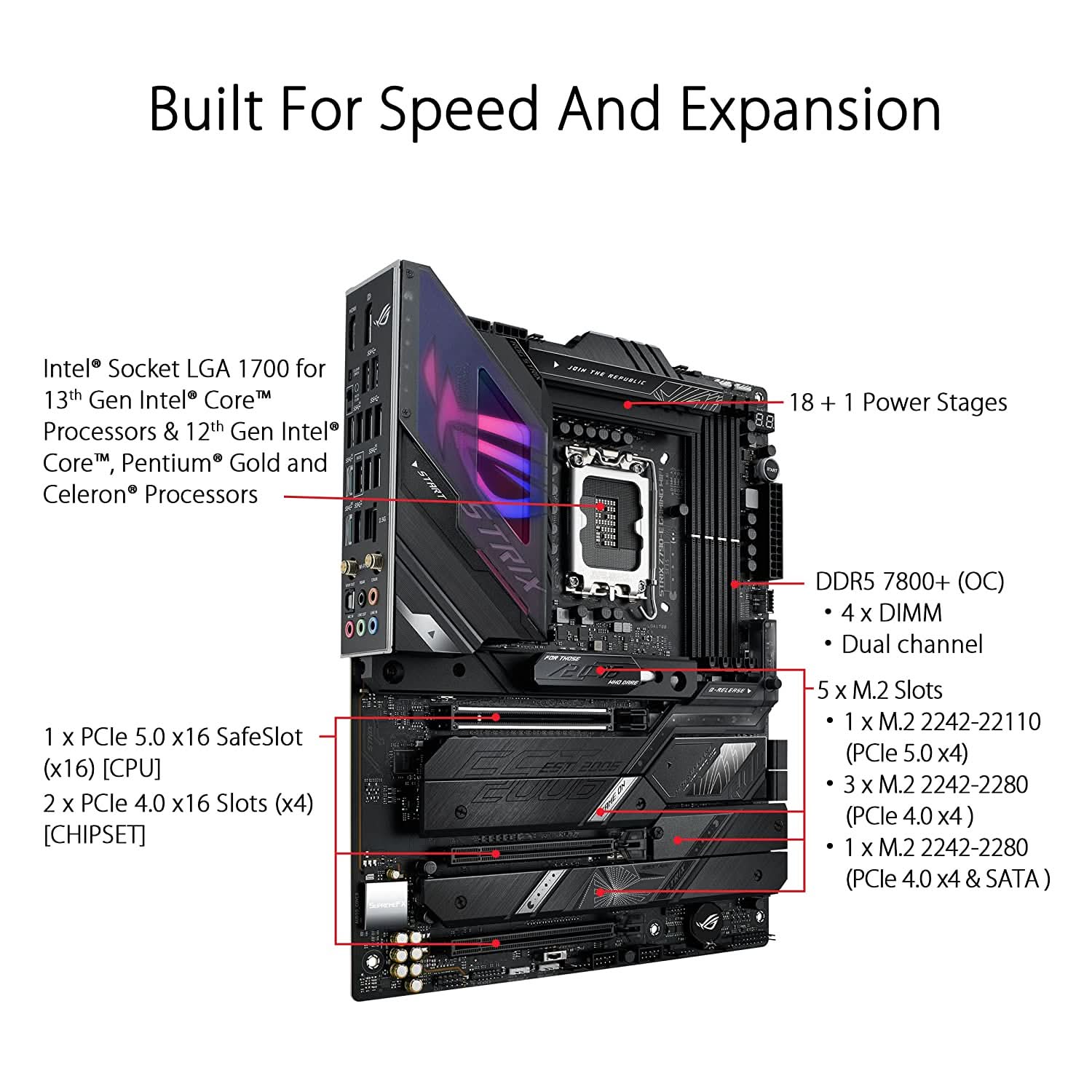

| CPU | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
| Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel Z790 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports IntelÆ Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| **** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMIÆ port*** | |
| * Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates. | |
| ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| **** VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | Intel 13th & 12th Gen Processors |
| 1 x PCIe 5.0 x16 slot | |
| Intel Z790 Chipset | |
| 2 x PCIe 4.0 x16 slots (support x4 mode) | |
| 1 x PCIe 3.0 x1 slot | |
| Storage | Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* |
| IntelÆ 13th & 12th Gen Processors* | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| IntelÆ Z790 Chipset** | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| * IntelÆ Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. | |
| Ethernet | 1 x IntelÆ 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band* | |
| BluetoothÆ v5.3 | |
| * WiFi 6E 6GHz regulatory may vary between countries. | |
| USB | Rear USB (Total 12 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) | |
| 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-CÆ) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| Front USB (Total 9 ports) | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÆ with up to 30W PD Fast-charge) | |
| 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |

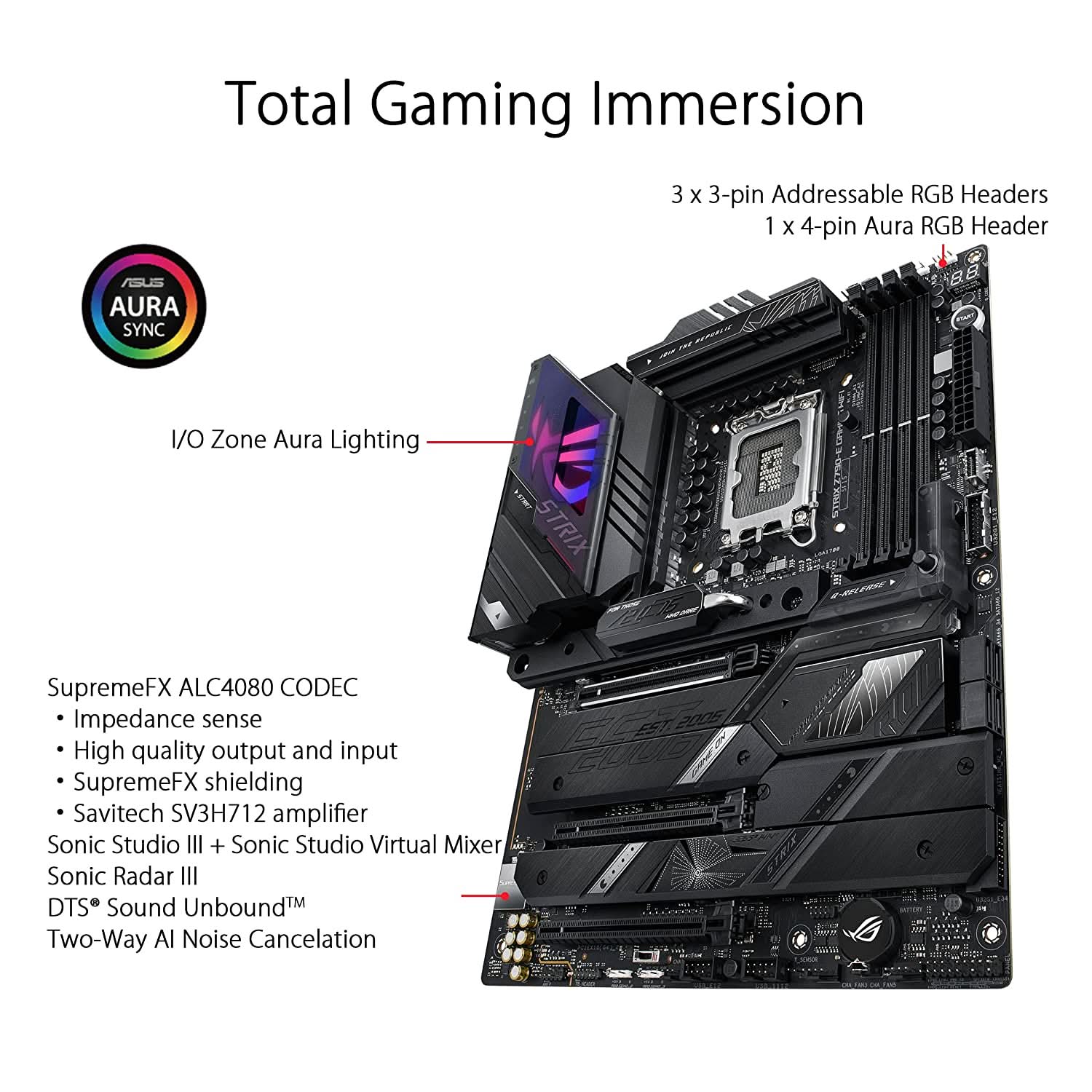

| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| - Impedance sense for front and rear headphone outputs | |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| - Supports up to 32-Bit/384 kHz playback | |
| Audio Features | |
| - SupremeFX Shielding Technology | |
| - Savitech SV3H712 AMP | |
| - Gold-plated audio jacks | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| - Audio cover | |

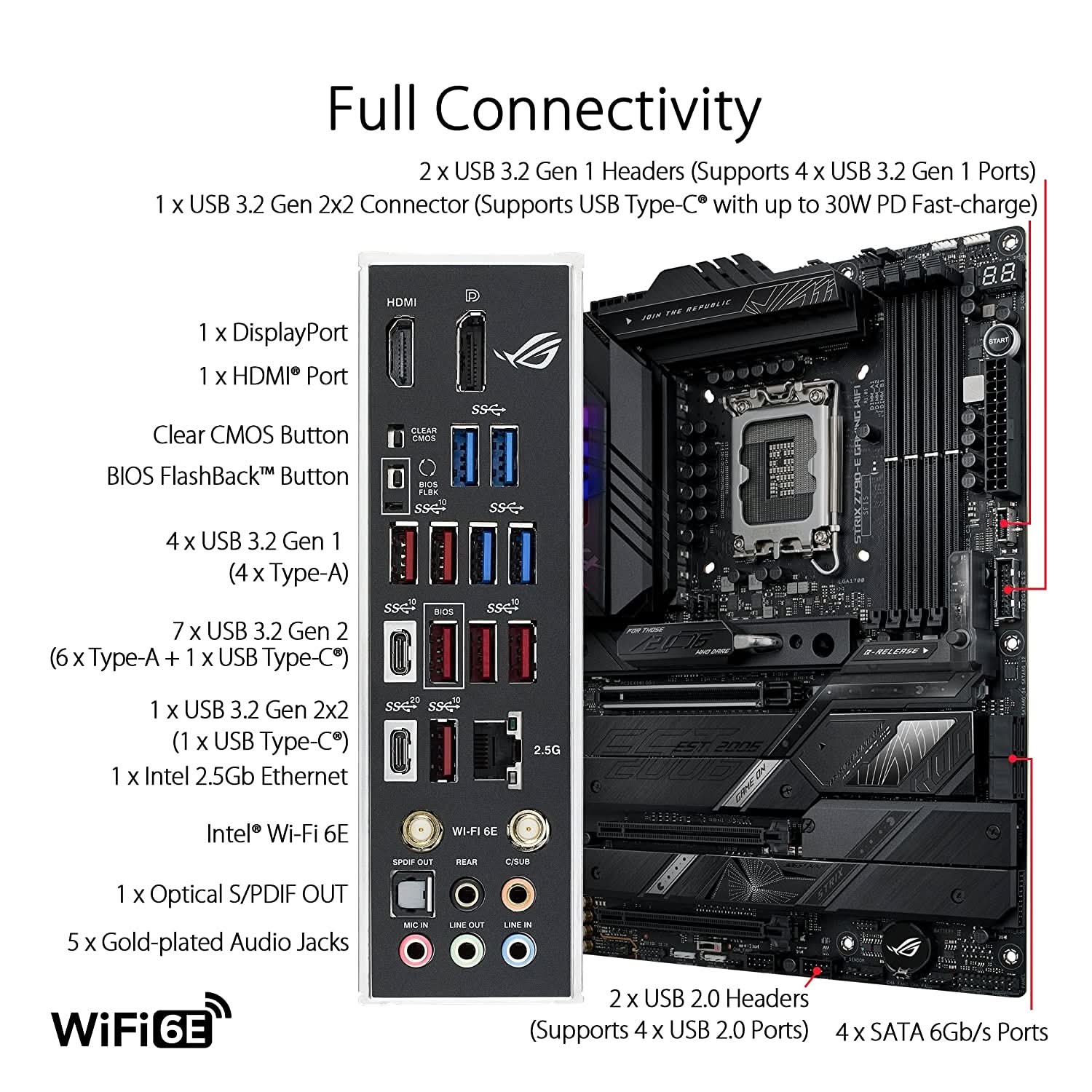

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) |
| 7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-CÆ ) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 1 x HDMIô port | |
| 1 x DisplayPort | |
| 1 x Wi-Fi Module | |
| 1 x IntelÆ 2.5Gb Ethernet port | |
| 5 x Gold-plated audio jacks* | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBackô button | |
| 1 x Clear CMOS button | |
| *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V Power connectors | |
| Storage related | |
| 5 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÆ with up to 30W PD Fast-charge) | |
| 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Alternative PCIe Mode Switch | |
| 1 x AURA RGB header | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Start button | |
| 1 x Thermal Sensor header | |
| 1 x Thunderboltô (USB4Æ) header | |
| Special Features | Extreme Engine Digi+ |
| - 5K Black Metallic Capacitors | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - PCIe Slot Q-Release | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |

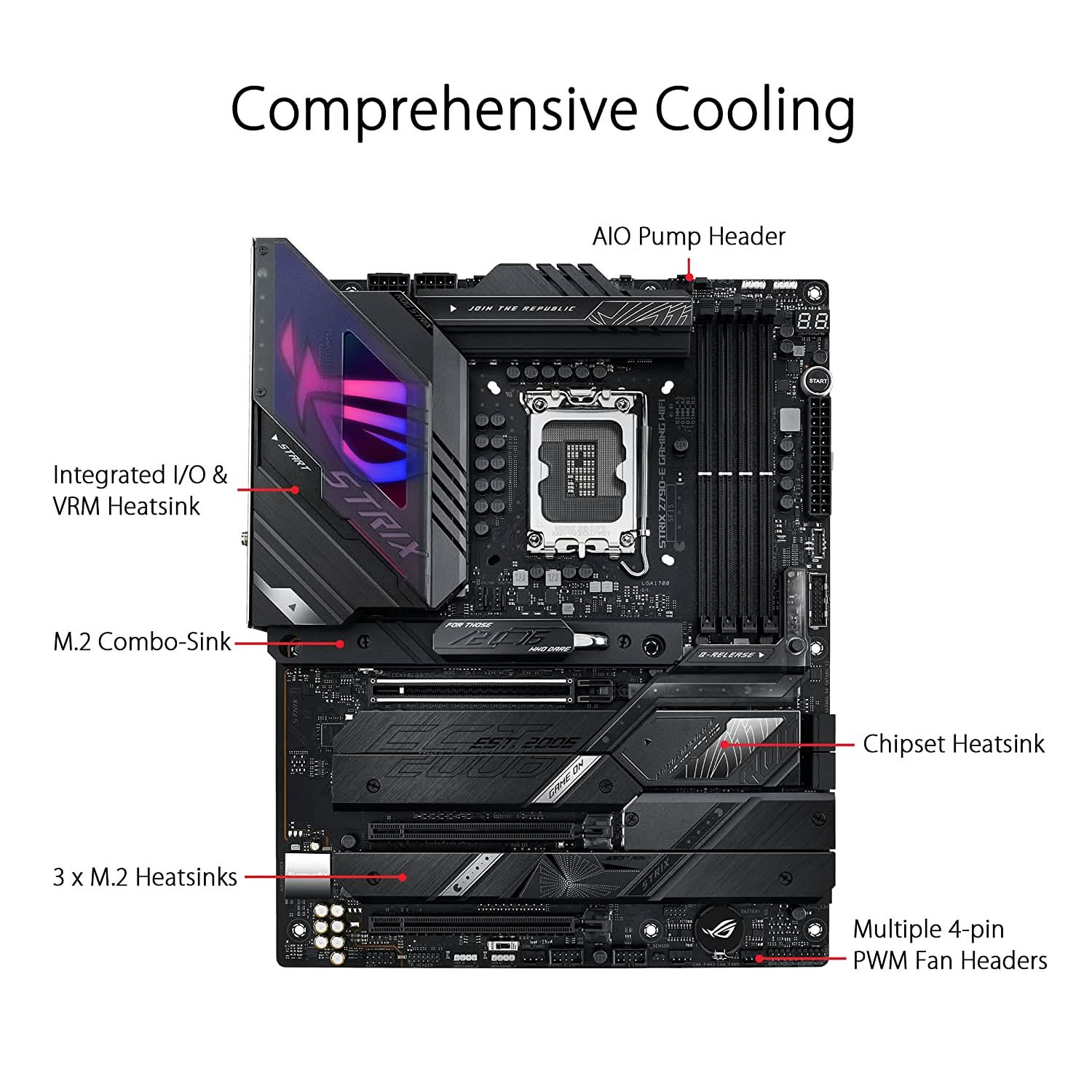

| ASUS Thermal Solution | |
| - M.2 heatsink backplate | |
| - M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBackô button | |
| - BIOS FlashBackô LED | |
| - Clear CMOS button | |
| - CPU Socket lever protector | |
| - ProCool II | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| AURA Sync | |
| - AURA RGB header | |
| - Addressable Gen 2 RGB headers | |
| Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support | |
| - Support: up to 30W charging | |
| - Output: 5/9V max. 3A, 12V max 2.5A | |
| - Compatible with PD3.0 | |
| Software Features | ROG Exclusive Software |
| - GameFirst VI | |
| - ROG CPU-Z | |
| - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
| - Sonic Radar III | |
| - DTSÆ Sound Unbound | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - AIDA64 Extreme (60 days free trial) | |
| - Aura Creator- Aura Sync | |
| - Xpert 4 (with AI Cooling II) | |
| - Power Saving | |
| - Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| - Easy Optimization with AI Overclocking | |
| - TPU | |
| - DIGI+ VRM | |
| - Turbo app | |
| - PC Cleaner | |
| MyAsus | |
| Norton 360 for Gamers | |
| WinRAR | |
| UEFI BIOS | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| MemTest86 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Additional Cooling Kit | |
| 1 x DDR5 Fan holder | |
| 1 x VRM Fan holder | |
| 1 x Thermal pad for M.2 | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x Cable ties package | |
| 1 x M.2 backplate Q-Latch package | |
| 1 x M.2 Q-Latch package | |
| 1 x ROG key chain | |
| 1 x ROG Strix stickers | |
| 1 x ROG Strix thank you card | |
| 2 x M.2 Rubber Packages | |
| 1 x M.2 backplate Rubber | |
| PackageDocumentation | |
| 1 x User guide | |
| Operating System | WindowsÆ 11, WindowsÆ 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Warranty | 3 Years |
