Description
Features
IntelÆ H470 (LGA 1200) ATX gaming motherboard with M.2, 10 teamed power stages, IntelÆ LAN, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 ports, Thunderboltô 3 support, and Aura Sync RGB lighting
- IntelÆ LGA 1200 socket: Ready for 10th Gen IntelÆ Coreô processors
- Enhanced power solution: 10 power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and FAN Xpert 4 utility
- Next-gen connectivity: USB 3.2 Gen 2 Type-C and Thunderbolt 3ô support
- Made for online gaming: IntelÆ Ethernet Connection I219-V, TUF LANGuard and TurboLAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips.
Specifications
| CPU | IntelÆ Socket 1200 for 10th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors * |
| Supports IntelÆ 14 nm CPU | |
| Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0** | |
| **IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
Chipset | IntelÆ B460 |
Memory | 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * |
| Dual Channel Memory Architecture | |
| Supports IntelÆ Extreme Memory Profile (XMP) | |
| OptiMem | |
| * 10th Gen IntelÆ Coreôi9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
Graphic | Integrated Graphics Processor |
| 1 x DisplayPort 1.4 ** | |
| 1 x HDMI 1.4b | |
| *Graphics specifications may vary between CPU types. | |
| **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. | |
Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
Expansion Slots | IntelÆ 10th Gen Processors |
| 1 x PCIe 3.0 x16 (x16 mode) | |
| IntelÆ B460 Chipset | |
| 1 x PCIe 3.0 x16 (x4 mode) *1 | |
| 3 x PCIe 3.0 x1 *1 | |
Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports |
| IntelÆ B460 Chipset : | |
| 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 | |
| 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) | |
| 6 x SATA 6Gb/s port(s) | |
| Support Raid 0, 1, 5, 10 | |
| IntelÆ Rapid Storage Technology supports | |
| IntelÆ Optaneô Memory Ready *3 | |
LAN | IntelÆ I219-V 1Gb Ethernet |
Wireless Data Network | IntelÆ Wi-Fi 6 AX200 |
| 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO | |
| Supports up to 2.4Gbps max data rate | |
| Supports dual band frequency 2.4/5 GHz | |
| Supports channel bandwidth: HT20/HT40/HT80/HT160 | |
| Supports PCIe interface | |
Bluetooth | Bluetooth v5.1* |
| *BT 5.1 function will be ready in Windows 10 build 19041 or later. | |
Audio | Realtek ALC S1200A 8-Channel High Definition Audio CODEC * |
| - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback | |
| Audio Feature : | |
| - Exclusive DTS Custom for GAMING Headsets. | |
| - Audio cover | |
| - Audio Shielding | |
| - Dedicated audio PCB layers | |
| - Premium Japanese audio capacitors | |
| * Choose the chassis with HD audio module in front panel to support 8-channel audio output. | |
USB Ports | Rear USB Port ( Total 6 ) |
| 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) | |
| 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) | |
| Front USB Port ( Total 6 ) | |
| 2 x USB 3.2 Gen 1 port(s) | |
| 4 x USB 2.0 port(s) | |
Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - Aura Sync | |
| AI Suite 3 | |
| - Performance And Power Saving Utility | |
| Digi+ VRM | |
| EPU | |
| Fan Xpert 4 | |
| - EZ update | |
| - PC Cleaner | |
| - System Information | |
| AI Charger | |
| ASUS Turbo LAN | |
| DTS Custom for GAMING Headsets | |
| Norton Anti-virus software (Free Trial for 60 days) | |
| DAEMON Tools | |
| Google Chrome Browser & Google Toolbar | |
| TUF GAMING CPU-Z | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
ASUS Special Features | ASUS TUF PROTECTION |
| - ASUS DIGI+ VRM | |
| - ASUS Enhanced DRAM Overcurrent Protection | |
| - ASUS ESD Guards | |
| - ASUS LANGuard | |
| - ASUS Overvoltage Protection | |
| - ASUS SafeSlot Core+ | |
| - ASUS Stainless-Steel Back I/O | |
| ASUS Q-Design : | |
| - ASUS Q-DIMM | |
| - ASUS Q-Slot | |
| - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| ASUS Thermal Solution: | |
| - Aluminum M.2 heatsink | |
| - Aluminum heatsink design | |
| ASUS EZ DIY | |
| - Box Headers | |
| AURA Sync | |
| - Addressable Gen 2 RGB header | |
| - Standard RGB headers | |

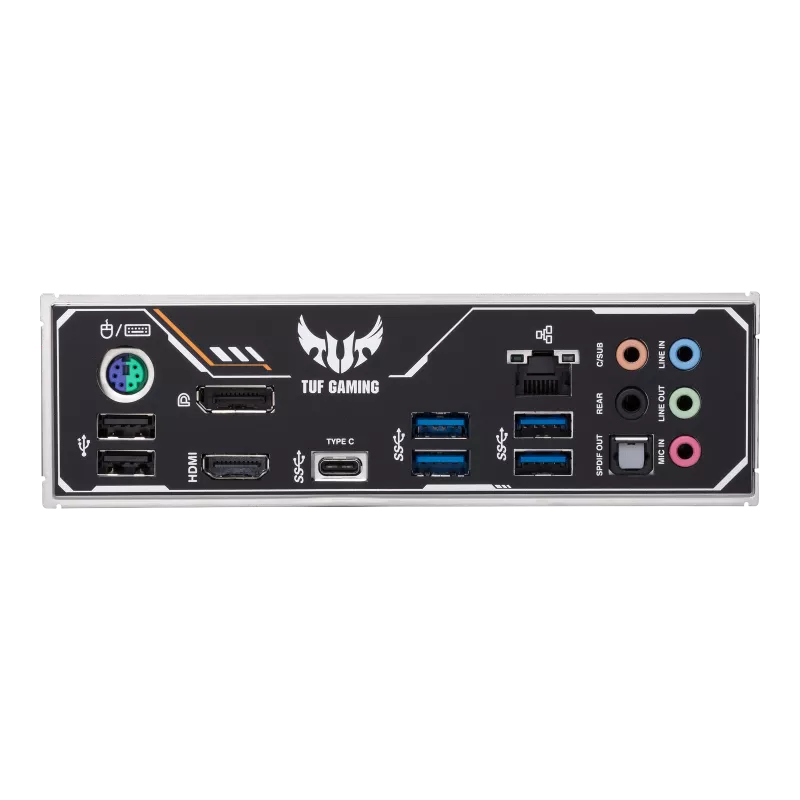

Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) |
| 1 x DisplayPort | |
| 1 x HDMI | |
| 1 x LAN (RJ45) port(s) | |
| 2 x USB 3.2 Gen 2 Type-A | |
| 4 x USB 3.2 Gen 1 Type-A | |
| 3 x Audio jack(s) | |
| 1 x ASUS Wi-Fi Module | |
Internal I/O Ports | 1 x CPU Fan connector(s) |
| 1 x CPU OPT Fan connector(s) | |
| 2 x Chassis Fan connector(s) | |
| 1 x AIO_PUMP connector | |
| 2 x Aura RGB Strip Headers | |
| 1 x Addressable Gen 2 header(s) | |
| 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) | |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) | |
| 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) | |
| 6 x SATA 6Gb/s connector(s) | |
| 1 x 24-pin EATX Power connector(s) | |
| 1 x 8-pin EATX 12V Power connectors | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 1 x Clear CMOS jumper(s) | |
| 1 x System panel connector | |
| 1 x COM port header | |

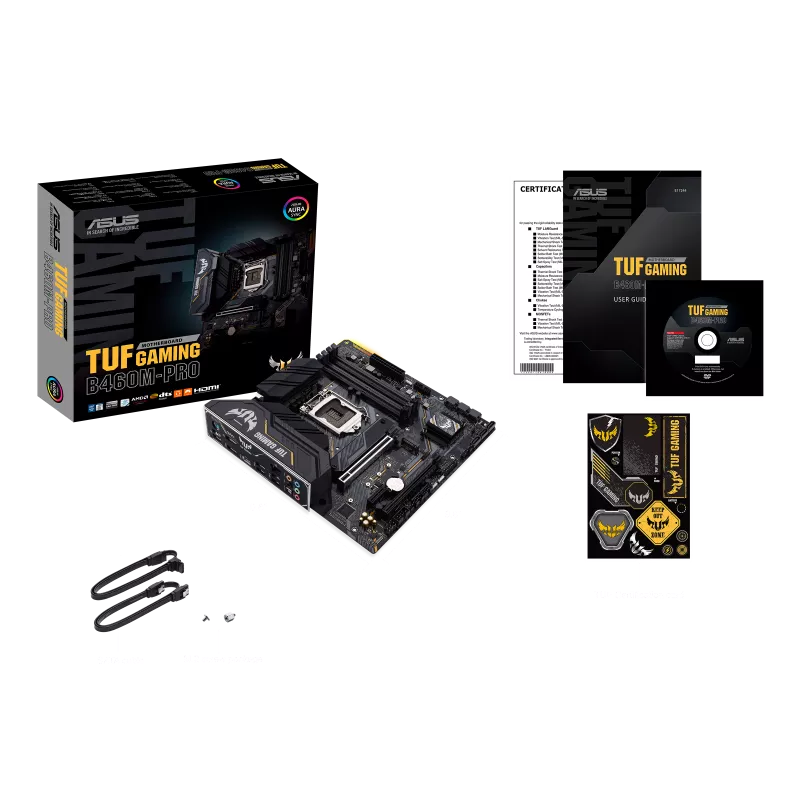

Accessories | User¥s manual |
| I/O Shield | |
| 2 x SATA 6Gb/s cable(s) | |
| 1 x Supporting DVD | |
| 1 x TUF Gaming Sticker | |
| 1 x TUF Certification card(s) | |
| 1 x Wi-Fi moving antenna | |
| 1 x M.2 SSD screw package(s) | |
| 1 x M.2 Rubber Package(s) | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Operating System | WindowsÆ 10 64-bit |
Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
Note | *1 By default, the PCIe x16_2 slot is set to run in x4 mode and shares bandwidth with the PCIe x1_1, PCIe x1_2 or PCIe x3 slot. When a PCIe device is detected in any of the PCIe x1 slots, the PCIe x16_2 slot will run in x1 mode. |
| *2 M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. | |
| *3 Only the M.2_2 socket can support IntelÆ Optaneô Memory Ready. | |
| *4 NVME RAID is supported with M.2_2 and PCIe X16_1.PCIe x16_1¥s device needs to use Intel brand. |
