Description
| CPU | AMD Ryzenô 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipset | AMD B550 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| * ECC Memory (ECC mode) support varies by CPU. | |
| * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. | |
| Graphics | 1 x DisplayPort 1.2 |
| 1 x HDMITM 2.1(4K@60HZ) | |
| Expansion Slots | AMD Ryzenô 5000 Series/ 3000 Series Desktop Processors |
| 1 x PCIe 4.0 x16 slot (supports x16 mode) | |
| AMD Ryzenô 5000 G-Series/ 4000 G-Series Desktop Processors | |
| 1 x PCIe 3.0 x16 slot (supports x16 mode) | |
| AMD B550 Chipset | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode)* | |
| 3 x PCIe 3.0 x1 slot* | |
| *PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied. | |
| **Support PCIe bifurcation for RAID on CPU function. | |
| Storage | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports |
| AMD Ryzenô 5000 Series/ 3000 Series Desktop Processors : | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |
| AMD Ryzenô 5000 G-Series/ 4000 G-Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) | |
| AMD B550 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* | |
| 6 x SATA 6Gb/s ports | |
| Support Raid 0, 1, 10 | |
| *M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2 |
| 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5GHz frequency band | |
| Bluetooth v5.2* | |
| *Bluetooth v5.2 function will be ready in Windows 11 or later. | |
| USB | Rear USB:Total 8 ports |
| 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-CÆ) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB:Total 6 ports | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback" | |
| Audio Features | |
| - Audio Shielding | |
| - Rear optical S/PDIF out port | |
| - Premium Japanese audio capacitors | |
| - Dedicated audio PCB layers | |
| - Audio Cover | |

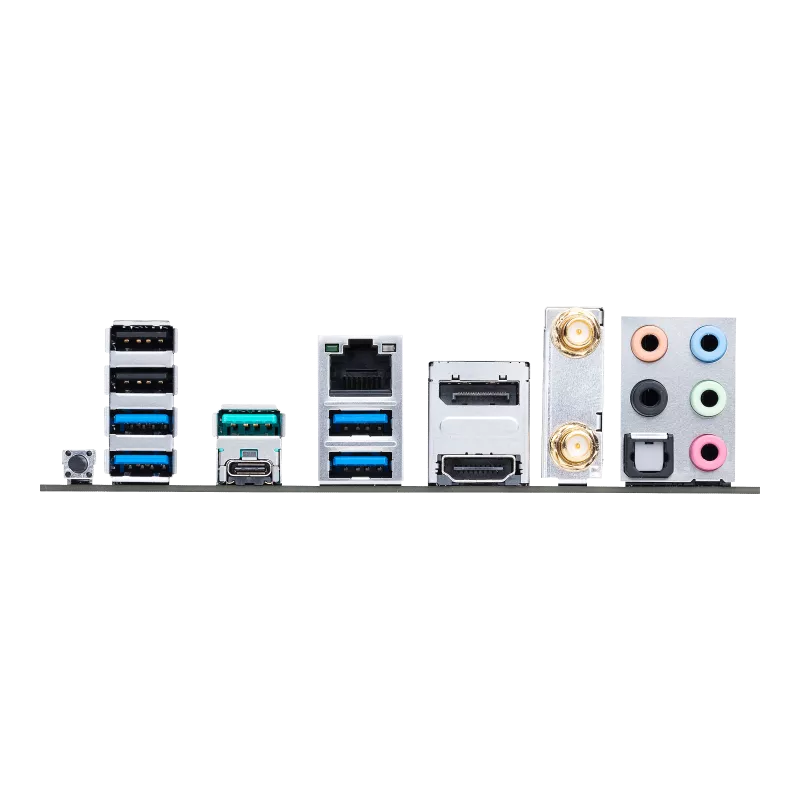

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-CÆ) |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMIô port | |
| 1 x ASUS Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBackô button | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header(s) | |
| 1 x 4-pin CPU OPT Fan header(s) | |
| 1 x 4-pin AIO Pump header(s) | |
| 3 x 4-pin Chassis Fan header(s) | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 6 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 2 x AURA Addressable Gen 2 header(s) | |
| 2 x AURA RGB header(s) | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-3 pin System Panel header | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt header | |
| Special Features | ASUS TUF PROTECTION |
| - ASUS DIGI+ VRM (Digital power design with Dr. MOS) | |
| - ASUS Enhanced DRAM Overcurrent Protection | |
| - ASUS ESD Guards | |
| - TUF LANGuard | |
| - ASUS Overvoltage Protection | |
| - ASUS SafeSlot | |
| - ASUS Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - ASUS Q-DIMM | |
| - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - ASUS Q-Slot | |
| ASUS Thermal Solution | |
| - Aluminum M.2 heatsink | |
| ASUS EZ DIY | |
| - BIOS FlashBackô button | |
| - BIOS FlashBackô LED | |
| - Procool | |
| AURA Sync | |
| - AURA RGB header(s) | |
| - Addressable Gen 2 RGB header(s) | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - Aura Sync | |
| - Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| - Performance And Power Saving Utility | |
| TurboV EVO | |
| EPU | |
| Digi+ VRM | |
| Fan Xpert 4 | |
| PC Cleaner | |
| - EZ update | |
| - System Information | |
| Aura Creator | |
| TUF GAMING CPU-Z | |
| DTS Custom for GAMING Headsets | |
| Norton Anti-virus software (Free Trial for 60 days) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 10 64bit |
| Form Factor | ATX |
| 30.5cm x 24.4cm | |
| Warranty | 3 Years |
