SPECIFICATIONS
| CPU | IntelÆ Socket LGA1200 for 11th Gen IntelÆ Coreô Processors & 10th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors Supports IntelÆ 14 nm CPU Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | B560 |
| Memory | DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/ 4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/ 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports IntelÆ Extreme Memory Profile (XMP) OptiMem II * 10th Gen IntelÆ Coreô i7/i9 processors support 2933/ 2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen IntelÆ processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics | 1 x DisplayPort 1.4** 1 x HDMIô 1.4 / 2.0*** * Graphics specifications may vary between CPU types. ** IntelÆ 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. *** Only IntelÆ 11th Gen processors support HDMIô 2.0 with max. resolution of 4K@60Hz, others will only support HDMIô 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4) IntelÆ 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s)* - IntelÆ 11th Gen processors support PCIe 4.0 x16 - IntelÆ10th Gen processors support PCIe 3.0 x16 IntelÆ B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slots |
| Storage | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports IntelÆ11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only IntelÆ 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs IntelÆ B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports To enable IntelÆ Optaneô Memory (Hybrid Storage device), it must be installed in PCH-attached slots with IntelÆ Rapid Storage Technology. * M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | IntelÆ Wi-Fi 6 IntelÆ Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later |
| USB | 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-CÆ) 4 x USB 2.0 port(s) (4 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-CÆ) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Audio | Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers |

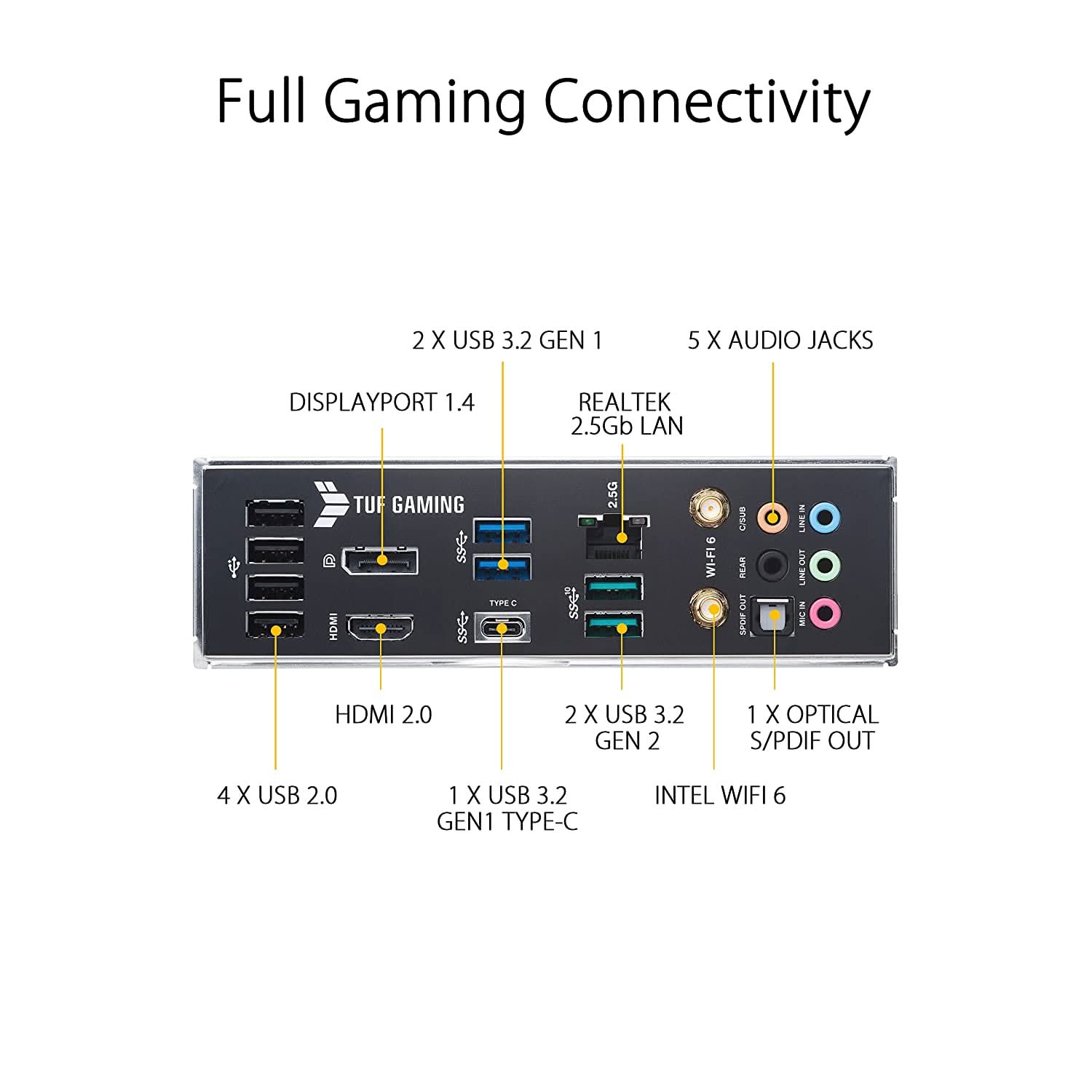

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 port(s) (2 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-CÆ) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMIô port 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-CÆ) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderboltô header |

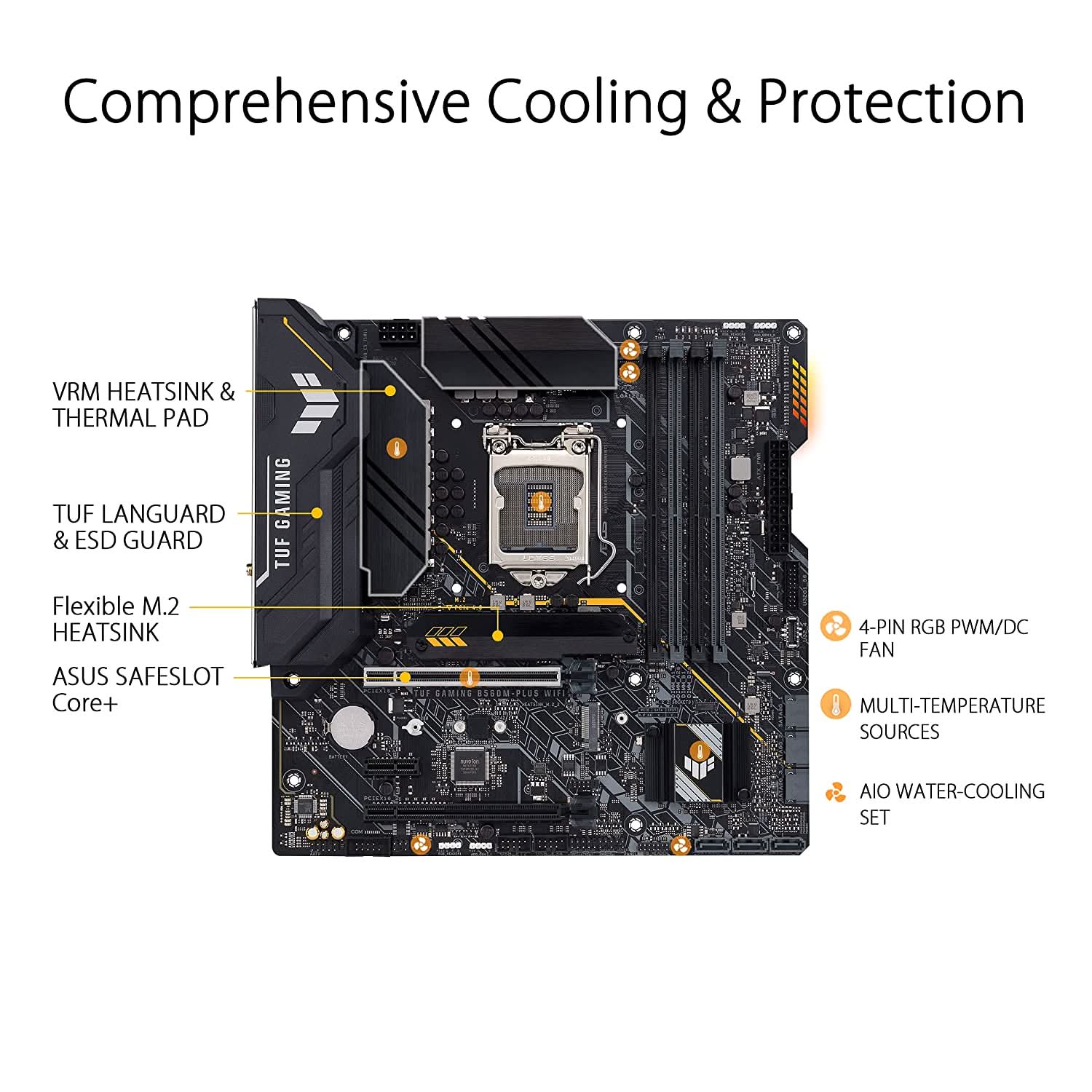

| Special Features | ASUS TUF PROTECTION - Digital power design with DrMOS - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) |
| Software Features | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

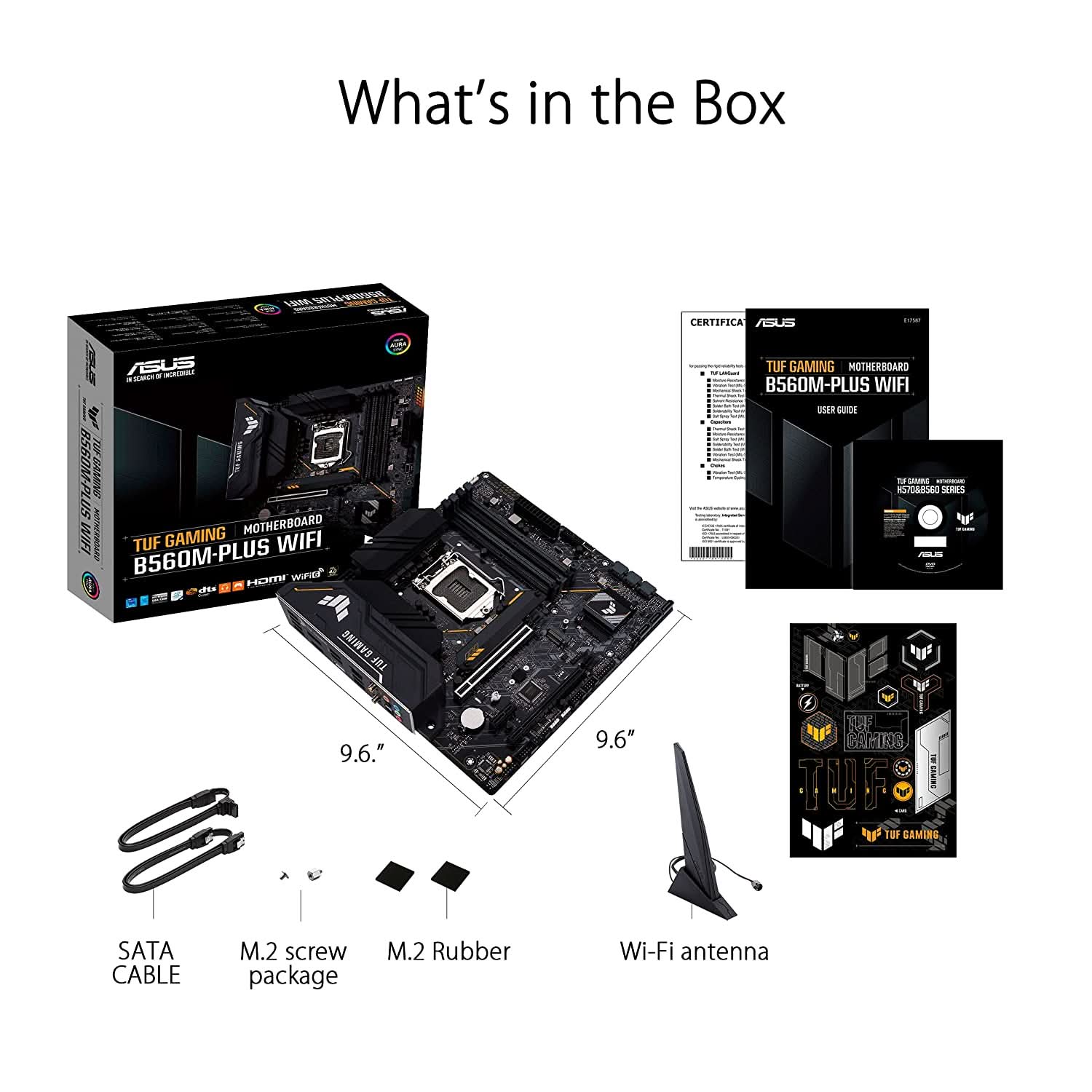

| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User manual |
| Form Factor | microATX 24.4cm x 24.4cm |
