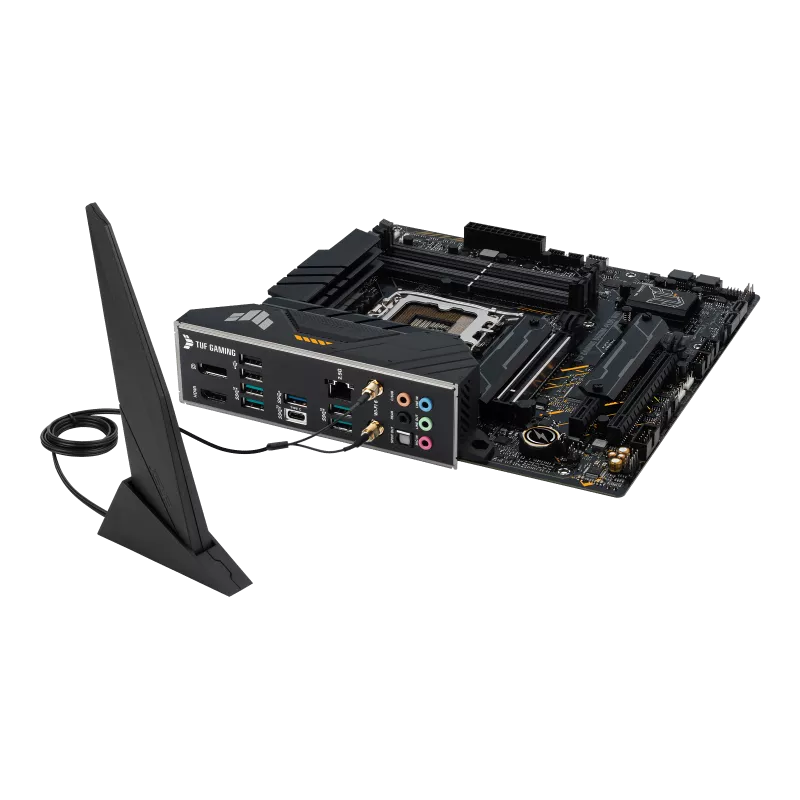

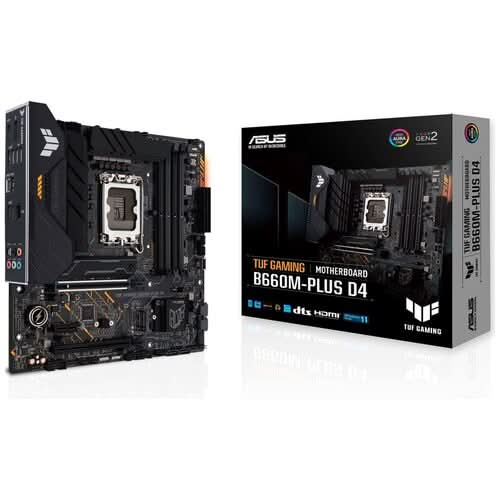

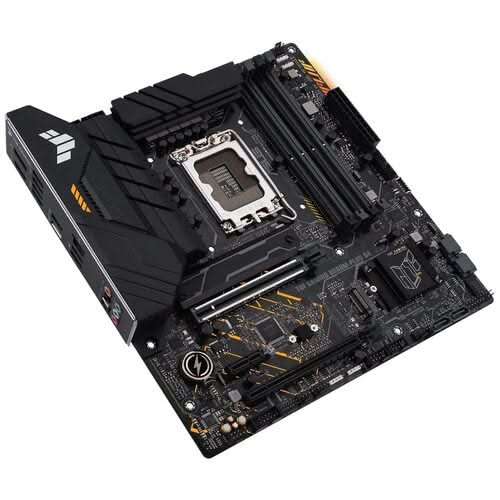

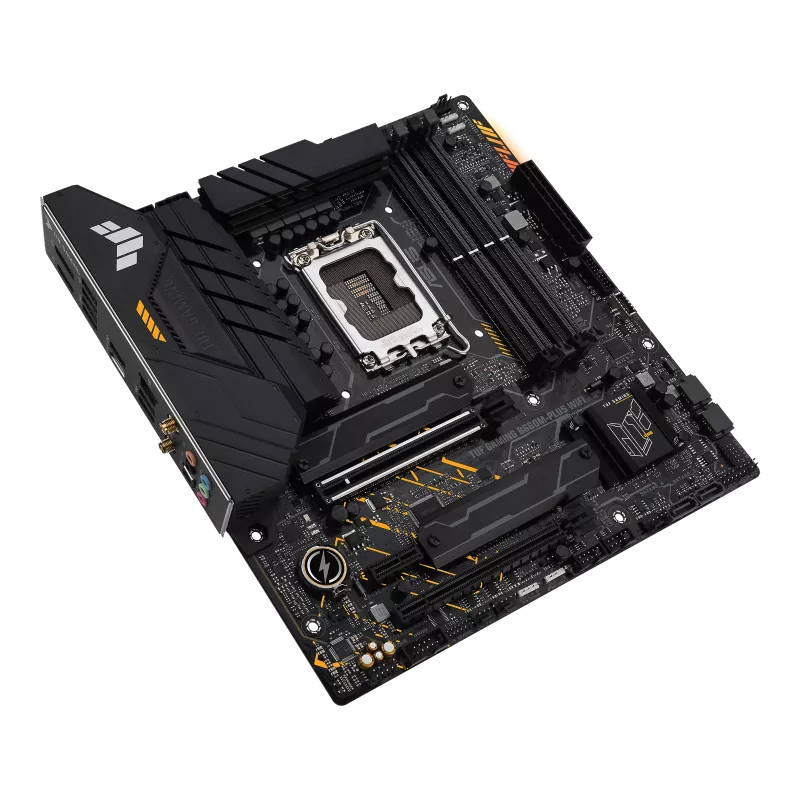

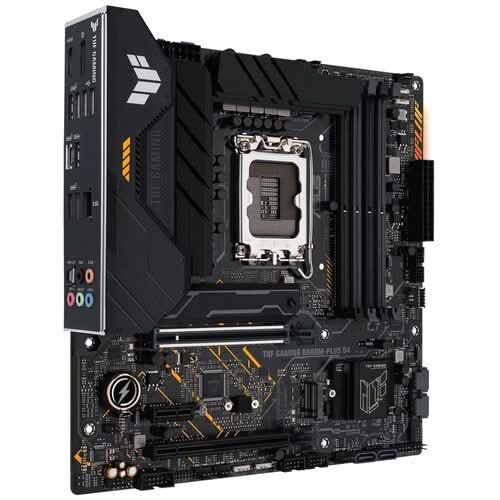

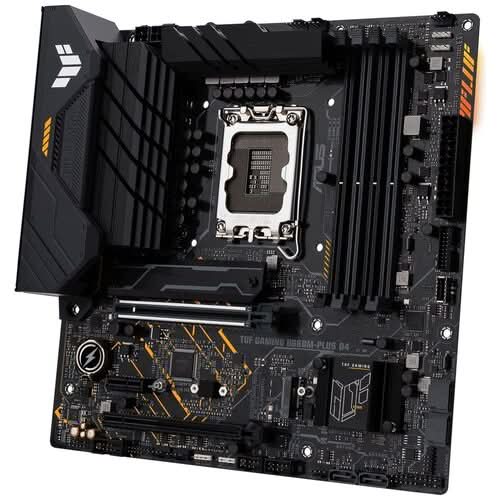

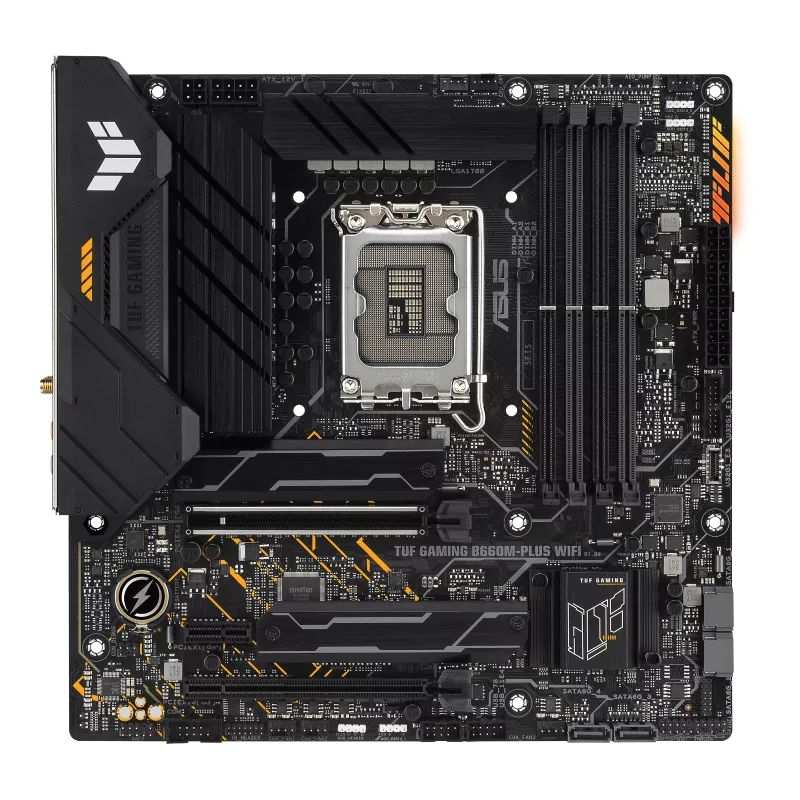

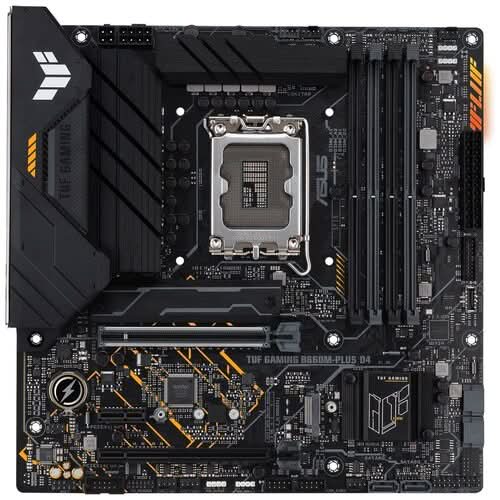

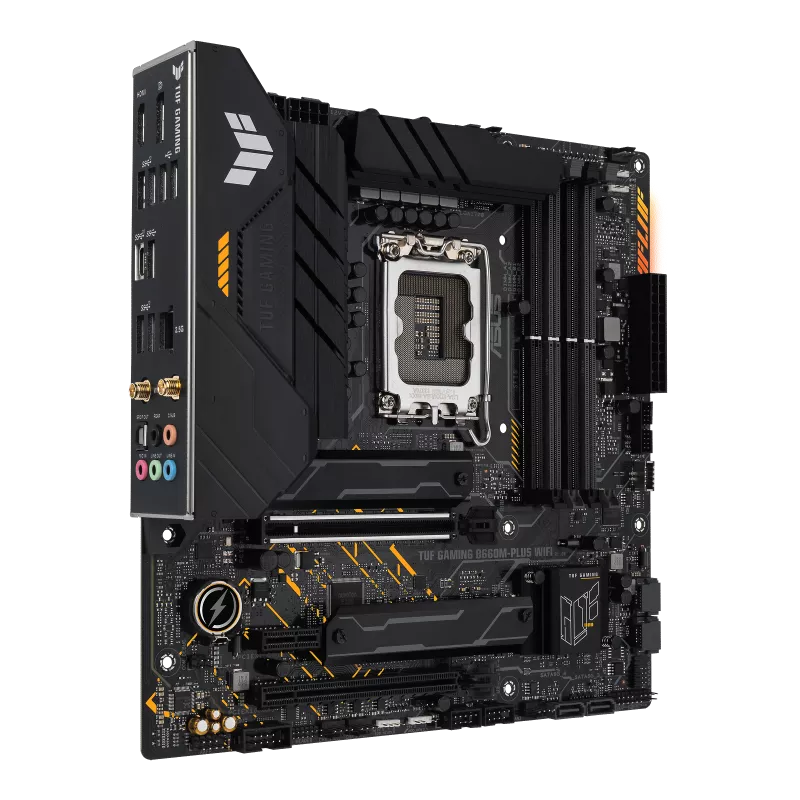

TUF GAMING B660M-PLUS WIFI D4 Specifications
| CPU | IntelÆ Socket LGA1700 for 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors* |
| Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list. | |
| ** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | IntelÆ B660 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC) /3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC) /3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports IntelÆ Extreme Memory Profile (XMP) | |
| OptiMem II | |
| *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMIÆ port*** | |
| *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
| ***Supports 4K@60Hz as specified in HDMI 2.1. | |
| **** VGA resolution support depends on processors' resolution. | |
| Expansion Slots | IntelÆ 12th Gen Processors |
| 1 x PCIe 5.0 x16 slot | |
| IntelÆ B660 Chipset* | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0 x1 slot | |
| * Supports IntelÆ Optane Memory H Series on PCH-attached PCIe slot. | |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| IntelÆ 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 | |
| - IntelÆ 12th Gen processors support PCIe 4.0 x4 mode. | |
| IntelÆ B660 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| * IntelÆ Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| ** IntelÆ Rapid Storage Technology supports IntelÆ Optane Memory H Series on PCH attached M.2 slots. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| TUF LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2* *Bluetooth v5.2 function will be ready in Windows 11 or later. |
| USB | Rear USB (Total 8 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) | |
| 4 x USB 3.2 Gen 2 ports (4 x Type-A) | |
| 1 x USB 3.2 Gen 1 port (1 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| Audio Features | |
| - Audio Shielding | |
| - Power pre-regulator reduces power input noise to ensure consistent performance | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |

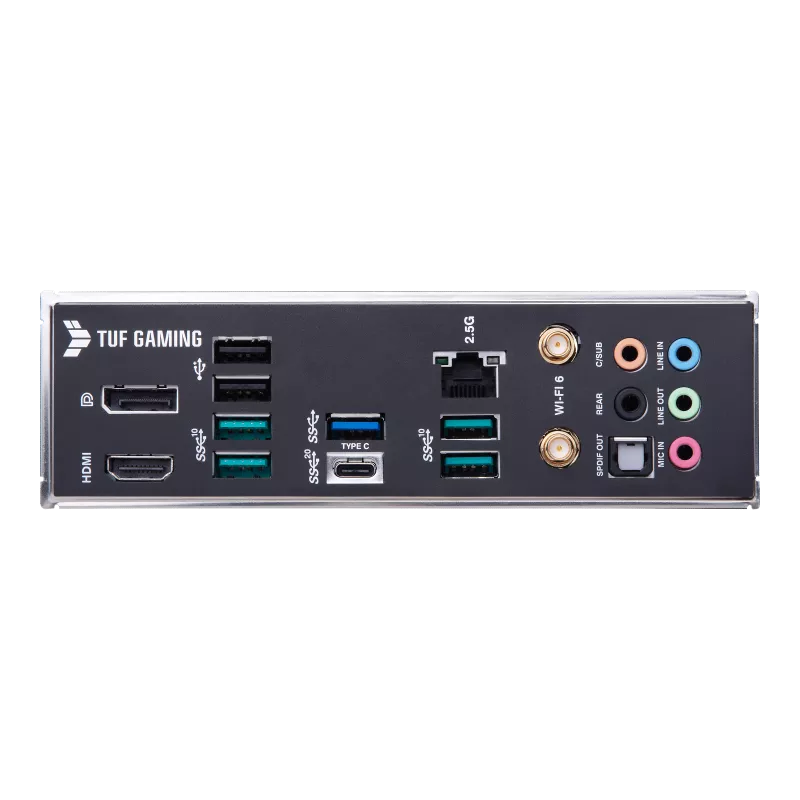

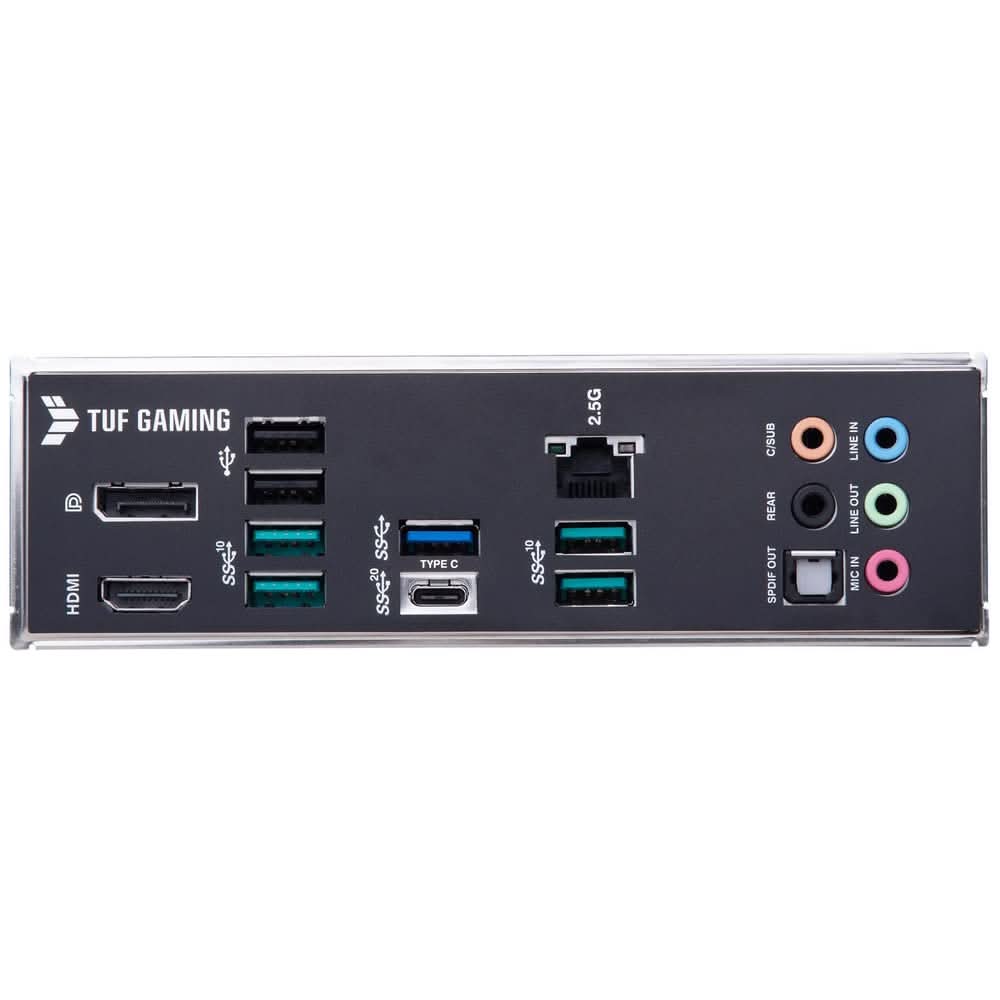

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) |
| 4 x USB 3.2 Gen 2 ports (4 x Type-A) | |
| 1 x USB 3.2 Gen 1 port (1 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMIÆ port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x AURA RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thunderboltô header | |
| Special Features | ASUS TUF PROTECTION |
| - DIGI+ VRM (- Digital power design with DrMOS) | |
| - Enhanced DRAM Overcurrent Protection | |
| - ESD Guards | |
| - TUF LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - Flexible M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - CPU Socket lever protector | |
| - ProCool | |
| - Pre-mounted I/O shield | |
| - SafeDIMM | |
| AURA Sync | |
| - AURA RGB header | |
| - Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - AURA Creator | |
| - AURA Sync | |
| - Fan Xpert 2+ | |
| - Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| - Performance And Power Saving Utility | |
| TurboV EVO | |
| EPU | |
| DIGI+ VRM | |
| TUF GAMING CPU-Z | |
| DTS Audio Processing | |
| MyASUS | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

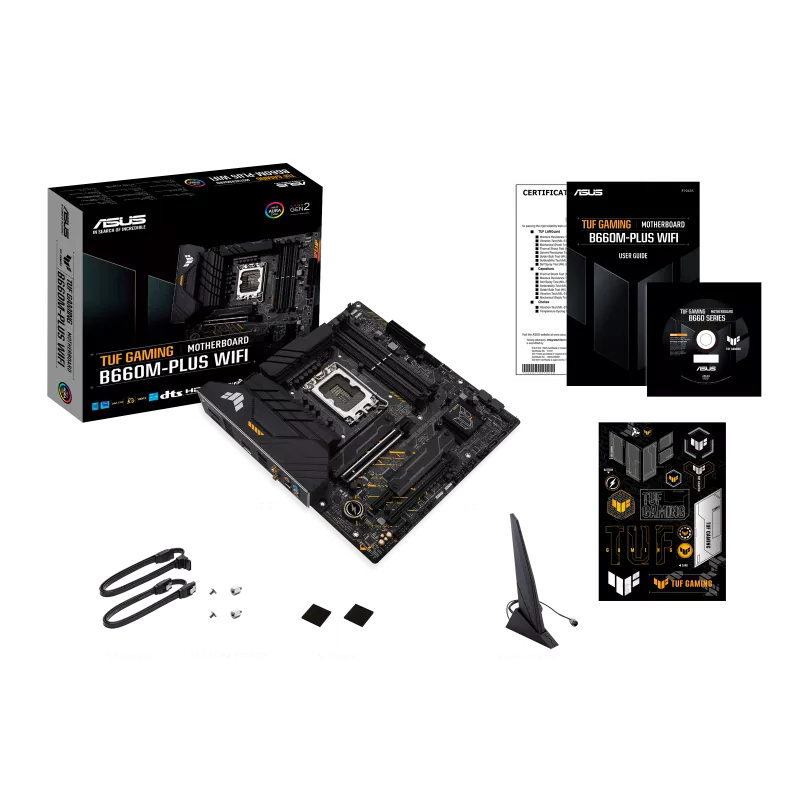

| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x M.2 Rubber Package | |
| 1 x M.2 SSD screw package | |
| 1 x TUF Gaming sticker | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x TUF Certification card | |
| 1 x User guide | |
| Operating System | WindowsÆ 11 64-bit, WindowsÆ 10 64-bit |
| Form Factor | mATX Form Factor |
| 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | |
| Product (mm)_ L*W*H dimension | 244mm*244mm*50mm |
| Color Box (mm)_ L*W*H dimension | 277mm*277mm*69mm |
| Motherboard only weight | 0.991kg |
| Full package weight | 1.6072kg+B139:B152A1A2:B152 |
| Product (mm)_ L*W*H | 244mm*244mm*50mm |
| Color Box (mm)_ L*W*H | 277mm*277mm*69mm |
