Description
Features
- AMD AM4 Socket: Ready for 2nd and 3rd Gen AMD Ryzen processors
- Enhanced Power Solution: 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
- Next-Gen Connectivity: Dual PCIe 4.0 M.2, USB 3.2 Gen 2 ports, exclusive Realtek L8200A Gigabit Ethernet, TUF LAN Guard and Turbo LAN technology
- Realtek S1200A Codec: Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
- TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
Specifications
| CPU | AMD AM4 Socket 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/AMD Ryzen 2nd Generation/3rd Gen AMD Ryzen Processors |
| Chipset | AMD X570 |
| Memory | 3rd Gen AMD Ryzen Processors |
| 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3400(O.C.)/ | |
| 3200(O.C.)/3000(O.C.)/2933(O.C.)/ | |
| 2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory | |
| 2nd Gen AMD Ryzen Processors | |
| 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/ | |
| 3200(O.C.)/3000(O.C.)/2933(O.C.)/ | |
| 2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory | |
| 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors | |
| 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/ | |
| 2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory | |
| Dual Channel Memory Architecture | |
| ECC Memory (ECC mode) support varies by CPU. | |
| Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors |
| Multi-VGA output support : HDMI/DisplayPort ports | |
| - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz | |
| - Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz | |
| Multi-GPU Support | 3rd and 2nd Gen AMD Ryzen Processors |
| AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors | |
| Supports AMD CrossFireX Technology | |
| Expansion Slots | 3rd Gen AMD Ryzen Processors |
| 1 x PCIe 4.0 x16 (x16 mode) | |
| 2nd Gen AMD Ryzen Processors | |
| 1 x PCIe 3.0 x16 (x16 mode) | |
| 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors | |
| 1 x PCIe 3.0/2.0 x16 (x8 mode) | |
| AMD X570 chipset | |
| 1 x PCIe 4.0 x16 (max at x4 mode) | |
| 3 x PCIe 4.0 x1 | |
| Storage | 3rd Gen AMD Ryzen Processors : |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support | |
| 2nd Gen AMD Ryzen Processors : | |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support | |
| AMD X570 chipset : | |
| 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support | |
| 8 x SATA 6Gb/s port(s) | |
| Support Raid 0, 1, 10 | |
| LAN | Realtek L8200A |
| ASUS Turbo LAN Utility | |
| TUF LAN Guard | |
| Audio | Realtek ALC S1200A 8-Channel High Definition Audio CODEC |
| Audio Feature : | |
| Exclusive DTS Custom for GAMING Headsets. | |
| Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference | |
| Dedicated Audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive Audio signals | |
| Premium Japanese Audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity | |
| Audio Cover: Effective Shielding preserves the integrity of Audio signals to ensure best quality. | |
| USB Ports | 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : |
| 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) | |
| AMD X570 chipset : | |
| 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM) | |
| AMD X570 chipset : | |
| 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) | |
| AMD X570 chipset : | |
| 4 x USB 2.0 port(s) (4 at mid-board) | |
| Special Features | ASUS TUF PROTECTION |
| ASUS Safe Slot: Protect your graphics card Investment | |
| ASUS ESD guard: Enhanced ESD protection | |
| ASUS Overvoltage protection: World-class circuit-protecting power design | |
| ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! | |
| ASUS DIGI+ VRM: precision control for stable power | |
| ASUS LAN Guard: Protects against LAN surges, lightning strikes and static-electricity discharges! | |
| AURA : | |
| Aura Lighting control | |
| Aura RGB Strip Headers | |
| Addressable Gen 2 Header | |
| ASUS Exclusive Features : | |
| AI Suite 3 | |
| AI Charger | |
| ASUS Quiet Thermal Solution : | |
| Stylish design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink | |
| ASUS Fan Xpert 4 | |
| ASUS EZ DIY : | |
| ASUS Crash Free BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| ASUS Q-Design : | |
| ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
| ASUS Q-Slot | |
| ASUS Q-DIMM | |
| DIY Friendly Design | |
| Procool | |
| Safe Slot | |
| DIGI+ VRM | |
| Highly Durable components | |
| ESD Guards | |

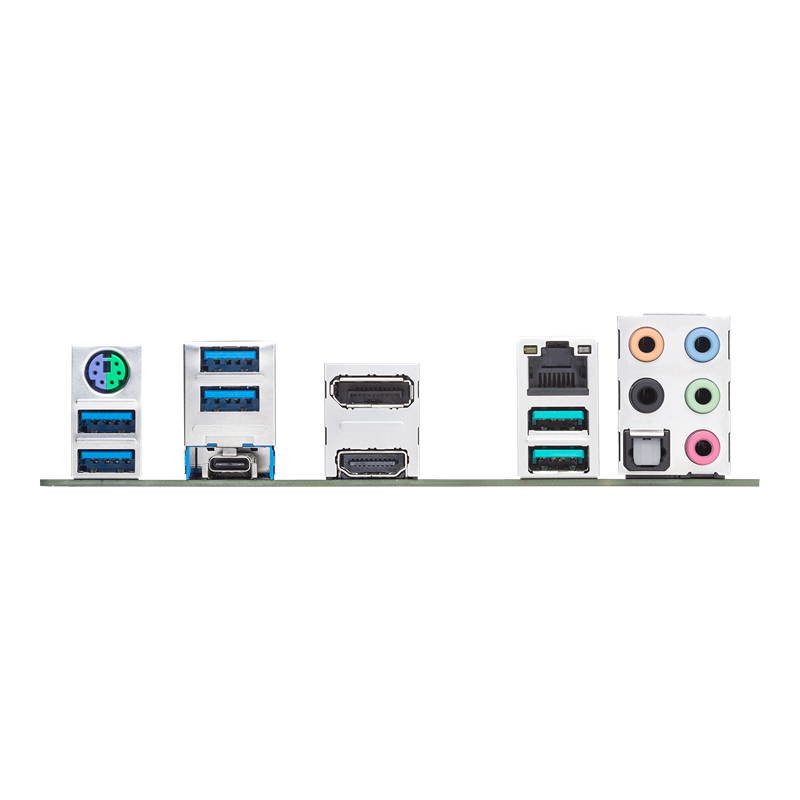

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) |
| 1 x DisplayPort | |
| 1 x HDMI | |
| 1 x LAN (RJ45) port(s) | |
| 1 x Optical S/PDIF out | |
| 5 x Audio jack(s) | |
| 4 x USB 3.2 Gen 1 (up to 5Gbps) ports | |
| 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM) | |
| Internal I/O Ports | 2 x Aura RGB Strip Header(s) |
| 1 x Addressable Gen 2 header(s) | |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) | |
| 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) | |
| 1 x SPI TPM header | |
| 8 x SATA 6Gb/s connector(s) | |
| 1 x CPU Fan connector(s) | |
| 1 x CPU OPT Fan connector(s) | |
| 3 x Chassis Fan connector(s) | |
| 1 x AIO_PUMP connector | |
| 1 x 24-pin EATX Power connector(s) | |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x 4-pin ATX 12V Power connector(s) | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 1 x System panel(s) | |
| 1 x Clear CMOS jumper(s) | |
| 1 x COM port header | |
| 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports | |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, Crash Free BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 Print Screen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WOL by PME, PXE |
| Operating System | Windows 10 64-bit |
| Product Dimensions | ?33.81 x 27.28 x 6.81 cm |
| Weight | ?1 kg 180 g |
| Warranty | 3 Years |
