Description
Specifications
| Specification | Details |
|---|---|

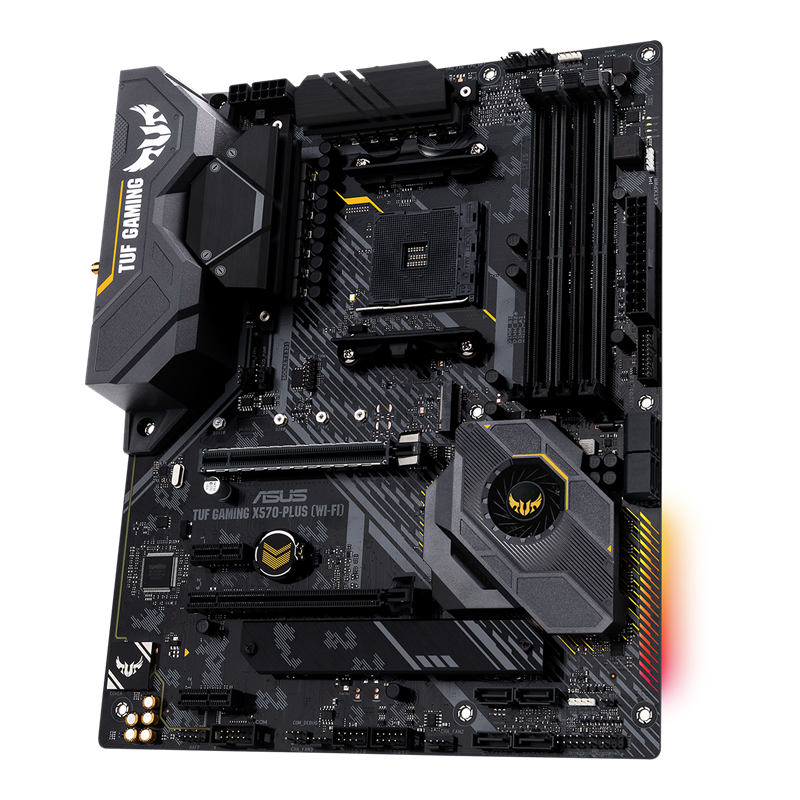

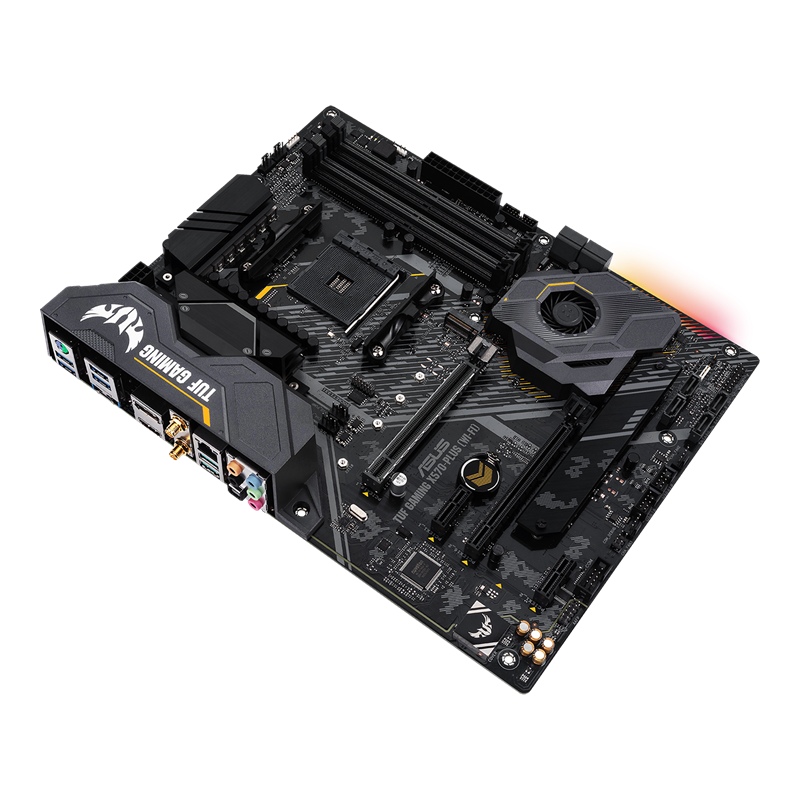

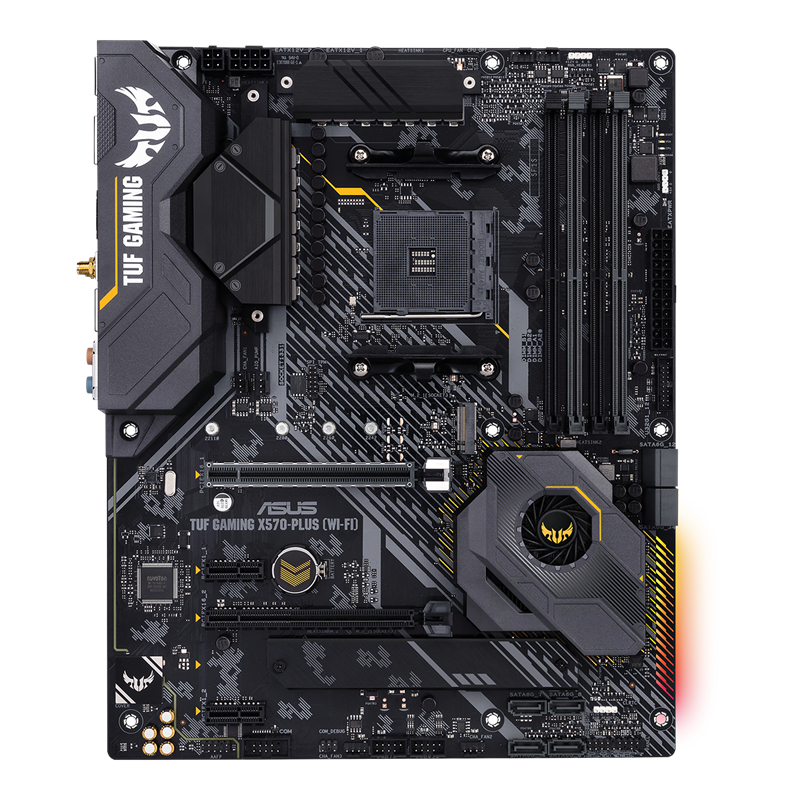

| Model | TUF GAMING X570-PLUS (WI-FI) |
| CPU | * Refer to www.asus.com for CPU support list.,AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors,* Due to CPU limitation, CPU cores supported varies by processors. |
| Chipset | AMD X570 |
| Memory | * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory,Dual Channel Memory Architecture,* The maximum memory frequency supported varies by processor. |
| Graphic | Integrated Graphics in AMD Ryzen 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors,Multi-VGA output support : HDMI/DisplayPort ports,- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz,- Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz |
| Multi-GPU Support | Supports AMD CrossFireX Technology |
| Expansion Slots | AMD Ryzen 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors , AMD Ryzen 5000 Series/ 3000 Series Desktop Processors , AMD Ryzen TM 3000 G-Series / 2000 G-Series Processors , AMD Ryzen 5000 Series/ 3000 Series Desktop Processors ,1 x PCIe 4.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0/2.0 x16 (x8 mode), AMD X570 chipset ,1 x PCIe 4.0 x16 (max at x4 mode),2 x PCIe 4.0 x1 |
| Storage | AMD Ryzen 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : , AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : ,1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support, AMD X570 chipset : ,1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support,8 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 |
| LAN | Realtek L8200A,ASUS Turbo LAN Utility,TUF LANGuard |
| Wireless Data Network | Intel Wireless-AC 9260,Wi-Fi 802.11 a/b/g/n/ac,Supports dual band frequency 2.4/5 GHz,Supports MU-MIMO,Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed |
| Bluetooth | Bluetooth 5.0 |
| Audio | Realtek ALC S1200A8-Channel High Definition Audio CODEC, Audio Feature : ,- Exclusive DTS Custom for GAMING Headsets.,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
| USB Ports | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : ,3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-C ),4 x USB 3.2 Gen 1 port(s) (4 at back panel, ),2 x USB 3.2 Gen 1 port(s) (2 at mid-board), AMD X570 chipset : ,4 x USB 2.0 port(s) (4 at mid-board) |
| Special Features | ASUS TUF PROTECTION ,- ASUS SafeSlot: Protect your graphics card Investment,- ASUS ESD Guard: Enhanced ESD protection,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM: Precision control for stable power,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!, AURA : ,- Aura Lighting Control,- Aura RGB Strip Headers,- Addressable Gen 2 Header, ASUS Exclusive Features :,- AI Suite 3,- Ai Charger, ASUS Quiet Thermal Solution :,- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink,- ASUS Fan Xpert 4, ASUS EZ DIY : ,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode, ASUS Q-Design : ,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM, DIY Friendly Design ,- Procool,- SafeSlot,- Digi+ VRM,- Highly Durable components,- ESD Guards |

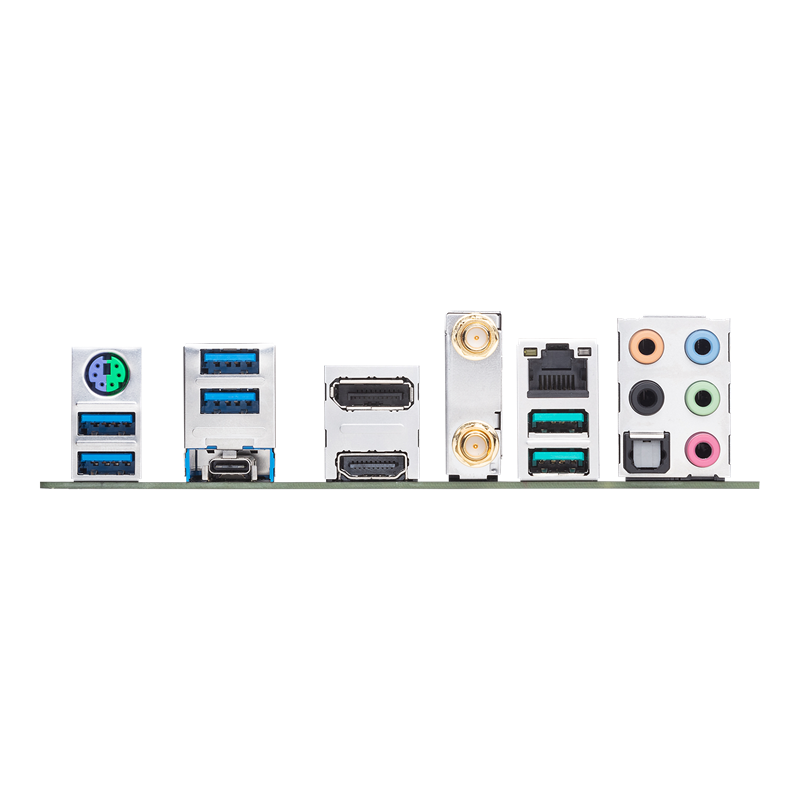

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s),1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),1 x Optical S/PDIF out,5 x Audio jack(s),4 x USB 3.2 Gen 1 (up to 5Gbps) ports,3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C TM ),ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) |
| Internal I/O Ports | 1 x COM port header,2 x Aura RGB Strip Header(s),1 x Addressable Gen 2 header(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode),1 x SPI TPM header,8 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),3 x Chassis Fan connector(s),1 x AIO_PUMP connector,1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x 4-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x COM port header,1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |

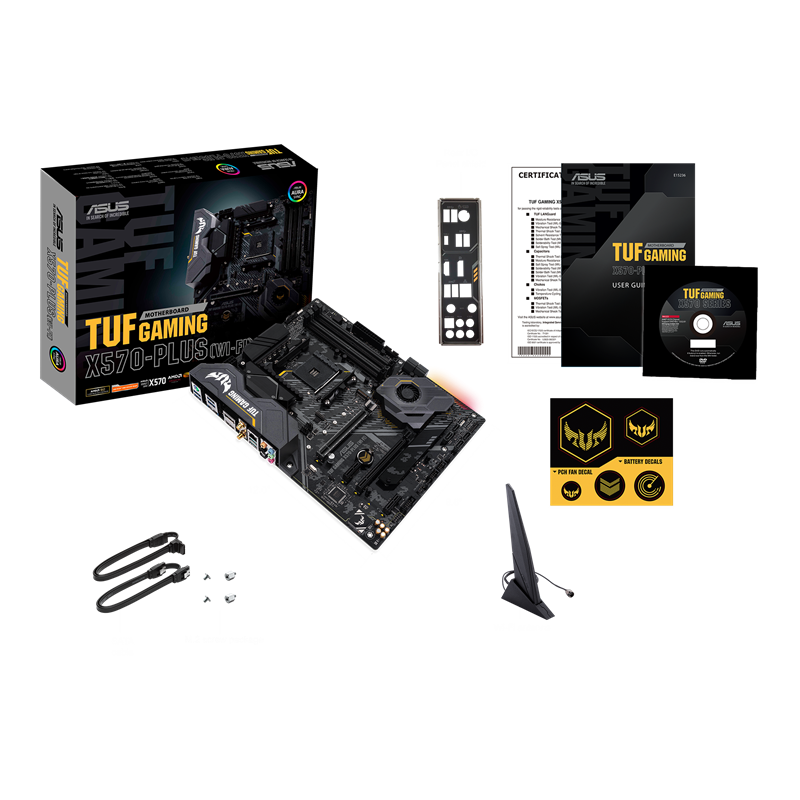

| Accessories | 2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD,1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant),1 x TUF GAMING Sticker,1 x TUF Certification card(s) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WOL by PME, PXE,WOL by PME, PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | ATX Form Factor,12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Note | None |
