Description
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports AMD EXTended Profiles for Overclocking (EXPO) | |
| OptiMem II | |
| Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration. | |
| Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function. | |
| 1 x DisplayPort | |
| Graphics | 1 x HDMI port |
| Graphics specifications may vary between CPU types. | |
| Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| Supports 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | AMD Ryzenô 7000 Series Desktop Processors |
| 1 x PCIe 5.0 x16 slot | |
| AMD X670 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0 x4 slots | |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
| AMD Ryzenô 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| AMD X670 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
| M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| TUF LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band | |
| Bluetooth v5.2 | |
| WiFi 6E 6GHz regulatory may vary between countries. | |
| USB | Rear USB (Total 10 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) | |
| 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-CÆ) | |
| 5 x USB 3.2 Gen 1 ports (5 x Type-A) | |
| Front USB (Total 9 ports) | |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 3 x USB 2.0 headers support additional 6 USB 2.0 ports | |
| Audio | "Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC |
| - Impedance sense for front and rear headphone outputs | |
| - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| - Supports up to 32-Bit/192 kHz playback | |
| Audio Features | |
| - Audio shielding | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| - Audio cover | |
| - Unique de-pop circuit | |
| Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |

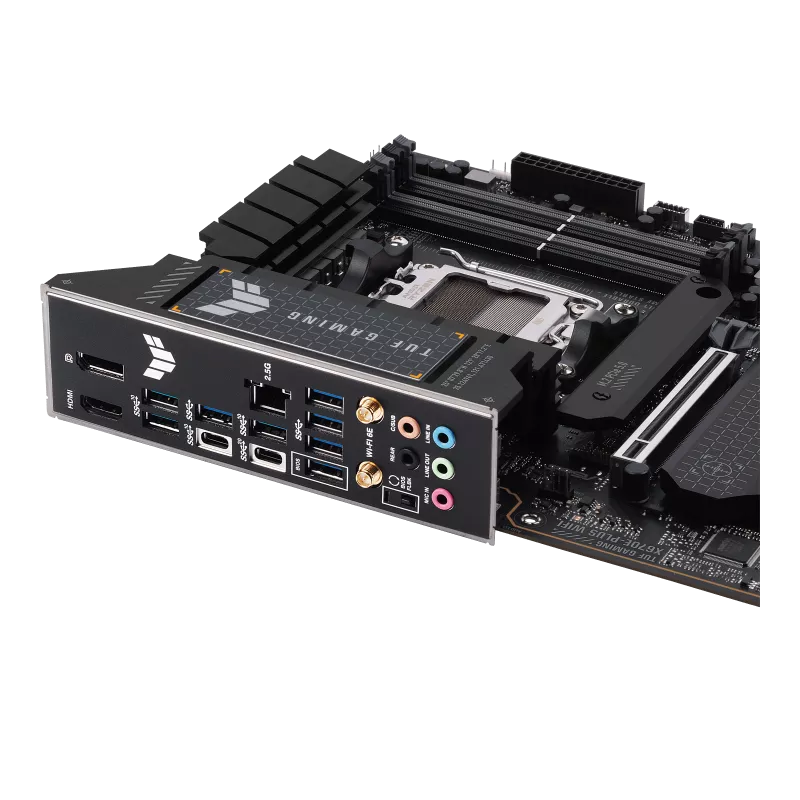

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) |
| 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-CÆ) | |
| 5 x USB 3.2 Gen 1 ports (5 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMIÆ port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x BIOS FlashBackô button | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| 1 x W_PUMP+ header(s) | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V Power connectors | |
| Storage related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-CÆ ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 3 x USB 2.0 headers support additional 6 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x AURA RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal Sensor header | |
| 1 x Thunderboltô header | |
| Special Features | TUF PROTECTION |
| - DIGI+ VRM (- Digital power design with DrMOS) | |
| - ESD Guards | |
| - LANGuard | |
| - Overvoltage Protection | |
| - Safeslot | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBackô button | |
| - BIOS FlashBackô LED | |
| - Clear CMOS header | |
| - ProCool | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| AURA Sync | |
| - AURA RGB header | |
| - Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - AURA Sync | |
| - Fan Xpert 4 (with AI Cooling II) | |
| - Power Saving | |
| - Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| - Easy Optimization | |
| - TPU | |
| - DIGI+ VRM | |
| - Turbo app | |
| - PC Cleaner | |
| TUF GAMING CPU-Z | |
| DTS Audio Processing | |
| MyAsus | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antenna | |
| 2 x Rubber packages for M.2 | |
| 2 x Screw packages for M.2 SSD | |
| Documentation | |
| 1 x TUF certification card | |
| 1 x User guide | |
| Operating System | WindowsÆ 11 64-bit, WindowsÆ 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Warranty | 3 Years |
