Description
Specifications
| CPU | IntelÆ Socket LGA1700 for 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors |
| Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0** | |
* Refer to www.asus.com for CPU support list. | |
** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Z690 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) |
/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* | |
Dual Channel Memory Architecture | |
Supports IntelÆ Extreme Memory Profile (XMP) | |
OptiMem II | |
*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Graphics | 1 x DisplayPort** |
1 x HDMIÆ port*** | |
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
** Supports max. 4K@60Hz as specified in DisplayPort 1.4 | |
***Supports 4K@60Hz as specified in HDMI 2.1. | |
**** VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | IntelÆ 12th Gen Processors* |
1 x PCIe 5.0 x16 slot | |
IntelÆ Z690 Chipset** | |
1 x PCIe 3.0 x16 slot (supports x4 mode) | |
1 x PCIe 3.0 x4 slot | |
2 x PCIe 3.0 x1 slots | |
* Please check PCIe bifurcation table in support site. | |
** Supports IntelÆ Optane Memory H Series on PCH-attached PCIe slot | |
| Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
IntelÆ 12th Gen Processors | |
M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
- IntelÆ 12th Gen processors support PCIe 4.0 x4 mode | |
IntelÆ Z690 Chipset** | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
4 x SATA 6Gb/s ports | |
* IntelÆ Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
** IntelÆ Rapid Storage Technology supports IntelÆ Optane Memory H Series on PCH attached M.2 slots. | |
| Ethernet | 1 x IntelÆ 2.5Gb Ethernet |
TUF LANGuard | |
| Wireless & Bluetooth | IntelÆ Wi-Fi 6 |
| 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
Supports 2.4/5GHz frequency band | |
Bluetooth v5.2 | |
| USB | Rear USB:Total 8 ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) | |
2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-CÆ) | |
| Front USB:Total 7 ports | |
1 x USB 3.2 Gen 2 connector (supports USB Type-CÆ) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
- Supports up to 24-Bit/192 kHz playback | |
Audio Features | |
- Audio Shielding | |
- Rear optical S/PDIF out port | |
- Premium audio capacitors | |
- Dedicated audio PCB layers | |
- Audio Cover | |

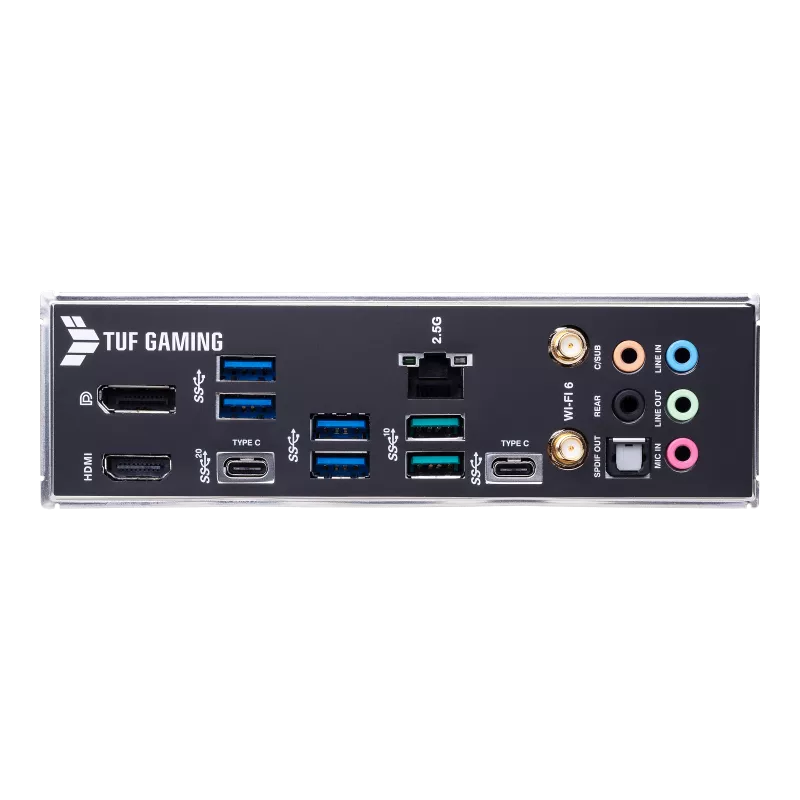

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) |
2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-CÆ) | |
1 x DisplayPort | |
1 x HDMIÆ port | |
1 x Wi-Fi Module | |
1 x IntelÆ 2.5Gb Ethernet port | |
5 x Audio jacks | |
1 x Optical S/PDIF out port | |
| Internal I/O Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
1 x 4-pin AIO Pump header | |
4 x 4-pin Chassis Fan headers | |
Power related | |
1 x 24-pin Main Power connector | |
1 x 8-pin +12V Power connector | |
1 x 4-pin +12V Power connector | |
Storage related | |
4 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
USB | |
1 x USB 3.2 Gen 2 connector (supports USB Type-CÆ) | |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
1 x AURA RGB header | |
1 x Clear CMOS header | |
1 x COM Port header | |
1 x Front Panel Audio header (AAFP) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
1 x Thunderboltô header | |
| Special Features | ASUS TUF PROTECTION |
- DIGI+ VRM (- Digital power design with DrMOS) | |
- Enhanced DRAM Overcurrent Protection | |
- ESD Guards | |
- TUF LANGuard | |
- Overvoltage Protection | |
- Safeslot | |
- Stainless-Steel Back I/O | |
ASUS Q-Design | |
- M.2 Q-Latch | |
- Q-DIMM | |
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
- Q-Slot | |
ASUS Thermal Solution | |
- M.2 heatsink | |
- VRM heatsink design | |
ASUS EZ DIY | |
- CPU Socket lever protector | |
- ProCool | |
- Pre-mounted I/O shield | |
- SafeDIMM | |
AURA Sync | |
- AURA RGB header | |
- Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
Armoury Crate | |
- AURA Creator | |
- AURA Sync | |
- Fan Xpert 4 | |
- Two-Way AI Noise Cancelation | |
AI Suite 3 | |
- Performance And Power Saving Utility | |
TurboV EVO | |
EPU | |
DIGI+ VRM | |
TUF GAMING CPU-Z | |
DTS Audio Processing | |
MyAsus | |
Norton Anti-virus software (Free Trial version) | |
WinRAR | |
UEFI BIOS | |
ASUS EZ DIY | |
- ASUS CrashFree BIOS 3 | |
- ASUS EZ Flash 3 | |
- ASUS UEFI BIOS EZ Mode | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
2 x SATA 6Gb/s cables | |
Miscellaneous | |

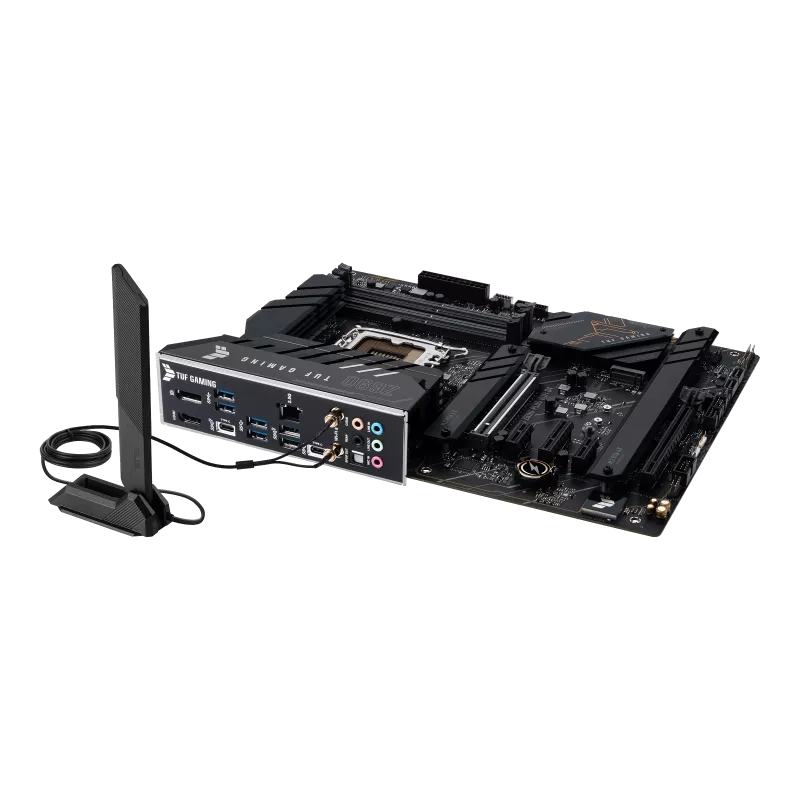

1 x ASUS Wi-Fi moving antenna | |
2 x M.2 Rubber Packages | |
1 x M.2 SSD screw package | |
1 x TUF GAMING sticker | |
Installation Media | |
1 x Support DVD | |
Documentation | |
1 x TUF Certification card | |
1 x User guide | |
| Operating System | WindowsÆ 11 64-bit, WindowsÆ 10 64-bit |
| Form Factor | ATX |
| 30.5cm x 24.4cm |
