Description
Specifications:
| CPU | IntelÆ Socket LGA1200 for 11th Gen IntelÆ Coreô Processors & 10th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors |
| Supports IntelÆ 14 nm CPU | |
| Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0** | |
| ** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
Chipset | Z590 |
Memory | DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports IntelÆ Extreme Memory Profile (XMP) | |
| OptiMem II | |
| * 10th Gen IntelÆ Coreô i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. | |
| * 11th Gen IntelÆ processors support 3200/2933/2800/2666/2400/2133 natively. | |
Graphics | 1 x DisplayPort 1.4** |
| 1 x HDMITM 2.0*** | |
| * Graphics specifications may vary between CPU types. | |
| ** IntelÆ 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. | |
| *** Only IntelÆ 11th processors, support HDMIô 2.0 with max. resolution of 4K@60Hz, others would only support HDMIô 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update. | |
| **** VGA resolution support depends on processors' or graphic cards' resolution. | |
Expansion Slots | 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4) |
| IntelÆ 11th & 10th Gen Processors | |
| 1 x PCIe 4.0/3.0 x16 slot* | |
| - IntelÆ 11th processors support PCIe 4.0 x16 | |
| - IntelÆ10th processors support PCIe 3.0 x16 | |
| IntelÆ Z590 Chipset | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode) | |
| 2 x PCIe 3.0 x1 slots | |
| * Supports PCIe bandwidth bifurcation for RAID on CPU function. | |
| * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate IntelÆ Optane Memory. | |
Storage | Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports |
| Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports | |
| IntelÆ11th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| - Only IntelÆ 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs | |
| IntelÆ Z590 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*** | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)**** | |
| 6 x SATA 6Gb/s ports | |
| * Raid function for PCIe mode SSD in IntelÆ Rapid Storage Technology is available with either 1. IntelÆ SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. | |
| ** To enable IntelÆ Optaneô Memory (Hybrid Storage device), it must be installed in PCH-attached slots with IntelÆ Rapid Storage Technology. | |
| *** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled. | |
| **** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled. | |
Ethernet | 1 x IntelÆ 2.5Gb Ethernet |
Wireless & Bluetooth | IntelÆ Wi-Fi 6 |
USB | Rear USB:Total 7 ports |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) | |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB:Total 7 ports | |
| 1 x USB 3.2 Gen 1 connector (suppports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC* |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| - Audio Shielding | |
| - Rear optical S/PDIF out port | |
| - Premium Japanese audio capacitors | |
| - Dedicated audio PCB layers | |
| - Audio cover | |

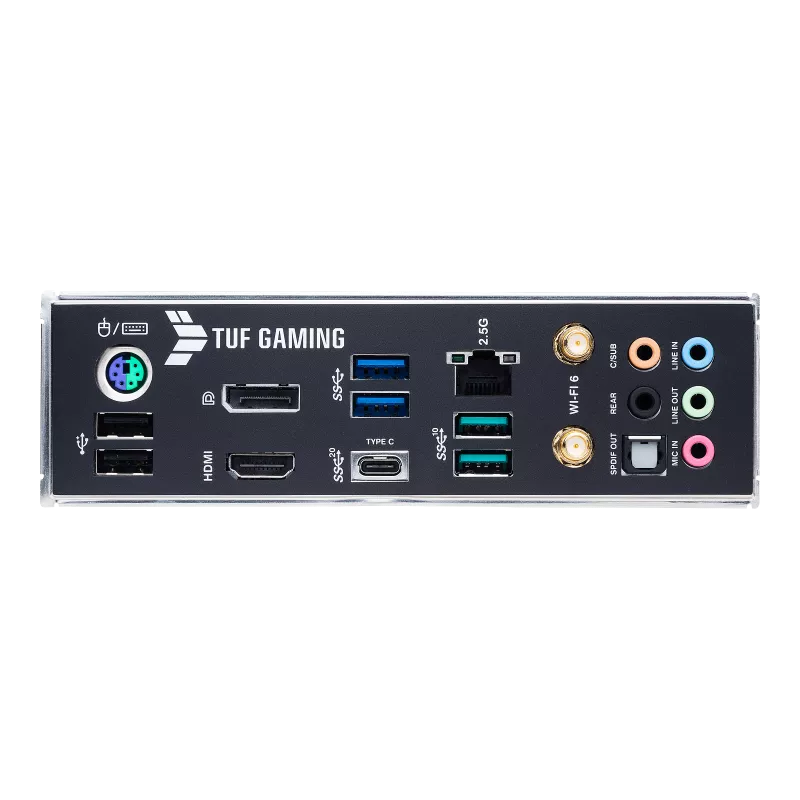

Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMIô port | |
| 1 x ASUS Wi-Fi Module | |
| 1 x IntelÆ I225-V 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x PS/2 Keyboard/Mouse combo port | |
Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 6 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 2 x AURA Addressable Gen 2 headers | |
| 2 x AURA RGB headers | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thunderboltô header | |
Special Features | ASUS TUF PROTECTION |
| - DIGI+ VRM (- Digital power design with DrMOS) | |
| - Enhanced DRAM Overcurrent Protection | |
| - TUF LANGuard | |
| - Overvoltage Protection | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - ProCool | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| AURA Sync | |
| - AURA RGB headers | |
| - Addressable Gen 2 RGB headers | |
Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - AURA Creator | |
| - AURA Sync | |
| - Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| - Performance And Power Saving Utility | |
| TurboV EVO | |
| EPU | |
| Digi+ VRM | |
| Fan Xpert 4 | |
| - EZ update | |
| TUF GAMING CPU-Z | |
| AI Charger | |
| ASUS Turbo LAN | |
| DAEMON Tools | |
| DTS Custom for GAMING Headsets | |
| MyASUS | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |

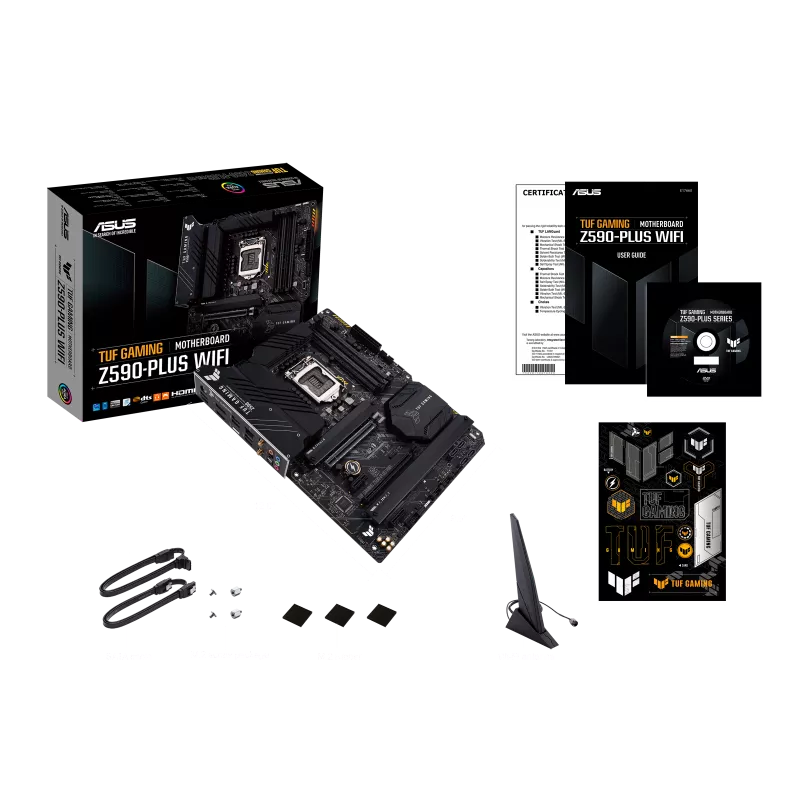

Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |

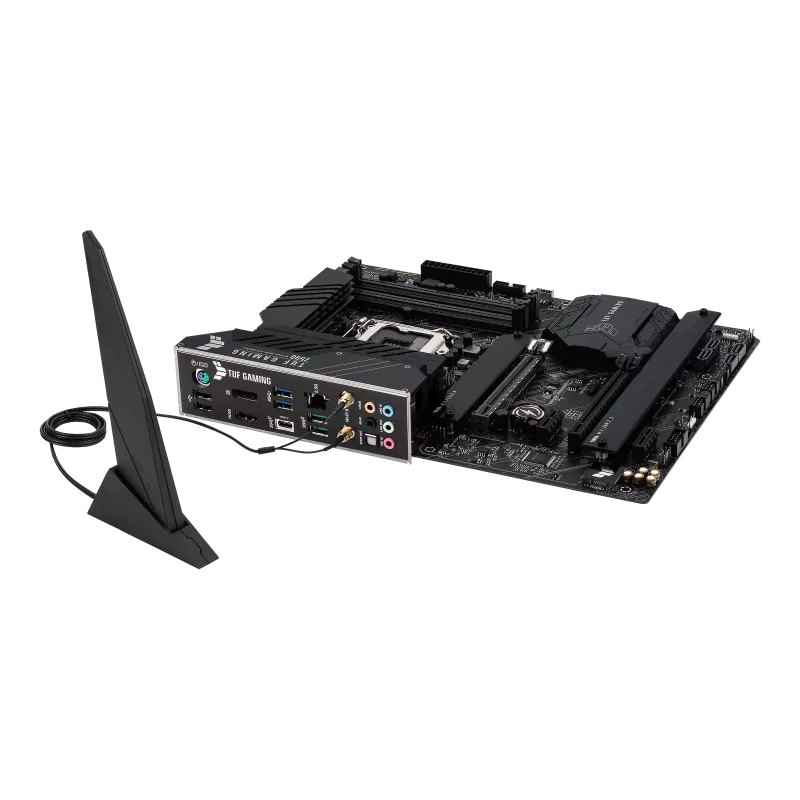

| 1 x ASUS Wi-Fi moving antenna | |
| 2 x M.2 Rubber Packages | |
| 1 x M.2 SSD screw package | |
| 1 x TUF Gaming sticker | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x TUF Certification card | |
| 1 x User manual | |
Operating System | Windows 10 64bit |
Form Factor | ATX |
| 30.5cm x 24.4cm |
