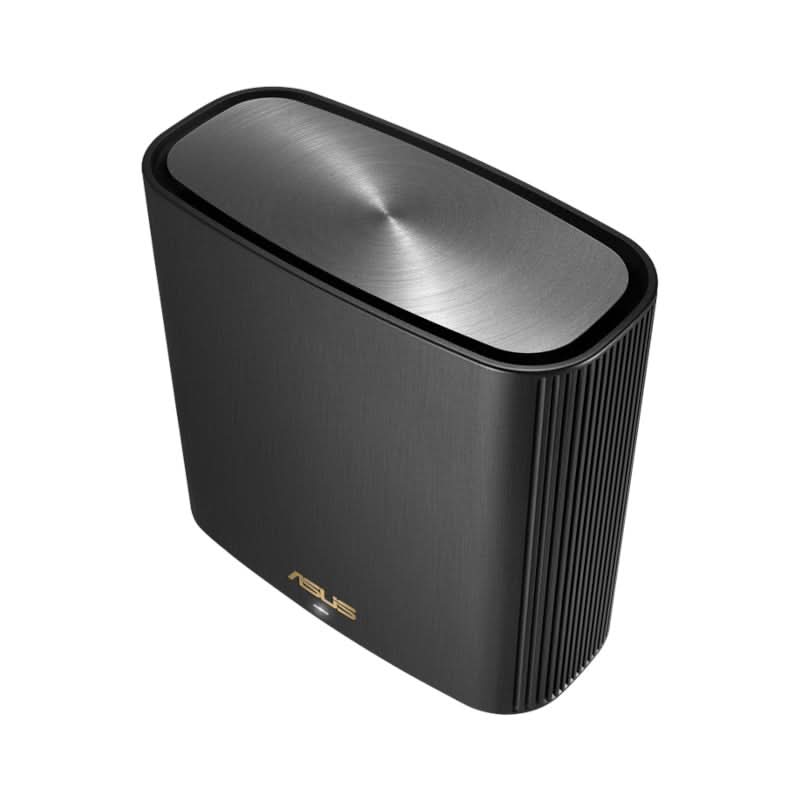

ASUS ZenWiFi AX XT8 AX6600 Tri-Band WiFi 6 Whole Home Mesh System, 6600Mbps, 2.5G WAN, USB 3.0

Model Name

XT8 (B-1-PK)

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment

AX6600 ultimate AX performance：574+1201+4804Mbps

AX technology

No

Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 1201 Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps

Antenna

Internal antenna x 6

Transmit/Receive

2.4GHz 2x2
5GHz-1 2x2
5GHz-2 4x4

Processor

1.5 GHz quad-core processor

Memory

256 MB Flash
512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4G Hz, 5 GHz-1, 5 GHz-2

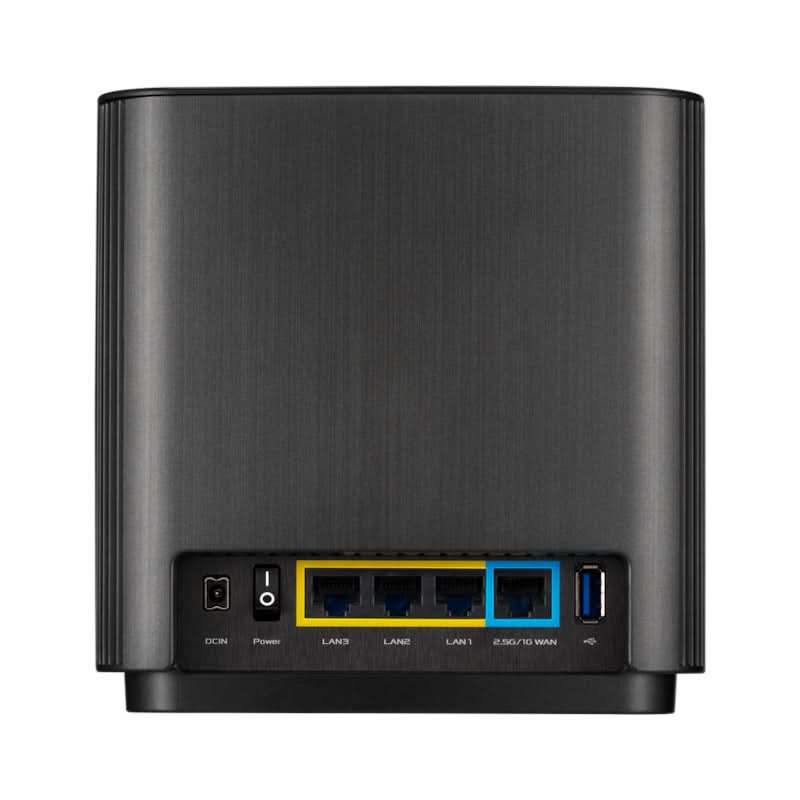

Ports

RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3

USB 3.1 Gen 1 x 1

Button

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current

Package content

ZenWiFi AX
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card

Product Weight (g)

716 g

AiMesh

AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes

Router APP

ASUS Router APP : Yes

Game

Game Boost/acceleration : No
WTFast : No

Alexa

Support Alexa skill : Yes

IFTTT

Support IFTTT : Yes

AiProtection

AiProtection : AiProtection Pro
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking : Yes

Parental Control

Parental Control : Yes

Traffic Control

Adaptive QoS : Yes
Traffic Monitor : Yes
Traffic Analyzer : Yes

Wireless

IPv6 : Yes
MU-MIMO : Yes
Wi-Fi Encryption : WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : Max 9 rules
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : Max 64 rules
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : Yes
Universal beamforming : Yes
Explicit beamforming : Yes

WAN

Dual WAN : Yes
WAN Aggregation : No
3G/4G LTE dongle : Yes
DMZ : Yes
DDNS : Yes
Let's Encrypt : Yes

LAN

IGMP snooping : Yes
IPTV : Yes
LAN Link Aggregation : No

VPN

VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : No

USB application

File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4
AiCloud : Yes
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : Yes
Samba Server : Yes
FTP Server : No

Administration

Operating mode : Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Firewall : Yes
Maximum Firewall keyword filter : Max 64 rules
Maximum Firewall network service filter : Max 32 rules
Maximum Firewall URL filter : Max 64 rules
Wake on LAN (WOL) : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes

Warranty

3 Year
