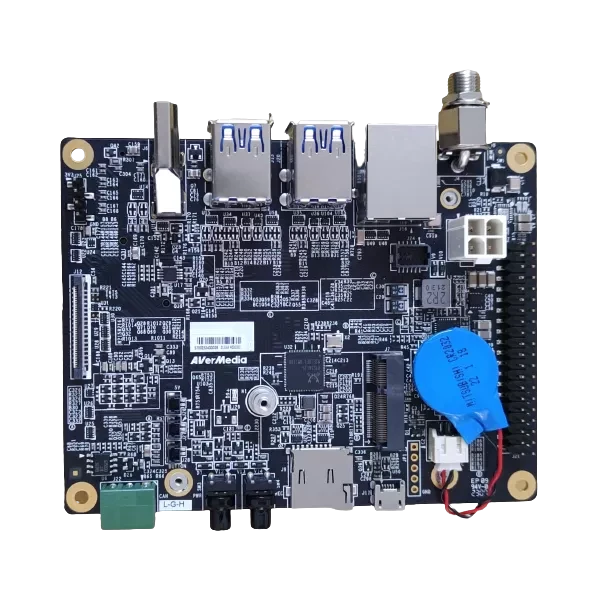

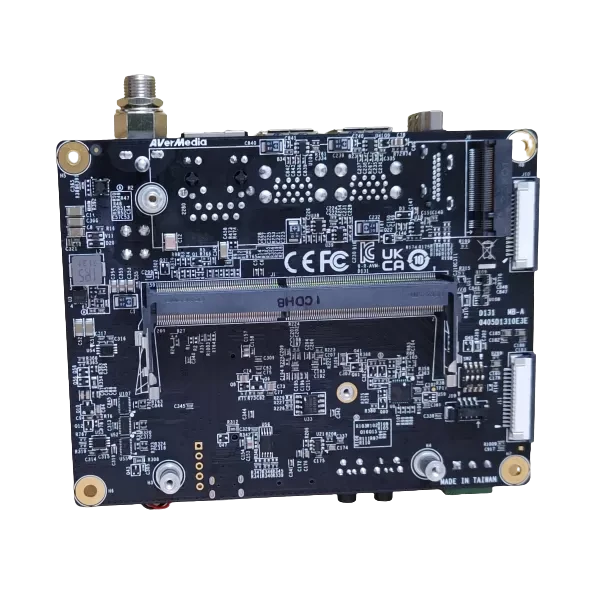

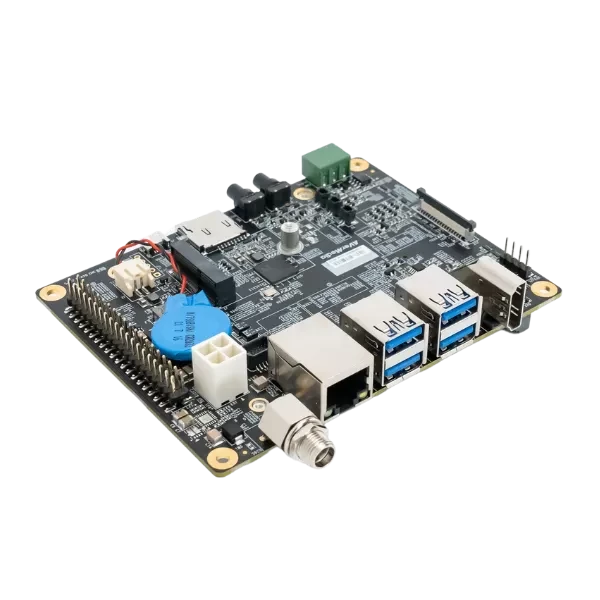

AverMedia D131 Carrier Board for NVIDIA Jetson Orin NX/ Orin Nano Module
AVerMedia’s D131 Carrier board equips powerful NVIDIA® Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.
AVerAI D131 is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.
AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.
Specifications:
| AverMedia | D131 |
|---|---|
| NVIDIA Jetson SoM | Jetson Orin NX/ Orin Nano module |
| Networking | 1x GbE RJ-45 (PoE option) 1xM.2. key E 2230 for wifi |
| Display Output | 1x HDMI (3840 x 2160 at 60Hz) for Orin NX 1x HDMI (3840 x 2160 at 30Hz) for Orin Nano |
| Temperature | Operating temperature 0°C~70°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing |
| MIPI Camera Inputs | •2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector •1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector |
| USB | 1x USB 2.0 Micro-B for recovery 4 x USB 3.2 Gen 1 Type A (Total Bandwidth: 5Gbps) |
| Storage | 1x M.2. key M 2280 for SSD |
| Expansion Header | 40-pin: 1x UART, 2x SPI, 2x 12C, 1x I2S, 6x GPIOs 1xCAN with transceiver (3-pin terminal block) 1xOOB supported by Allxon |
| Input Power | DC IN JACK on board & ATX 4pin 12V/5A, 9V~24V is recommended. |
| Power Cord | US/JP/EU/UK/TW/CN/AU |
| Thermal Solution | Fan (optional) |
| Buttons | Power and Recovery |
| RTC Battery | Support RTC battery and Battery Life Monitoring by MCU |
| Dimensions | 113mm (W) x 105mm (L) x 28.53mm (H) Weight: 97 g |
