Description
| Specification | Details |

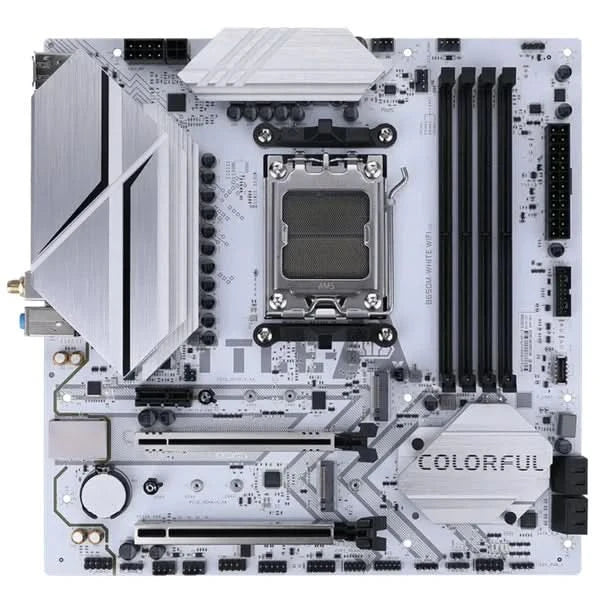

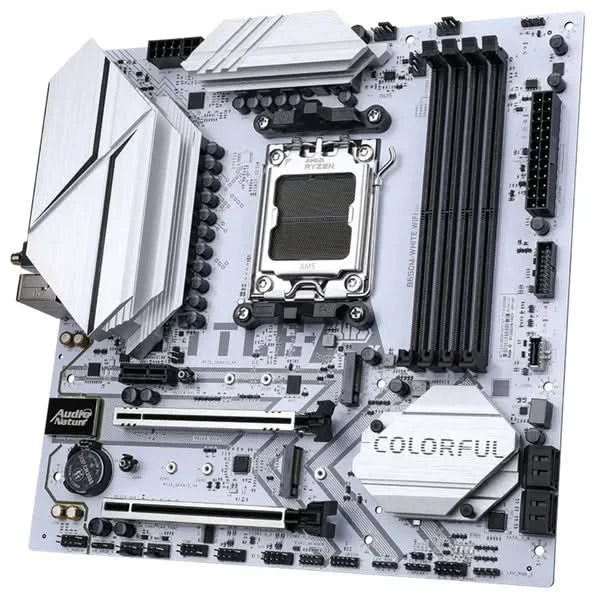

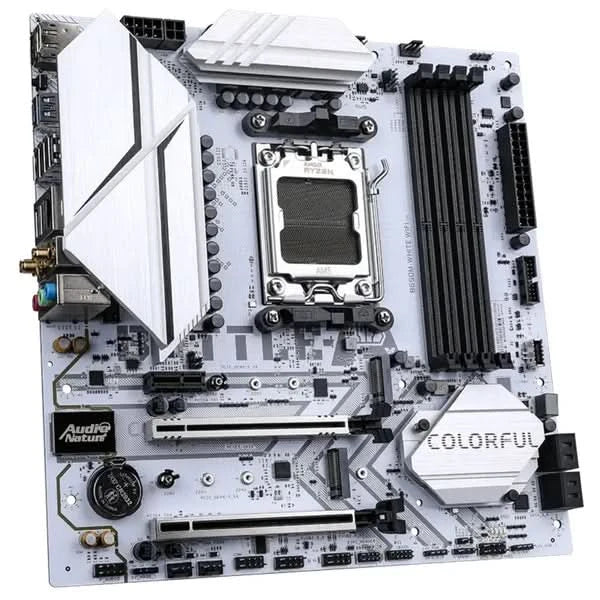

| Model | BATTLE‑AX B650M‑WHITE WIFI V15 (Model No.: BA‑B650M‑W‑WF‑V15) |
| Product Series | BATTLE‑AX series |
| Chipset | AMD B650 |
| Processor Support | AMD Ryzen 7000/8000/9000 series (AM5 socket) |
| Memory | 4× DDR5 DIMM slots; up to 192 GB (48 GB per slot) |
| Memory Speeds & Tech | DDR5‑4800 to 6800 (OC); supports XMP & EXPO; Dual‑Channel |
| Storage Interfaces | 2× M.2 slots + 4× SATA 6 Gb/s; RAID 0/1/10 |
| M.2 Slot Details | M.2_1: PCIe 5.0/4.0 x4 • M.2_2: PCIe 5.0/4.0 x4 (depends on CPU) |

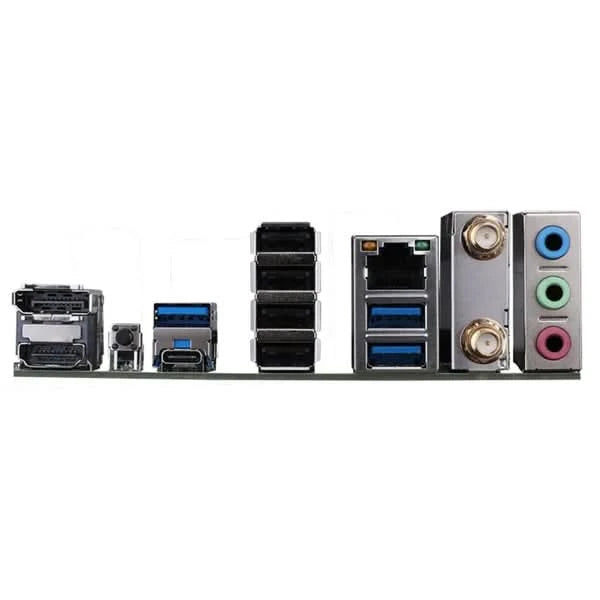

| Rear I/O | 4× USB 2.0 • 2× USB 3.2 Gen1 Type‑A • 1× USB 3.2 Gen2 Type‑A • 1× USB 3.2 Gen1 Type‑C • DP 1.2 (4K@60) • HDMI 1.4 (4K@30) • 2.5G LAN • Wi‑Fi 6 antenna ports • Audio jacks • BIOS update button |
| On‑Board Headers | CPU fan • System fans • Water pump • USB headers • RGB headers • Front audio • Front panel • CMOS jumper • COM port • BIOS burner • POST card |
| Expansion Slots | 1× PCIe 5.0 x16 • 1× PCIe x16 (PCIe 4.0 x4) • 1× PCIe 4.0 x1 |
| Graphics Output | DisplayPort 1.2 (4K@60) • HDMI 1.4 (4K@30) |
| BIOS | 128 M UEFI, multilingual |
| Power Management | S3/S4 wake‑up • Network S5 wake‑up • USB wake‑up • Scheduled boot |
| Hardware Monitor | CPU/System fan control • Temperature monitoring • Voltage monitoring |
| Networking | Realtek RTL8125BG 2.5GbE LAN • Intel AX200 Wi‑Fi 6 • Bluetooth 5.2 |
| Audio | Realtek ALC897 codec; up to 5.1 channels |
| Form Factor | Micro‑ATX (245 mm × 245 mm) |
| Country of Origin | China |
| Weight | 1.5 |
| Warranty | 3 Year |
| Model Number | BA‑B650M‑W‑WF‑V15 |
