iGame Z890 VULCAN X V20
Guaranteed safe & Secure checkout
Checking availability...
Location Restricted This product is only available for orders within Hyderabad.
Description
Feature
- iGame series exclusive customized Cyber God Suit Super Dimension Vulcan series motherboard
- iGame series customized Vulcan heat dissipation armor, with full-cover condenser to enhance heat dissipation
- Support dual-channel DDR5-8800 (OC) MHz memory
- Adopt 20+1+1+1 phase enhanced power supply design (Dr MOS 105A)
- Provide 1 PCIe 5.0 x4 M.2 SSD slot and 4 PCIe 4.0 x4 M.2 SSD slots
- Provide 1 front USB 3.2 Gen 2×2 20Gbps Type-C high-speed interface (support PD3.0 @60W)
- Provide 2 rear USB4 40Gbps Type-C interfaces (support video output, up to 4K 60Hz resolution)
- Equipped with Realtek 2.5G and 5G dual-speed wired network cards and BE200 WiFi 7 wireless network card, support Bluetooth 5.4
- Support iGame Center lighting control software, which can adjust the lighting effects of the radiator, cooling fan and memory synchronously
- I/O backplane supports one-click BIOS upgrade function and CMOS clearing function
- Six major protection technologies, more stable product operation
- 200 processes strictly tested, quality guaranteed
- PCB atomization process fully upgraded
Specifications
| Model | iGame Z890 VULCAN X V20 |
| Series | iGame |
| Chipset | Intel Z890 |
| Processor | Intel® Core™ Ultra (LGA 1851; check colorful.cn for list) |
| Memory | 4 x DDR5 up to 192 GB (48 GB single); 8800(OC)-4800 MHz; XMP; Dual channel (check compatibility list) |
| Storage | 5 x M.2 (M2_1 PCIe5.0 x4 CPU; M2_2/3/4 PCIe4.0 x4; M2_5 PCIe4.0/SATA); 6 x SATA 6Gb/s (no RAID on SATA 5/6); RAID 0/1/5/10 |

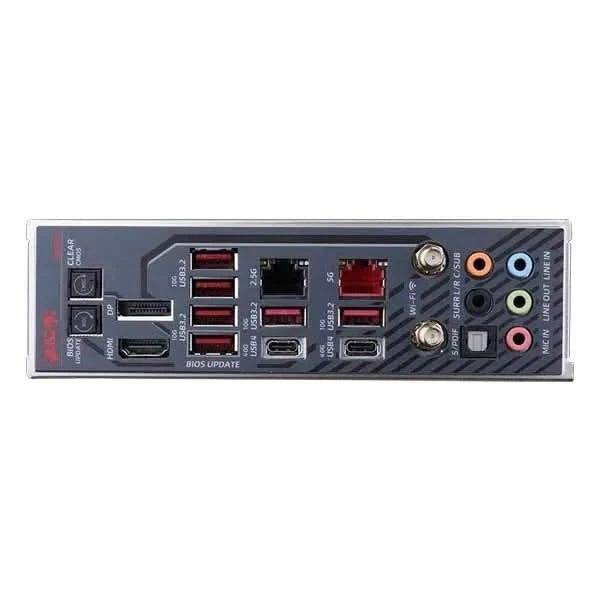

| Rear I/O | 6 x USB 3.2 Gen2 10G Type-A; 2 x USB4 40G Type-C (4K60 video); 1 x DP1.4 (8K60); 1 x HDMI2.0 (4K60); 2.5G/5G LAN; Wi-Fi7 antennas; 5 x audio; S/PDIF; BIOS/CMOS buttons |
| Internal I/O | USB: 2 x USB2.0 (4 ports), 2 x USB3.2 Gen1 (4 ports), 1 x USB3.2 Gen2x2 Type-C (20G PD60W); Fans: 2 x CPU, 4 x SYS, 1 x Pump; RGB: 3 x 5V ARGB, 1 x 12V RGB; Front audio/panel; BIOS burner |
| Expansion Slots | 1 x PCIe5.0 x16 (x16 or x8/x8); 1 x PCIe5.0 x8 (x16 slot); 1 x PCIe4.0 x4 |
| BIOS | 256M UEFI multi-language |
| Power Management | S3/S4/Network S5/USB wake; Timed boot |
| Hardware Monitor | Fan speed control; Temp/voltage monitoring |
| LAN/Wireless | RTL8125BG 2.5G + RTL8126 5G; BE200 Wi-Fi7 + BT 5.4 |
| Audio | Realtek ALC1220 (7.1 channel) |
| Form Factor | E-ATX (305 x 277 mm) |
| Other Features | Buttons: Power/Reset/Retry/BCLK(2)/Safe Start/RGB(2)/LN2/Slow/BIOS switch; 3-year warranty |
