Description
Features
- CVN series customized frost cooling armor
- PCIe slot custom metal armor
- 16+1+1 phase digital power supply design (Dr MOS 55A)
- Provides 4 PCIe 4.0 x4 M.2 SSD slots
- Provide one USB 3.2 Gen 2x2 20Gbps Type-C and one USB 3.2 Gen 2 10Gbps Type-A high-speed rear interface
- Equipped with Realtek 2.5G high-speed wired network card and AX201/AX200 WiFi 6 wireless network card, supporting Bluetooth 5.2
- Support the iGame Center light efficiency control software, which can synchronously adjust the light efficiency of the radiator, cooling fan and memory
- The I/O panel supports one-key BIOS upgrade
- Six protection technologies, more stable product operation
- 200 processes are strictly tested with guaranteed quality
- PCB atomization process comprehensively upgraded

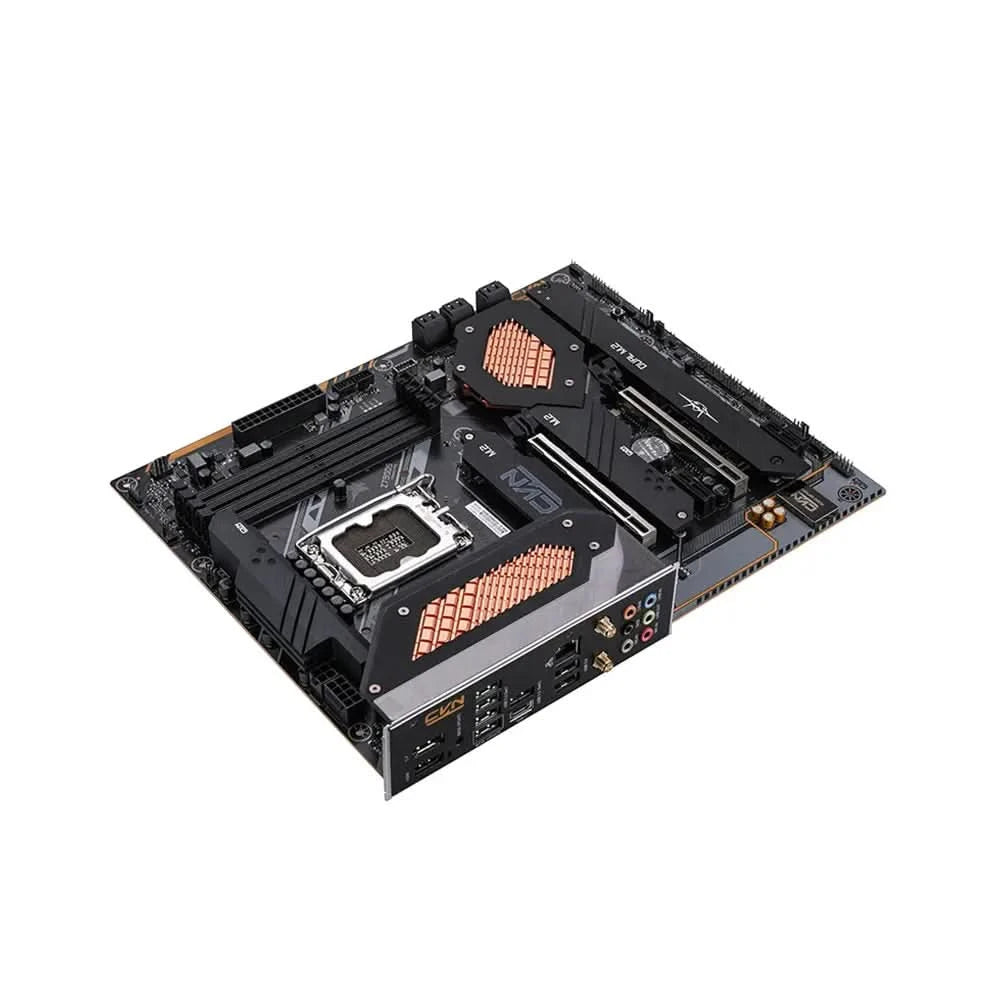

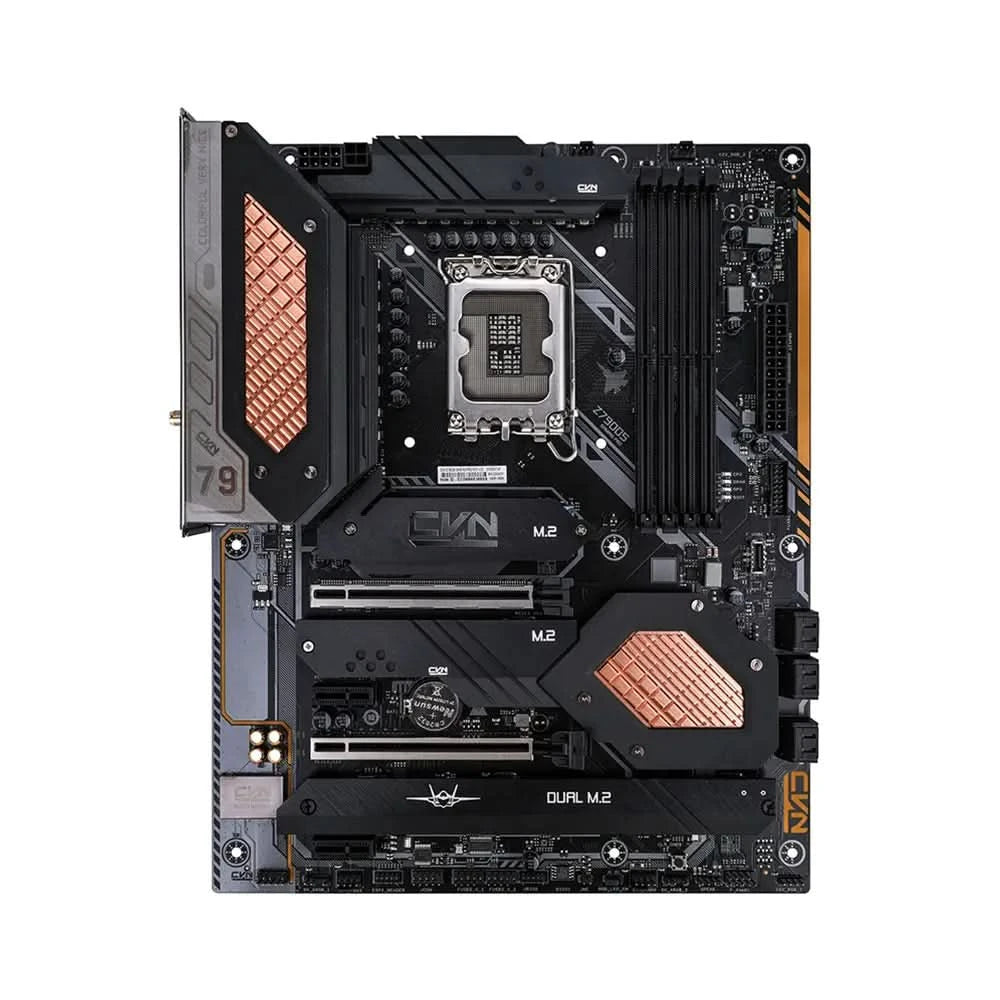

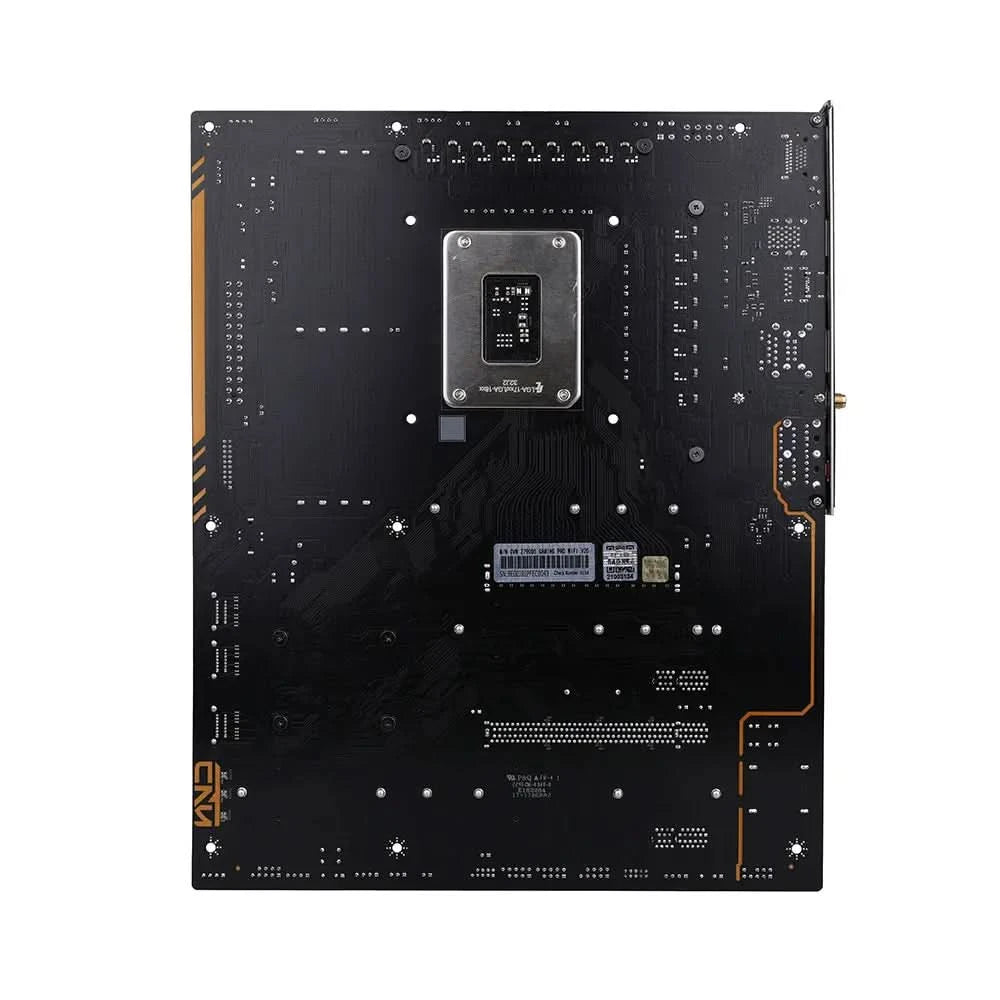

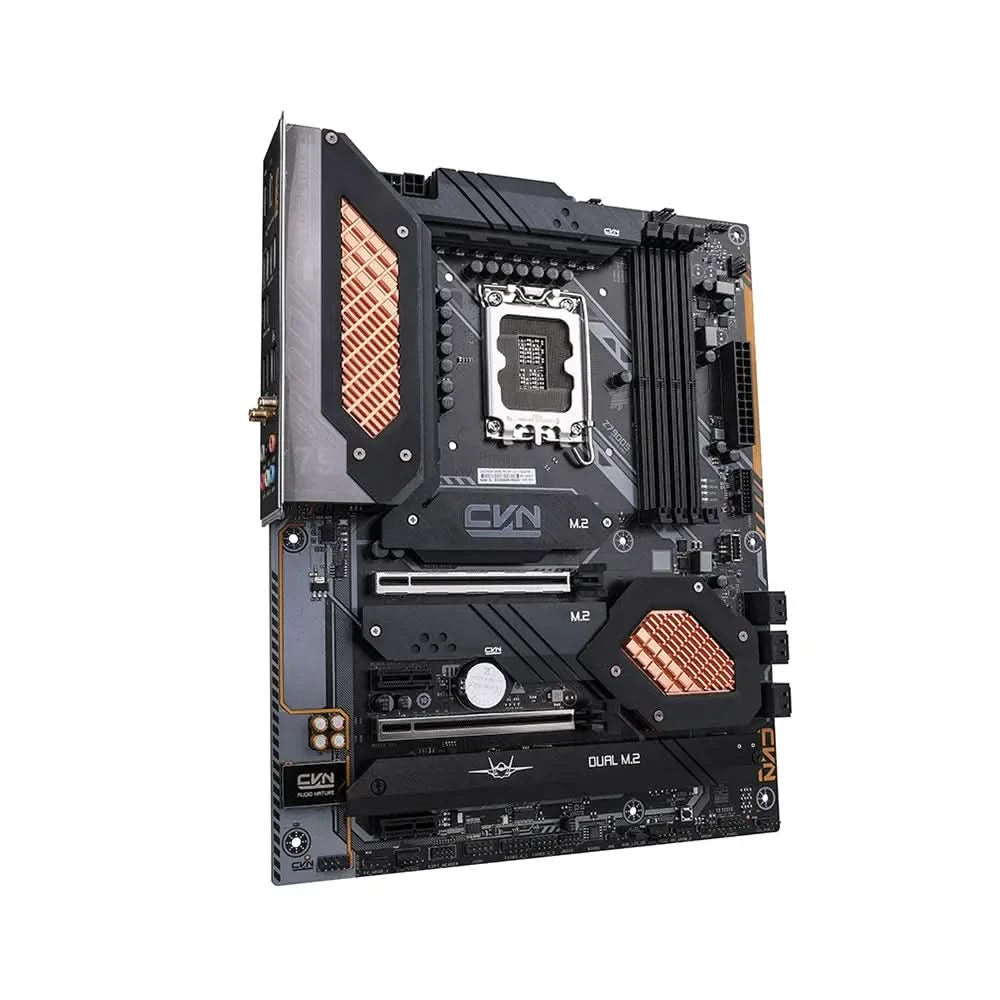

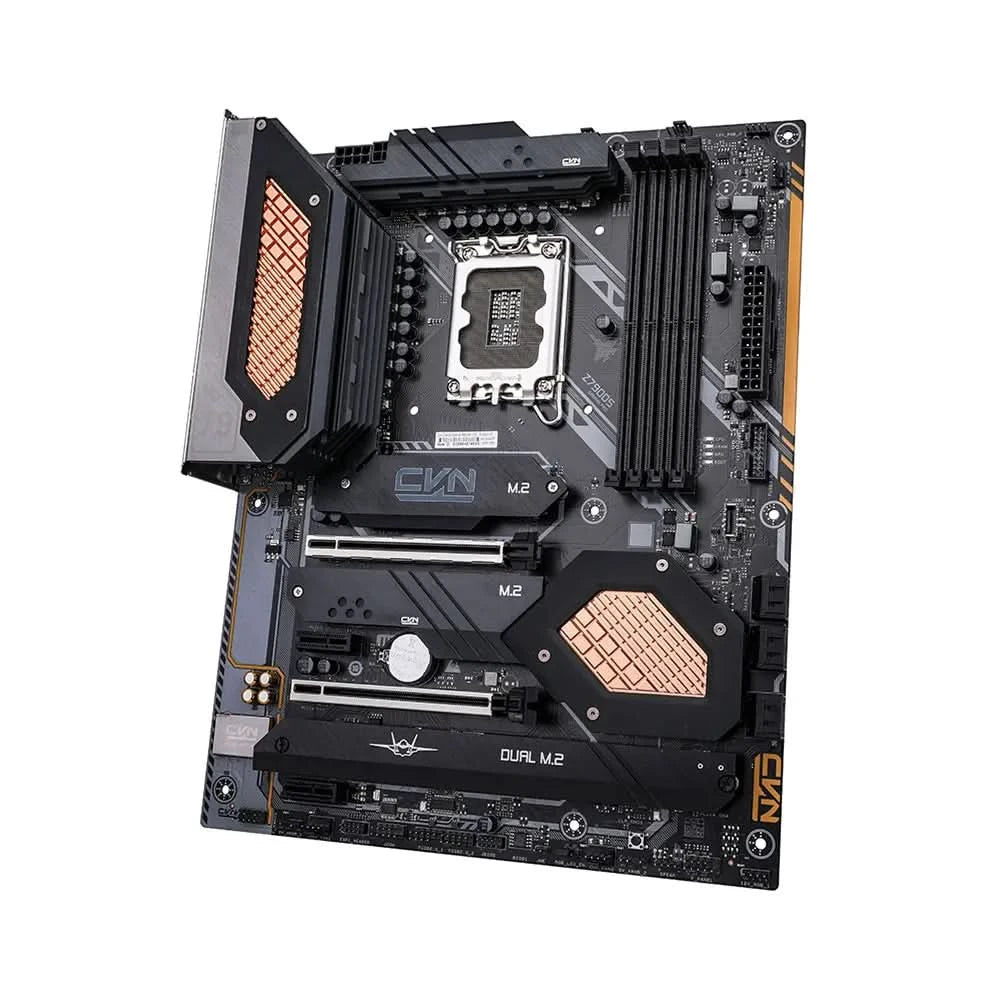

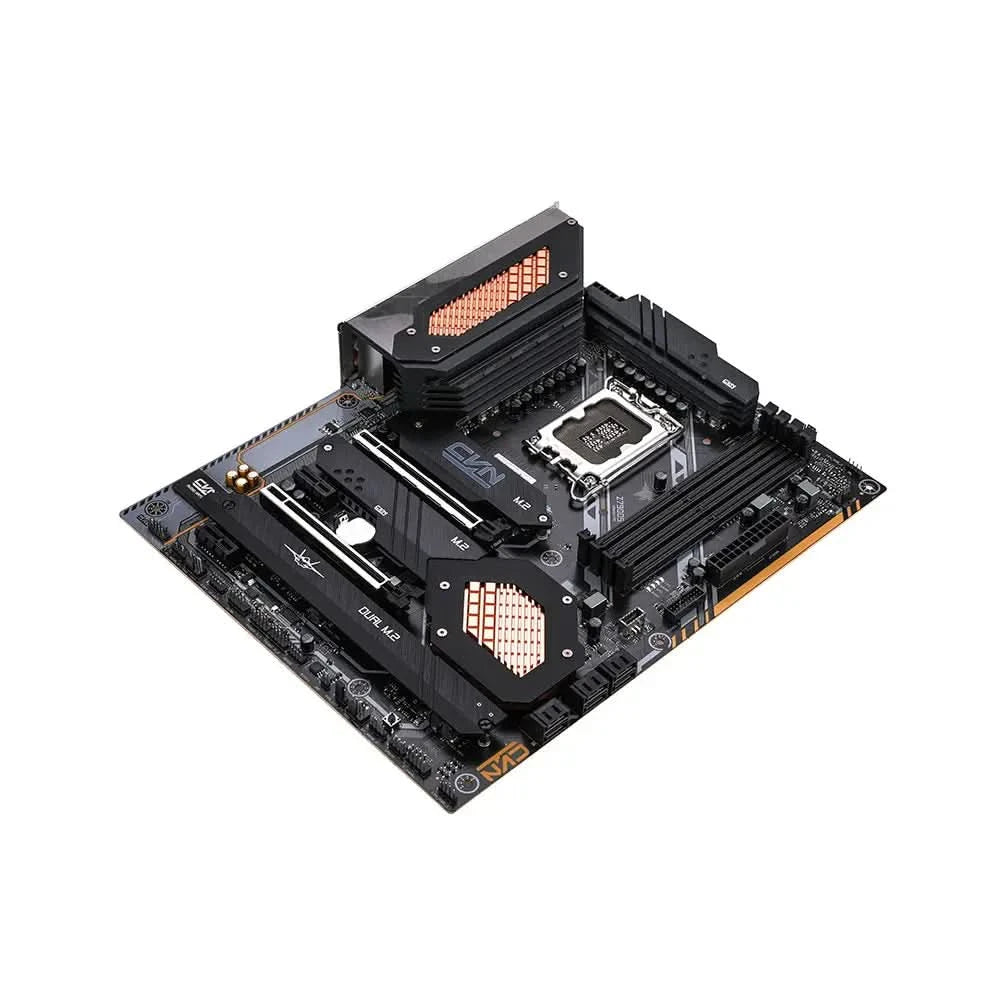

| Model | CVN Z790D5 GAMING PRO WIFI V20 |
|---|---|
| Product Series | CVN Series |
| Chipset | Intel Z790 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Memory | 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) - Support DDR5-7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Intel is supported ® Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 4 M.2 slots and 6 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA or M.2 NVMe hard disk devices - M.2_1 slot: support 2242/2260/2280 specification M 2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2/M.2_4 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_3 slots: support 2242/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) (* See the official BIOS user guide of Colorful for the steps to create a RAID disk array) |

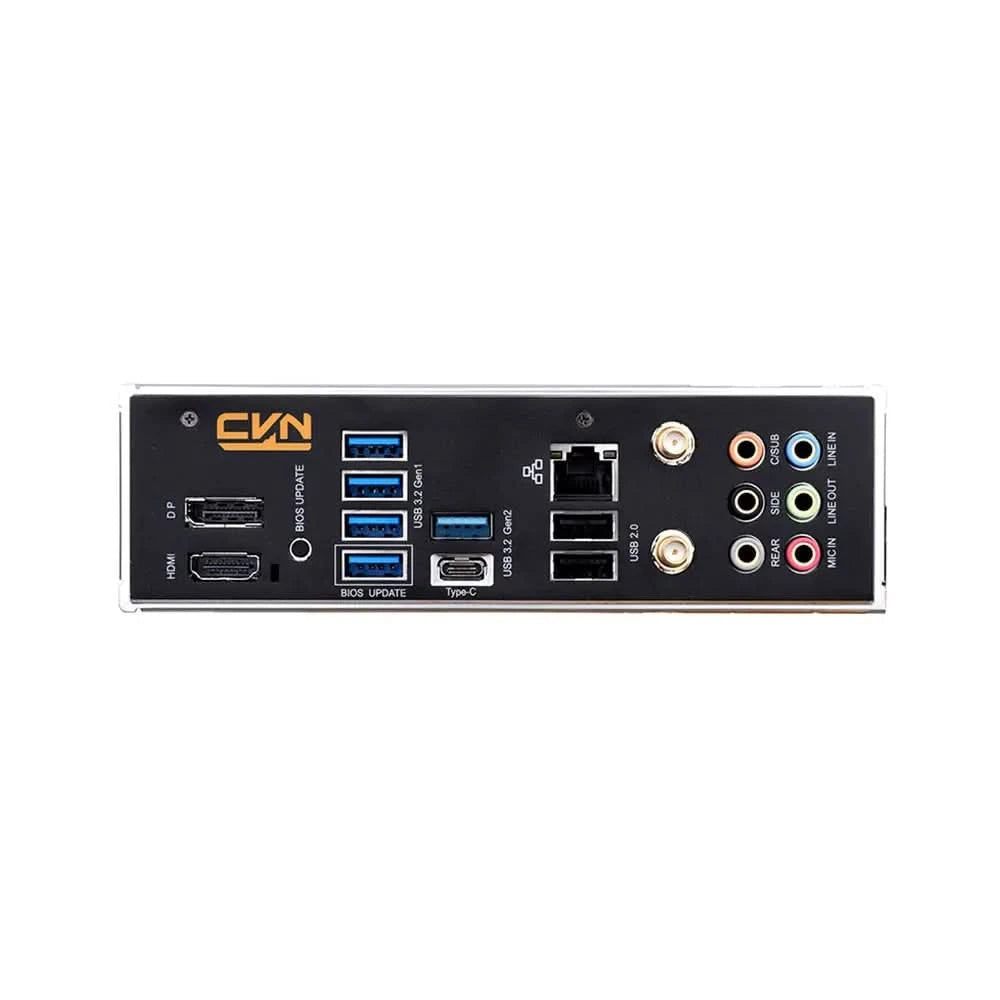

| Board I/O | Rear I/O: - 1×USB 3.2 Gen 2x2 Type-C interface - 1×USB 3.2 Gen 2 Type-A interface - 4×USB 3.2 Gen 1 Type-A interfaces - 2×USB 2.0 interfaces - 1×DP 1.2 interface, supporting a maximum resolution of 4K 60Hz - 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution - 1×2.5G network interface - 2×Wi-Fi 6 antenna interfaces - 6×audio interfaces - 1×BIOS update key On board: - 2×USB 2.0 pins - 1×USB 3.2 Gen 1 pin - 1×USB 3.2 Gen 1 Type-C slot - 1×CPU fan pin - 3×system fan pins - 1×water cooling pump pin - 2×5V 3-pin ARGB pins - 2×12V 4-pin RGB pins - 1×front audio pin - 1×front panel pin - 1×spraker pin - 1×CMOS clearing key - 1×COM port pin - 1×BIOS burner pin - 1×POST card pin - 1×ME write protection jumper - 1×RGB light effect control jumper |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supporting PCIe 4.0 x4 specification) 2×PCIe 3.0 x1 slots |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable(Fan1 supports independent control and Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125 2.5Gbit LAN, AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | 7.1-Channel High Definition audio CODEC |
| Configuration | ATX 305 x 245 mm |
