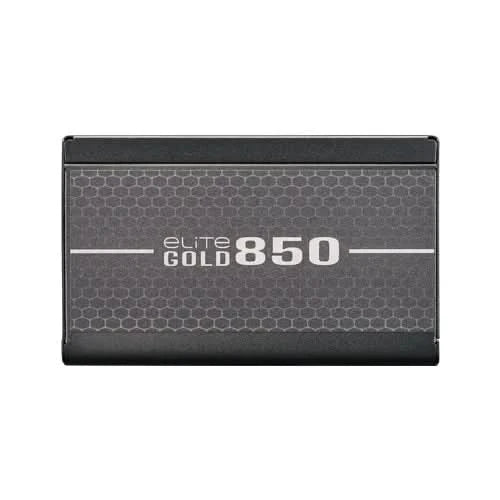

Cooler Master Elite Gold 850W 80 Plus Gold Fully Modular Power Supply ATX 3.1

Cooler Master Elite Gold 850W 80 Plus Gold Fully Modular Power Supply ATX 3.1

• Supports ATX 3.1 and PCIe Gen 5.1 standards
• Ideal for RTX 50 GPUs
• Stable performance under high loads at up to 40°C
• Quiet rifle bearing fan for efficient cooling and low noise
• 850W output with 80 Plus Gold-certified efficiency
• Fully modular embossed cable design
• Reliable 10-year warranty

ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS

Cooler Master Elite Gold 850 is designed for reliable everyday gaming builds. With full ATX 3.1 and PCIe 5.1 support, it ensures stable performance and compatibility with the latest and upcoming mid-range GPUs. Offering 80 Plus Gold efficiency, dependable operation at up to 40°C, and a quiet rifle bearing fan, it delivers efficient and quiet power. A compact 140mm form factor makes installation easy across a wide range of cases, while fully modular embossed cables simplify cable management.

Compatible with ATX 3.1 and PCIe Gen 5.1

ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of its rated output, making the Elite Gold 850 ready for the latest and upcoming mid-range GPUs.

HIGH TEMPERATURE RESILIENCE

Operates reliably at up to 40°C, perfect for extended gaming, rendering, and overclocking.

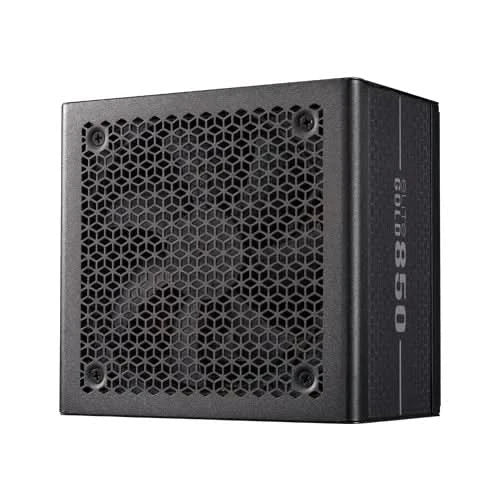

RIFLE BEARING FAN

The rifle bearing fan offers a longer lifespan while providing better noise reduction for consistent, reliable cooling.

80 PLUS GOLD CERTIFIED EFFICIENCY

Cooler Master Elite Gold 850 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.

COMPACT FORM FACTOR

Unlike typical high-wattage PSUs that extend beyond 150mm, the Elite Gold's compact design at 150mm or less ensures easy installation across a wide range of cases, making it ideal for space-conscious PC builds.

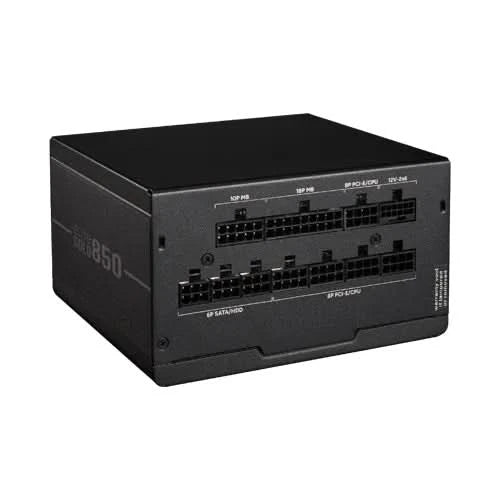

Fully Modular Embossed Cable Design

The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.

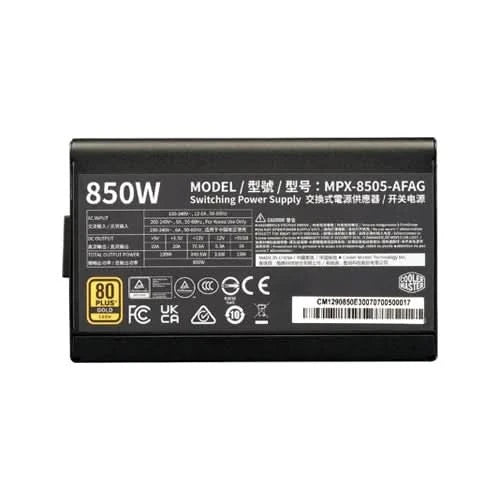

• ATX Version: ATX 12V Ver. 3.1
• PFC: Active PFC
• Input Voltage: 100-240V
• Input Current: 6 ~ 12A
• Input Frequency: 50-60Hz
• Dimensions (L x W x H): 140 x 150 x 86 mm
• Fan Size: 120mm
• Fan Bearing: Rifle bearing
• Efficiency: ≥90% @ Typical Load
• 80 PLUS Rating: 80 PLUS Gold
• ErP 2014 Lot 3: Yes
• Operating Temperature: 0-40°C
• Power Good Signal: 100 - 150 ms
• Hold Up Time: ≥ 11ms @ 100% Load
• MTBF: >100,000 hours @ 25℃ ambient
• Protections: UVP / OVP / OPP / OTP / SCP
• Regulatory: cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0
• ATX 24 Pin Connectors x1 = 1 (550mm)
• EPS 4+4 Pin Connectors x1 = 1 (600mm)
• EPS 8 Pin Connector x1 = 1 (600mm)
• SATA & Peripheral 4 Pin Connectors X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]
• PCI-e 6+2 Pin Connectors x3 = 1 (500+120mm), 1 (500mm)
• 12+4 Pin Connectors x1 = 1 (650mm)
• Series: Elite Series
• Form Factor: ATX
• Watts: 850W
• Modular: Fully Modular
• 80 Plus Efficiency: Gold

Specifications
