Description

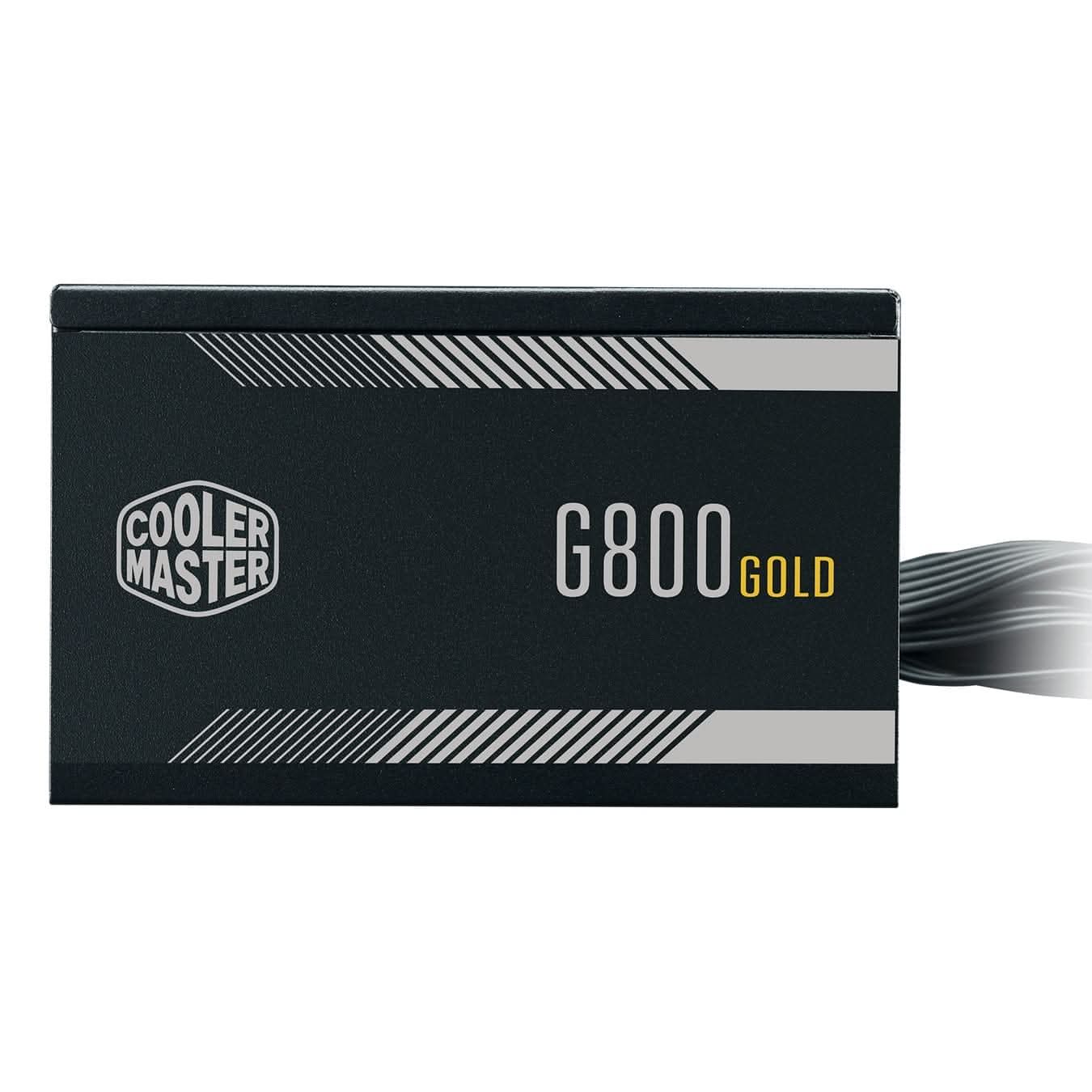

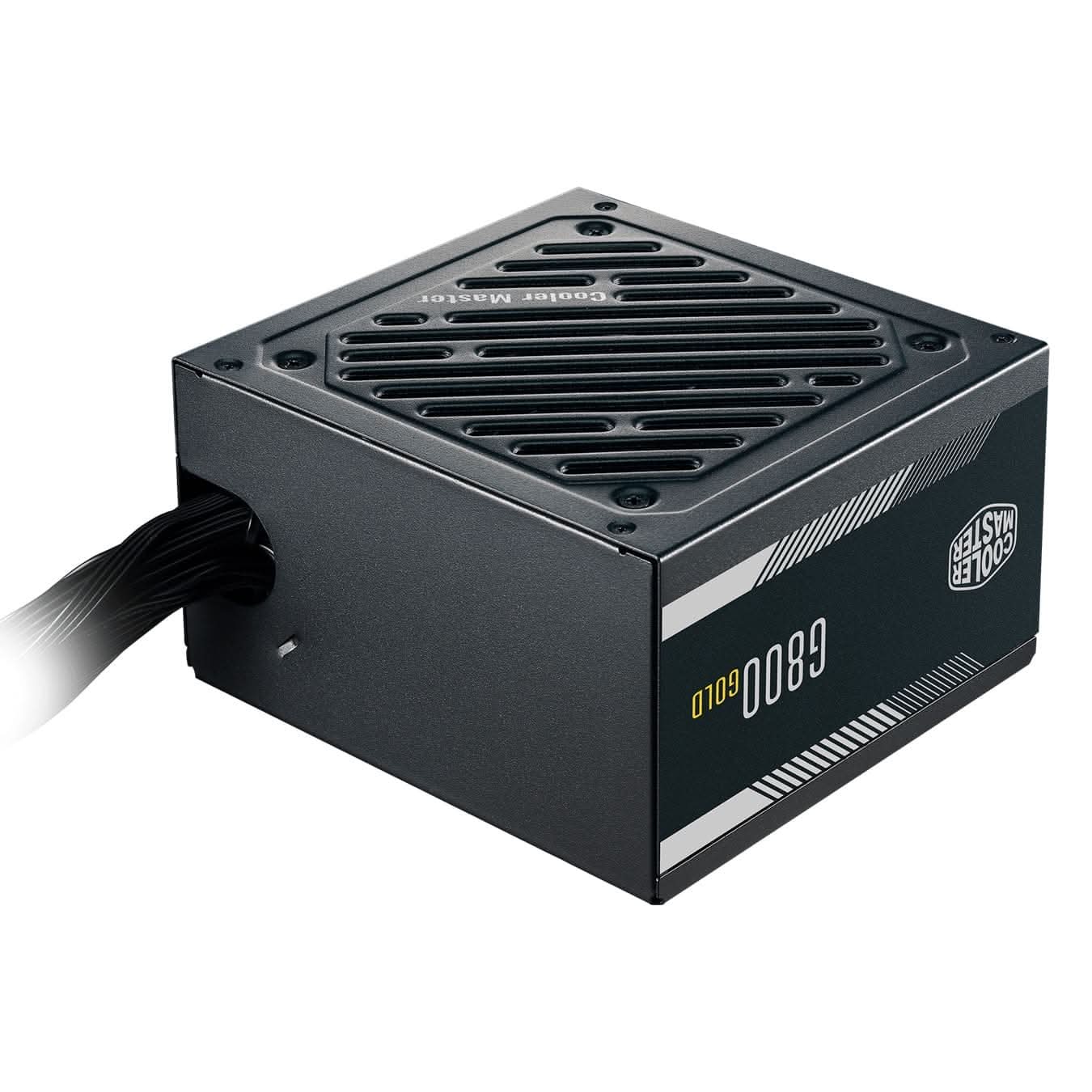

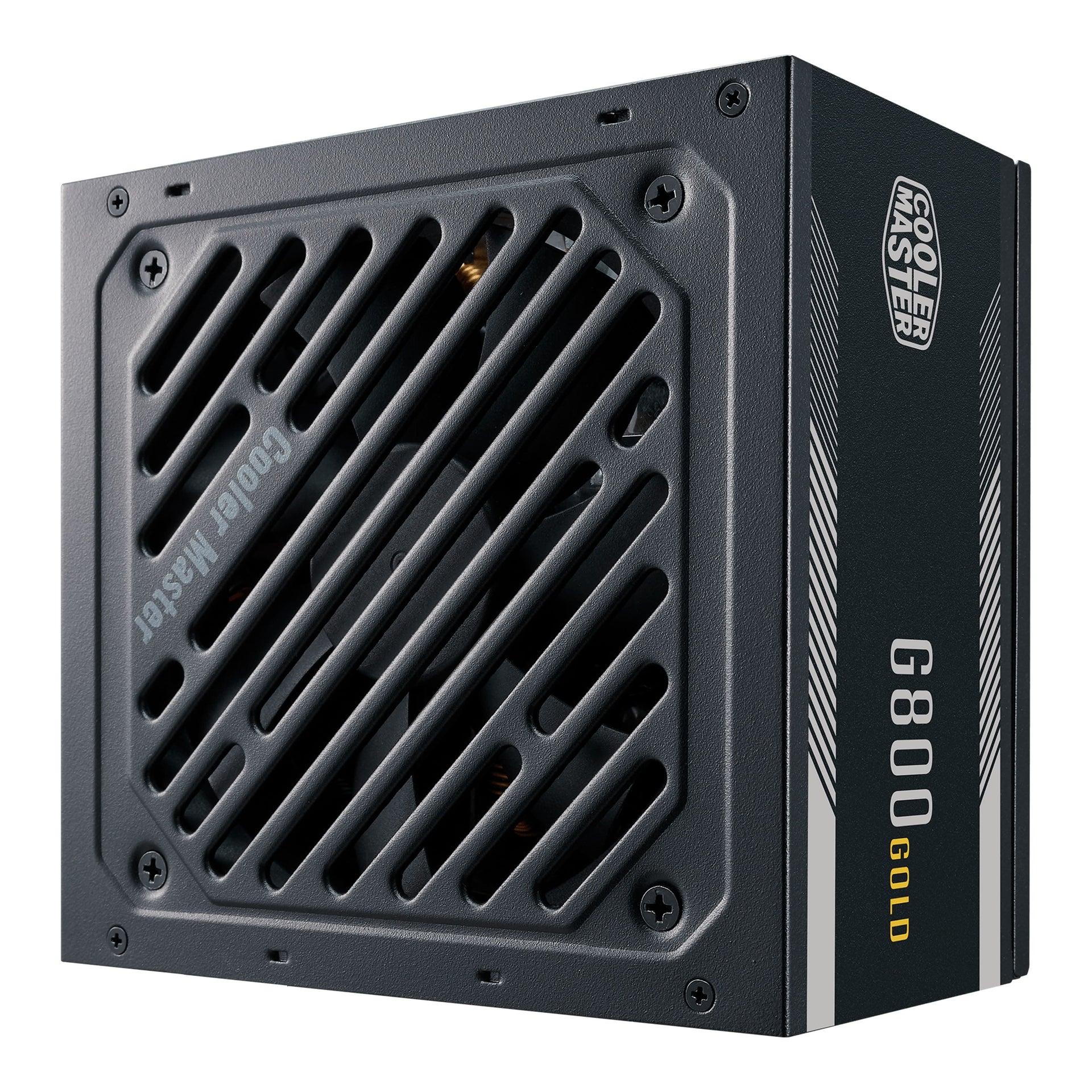

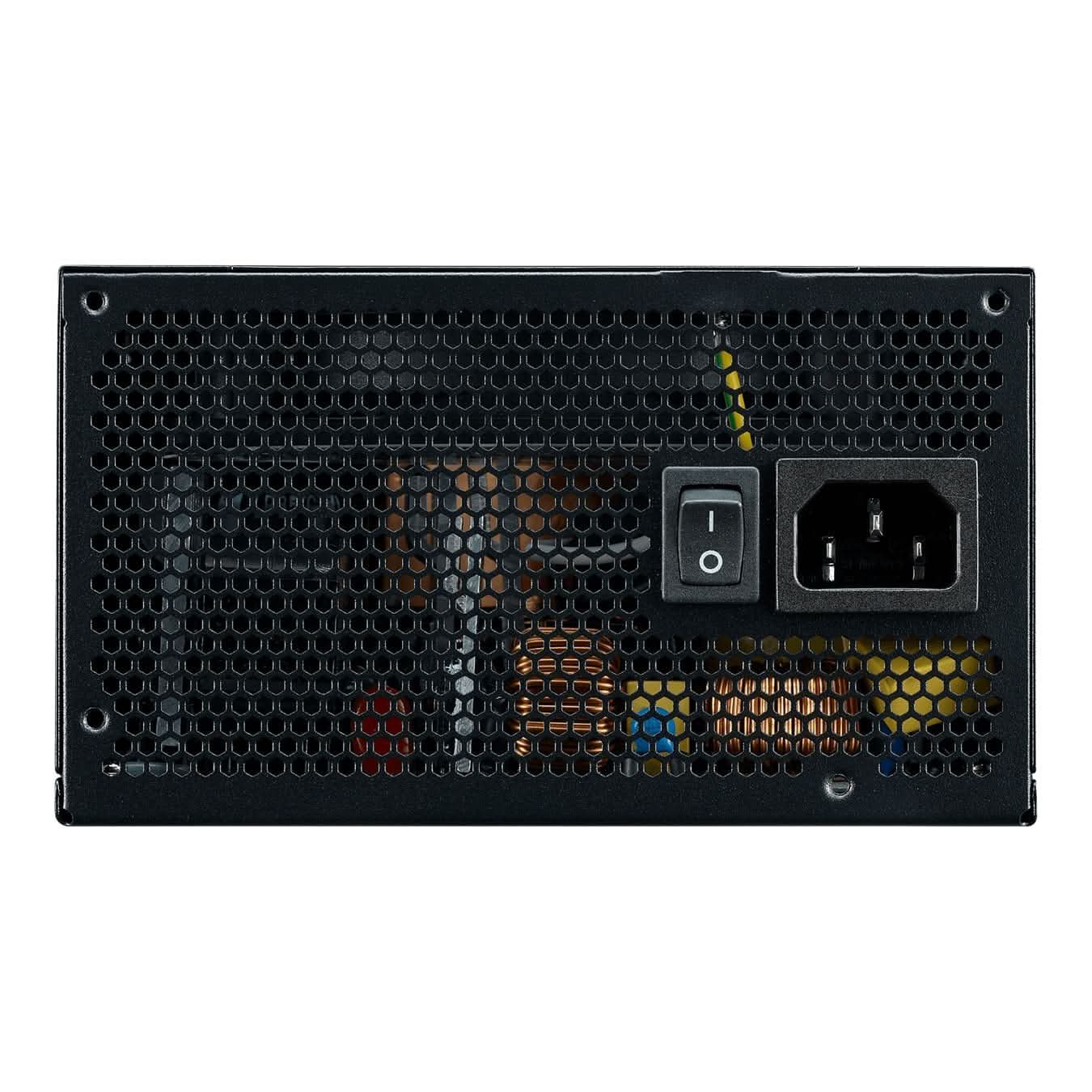

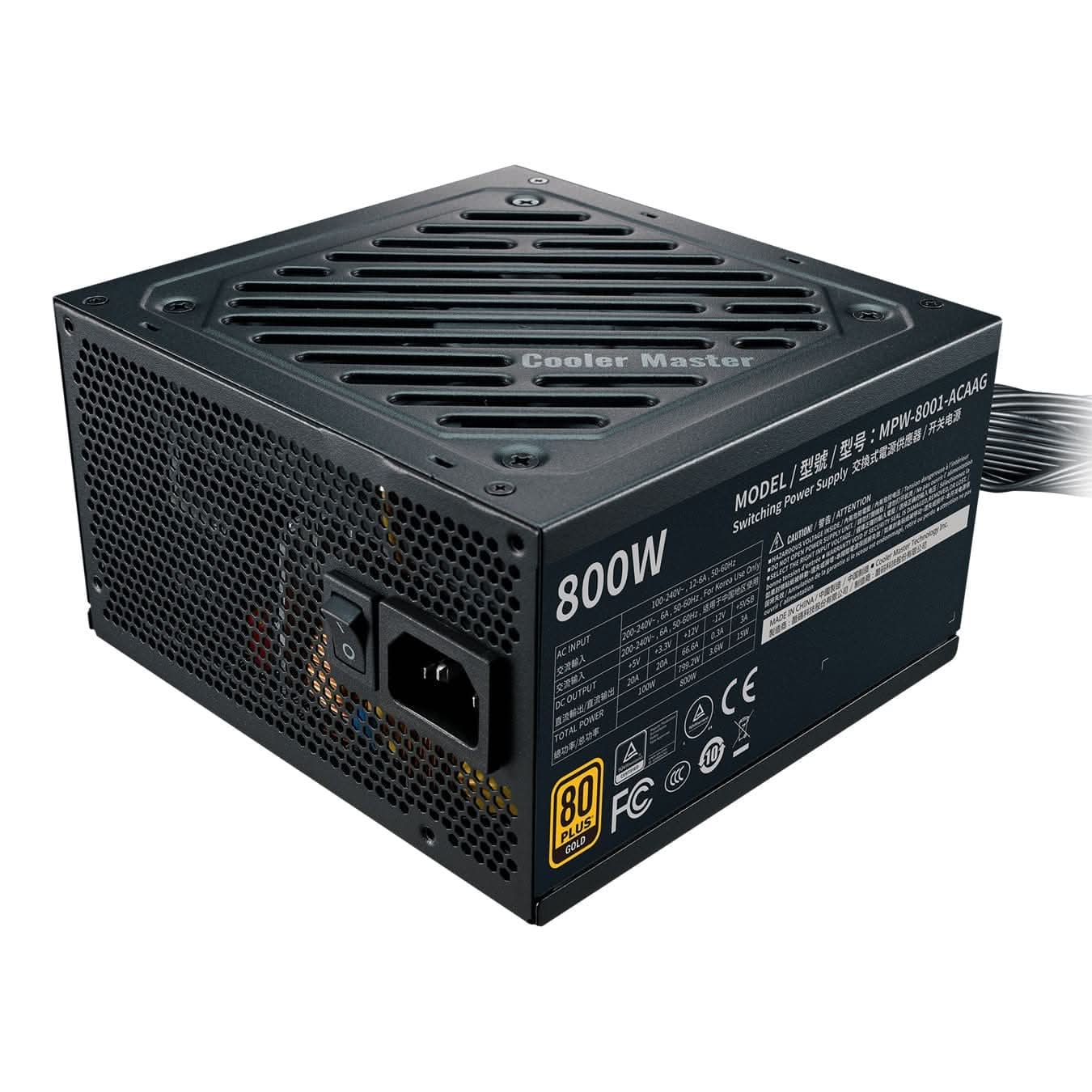

Model | MPW-8001-ACAAG |
ATX Version | ATX 12V V2.52 |
PFC | Active PFC |
Input Voltage | 100-240V |
Input Current | 12-6A |
Input Frequency | 47-63Hz |
Dimensions (L x W x H) | 140 x 150 x 86 mm |
Fan Size | 120mm |
Fan Bearing | HDB |
Efficiency | ?90% @ Typical Load |
80 PLUS Rating | 80 PLUS Gold |
ErP 2014 Lot 3 | Yes |
Operating Temperature | 0-40∞C |
Power Good Signal | 100 - 150 ms |
Hold Up Time | ?15ms at 100% load |
MTBF | >100,000 Hours |
Protections | OVP, UVP, OPP, OTP, SCP, OCP |
Regulatory | CB, cTUVus, TUV, CE, RoHS2.0, FCC, CCC, BSMI, KC+KCC, BIS, EAC |
ATX 24 Pin Connectors | 1 |
EPS 4+4 Pin Connectors | 1 |
EPS 8 Pin Connector | 1 |
SATA Connectors | 6 |
Peripheral 4 Pin Connectors | 3 |
PCI-e 6+2 Pin Connectors | 4 |
Warranty | 5 Years |
Series | G Series |
80 Plus | Gold |
Modular | Non Modular |
Wattage | Above 750W |
