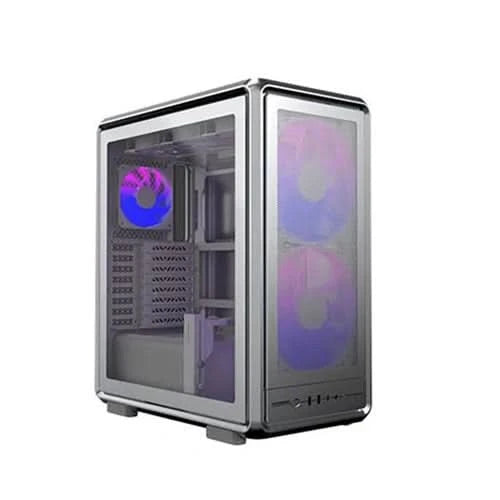

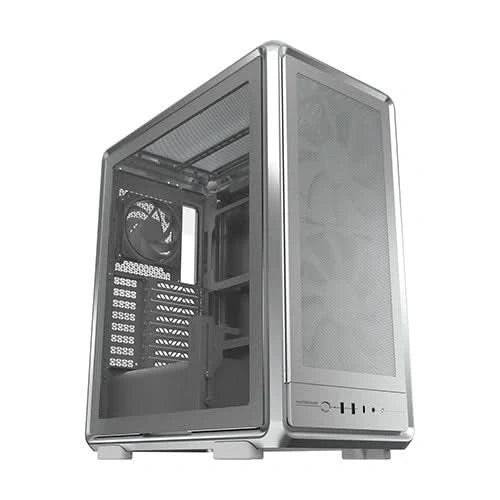

Cooler Master MasterFrame 500 Mesh ARGB Silver E-ATX Mid Tower Case

Features:

The MasterFrame 500 Mesh is a premium open-frame mid-tower chassis built for high-performance components, advanced cooling setups, and limitless customization. Embracing the FreeForm 2.0 design philosophy, it supports ATX to E-ATX motherboards and provides full access to modular design files. With enhanced mesh panels for improved airflow, it empowers builders, modders, and creators to push the boundaries of PC design.

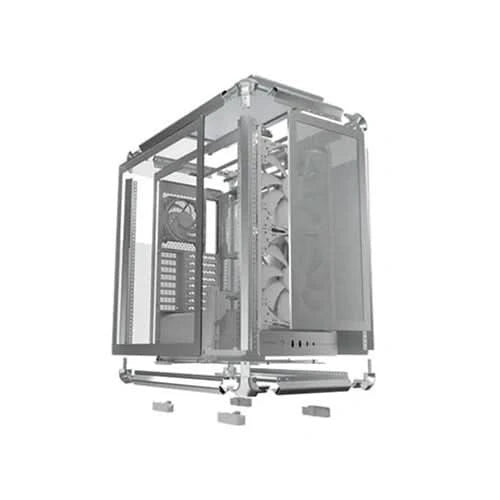

FreeForm 2.0 Exo-structure

The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.

Versatile & Maker-Driven

Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.

Flexible Motherboard Support

Supports Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support)

Extensive Cooling Support

Can house up to eight fans and multiple radiator sizes (up to 360mm), ensuring superior thermal performance.

Tool-Free Panel Removal

Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.

Included GPU support bracket

The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.

• Dimensions (L x W x H): 471 x 261 x 544mm (Incl. Protrusions), 471 x 244 x 514mm (Excl. Protrusions)
• Power Supply Support: ATX
• 3.5" Drive Bays: 0
• 2.5" / 3.5" Drive Bays (Combo)1 (Bottom)
• Preinstalled Drive Bays - 3.5" / 2.5" Drive Bay(or SSD) (remark Toolfree quantity): 1x 2.5 or 1x 3.5

Preinstalled Fan

• Front : 2x SickleFlow 200mm (ARGB)
• Rear :  1x 120mm (ARGB)

Fan Support:

• Front: 3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm
• Top: 3x 120mm, 2x 140mm, 2x 180mm , 1x 200mm
• Rear: 1x 120mm
• Bottom: 3x 120mm, 3x 140mm

Radiator Support:

• Front: 120 / 140 / 240 / 280 / 360 mm
• Top: 120 / 140 / 240 / 280 / 360 mm
• Rear: 120 mm

  Cabinet
  Cabinet Size	MID-TOWER
  Color	Silver
  Material	Steel, Aluminum,Tempered Glass
  Expansion Slots	8
  Motherboard Size	SSI-CEB,E-ATX,ATX,M-ATX,M-ITX
  Max CPU Cooler Height	190mm
  Max PSU Length	235mm
  Max Gpu Length	390mm
  Max 3.5" HDD	1
  Max 2.5" SSD	2
  Pre Installed Fans	3
  Max Fan Support	10
  Radiator Support	360mm,280mm,240mm,140mm,120mm
  Front I/O Panel	USB 3.2 Gen 1 Type A,USB 3.2 Gen 2x2 Type C,3.5mm Headset Jack
  Warranty	2 Years
  Note***	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
