Zoom
Description
Specifications:
| Specification | Details |
|---|---|
| Product Number | NCORE 100 MAX: NR100-MNNN85-SL0, NR100-MNNN85-SL1 |
| Product Number | NCORE 100 MAX Bronze Edition: NR100-ZNNN85-SL0, NR100-ZNNN85-SL1 |
| Exterior Color | NCORE 100 MAX: Dark grey |

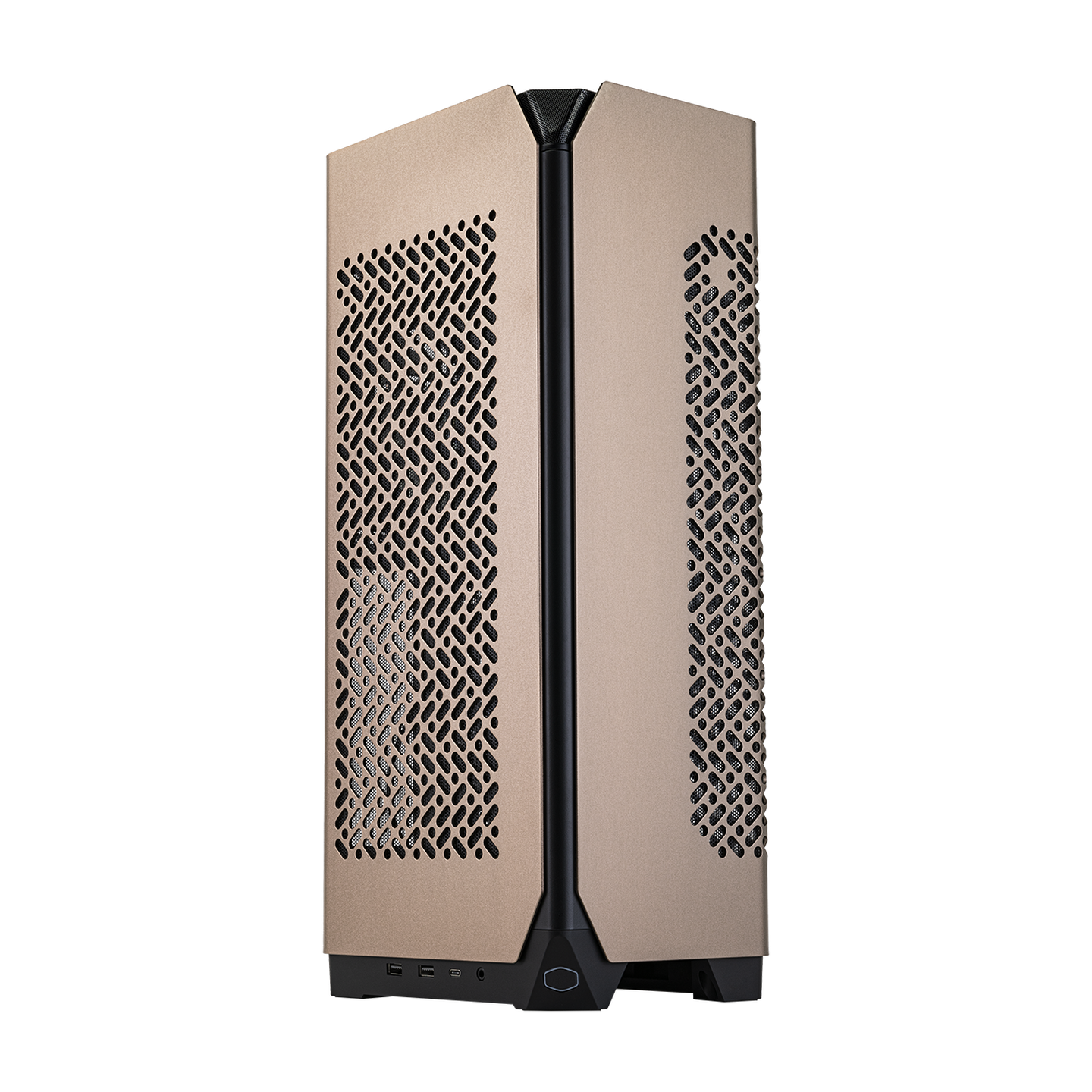

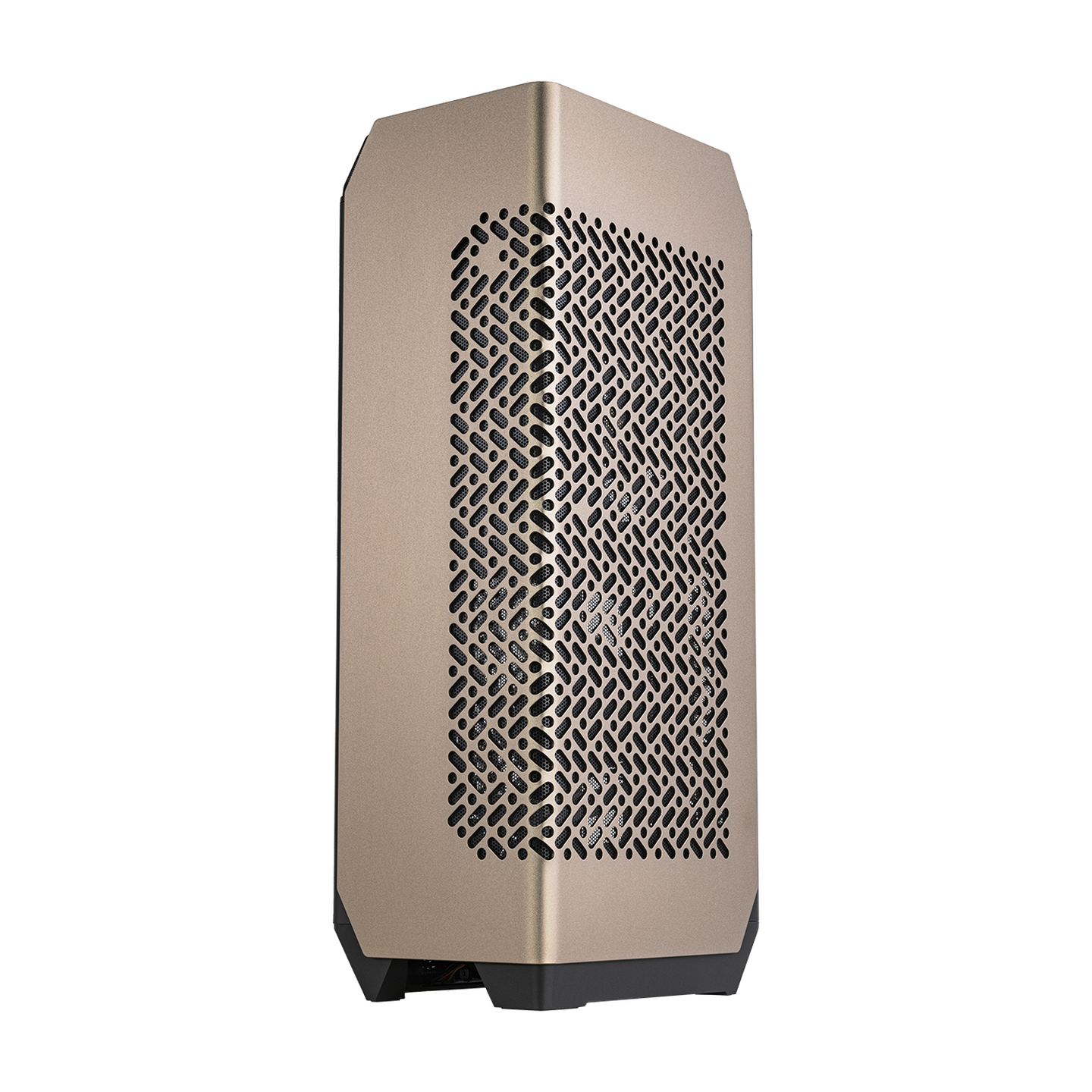

| Exterior Color | NCORE 100 MAX Bronze Edition: Bronze |
| Materials - Exterior | Steel, Plastic, Aluminum |
| Materials - Side Panel | Aluminum |
| Dimensions (L x W x H) | Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions) |
| Dimensions (L x W x H) | Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions) |
| Dimensions (L x W x H) | 155mm x 212mm x 457mm (Excl. Protrusions) |
| Dimensions (L x W x H) | 172mm x 212mm x 457mm (Excl. Protrusions) |
| Volume | 15.80L (Normal mode) |
| Volume | 17.54L (Expansion mode) |
| Motherboard Support | ITX |
| Expansion Slots | 3x PCIe Slot mounting |
| Drive Bays - 2.5" SSD | 1 |
| I/O Panel | 2x USB 3.2 Gen1 Type A |
| I/O Panel | 1x USB 3.2 Gen2 x 2 Type C |
| I/O Panel | 1x Audio Combo (Audio In / Out 3.5mm) |
| Pre-Installed Accessories | 1x 240mm PCIe 4.0 x16 |
| Pre-Installed CPU Cooling Solution | 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM) |
| Pre-installed Power Supply Unit | V SFX Gold 850W ATX 3.0 |
| Pre-installed Fan(s) - Rear | 120mm SickleFlow PWM Fan x1 (Max. 1800RPM) |
| Clearances - CPU Cooler | 48mm |
| Clearances - Power Supply | 100mm |
| Clearances - RAM | 48mm |
| Clearances - Graphics Card | 337mm x 62mm x 180mm (Normal, 3.0 Slot thick) |
| Clearances - Graphics Card | 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick) |
| Clearances - Graphics Card | (Maximum space including GPU power connector) |
| Cable Routing - Behind MB Tray | 11mm |
| Dust Filters | Side panels |
| Power Supply Support | SFX |
| Warranty | 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) |
| Size | Mini ITX |
