Description
Specifications

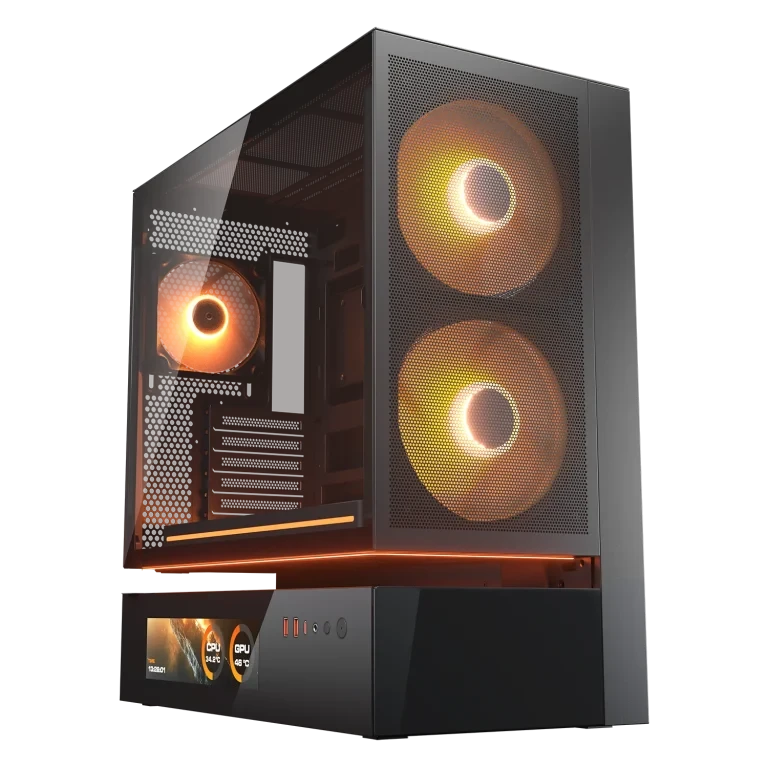

| Product Name | CFV235 Mesh Vision / CFV235 Mesh Vision (White) | ||
|---|---|---|---|
| Case Form Factor | Mid Tower | ||
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB | ||
| Dimensions (WxHxD) | 235 x 493 x 460 (mm) 9.3 x 19.4 x 18.1 (in) | ||
| 9.16" LCD Monitor (1920 x 462 px) | Yes | ||
| I/O Panel | USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button | ||
| 3.5" Drive Bay | 2 | ||
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) | ||
| Expansion Slots | 7 | ||
| Cooling Fan Support | Front | 160mm x 2 | |
| Top | 120mm x 3 / 140mm x 2 | ||
| Bottom | 120mm x 3 | ||
| Rear | 120mm x 1 | ||
| Pre-installed Fans | Front | 160mm ARGB PWM fan x 2 | |

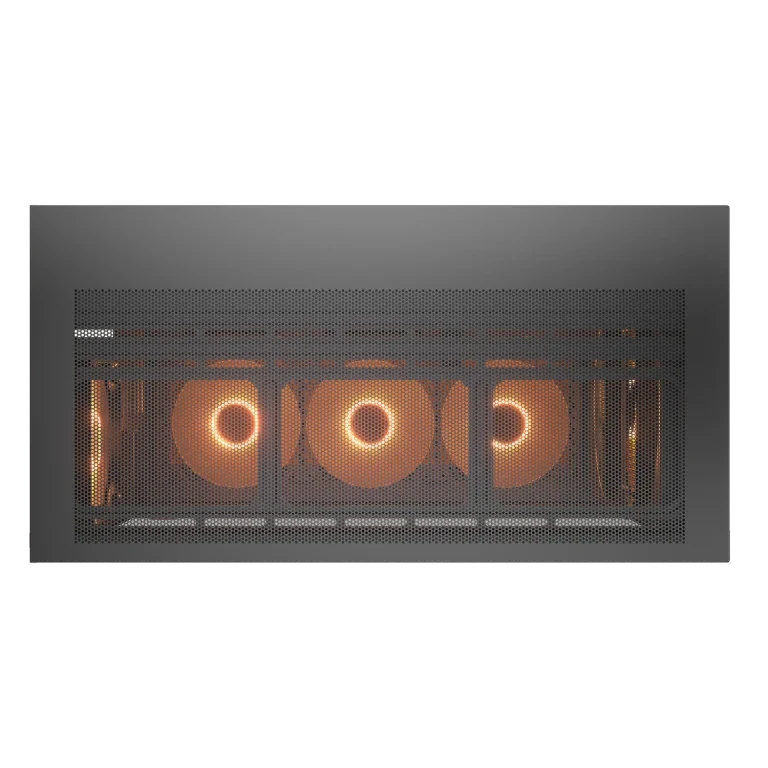

| Bottom | Unity 360 ARGB PWM Reversed fan x 1 | ||
| Rear | 120mm ARGB PWM fan x 1 | ||
| Speed | 160mm ARGB PWM fan: 500-1200 ± 10% RPM Unity 360 ARGB PWM Reversed fan: 700-1600 RPM ±10% 120mm ARGB PWM fan: 500-1400 ± 10% RPM | ||
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) | ||
| Maximun Number of Fans | 9 | ||
| Water Cooling Support | Top | 360mm / 280mm / 240mm / 140mm / 120mm | |
| Rear | 120mm | ||
| Aurora LED Strip | Yes | ||
| PWM and RGB hub Sync with M/B | Yes | ||
| Max. Graphics Card Length | 400 (mm) / 15.7 (in) | ||
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) | ||
| Max. PSU Length | 200 (mm) / 7.9 (in) | ||
Packing Data
| CFV235 Mesh Vision | CFV235 Mesh Vision (White) | |||
| Product Number (P/N) | 382DA40.0007 | 382DA40.0008 | ||
| Model No. | CGR-2DA4B-MV | CGR-2DA4W-MV | ||
| EAN CODE | 4711649770143 | 4711649770150 | ||
| UPC CODE | 192554009773 | 192554009780 | ||
| JAN CODE | 4541995045172 | 4541995045189 | ||
| Individual Size W/O Packaging Weight (N.Weight) | 10.9 kg | |||
| Individual Packaging Weight (G.Weight) | 13.3 kg | |||
| Individual Size W/O Packaging (WxHxD) | 235 x 493 x 460 mm | |||
| Individual Packaging Size (WxHxD) | 542 x 578 x 317 mm | |||

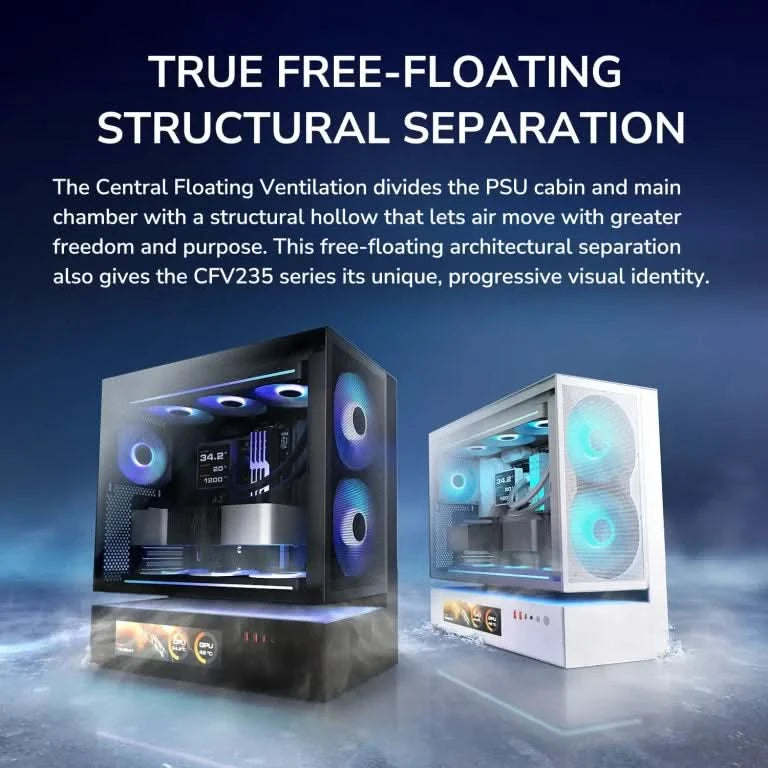

- Central Floating Ventilation free-floating separation provides a unique visual identity.

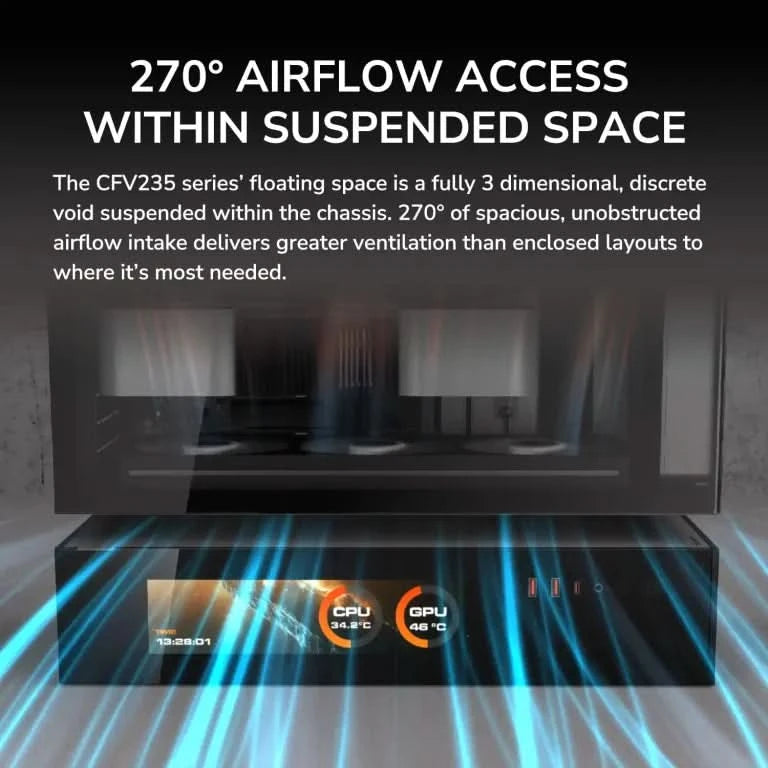

- True floating void adds an extra dimension of airflow across 270° of access.

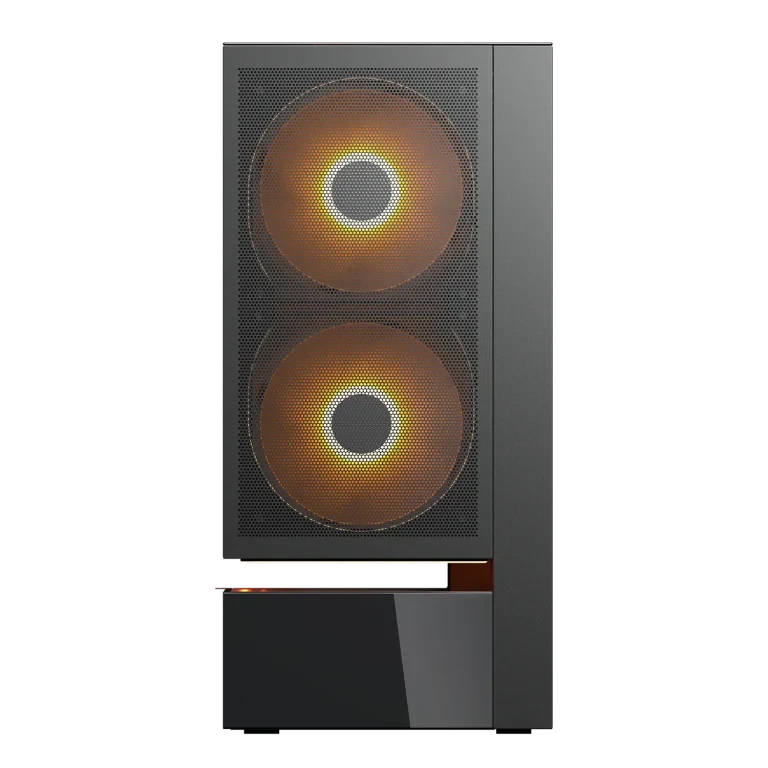

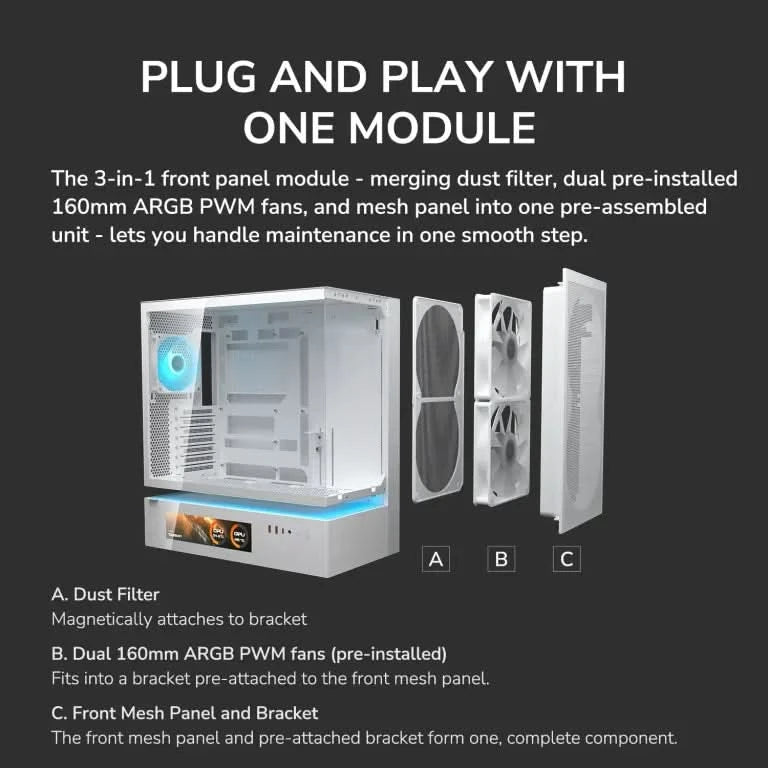

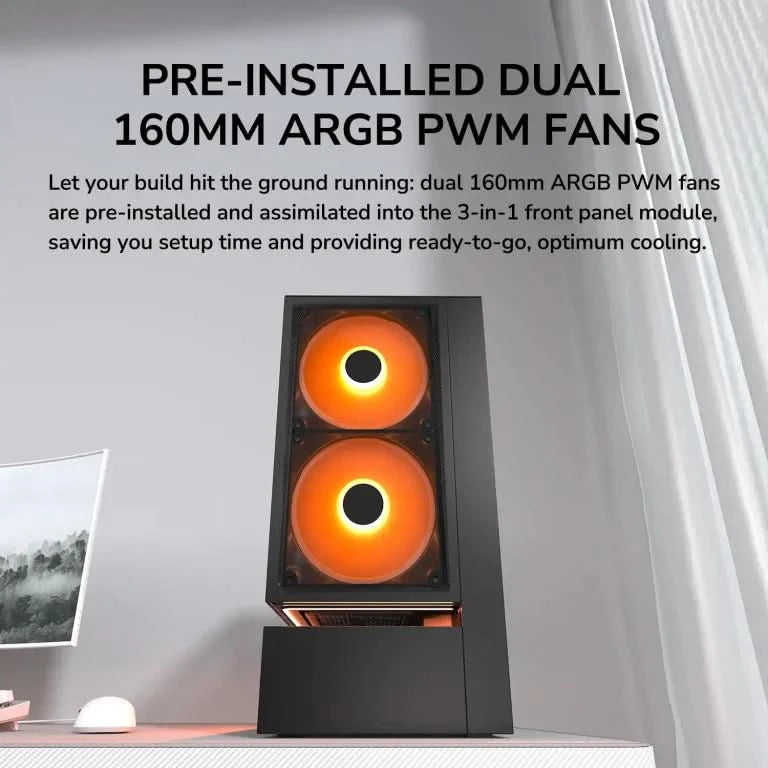

- A 3-in-1 front panel module pre-assembles a dust filter, dual pre-installed 160mm ARGB PWM fans, and mesh panel into a single unit for even easier maintenance.

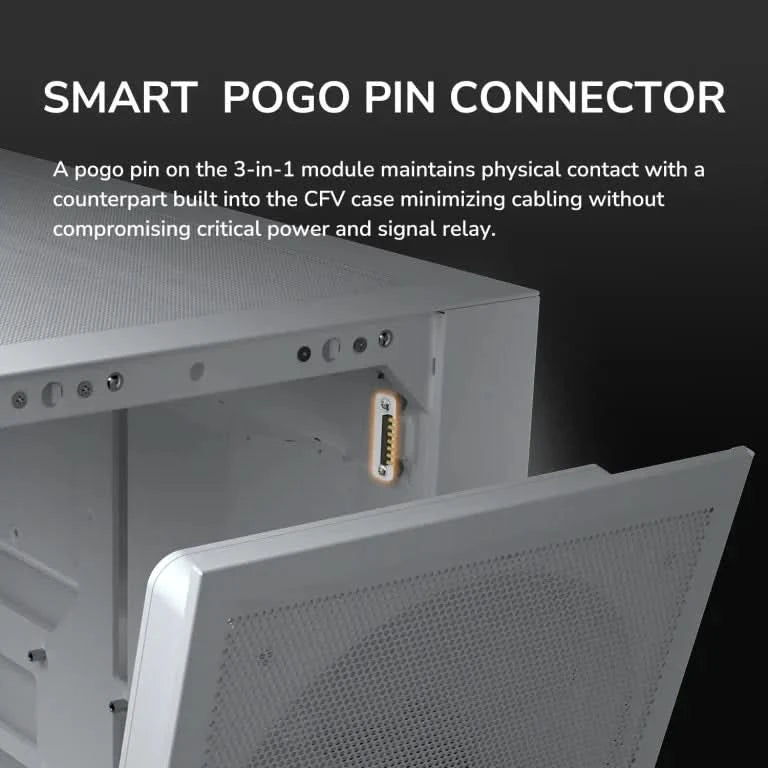

- The module uses a pogo pin to connect with the case’s built-in counterpart, minimizing cabling for easy setup and a cleaner view.

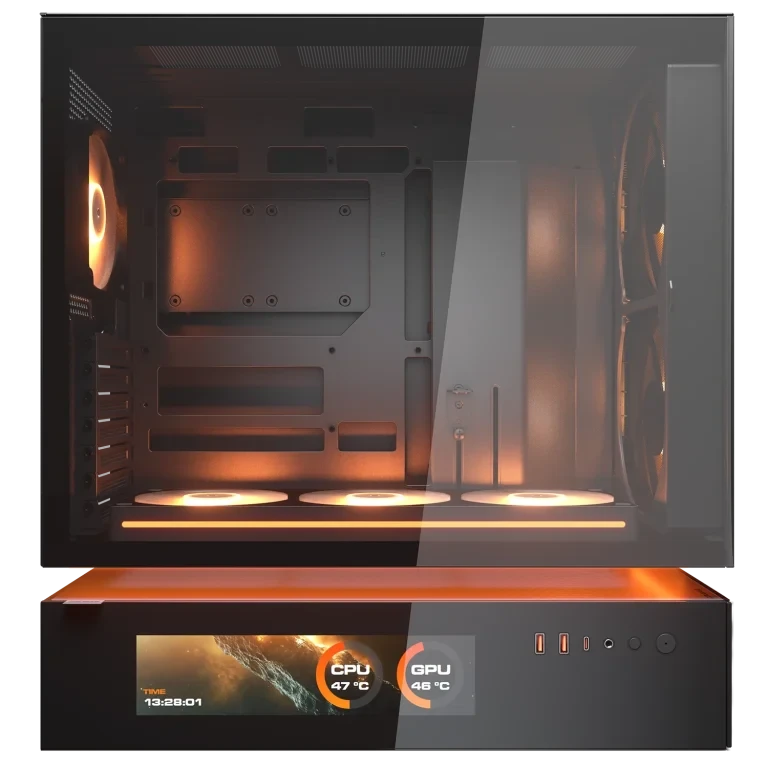

- 9.16-inch IPS TFT LCD delivers real-time readouts and customizable visuals in 1920 x 462 resolution with 60Hz refresh rate, fully accessible from your desktop through control software.
- The Aurora RGB lighting strip brings the awe and glory of RGB lighting to the free-floating space.
- Accommodates a maximum GPU length of 400mm.
- Compatible with Reverse Connector / Mini ITX / Micro ATX / ATX / CEB motherboards.
- USB 3.2 Gen 2×2 Type-C (20 Gbps) x 1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device connectivity.
- Houses 2 x 3.5” HDD drives and 2+2 2.5” SSD drives (converted from 3.5” drive bays)
Peripheral Vision
The CFV235 Mesh Vision is equipped with USB 3.2 Gen 2x2 Type-C (20 Gbps) x1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device and peripheral connectivity.
Full House
Accommodating 2x3.5” HDD drives and 2+2 2.5” SSD drives (converted from 3.5” drive bays), versatile storage options gives you plenty of room to expand your storage as needed.
