Technical Specifications:
| Net Weight | 1305 g |

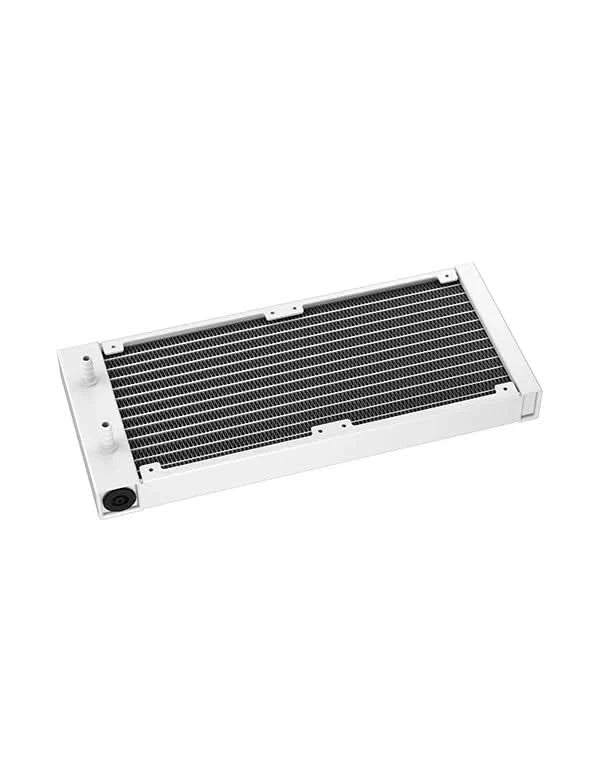

| Radiator Dimensions | 282×120×27 mm(L×W×H) |
| Radiator Material | Aluminum |
| Tube length | 410 mm(L×W×H) |
| Pump Dimensions | 86×74×57 mm(L×W×H) |
| Pump Speed | 3100 RPM±10% |
| Pump Noise | 19 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.47 A |
| Pump Power Consumption | 5.64 W |

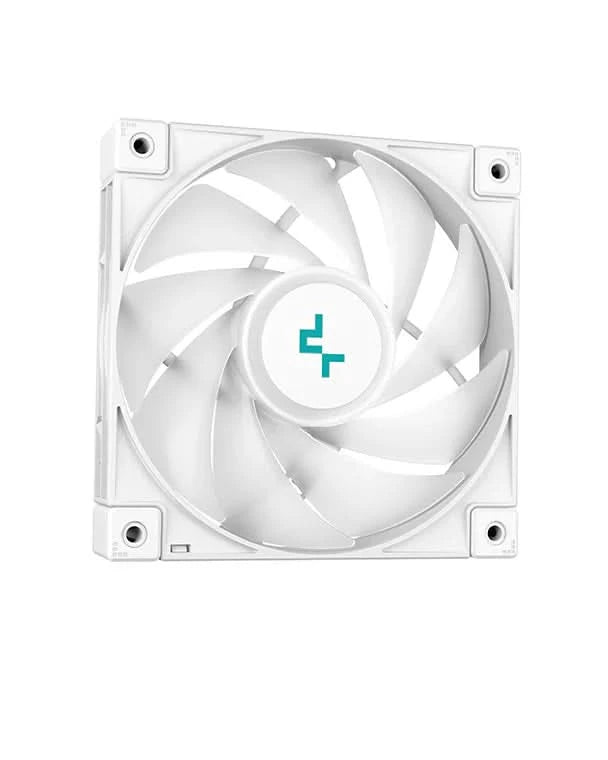

| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 500~2250 RPM±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤32.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.29 A |
| Fan Power Consumption | 3.48 W |

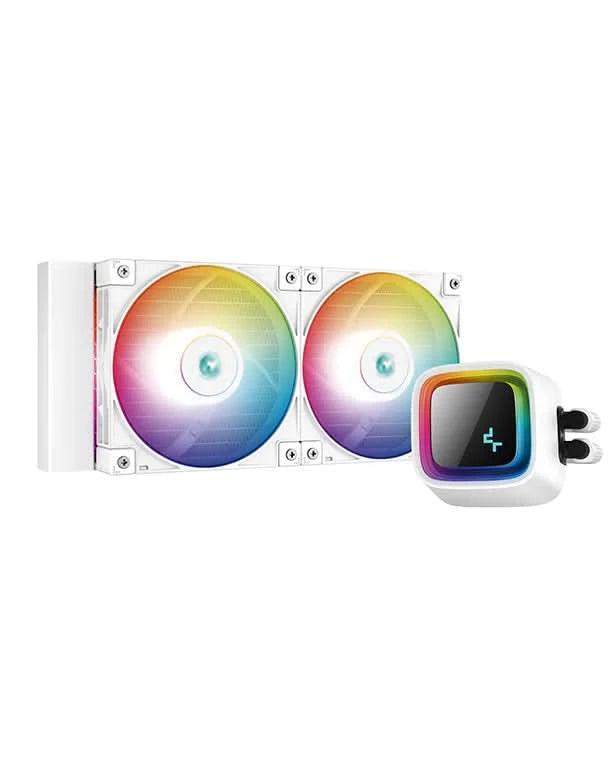

| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.2 W（PUMP）/ 3.6 W（FAN×2） |
| EAN | 6933412727651 |
| P/N | R-LS520-WHAMNT-G-1 |
