| Model Number | R-LE520-BKAMMN-G-1 |
| Net Weight | 1238 g |

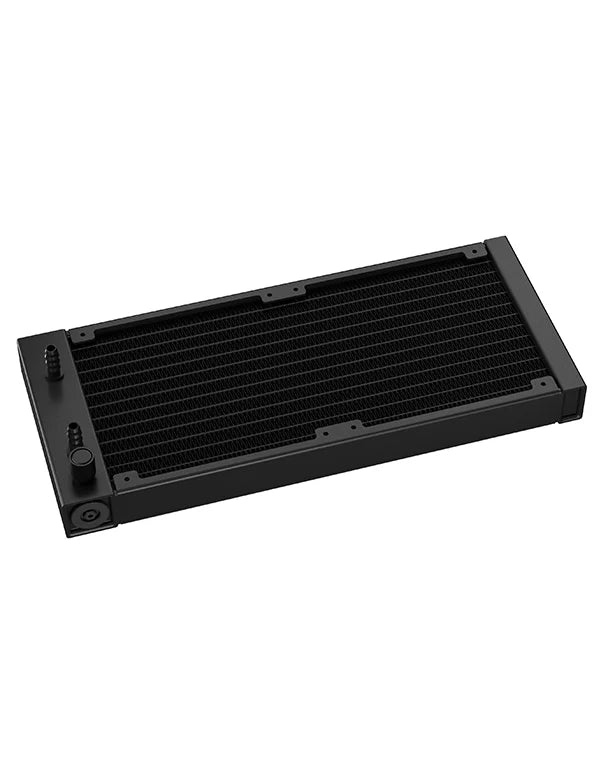

| Radiator Dimensions | 282◊120◊27 mm(L◊W◊H) |
| Radiator Material | Aluminum |
| Tube length | 410 mm(L◊W◊H) |
| Pump Dimensions | 91◊80◊52 mm(L◊W◊H) |
| Pump Speed | 2400 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.2 A |
| Pump Power Consumption | 2.4 W |

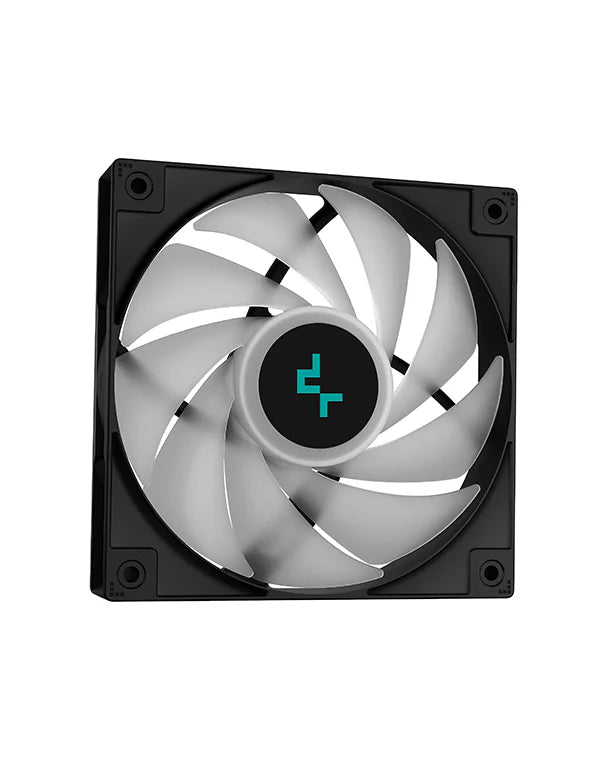

| Fan Dimensions | 120◊120◊25 mm(L◊W◊H) |
| Fan Speed | 500~2250RPM±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ?32.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.25 A |
| Fan Power Consumption | 3.0 W |

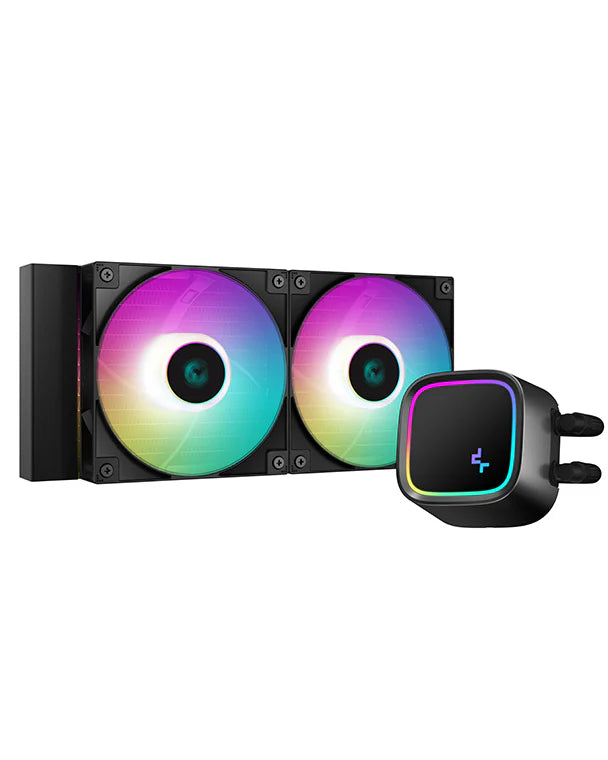

| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.25 WÔºàPUMPÔºâ/ 2.1 WÔºàFAN◊2Ôºâ |
| Warranty | 3 Years |
