Description

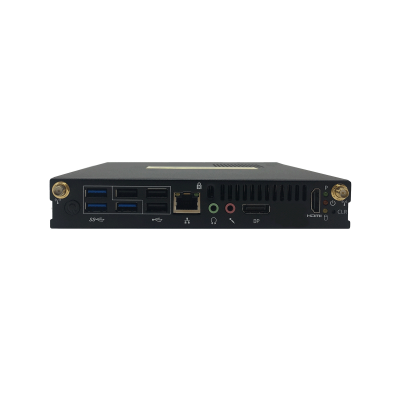

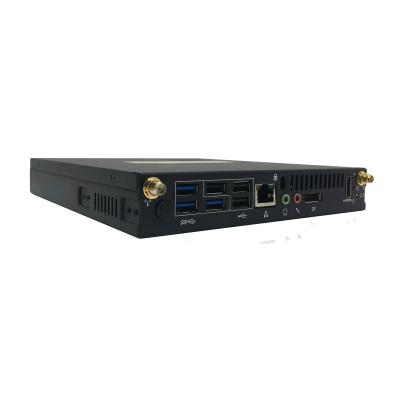

Dhua MC-PI5682IL Detachable PC Module
- 6th generation Intel® Core™ i5 and Celeron® processors.
- Intel® HD Graphics 530 GPU, supports H.265 and 4K.
- MSATA system disk quick start, one-press restore.
- 3 × USB 3.0 and 3 × USB 2.0 ports.
- Dual antenna 802.11a/b/g/n/ac Wi-Fi, which supports high-speed wireless transmission.
- 1 × HDMI and 1 × DP ports.
Specifications:
| Configuration | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU | Intel® Core ™ i5-6400T Processors | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mainboard | Intel® socket 1151 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chipset | Intel H310C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| GPU | Intel® HD Graphics 530 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Memory Model | 4 GB DDR4 × 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SSD | M.2 256 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WiFi | AC 3168 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bluetooth | Bluetooth 4.2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ports | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Antenna | 2 × Antenna | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mic in | 1 × Mic in | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Line out | 1 × Line out | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | 1 × MD 1.4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DP | 1 × DP 1.2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB | 3 × USB 2.0/3 × USB 3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RJ-45 | Integrated 10/100/1000 M Adaption | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Input | 12–19 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Power | 95 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Standby Power | ≤ 0.5 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| OS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Version | Standard: Windows 10; (no Windows license included) You can configure Windows 7, Windows 8, Windows 10, and Linux | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 194 mm × 180 mm × 30 mm (7.64" × 7.09" × 1.18") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 1.24 kg (2.73 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temeprature | 0 °C to + 40 °C (+32 °F to +104 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temeprature | –20 °C to +60 °C (–4 °F to 140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity | 10%–90% Non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
