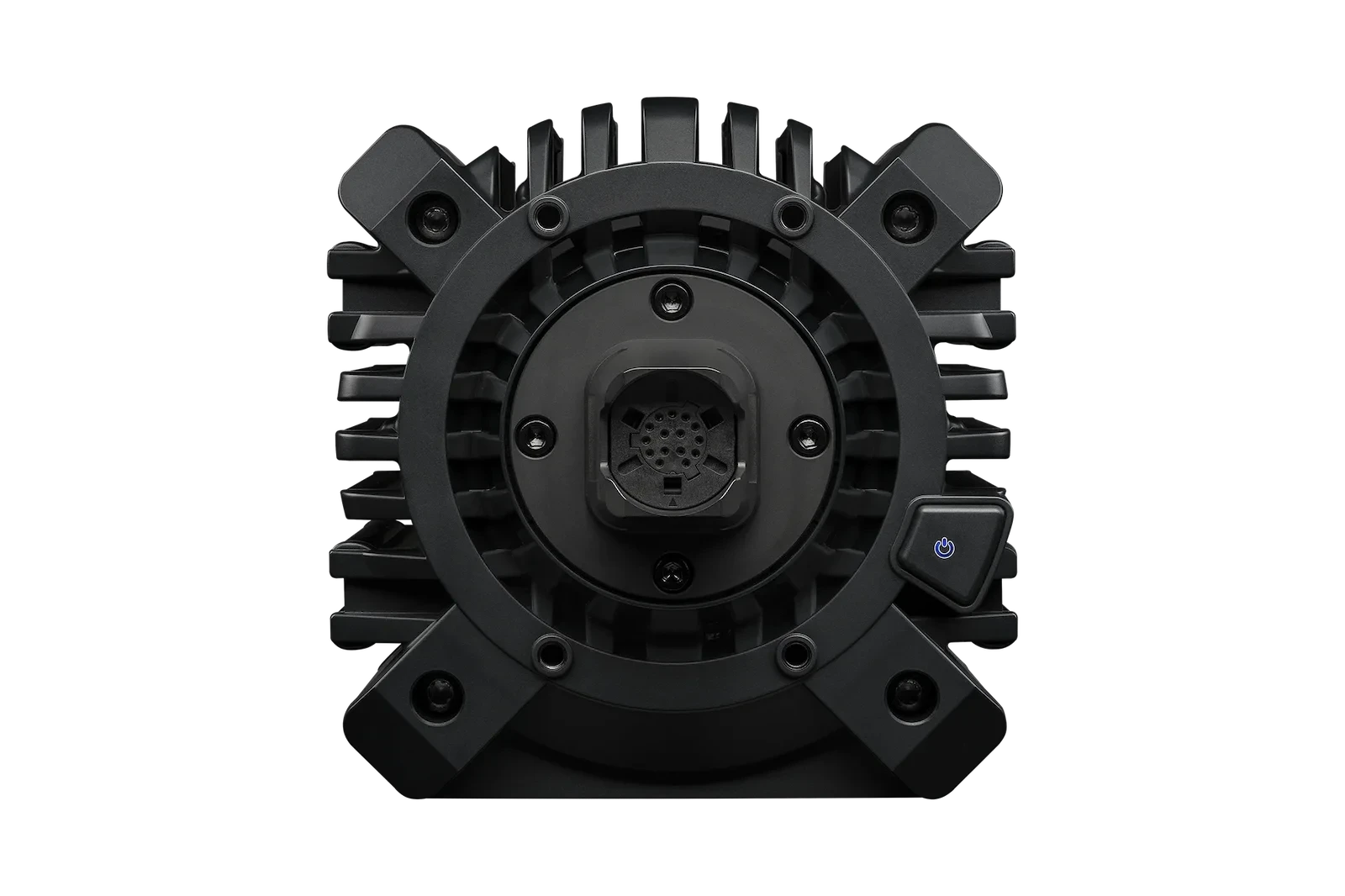

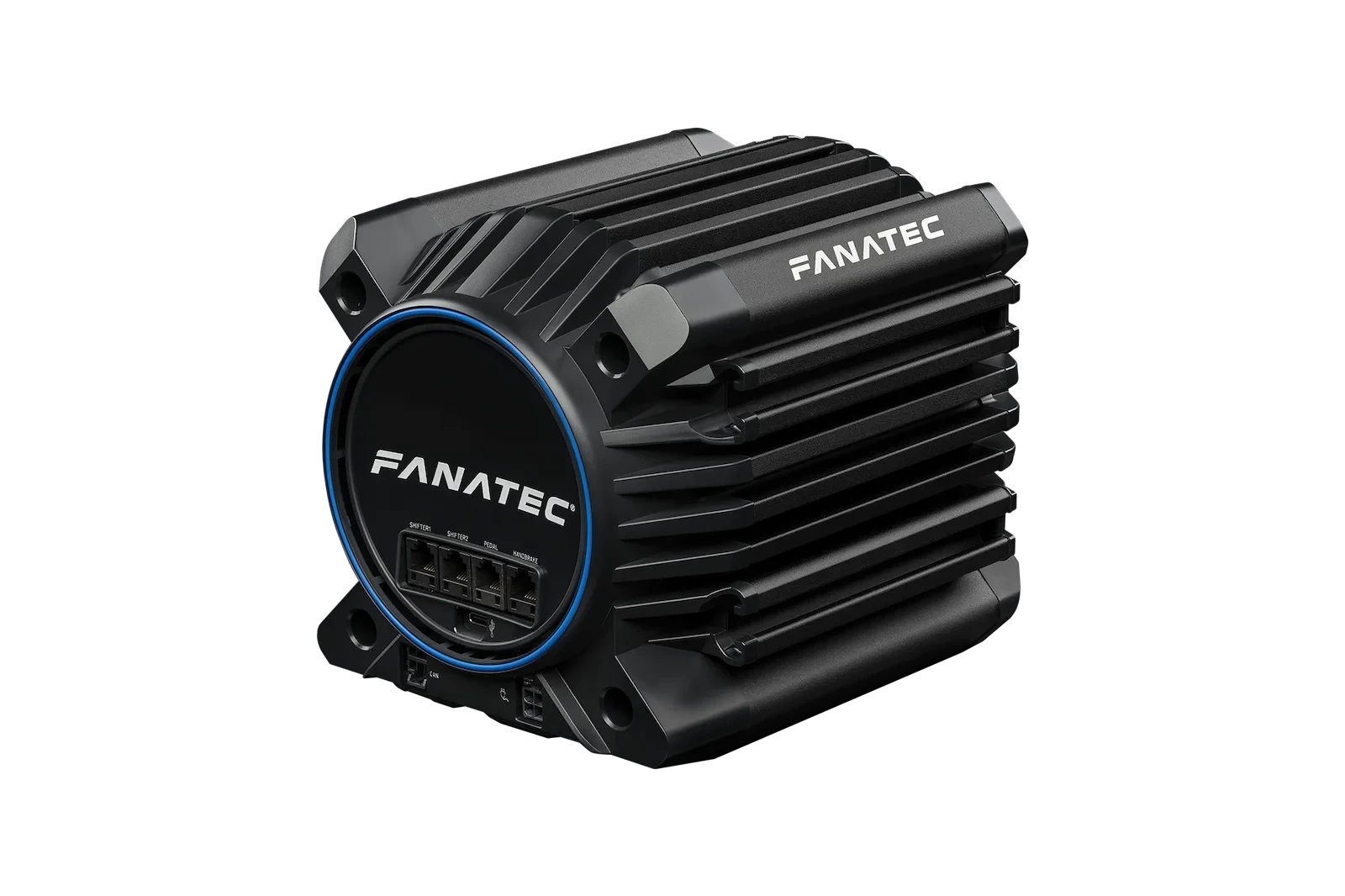

Fanatec ClubSport DD+ Wheelbase (15 NM) CS_DD+_EU

Features

• Officially licensed for PlayStation®5 consoles and PlayStation®4 consoles

• Direct Drive servo motor

  • Custom-designed in Germany for the ClubSport DD+ specifically for sim racing

  • 15 Nm consistent torque

  • Optimised skew angle on rotor magnets reduces cogging torque

  • Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness

• FullForce technology

  • New force feedback protocol developed for Fanatec Direct Drive

  • Super low-latency detail effects through fine motor frequency control

• Passively cooled Wheel Base

  • Most thermally stable Wheel Base in its class

  • Consistent performance under the most extreme conditions

• QR2

  • Wheel Base optimised for QR2 from the ground-up

  • Electronics module integrated with shaft

  • Diecast aluminium with CNC-machined finish

  • Motorsport-derived quick release system

• Works out-of-the-box on Windows PC and PlayStation®5 and PlayStation®4 consoles

• Full Fanatec SDK support ensures compatibility out of the box for all major racing games

• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings

• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences

• High-resolution (contactless) Hall-position-sensor

• Rotation: 2520 degrees (electronically limited, adjustable)

• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between Steering Wheel and Wheel Base without the need for a mechanical limiter (allows for high steering angle settings)

• Compatible with entire Fanatec ecosystem (see Compatibility section for details)

• T-nut rail system on sides and bottom for easily adjustable hard-mounting

• Ports:

  • Power supply

  • USB-C to PC / console

  • Shifter 1

  • Shifter 2 (Sequential only)

  • Pedals

  • Handbrake

  • CAN (for future Fanatec peripherals)

• Front-mounted threaded inserts for future Fanatec accessories. Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

Compatibility

Peripherals

The ClubSport DD+ Wheel Base is compatible with:

• All Fanatec Steering Wheels (with QR2)

• All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)

• ClubSport Shifter (all versions)

• ClubSport Handbrake

• All Fanatec Cockpits

• ClubSport DD Table Clamp

• ClubSport Table Clamp V2

• Podium Mounting Brackets (the ClubSport DD+ Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)

Note: ClubSport Static Shifter Paddles are not supported.

Platforms

• This product is compatible with all PlayStation®4 consoles and PlayStation®5 consoles.

• This product is compatible with PC on all major racing games.

• Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.

Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.

What's Included

• ClubSport DD+ Wheel Base

• QR2 Base-Side (Type-F) preinstalled

• Power Supply (regional)

• 4x T-nuts for rail mount system

• USB cable (Type-C to Type-A)

• Quick Guide
