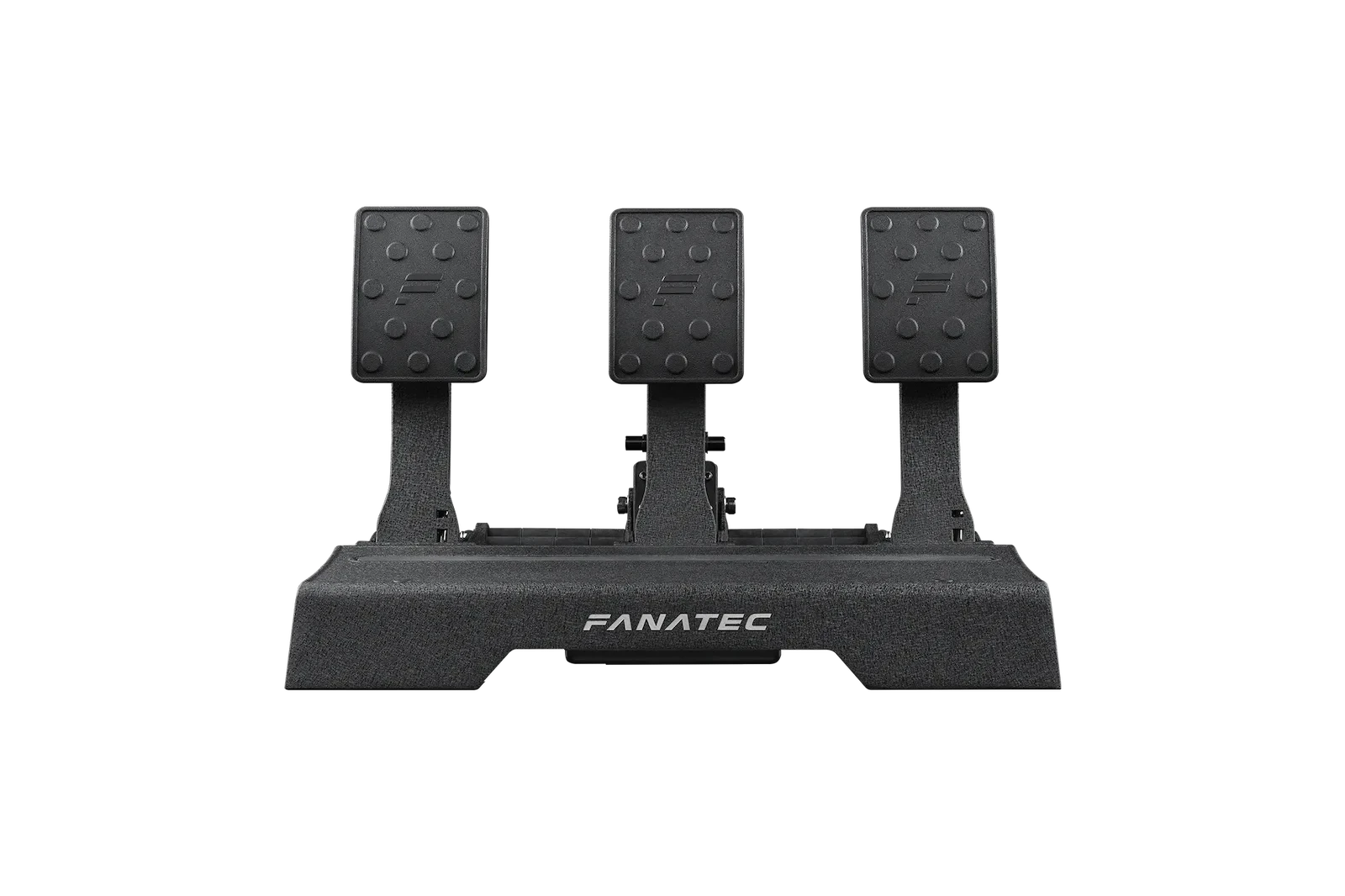

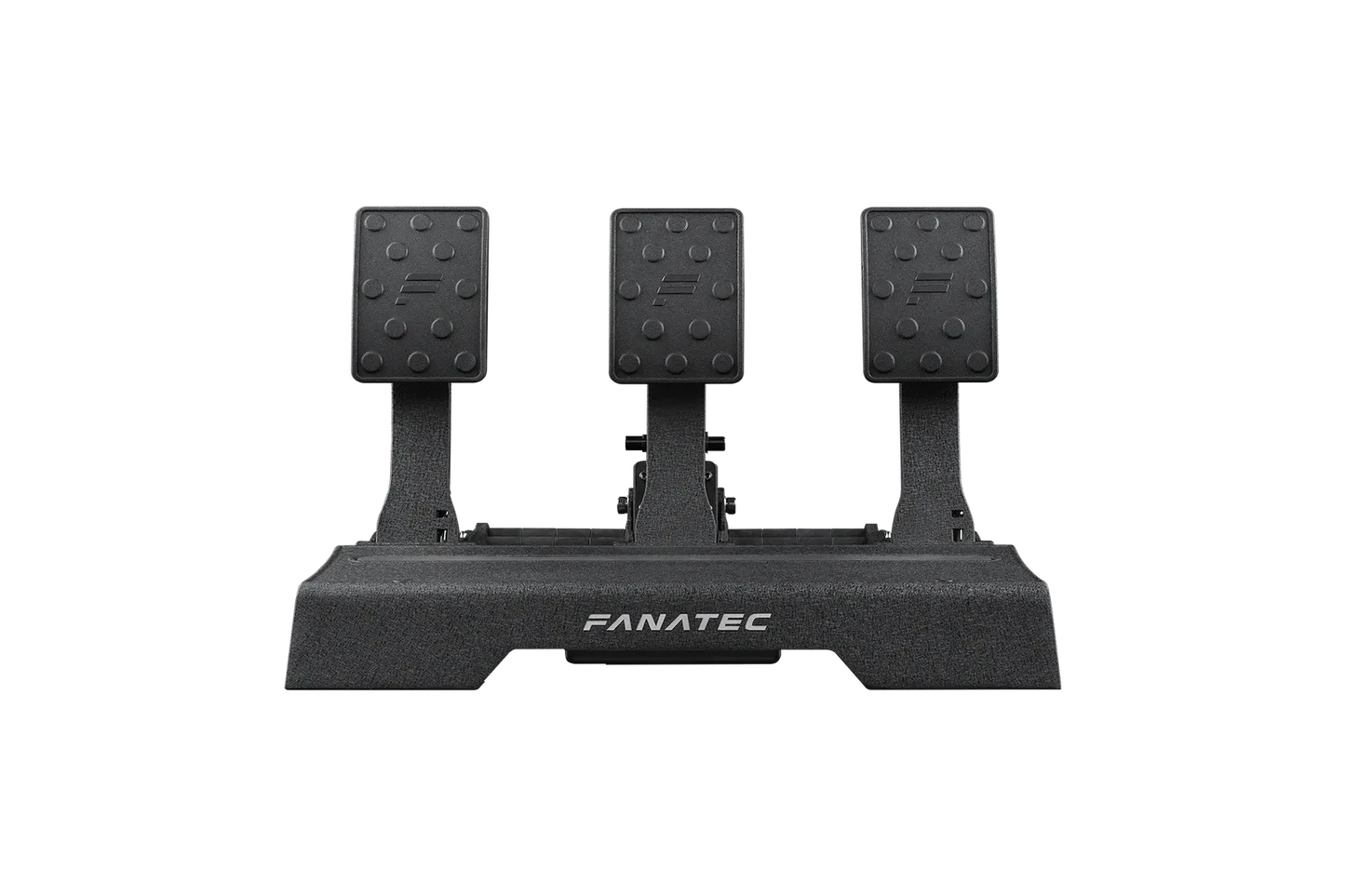

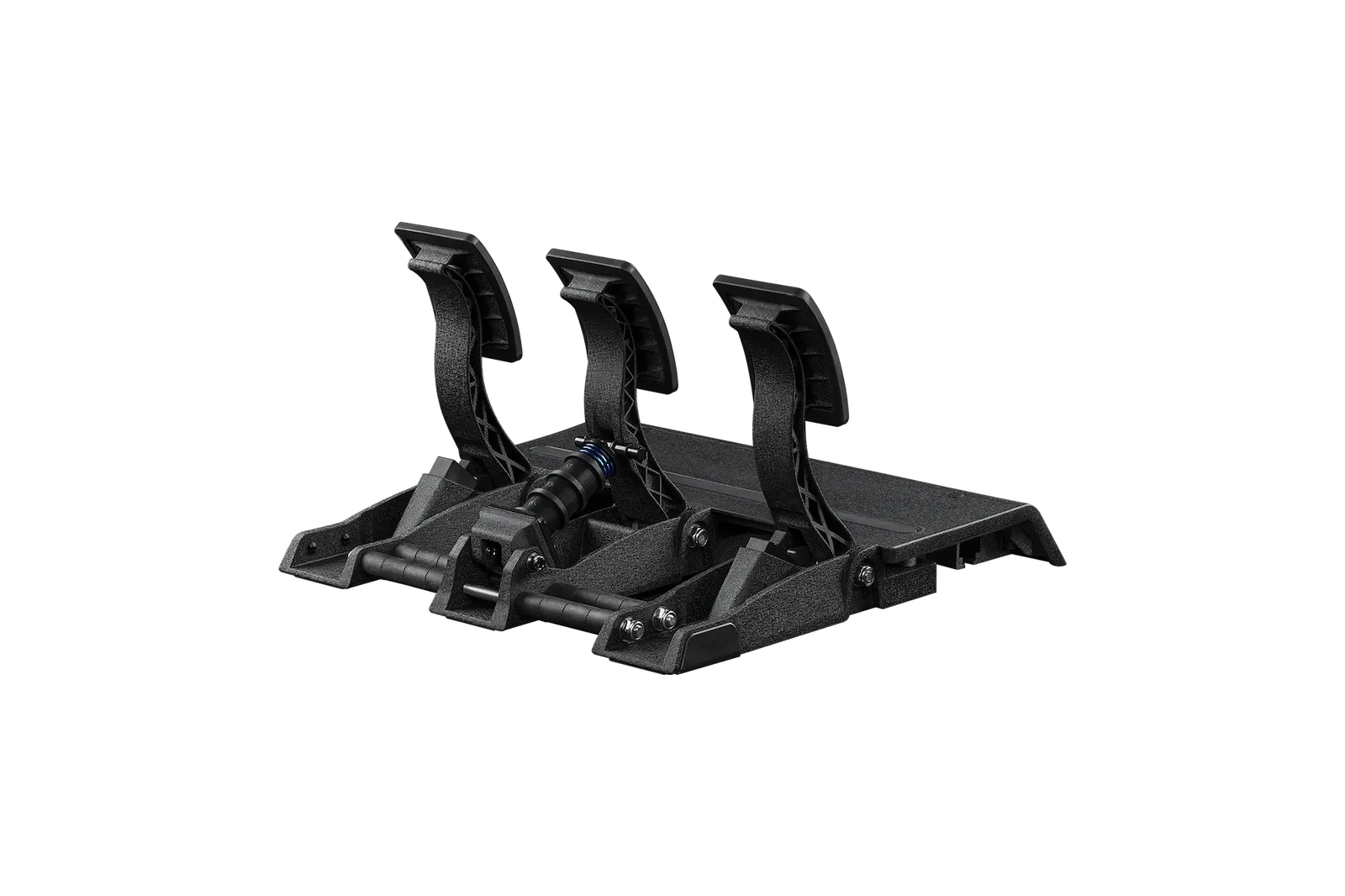

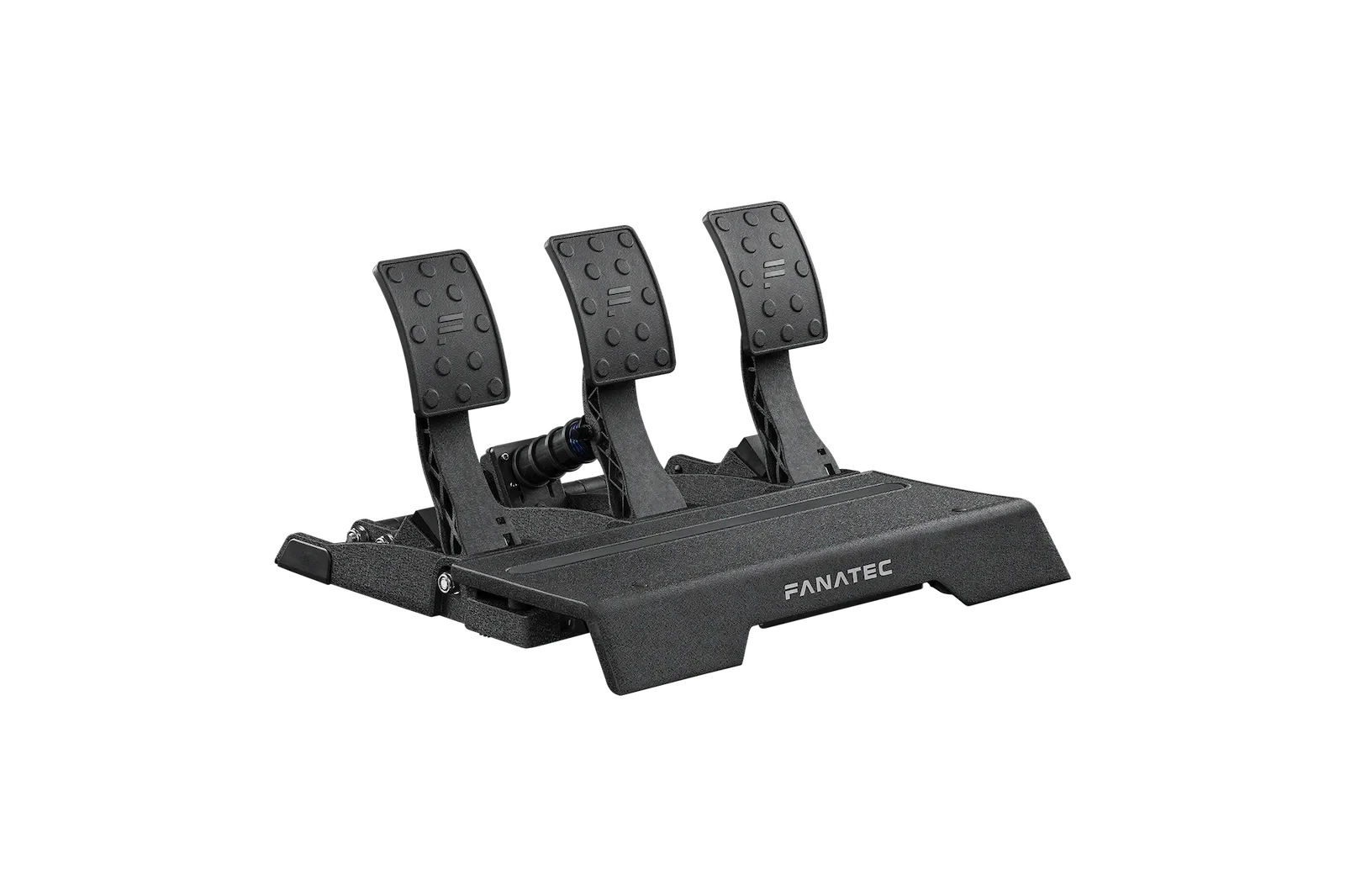

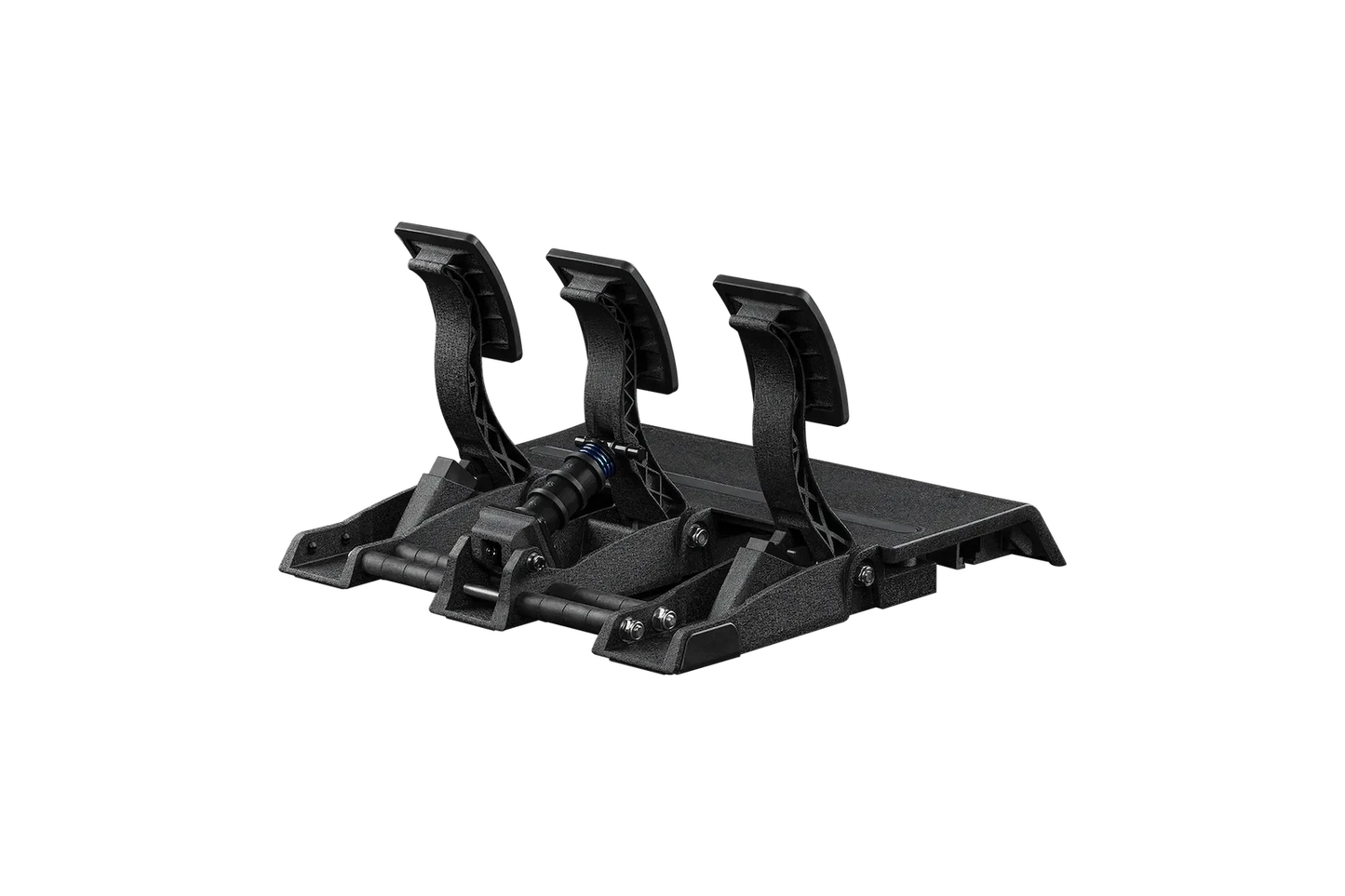

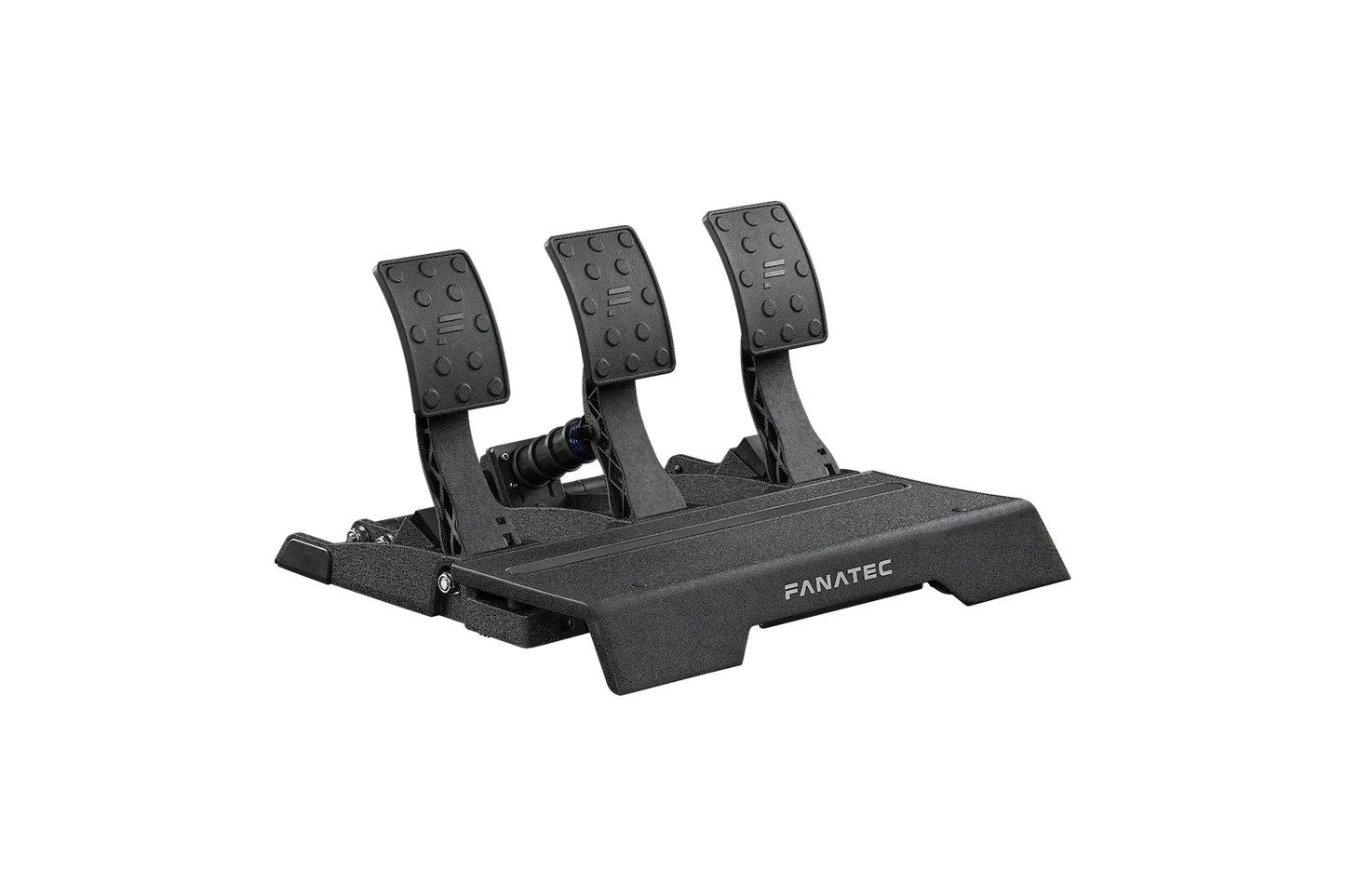

Fanatec CSL Elite Pedals V2 CSL_EP_V2

Features

• High-performance three-pedal set (clutch, brake, throttle)

• Contactless Hall sensors on both clutch and throttle for high precision and durability

• All-new load cell brake system

  • Up to 90 kg measured foot force on pedal plate (load cell sensor rated >200 kg)

  • Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)*

  • Elastomer stack combined with load cell sensor creates a realistic braking feel

  • Elastomer springs with 65, 75, and 85 Shore hardness included (tool-free adjustment)

  • ‘Dual-stage’ preload feeling with metal spring and elastomer

  • Alternative metal spring also included for stiffer preload

• Pedal arms, faces, and heel rest made from cast and machined aluminium with durable power-coated finish

• Fully assembled out of the box, plug and play

• Easily configurable as a two-pedal set

• Pedal position can be adjusted sideways along heel rest

• Pedals can be individually mounted without heel rest, inverted mounting possible (hardware not included)

• Detachable rubber pedal covers

• Revised structure on all pedals for greater durability

• Improved access to hard-mounting points

• Dedicated handbrake port

• RJ12 or USB connection

  • Connect directly to all compatible Fanatec Wheel Bases via RJ12 (recommended)

  • Use as a standalone USB input device (PC only)

Compatibility
