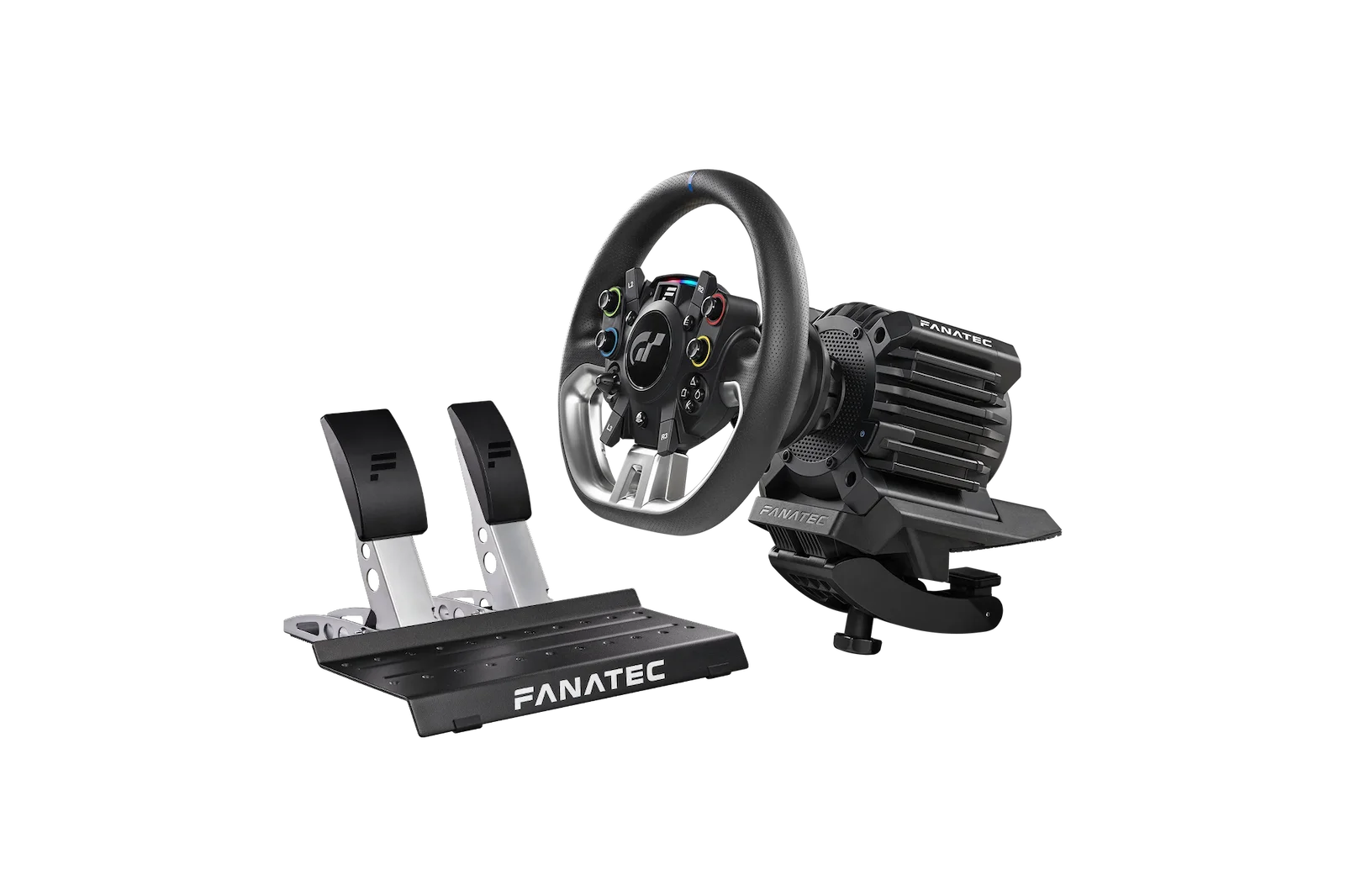

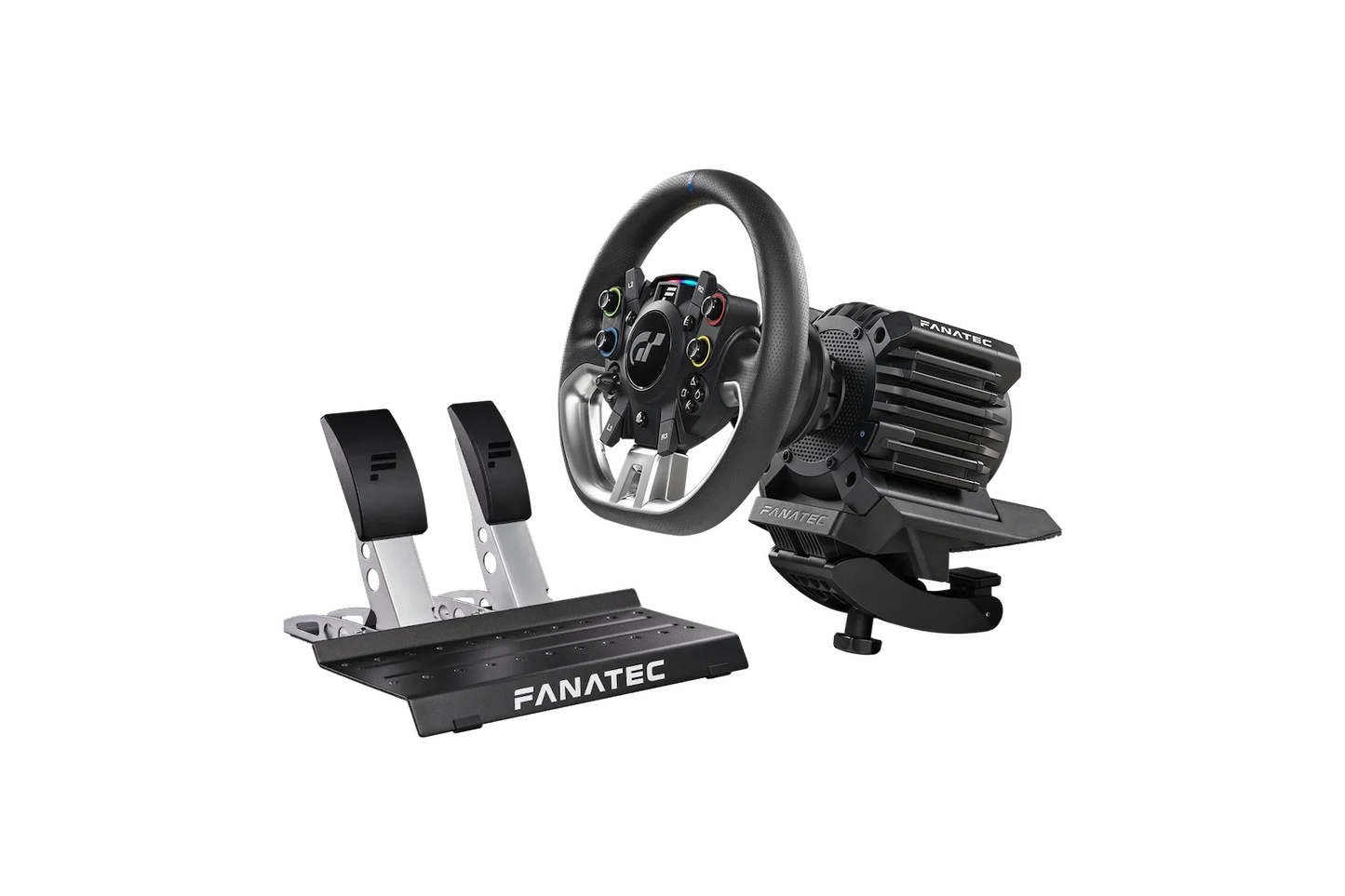

Fanatec Gran Turismo DD Pro Bundle with Wheel & Pedal (5 NM) (DD+SW+P) + QR2 CRD-9020007-EU

Features

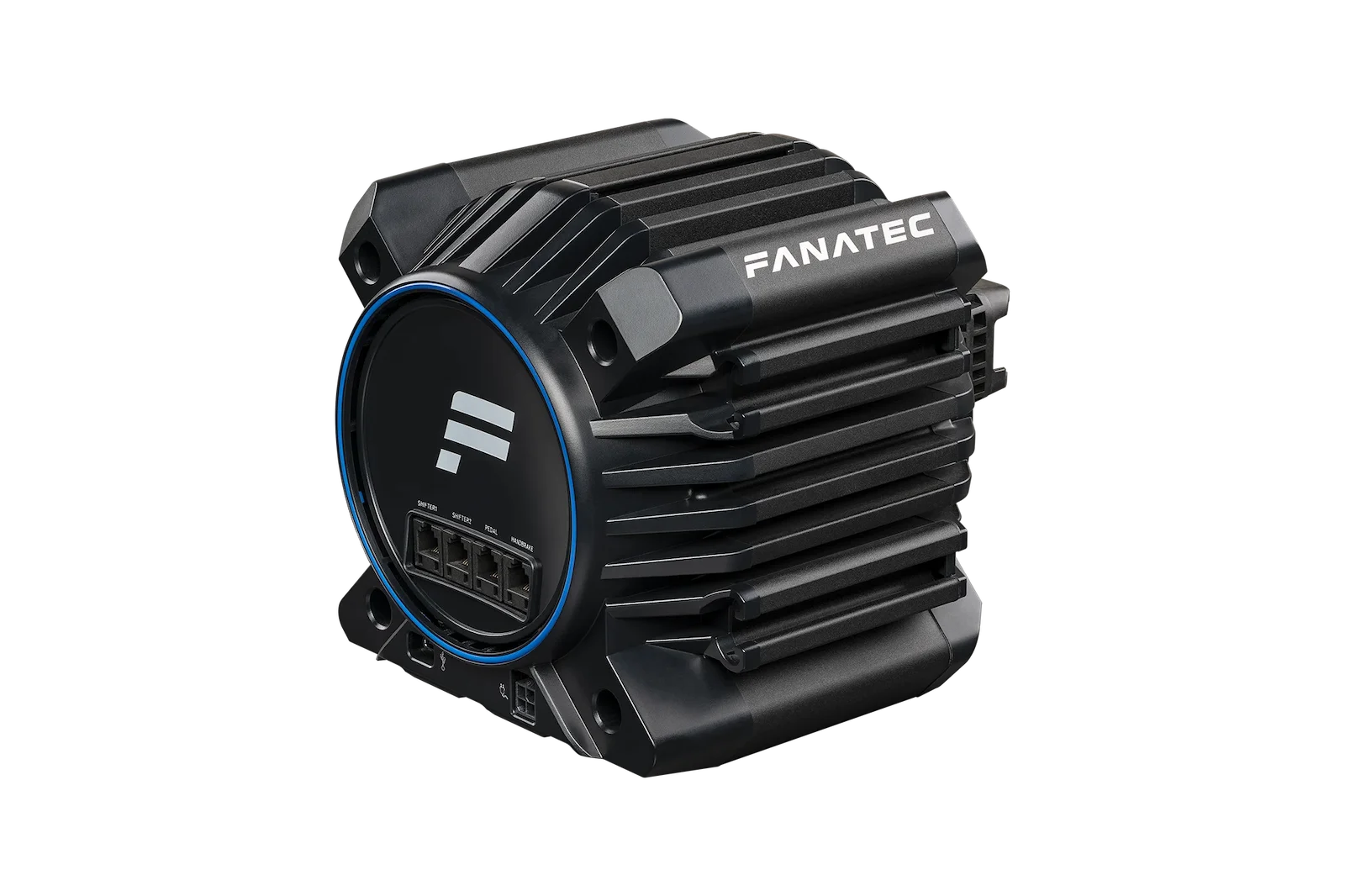

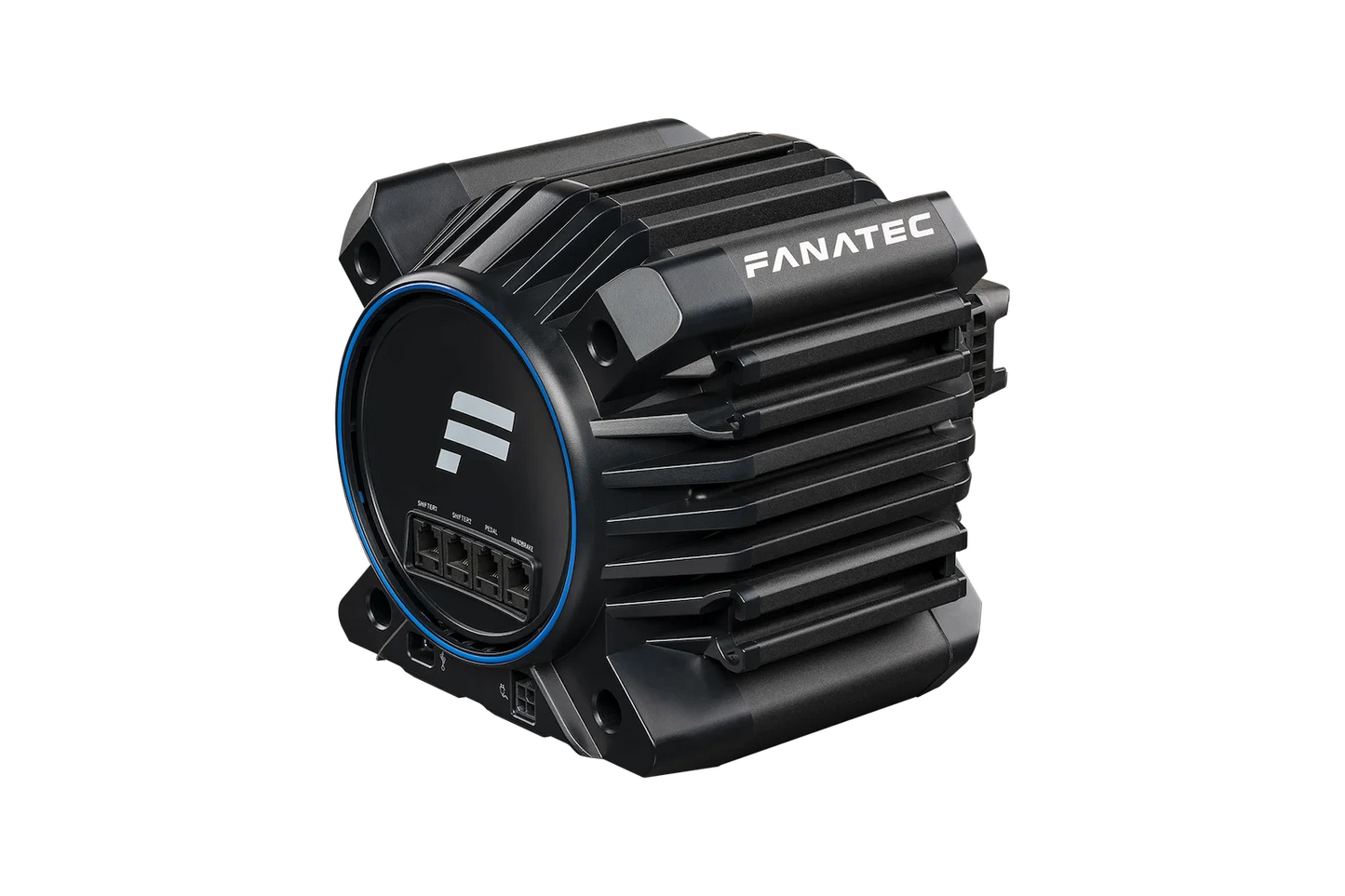

Gran Turismo DD Pro Wheel Base:

• The official Direct Drive Wheel for Gran Turismo

• Officially licensed for PS5® and PS4® consoles

• Direct-Drive system delivers instant, detailed force feedback

• Linear, consistent performance (5 Nm peak torque)

• Optional Boost Kit 180 (sold separately) unlocks maximum strength (8 Nm peak torque)

• Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness

• Full Fanatec SDK support ensures compatibility out of the box for all major racing games

• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings

• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences

• High-resolution (contactless) Hall-position-sensor, same as Podium Series

• Steering axis made from carbon fibre-enhanced composite

• Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps

• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between steering wheel and wheel base

• QR2 quick release system

  • Motorsport-derived quick release

  • Tapered shape naturally ensures a tight fit

  • Carbon fiber-reinforced polyamide construction

  • Exchangeable

• T-nut rail system on sides and bottom for easily adjustable hard-mounting

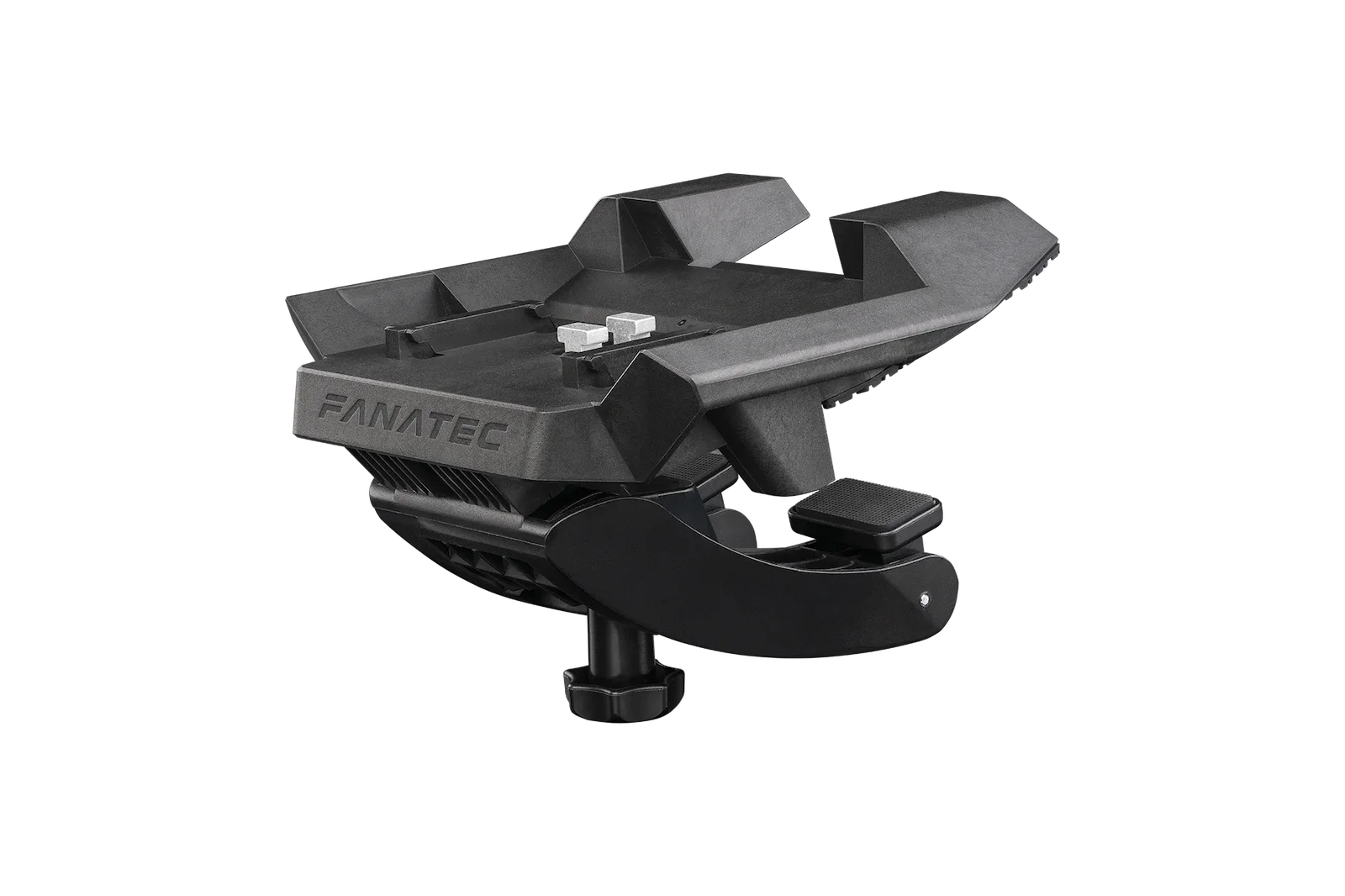

• Table clamp included, supports 5 to 60 mm table thickness

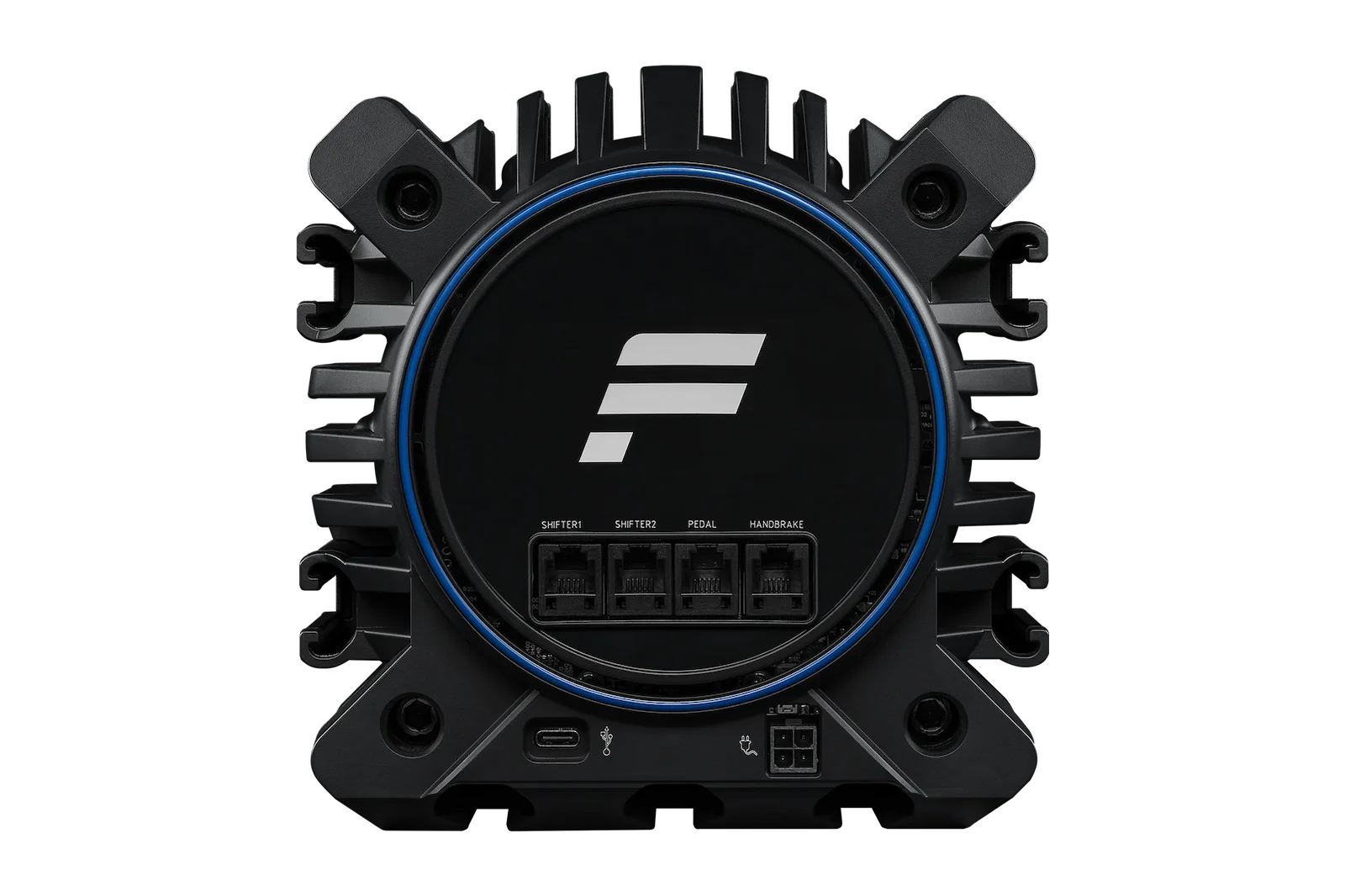

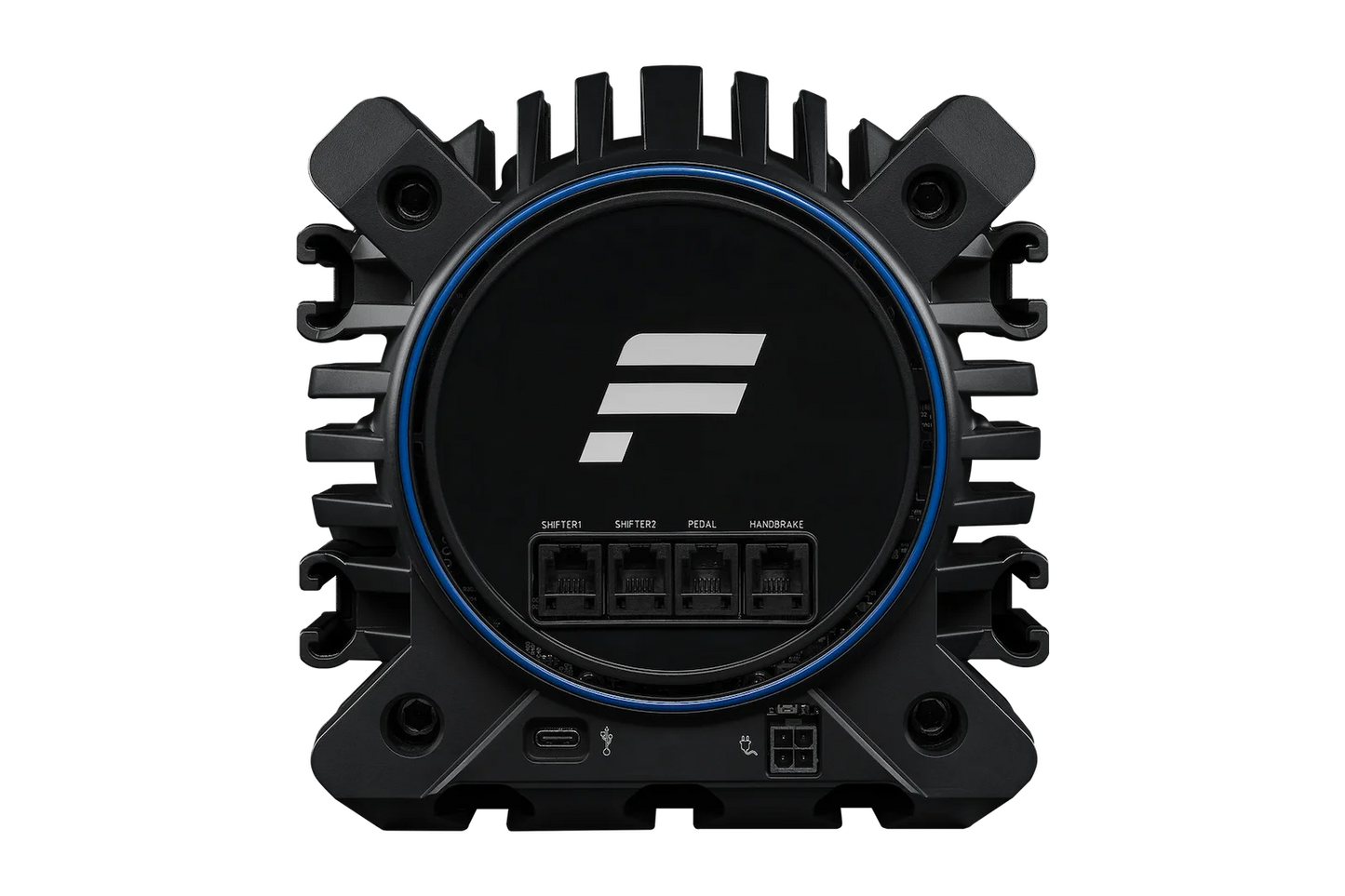

• Ports:

  • Power supply

  • USB-C to console / PC

  • Shifter 1

  • Shifter 2 (Sequential only)

  • Pedals

  • Handbrake

• Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

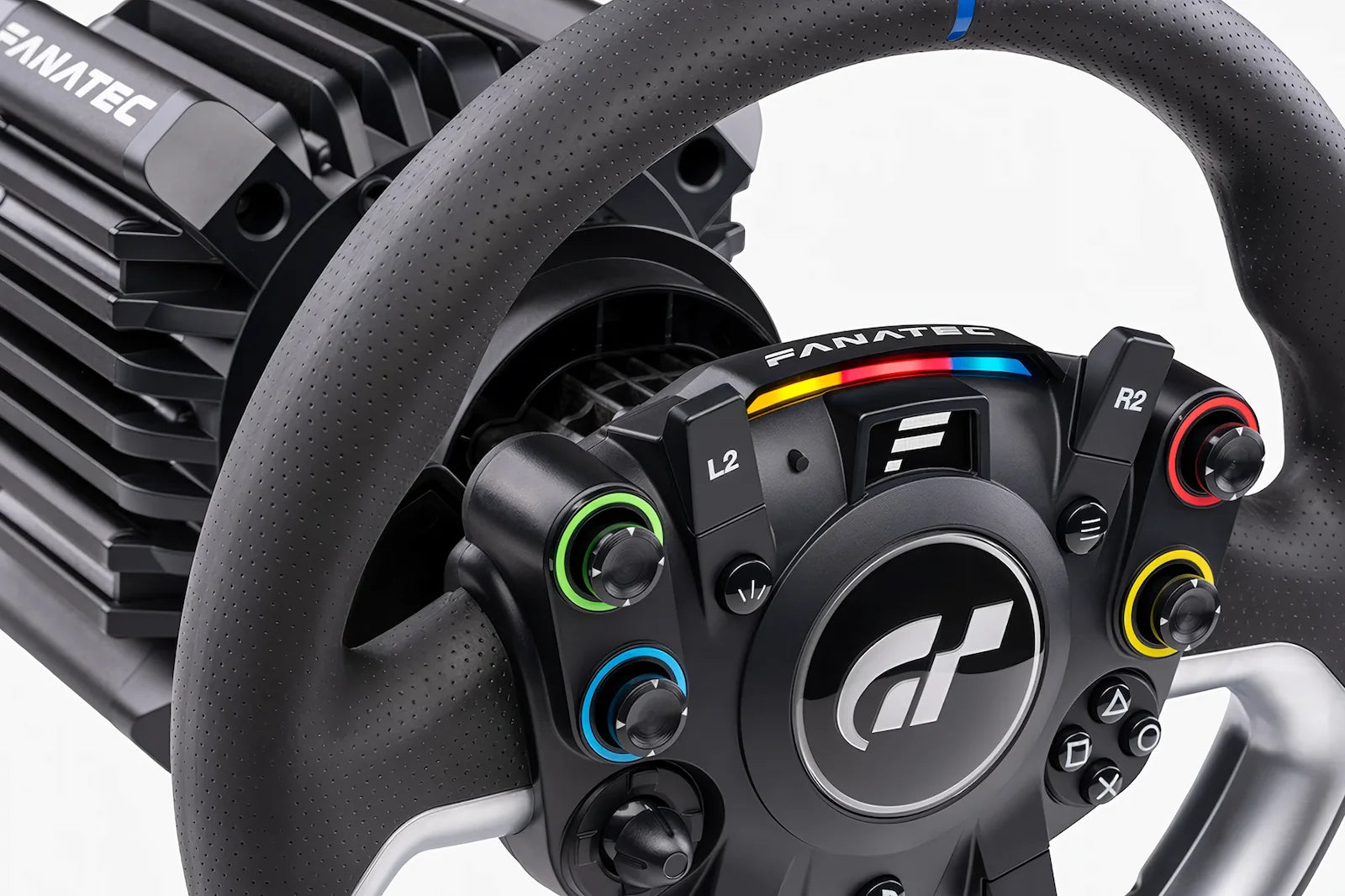

Steering wheel for Gran Turismo DD Pro:

• Designed by Polyphony Digital

• Tactile rubber grip with blue centre stripe

• Compact 280 mm diameter and light weight for crisp response

• Diffused RevLED strip (yellow, red, and blue LEDs)

• White OLED display for Tuning Menu access and telemetry output (where supported)

• 5-way directional stick for menu navigation

• Four additional 5-way directional sticks

• Ergonomic shifter paddles

• 11 buttons optimised for the PlayStation® interface

• Fiberglass-reinforced plastic construction

• QR2 Lite Wheel-Side preinstalled

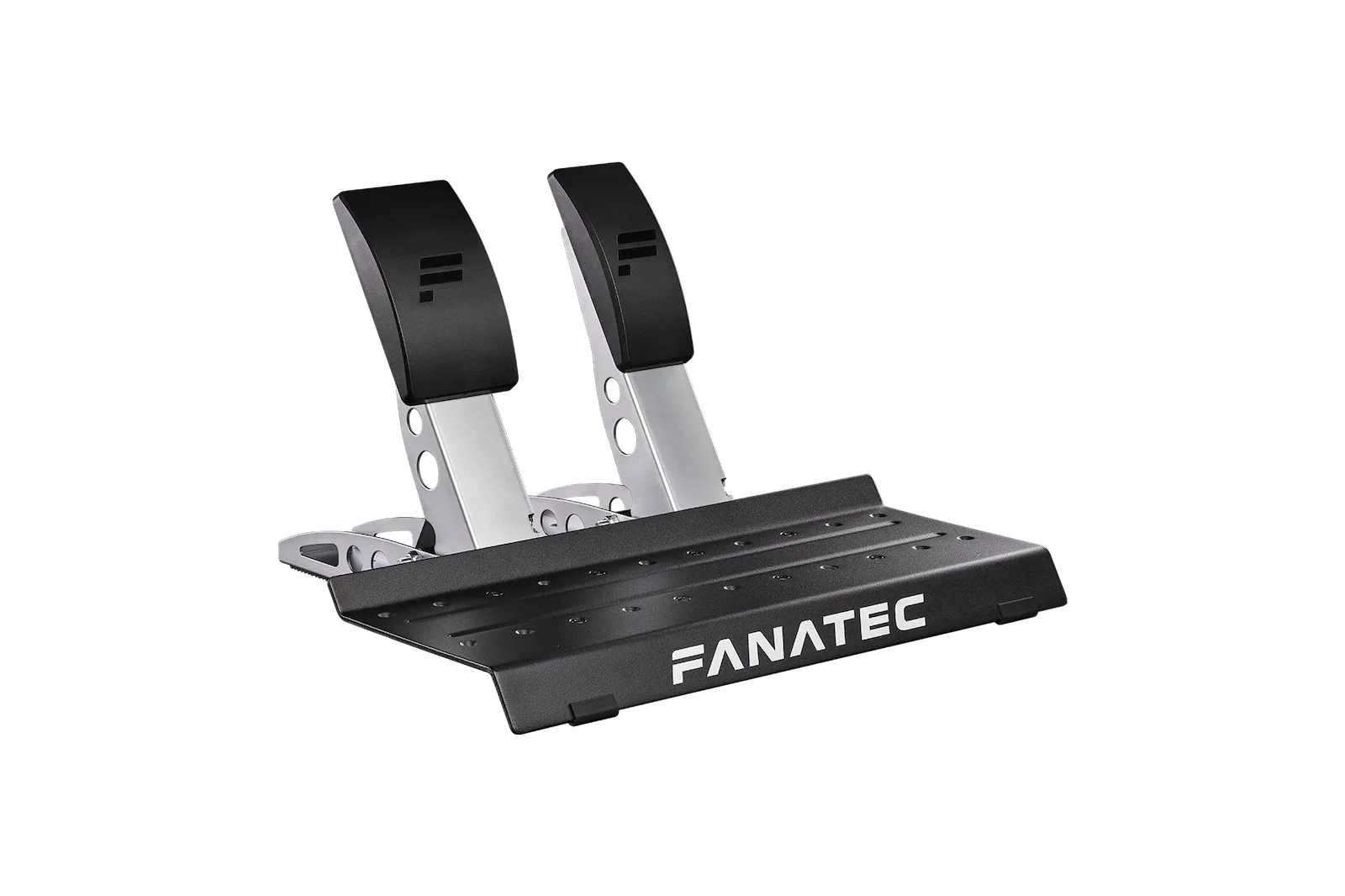

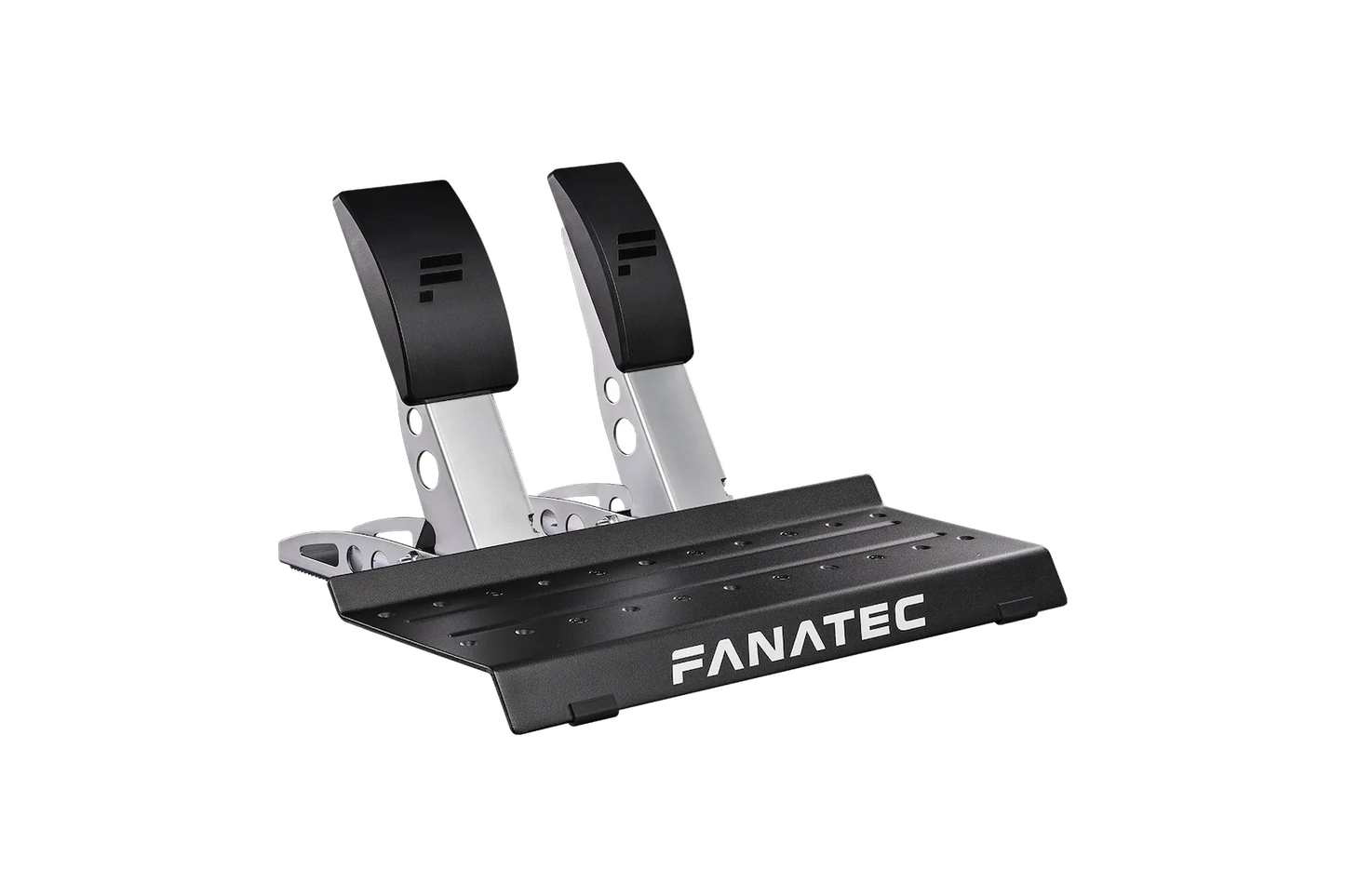

Pedals for Gran Turismo DD Pro:

• Two-pedal set (throttle and brake), upgradeable to three pedals (upgrade kits sold separately)

• All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)

• Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)

• Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability

• Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel

• Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit (sold separately)

  • CSL Pedals Clutch Kit provides a third pedal for the lowest price

  • CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics

• Pedal position can be adjusted sideways along heel rest

• Height-adjustable pedal faces

• Modular design means inverted mounting to a rig is possible

• Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface

• Pearl chrome plating on pedal bases and arms

• Black powder coating on heel rest

• Pedals connect directly to Gran Turismo DD Pro Wheel Base

Compatibilities

Peripherals

The Gran Turismo DD Pro Wheel Base is compatible with:

• All Fanatec Podium Steering Wheels (depending on the quick release)

• All Fanatec ClubSport Steering Wheels (depending on the quick release)

• All Fanatec CSL Steering Wheels (depending on the quick release)

• All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)

• All Fanatec Shifters

• All Fanatec Handbrakes

• Boost Kit 180

• All Fanatec Cockpits

• CSL DD Table Clamp

• ClubSport Table Clamp V2

• Podium Mounting Brackets (the Gran Turismo DD Pro includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)

Please note: Compatibility with all peripherals is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.

Depending on the installed quick release, the steering wheel for Gran Turismo® DD Pro is compatible with:

• PODIUM Wheel Base DD1 (QR1 Wheel-Side required*)

• PODIUM Wheel Base DD2 (QR1 Wheel-Side required*)

• PODIUM Wheel Base DD1 PS4™ (QR1 Wheel-Side required*)

• ClubSport Wheel Base V2 (without four additional D-sticks)

• ClubSport Wheel Base V2.5

• CSL Elite Wheel Base (without four additional D-sticks)

• CSL Elite Wheel Base V1.1 (without four additional D-sticks)

• CSL Elite Wheel Base + - officially licensed for PS4™

• CSL DD Wheel Base

• Gran Turismo DD Pro Wheel Base

Note: The steering wheel for Gran Turismo DD Pro does NOT enable PlayStation® compatibility when used with a non-PlayStation-licensed wheel base. A PlayStation-licensed wheel base (such as the Gran Turismo DD Pro Wheel Base) is required for use on PS5® and PS4®.

The pedals for Gran Turismo DD Pro is compatible with:

• CSR / CSR Elite Wheel Base

• All CSL Elite Wheel Bases

• All ClubSport Wheel Bases

• All Podium Wheel Bases

• GT DD Pro Wheel Base

• CSL DD Wheel Base

Please refer to the Gran Turismo DD Pro manual for full pedal compatibility information.

Platforms

• This product is compatible with all PS5® and PS4® consoles.

• This product is compatible with PC on all major racing games.

• Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.

Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.

What Included

• Gran Turismo DD Pro direct drive wheel base

• QR2 Lite Base-Side (Type-C) (preinstalled)

• Steering wheel for Gran Turismo DD Pro

• QR2 Lite Wheel-Side (preinstalled)

• Pedals for Gran Turismo DD Pro (two-pedal set)

• Table clamp

• 4x T-nuts for rail mount system

• USB cable (Type-C to Type-A)

• RJ12 connection cable for pedals

• Pedal spacers for hard-mounting

• Torx Key

• Power Supply (5 Nm)

• Quick Guide
