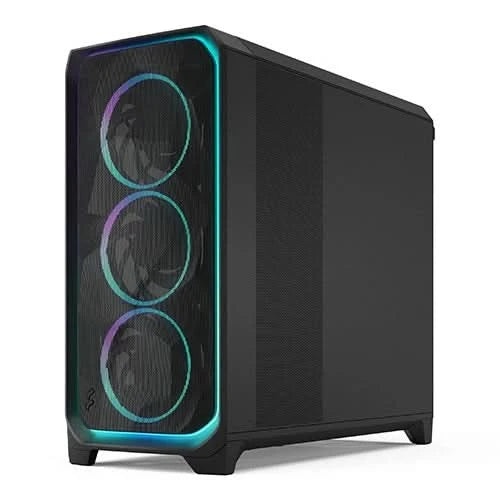

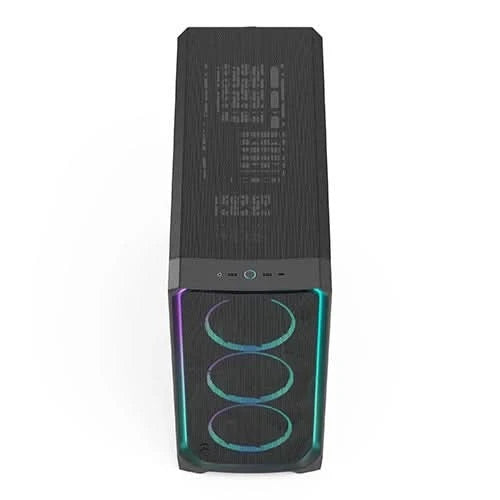

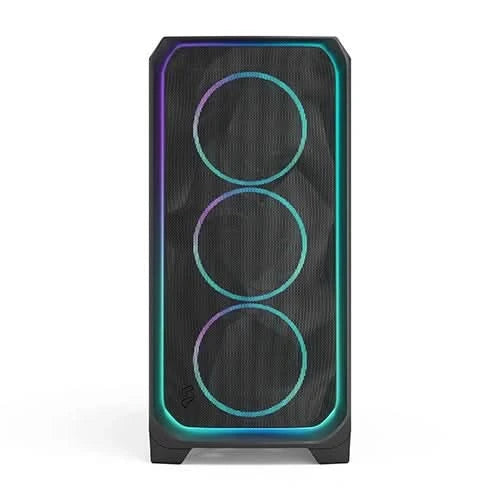

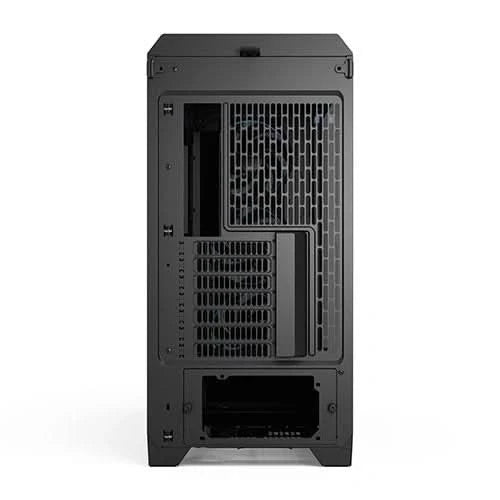

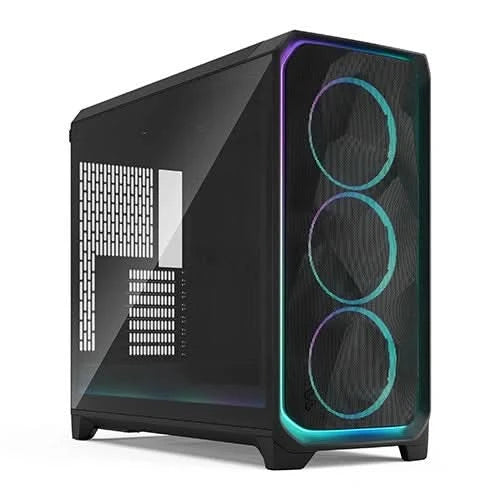

Fractal Design Meshify 3 XL Ambience pro RGB TG Light Tint SSI-EEB Full Tower Cabinet

Fractal Design Meshify 3 XL Ambience pro RGB TG Light Tint SSI-EEB Full Tower Cabinet

• 3.5"/2.5" drive mounts: 2/4
• Dedicated 2.5" drive mounts: 1
• 5.25” drive mounts: None
• Expansion slots: 7
• Adjust Pro Hub: Included in Ambience Pro RGB version
• Ambience Case Lighting: Ambience Pro RGB version
• Front interface: 1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button
• Total fan mounts: 10 (140 mm) / 7 (120 mm)
• Dust filters: PSU (Bottom)
• Cable routing space: 37.5 mm
• Cable cover: Yes
• Cable organizers: 3 Hook-and-loop straps + 3 Cable Aligners
• Tool-less push-to-lock: Both Side Panels, Bottom Filter, Front Panel, Top Panel
• Captive thumbscrews: Top Radiator Bracket, Air Guide, PSU Bracket
• Left side panel: Industrial steel (Solid), Tempered Glass (TG/RGB/Ambience Pro RGB)
• Right side panel: Industrial steel

Experience advanced cooling and expressive, aerodynamic design in a spacious format. An evolution of our mesh performance series, Meshify 3 XL offers performance-boosting engineering upgrades, three powerful Momentum fans, and next-level atmospheric lighting in Ambience Pro RGB versions.

Advanced airflow

Access performance engineering in a spacious format, with ample ventilation and an air guide which helps keep components running cool.

Evolved design

Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.

Designed for gaming

Create a powerful gaming system with space for graphics cards up to 512 mm in length and E-ATX (330 mm) motherboard compatibility.

Enhanced lighting

Create the right atmosphere with advanced ARGB Gen 2 ambient lighting, including an animated PC startup effect.

Tailored experience

Customize your lighting and fans easily with a download-free configuration tool, accessed via the included Adjust Pro Hub.

Easily accessible

Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.

Powerful fans included

Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.

Ideal for custom loops

Create a build with advanced cooling, with space for up to a 420 mm top radiator and up to 360 mm front and side radiators.

Accessible I/O

Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.

Clean finish

Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.

• Power supply type: ATX
• Motherboard compatibility: E-ATX (330 mm) / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB
• PSU max length: 230 mm
• GPU max length: 512 mm
• GPU max height: 189 mm (7 slot) including cables
• CPU cooler max height: 182 mm

Fan Support:

• Front fan: 3x 120/140 mm, 2x 180 mm (3 x 140 mm Momentum Included)
• Top fan: 3x 120/140 mm
• Rear fan: 1x 120/140 mm
• Bottom fan: None

Radiator Support

• Front radiator: 280/360 mm
• Top radiator: 360/420 (up to 475) mm
• Rear radiator: Up to 120/140 mm
• Side radiator: 360 mm (with brackets)

Specifications:
