Specifications
Category | Details |
---|---|
CPU | LGA1851 socket: Supports Intel® Core™ Ultra processors(Check GIGABYTE website for supported list)L3 cache varies by CPU |
Chipset | Intel® B860 Express Chipset |
Memory | - Supports DDR5: 9066(O.C.) / 8800(O.C.) / 8600(O.C.) / 8400(O.C.) / 8266(O.C.) / 8200(O.C.) / 8000(O.C.) / 7950(O.C.) / 7900(O.C.) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s- 2 × DDR5 DIMM sockets, up to 128 GB (64 GB per DIMM)- Dual-channel- ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode)- Non-ECC DIMM 1Rx8/2Rx8/1Rx16- Supports XMP |
Onboard Graphics | Integrated Intel® HD Graphics (depends on CPU)- 1 × HDMI 2.1 (4096×2160@60Hz, HDCP 2.3)- 1 × DisplayPort 2.1 (3840×2160@144Hz)- Up to triple-display (CPU dependent) |
Audio | Realtek® Audio CODECHigh Definition Audio, 2/4/5.1/7.1-channelS/PDIF Out support |
LAN | Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps) |
Wireless | Realtek® Wi-Fi 6 RTL8851BE- Wi-Fi a/b/g/n/ac/ax, 2.4/5 GHz- Bluetooth 5.3- 11ax 80 MHz |
Expansion Slots | CPU: 1 × PCIe 5.0 x16 (graphics card / NVMe SSD)Chipset: 1 × PCIe 4.0 x16 (runs at x4) |
Storage | CPU: 1 × M.2 (PCIe 5.0 x4/x2, 2280)Chipset: 1 × M.2 (PCIe 4.0 x4/x2, 2280)Chipset: 4 × SATA 6Gb/sSupports RAID 0/1/5/10 |
USB Ports | Back Panel:- 3 × USB 3.2 Gen 1- 3 × USB 2.0Internal:- 1 × USB Type-C header (USB 3.2 Gen 1)- 1 × USB 3.2 Gen 1 header (2 ports)- 2 × USB 2.0 headers (4 ports)Total: 13 USB ports |
Internal I/O | - 24-pin ATX main power- 8-pin ATX 12V power- 1 × CPU fan header- 1 × CPU fan/water pump header- 1 × System fan header- 1 × System fan/water pump header- 3 × ARGB Gen2 headers- 2 × M.2 slots- 4 × SATA ports- Front panel, front audio, SPDIF- USB Type-C header (USB 3.2 Gen 1)- USB 3.2 Gen1 & USB 2.0 headers- TPM header- Serial port header- Q-Flash Plus button- Reset jumper- Clear CMOS jumper |

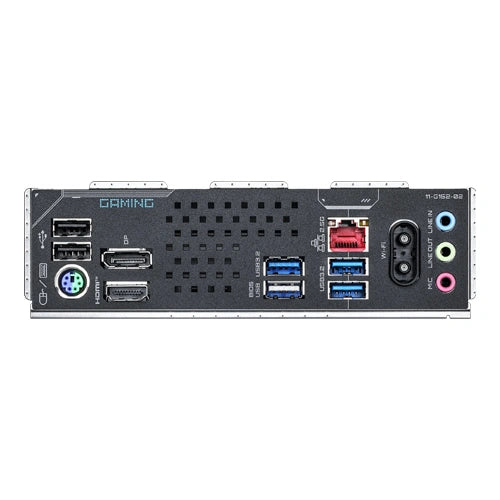

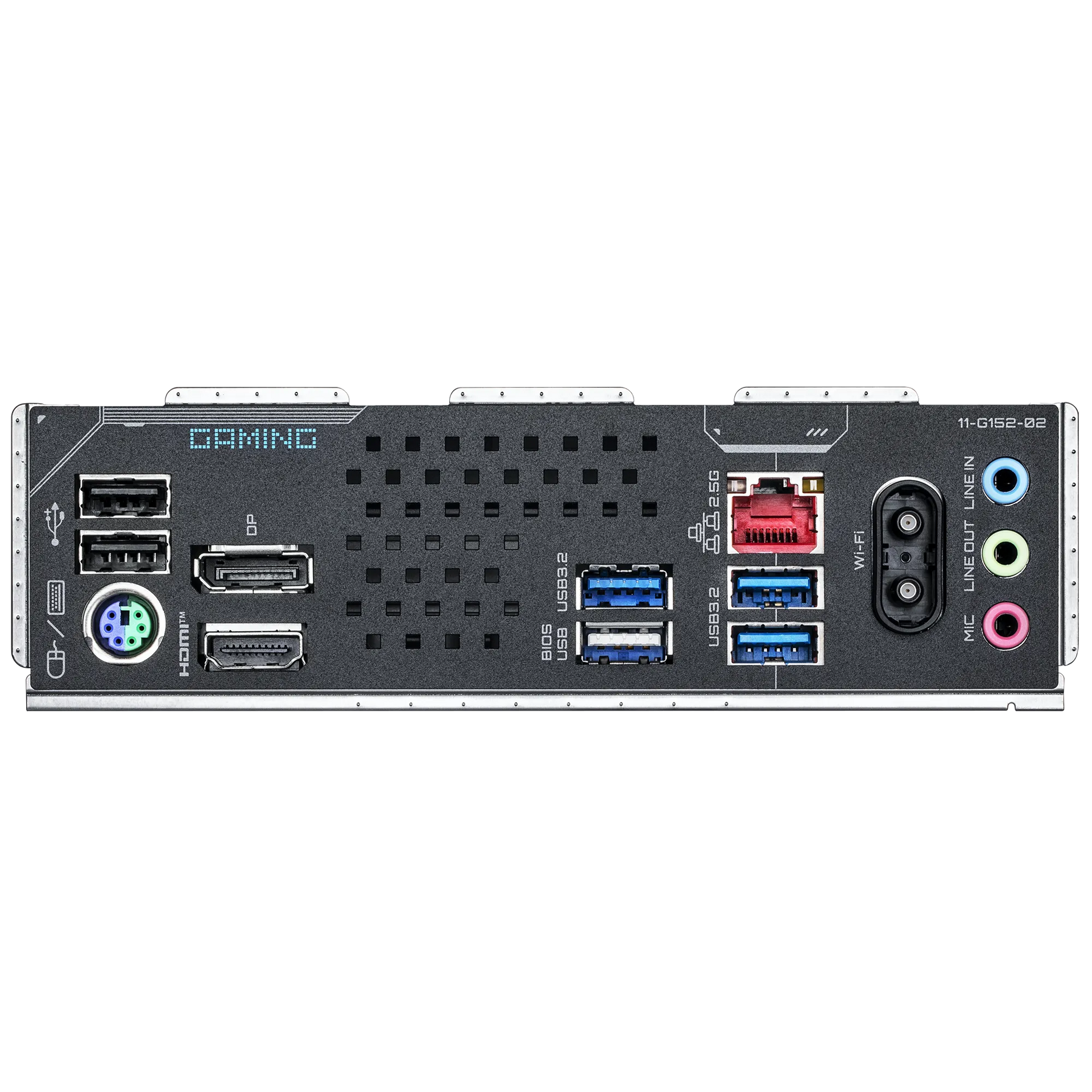

Back Panel I/O | - 1 × PS/2 keyboard/mouse- 1 × HDMI- 1 × DisplayPort- 3 × USB 3.2 Gen 1- 3 × USB 2.0- 2 × Wi-Fi antenna connectors- 1 × RJ-45 LAN- 3 × Audio jacks |
I/O Controller | iTE® Controller Chip |
H/W Monitoring | Voltage, Temperature, Fan speed detection, Water cooling flow, Fan fail warning, Fan speed control (fan/pump dependent) |
BIOS | AMI UEFI BIOS, 256 Mbit flashPnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
Bundled Software | Norton® Internet Security (OEM)LAN bandwidth management software |
OS Support | Windows 11 64-bitWindows 10 64-bit (Intel® NPU driver only supported on Windows 11) |
Form Factor | Micro ATX, 24.4 cm × 22.5 cm |
