Description
Features
- Supports 3rd Gen AMD Ryzen Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
- Ultra Durable PCIe 4.0 Ready x16 Slot
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Specifications
CPU | 1. AMD Socket AM4, support for: AMD Ryzenô 5000 Series/ 3rd Gen Ryzenô and 3rd Gen Ryzenô with Radeonô Graphics Processors |
(Please refer "CPU Support List" for more information.) | |
Chipset | 1. AMD B550 |
Memory | 1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
2. AMD Ryzenô 5000 series processors: | |
Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
3. 3rd Gen AMD Ryzenô Processors: | |
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules | |
4. 3rd Gen AMD Ryzenô with Radeonô Graphics processors: | |
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules | |
5. Dual channel memory architecture | |
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules | |
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
8. Support for Extreme Memory Profile (XMP) memory modules | |
(Please refer "Memory Support List" for more information.) | |
Onboard Graphics | Integrated in the 3rd Generation AMD Ryzenô with Radeonô Graphics processors: |
1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz | |
* The DVI-D port does not support D-Sub connection by adapter. | |
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
* Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
Maximum shared memory of 16 GB | |
Audio | RealtekÆ Audio CODEC |
High Definition Audio | |
2/4/5.1/7.1-channel | |
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. | |
LAN | 1. RealtekÆ GbE LAN chip (1000 Mbit/100 Mbit) |
Expansion Slots | 1? x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
1. 3rd Generation AMD Ryzenô processors support PCIe 4.0 x16 mode | |
2. 3rd Generation AMD Ryzenô with Radeonô Graphics processors support PCIe 3.0 x16 mode | |
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: | |
1. Supporting PCIe 3.0 x2 mode | |
3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset: | |
1. Supporting PCIe 3.0 x1 mode | |
Storage Interface | 1? x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: |
1. 3rd Generation AMD Ryzenô processors support SATA and PCIe 4.0 x4/x2 SSDs | |
2. 3rd Generation AMD Ryzenô with Radeonô Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs | |
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: | |
1. Supporting SATA and PCIe 3.0 x4/x2 SSDs | |
4 x SATA 6Gb/s connectors, integrated in the Chipset: | |
1. Support for RAID 0, RAID 1, and RAID 10 | |
USB | Chipset: |
1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
2. 3 x USB 3.2 Gen 1 ports on the back panel | |
Chipset: | |
1. 1 x USB Type-Cô port with USB 3.2 Gen 1 support, available through the internal USB header | |
2. 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
2. 1 x 8-pin ATX 12V power connector | |
3. 1 x CPU fan header | |
4. 1 x water cooling CPU fan header | |
5. 3 x system fan headers | |
6. 2 x addressable LED strip headers | |
7. 2 x RGB LED strip headers | |
8. 1 x CPU cooler LED strip/RGB LED strip header | |
9. 2 x M.2 Socket 3 connectors | |
10. 4 x SATA 6Gb/s connectors | |
11. 1 x front panel header | |
12. 1 x front panel audio header | |
13. 1 x USB Type-Cô port, with USB 3.2 Gen 1 support | |
14. 1 x USB 3.2 Gen 1 header | |
15. 2 x USB 2.0/1.1 headers | |
16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
17. 1 x Clear CMOS jumper | |

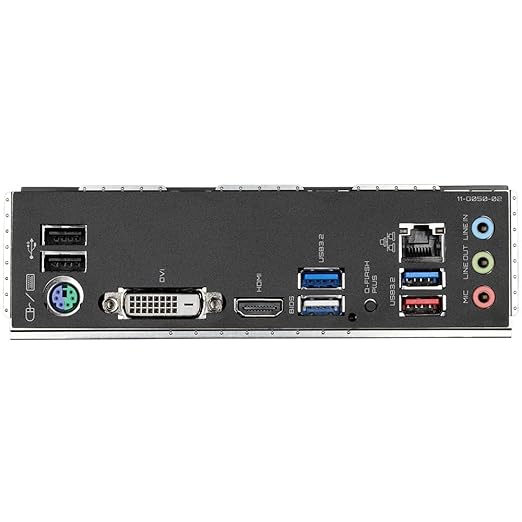

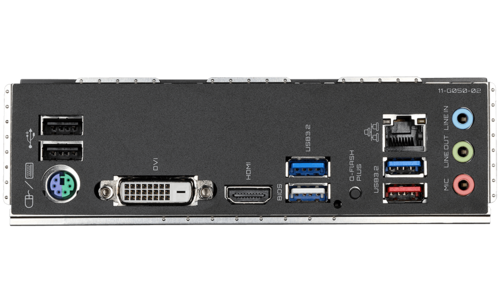

Back Panel Connectors | 1. 2 x USB 2.0/1.1 ports |
2. 1 x PS/2 keyboard/mouse port | |
3. 1 x DVI-D port | |
4. 1 x HDMI port | |
5. 3 x USB 3.2 Gen 1 ports | |
6. 1 x USB 3.2 Gen 2 Type-A port (red) | |
7. 1 x Q-Flash Plus button | |
8. 1 x RJ-45 port | |
9. 3 x audio jacks | |
I/O Controller | 1. iTEÆ I/O Controller Chip |
H/W Monitoring | 1. Voltage detection |
2. Temperature detection | |
3. Fan speed detection | |
4. Water cooling flow rate detection | |
5. Overheating warning | |
6. Fan fail warning | |
7. Fan speed control | |
* Whether the fan speed control function is supported will depend on the cooler you install. | |
BIOS | 1. 1 x 256 Mbit flash |
2. Use of licensed AMI UEFI BIOS | |
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | 1. Support for APP Center |
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
@BIOS | |
EasyTune | |
Fast Boot | |
Game Boost | |
ON/OFF Charge | |
RGB Fusion | |
Smart Backup | |
System Information Viewer | |
2. Support for Q-Flash Plus | |
3. Support for Q-Flash | |
4. Support for Xpress Install | |
Bundled Software | 1. NortonÆ Internet Security (OEM version) |
2. RealtekÆ 8118 Gaming LAN Bandwidth Control Utility | |
Operating System | 1. Support for Windows 10 64-bit |
Form Factor | 1. ATX Form Factor; 30.5cm x 24.4cm |
Warranty | 3 Years |
