1099793
gigabyte
B760M DS3H WF6E D4 G5

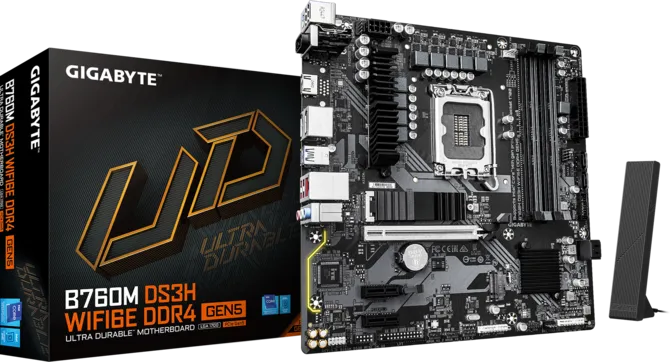

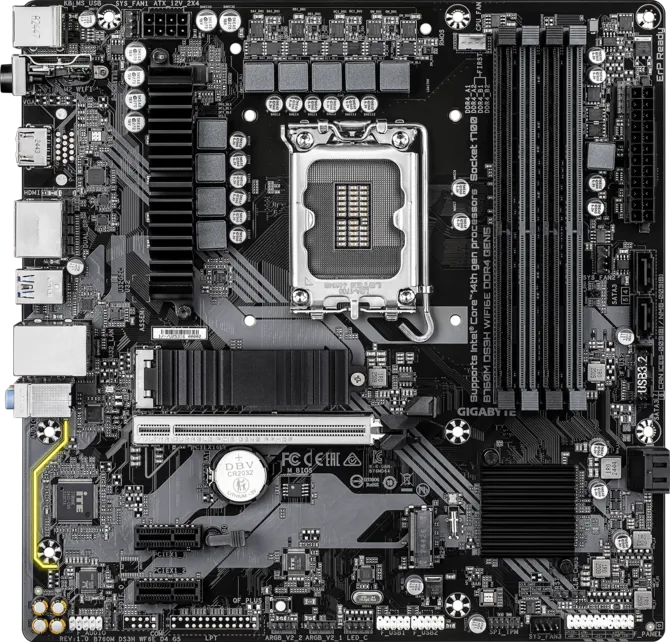

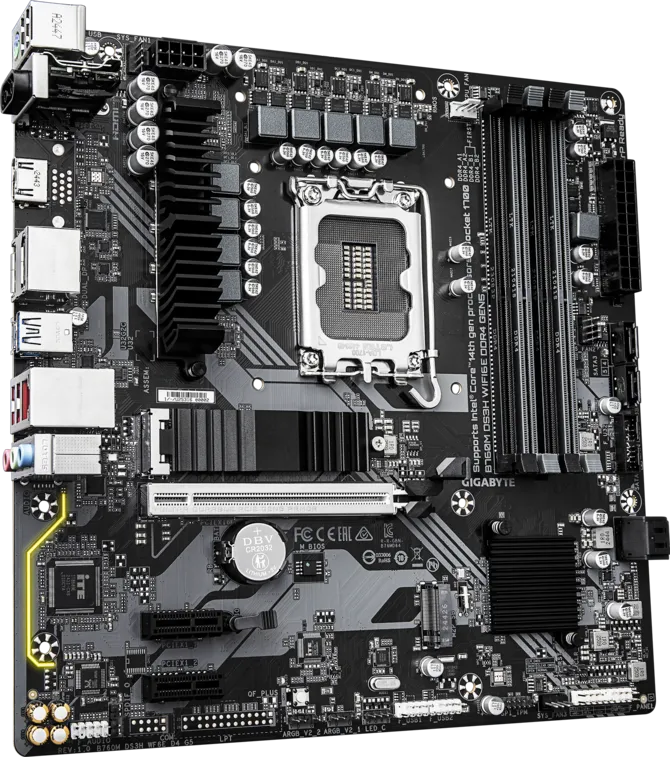

The GIGABYTE B760M DS3H WIFI6E DDR4 GEN5 is a Micro-ATX motherboard designed for Intel 14th, 13th and 12th Gen Core processors using the LGA1700 socket. Built around the Intel B760 chipset, it supports up to 128GB of DDR4 memory across four DIMM slots and includes PCIe 5.0 connectivity for next-generation graphics cards and expansion devices.
For connectivity, the motherboard features Intel Wi-Fi 6E AX210 with Bluetooth 5.3, Realtek 2.5GbE LAN, two PCIe 4.0 M.2 slots, four SATA 6Gb/s ports and a range of USB connections including USB 3.2 Gen 2 Type-C. It also features GIGABYTE's VRM Thermal Armor Advanced, M.2 Thermal Guard, Q-Flash Plus, PCIe EZ-Latch and RGB Fusion
| Brand | GIGABYTE |
| Model | B760M DS3H WIFI6E DDR4 GEN5 |
| Model Code | B760M DS3H WF6E D4 G5 |
| Form Factor | Micro ATX |
| Chipset | Intel B760 Express |
| CPU Socket | LGA1700 |
| CPU Support | Intel 14th, 13th and 12th Gen Core, Pentium Gold, Celeron |
| Memory Type | DDR4 |
| Memory Slots | 4 × DDR4 DIMM |
| Maximum Memory | Up to 128GB |
| Memory Architecture | Dual Channel |
| Memory Speed | Up to DDR4-3200, depending on CPU and configuration |
| XMP Support | Yes |
| Primary PCIe Slot | 1 × PCIe 5.0 x16 |
| Expansion Slots | 2 × PCIe 3.0 x1 |
| M.2 Slots | 2 × PCIe 4.0 M.2 |
| SATA | 4 × SATA 6Gb/s |
| LAN | Realtek 2.5GbE |
| Wi-Fi | Intel Wi-Fi 6E AX210 |
| Bluetooth | Bluetooth 5.3 |
| USB Type-C | 1 × USB 3.2 Gen 2 Type-C |
| USB 3.2 Gen 1 | 3 × |
| USB 2.0 | 2 × |

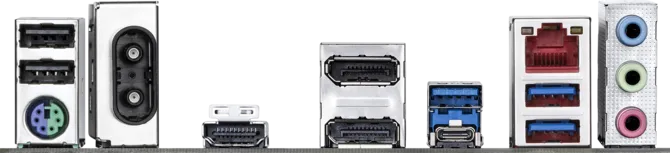

| Display Output | 1 × HDMI, 2 × DisplayPort |
| Audio | Realtek HD Audio, 8-channel |
| S/PDIF | Supported |
| VRM | 6+2+1 Phases Hybrid VRM |
| Power Connector | 24-pin ATX + 8-pin CPU |
| RGB | 2 × Addressable LED Headers + 1 × RGB LED Header |
| Cooling Features | VRM Thermal Armor Advanced, M.2 Thermal Guard |
| BIOS Feature | Q-Flash Plus |
| Network Wireless Standard | 802.11ax Wi-Fi 6E |
| Product Type | Micro-ATX Motherboard |
