Description
| CPU | AMD Socket AM5, support for: AMD Ryzenô 7000 Series Processors |
| Chipset | AMD B650 |
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPOô) and Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor: |
| 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz | |
| Support for DisplayPort 1.4 version and HDR. | |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| Support for HDMI 2.1 version and HDCP 2.3. | |
| Support native HDMI 2.1 TMDS compatible ports. | |
| Audio | RealtekÆ Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| LAN | RealtekÆ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.2 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| IntelÆ Wi-Fi 6E AX210 (For PCB rev. 1.1) | |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.3 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
| Chipset: | |
| 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) | |
| Storage Interface | CPU: |
| 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) | |
| Chipset: | |
| 4 x SATA 6Gb/s connectors | |
| USB | CPU: |
| 1 x USB Type-CÆ port on the back panel, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| CPU + USB 2.0 Hub: | |
| 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset: | |
| 1 x USB Type-CÆ port with USB 3.2 Gen 2 support, available through the internal USB header | |
| 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-CÆ header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x serial port header | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

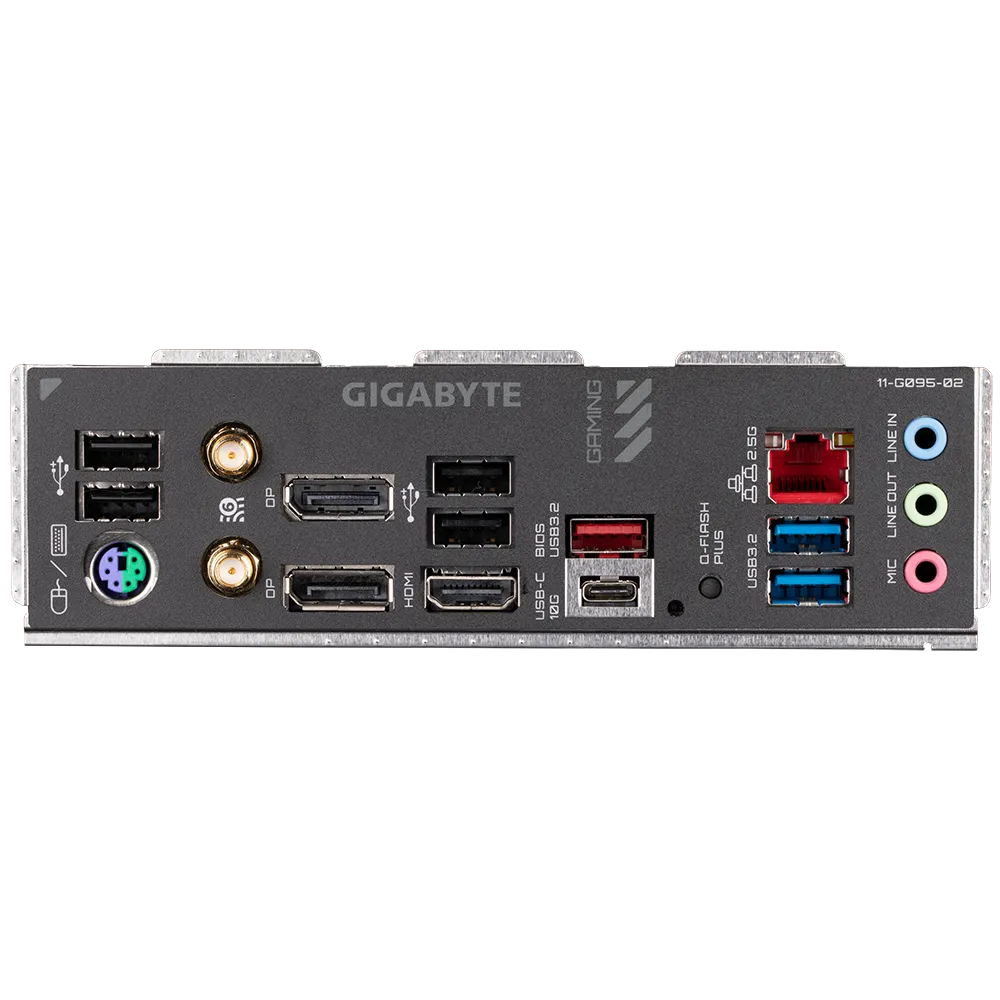

| Back Panel Connectors | 4 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 2 x SMA antenna connectors (2T2R) | |
| 2 x DisplayPorts | |
| 1 x HDMI port | |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 1 x USB Type-CÆ port, with USB 3.2 Gen 2 support | |
| 1 x Q-Flash Plus button | |
| 1 x RJ-45 port | |
| 2 x USB 3.2 Gen 1 ports | |
| 3 x audio jacks | |
| I/O Controller | iTEÆ I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Bundled Software | NortonÆ Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | 3 Years |
