Description
| CPU | LGA1700 socket: Support for the 13th and 12th Generation IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors |
| L3 cache varies with CPU | |
| (Please refer "CPU Support List" for more information.) | |
| Chipset | IntelÆ B760 Express Chipset |
| Memory | Support for DDR5 7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-IntelÆ HD Graphics support: |
| 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.0 version and HDCP 2.3. | |
| 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| (Graphics specifications may vary depending on CPU support.) | |
| Support for up to 3 displays at the same time | |
| Audio | RealtekÆ Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | RealtekÆ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | AzureWave Wi-Fi AW-CB304NF (RealtekÆRTL8821CE) |
| WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band | |
| BLUETOOTH 4.2 | |
| Support for 11ac wireless standard and up to 433 Gbps data rate | |
| (Actual data rate may vary depending on environment and equipment.) | |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 | |
| Chipset: | |
| 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Storage Interface | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | Chipset: |
| 1 x USB Type-CÆ port on the back panel, with USB 3.2 Gen 1 support | |
| 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| 2 x USB 2.0/1.1 ports on the back panel | |
| Chipset+USB 2.0 Hubs: | |
| 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 1 x addressable LED strip headers | |
| 1 x RGB LED strip headers | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x serial port header | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

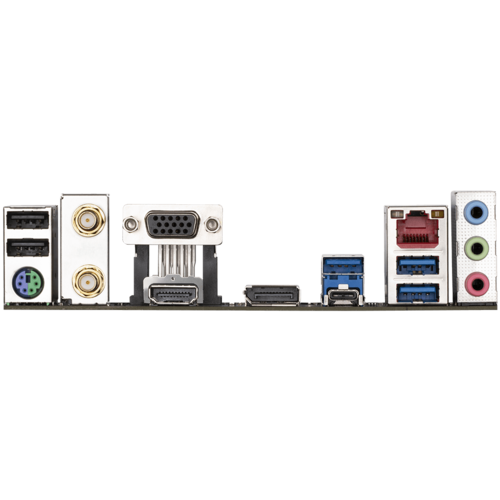

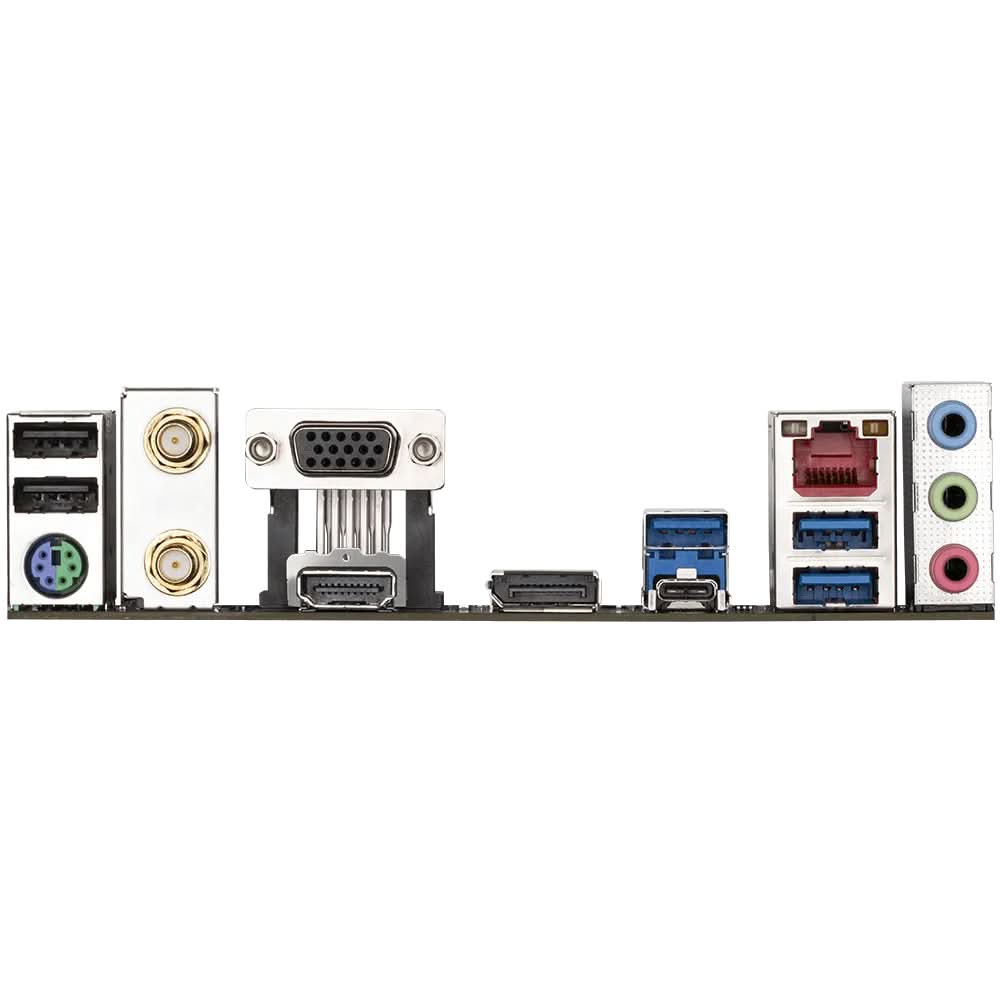

| Back Panel Connectors | 2 x USB 2.0/1.1 ports |
| 1 x PS/2 keyboard/mouse port | |
| 2 x SMA antenna connectors (1T1R) | |
| 1 x D-Sub port | |
| 1 x HDMI port | |
| 1 x DisplayPort | |
| 3 x USB 3.2 Gen 1 ports | |
| 1 x USB Type-CÆ port, with USB 3.2 Gen 1 support | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | iTEÆ I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the fan you install. | |
| BIOS |
