Description
Key Features
- X3D Turbo Mode：Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation
- D5 Bionic Corsa for Infinite Memory Performance
- EZ-Latch：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- Friendly UI：Multi-Theme, AIO Fan Control, and Q-Flash Auto ScaninBIOS and SW
- Ultra-Fast Storage：2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal：VRM Thermal Armor Advanced& M.2 Thermal Guard Ext.
- Fast Networking：2.5GbE LAN & Wi-Fi 7
- Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
- PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD X870 |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules |
| Memory Slots | 4 x DDR5 DIMM sockets |
| Max Memory | Up to 256 GB (64 GB single DIMM capacity) |
| Memory Architecture | Dual channel memory architecture |
| Memory Support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory Profiles | AMD EXPO™ and XMP memory modules |
| Onboard Graphics (USB4 Type-C) | 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs, max resolution 3840x2160@240Hz, DisplayPort 1.4, HDR |
| Onboard Graphics (Rear HDMI) | 1 x HDMI port, max resolution 4096x2160@60Hz, HDMI 2.1, HDCP 2.3, HDR |
| Onboard Graphics (Front HDMI) | 1 x front HDMI port, max resolution 1920x1080@30Hz, HDMI 1.4 |
| Audio Codec | Realtek® ALC1220 CODEC |
| Audio Features | Back panel line out jack supports DSD audio |
| Audio Channels | High Definition Audio, 2/4/5.1/7.1-channel |
| Audio Output | Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless Module | Realtek® Wi-Fi 7 RTL8922AE |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax/be |
| Wi-Fi Bands | 2.4 / 5 / 6 GHz |
| Bluetooth | Bluetooth 5.4 |
| Wireless Features | Support for 11be 160MHz wireless standard |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in CPU |
| PCIEX16 Support | Ryzen™ 9000/7000 Series: PCIe 5.0 x16 mode |
| PCIEX16 Support | Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8 mode |
| PCIEX16 Support | Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4 mode |
| Additional PCIe Slot | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), Socket 3, M key, type 25110/22110/2580/2280 SSDs |
| M.2 CPU Support | Ryzen™ 9000/7000 Series: PCIe 5.0 x4/x2 SSDs |
| M.2 CPU Support | Ryzen™ 8000 Phoenix 1/2: PCIe 4.0 x4/x2 SSDs |
| Additional M.2 | 1 x M.2 connector (M2C_SB), Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
| SATA Ports | 2 x SATA 6Gb/s connectors |
| RAID Support (NVMe) | RAID 0, RAID 1, RAID 5, RAID 10 |
| RAID Support (SATA) | RAID 0, RAID 1 |
| USB (Rear) | 2 x USB4® Type-C, 2 x USB 3.2 Gen 2 Type-A (red), 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| USB (Internal) | 1 x USB Type-C® (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, supports 2 x USB 3.2 Gen 1 ports and 4 x USB 2.0/1.1 ports |
| Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 1 x CPU fan/water pump, 3 x system fan, 1 x system fan/water pump, 3 x ARGB Gen2 headers, 1 x RGB header, 2 x M.2 Socket 3, 2 x SATA, 1 x front panel, 1 x front audio, 1 x TPM header, 1 x HDMI port, 1 x power button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper |

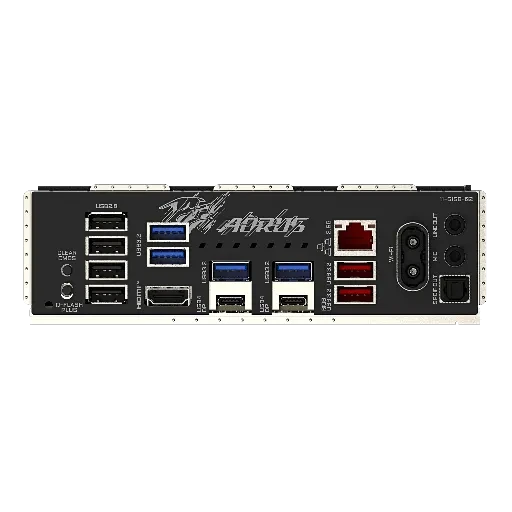

| Back Panel Connectors | 1 x Clear CMOS button, 1 x Q-Flash Plus button, 1 x HDMI, 4 x USB 2.0/1.1, 4 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2 Type-A, 2 x USB4® Type-C, 1 x RJ-45, 2 x antenna connectors, 2 x audio jacks, 1 x optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control |
| BIOS | 1 x 256 Mbit flash, licensed AMI UEFI BIOS |
| BIOS Standards | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | Micro ATX Form Factor |
| Dimensions | 24.4 cm x 24.4 cm |
