Description
Features
- Supports 9th and 8th Gen IntelÆ Coreô Processors
- Dual Channel Non-ECC Unbuffered DDR4
- 8-Channel HD Audio with High Quality Audio Capacitors
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- CEC 2019 Ready, Save Power With a Simple Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- All new GIGABYTEô APP Center, simple and easy use
- Anti-Sulfur Resistors Design
Specifications
CPU |
| 1. Support for 9th and 8th Generation IntelÆ Coreô i9 processors/IntelÆ Coreô i7 processors/IntelÆ Coreô i5 processors/IntelÆ Coreô i3 processors/IntelÆ PentiumÆ processors/IntelÆ CeleronÆ processors in the LGA1151 package |
| 2. L3 cache varies with CPU |
| (Please refer "CPU Support List" for more information.) |
Chipset |
| 1. IntelÆ H310 Express Chipset |
Memory |
| 1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
| 2. Dual channel memory architecture |
| 3. Support for DDR4 2666/2400/2133 MHz memory modules |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| 6. Support for Extreme Memory Profile (XMP) memory modules |
| * To support 2666 MHz or XMP memory, you must install an 8th Generation IntelÆ Coreô i7/i5 processor. |
| (Please refer "Memory Support List" for more information.) |
Onboard Graphics |
Integrated Graphics Processor-IntelÆ HD Graphics support: |
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| Maximum shared memory of 1 GB |
Audio |
| 1. RealtekÆ ALC887 codec |
| 2. High Definition Audio |
| 3. 2/4/5.1/7.1-channel |
| 4. Support for S/PDIF Out |
| * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
LAN |
| 1. RealtekÆ GbE LAN chip (10/100/1000 Mbit) |
Expansion Slots |
| 1. 1 x PCI Express x16 slot, running at x16 |
| (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
| 2. 2 x PCI Express x1 slots |
| (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
Storage Interface |
Chipset: |
| 1. 4 x SATA 6Gb/s connectors |
USB |
Chipset: |
| 1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
Internal I/O Connectors |
| 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 4-pin ATX 12V power connector |
| 3. 4 x SATA 6Gb/s connectors |
| 4. 1 x CPU fan header |
| 5. 1 x system fan header |
| 6. 1 x front panel header |
| 7. 1 x front panel audio header |
| 8. 1 x USB 3.1 Gen 1 header |
| 9. 1 x USB 2.0/1.1 header |
| 10. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| 11. 1 x Clear CMOS jumper |

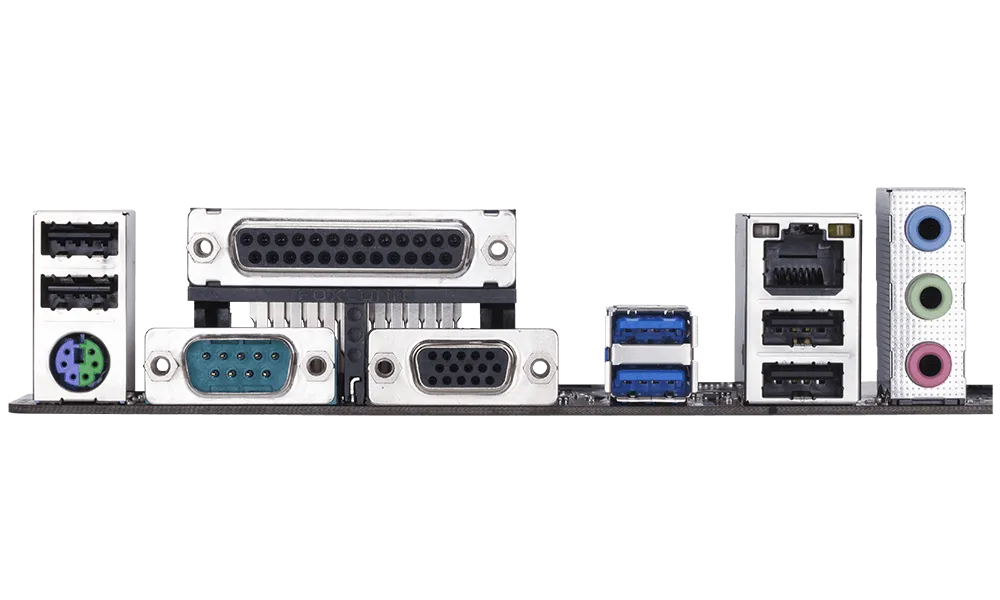

Back Panel Connectors |
| 1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x parallel port |
| 3. 1 x serial port |
| 4. 1 x D-Sub port |
| 5. 2 x USB 3.1 Gen 1 ports |
| 6. 4 x USB 2.0/1.1 ports |
| 7. 1 x RJ-45 port |
| 8. 3 x audio jacks |
I/O Controller |
| 1. iTEÆ I/O Controller Chip |
H/W Monitoring |
| 1. Voltage detection |
| 2. Temperature detection |
| 3. Fan speed detection |
| 4. Overheating warning |
| 5. Fan fail warning |
| 6. Fan speed control |
| * Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS |
| 1. 1 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
| 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| 3D OSD |
| @BIOS |
| AutoGreen |
| Cloud Station |
| EasyTune |
| Fast Boot |
| Game Boost |
| ON/OFF Charge |
| Platform Power Management |
| Smart Backup |
| Smart Keyboard |
| Smart Survey |
| Smart TimeLock |
| Smart HUD |
| System Information Viewer |
| USB Blocker |
| V-Tuner |
| 2. Support for Q-Flash |
| 3. Support for Xpress Install |
Bundled Software |
| 1. NortonÆ Internet Security (OEM version) |
| 2. RealtekÆ 8118 Gaming LAN Bandwidth Control Utility |
Operating System |
| 1. Support for Windows 10 64-bit |
Form Factor |
| 1. Micro ATX Form Factor; 22.6cm x 17.4cm |
