Description

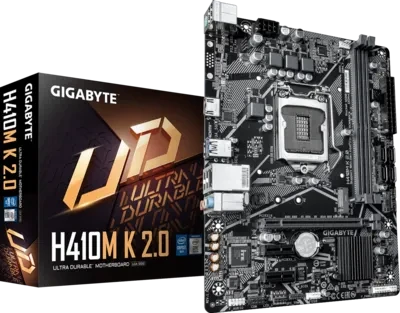

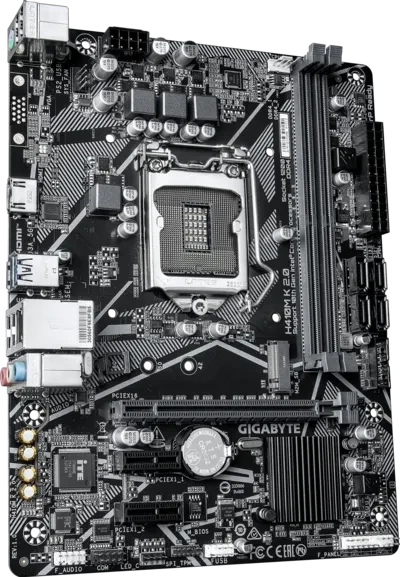

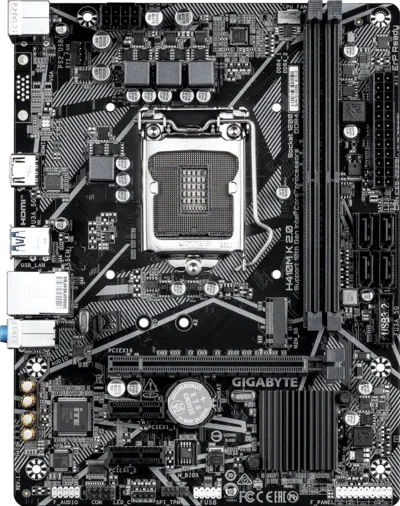

GIGABYTE H410M-K 2.0 DDR4 Micro ATX Motherboard
- Supports 10th Gen Intel®Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 8-Channel HD Audio with High Quality Audio Capacitors
- Fast Networks: GbE LAN
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Specifications
| CPU | Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package |
| (Go to GIGABYTE's website for the latest CPU support list.) | |
| L3 cache varies with CPU | |
| Chipset | Intel® H410 Express Chipset |
| Memory | 10th Generation Intel® Core™ i9/i7 processors: |
| - Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
| 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: | |
| - Support for DDR4 2666/2400/2133 MHz memory modules | |
| 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) | |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| * Support for HDMI 1.4 version and HDCP 2.3. | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | CPU: |
| - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 | |
| Chipset: | |
| - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 | |
| Storage Interface | |
| Chipset: | |
| - 1 x M.2 connector (Socket 3, M key, type 2280/2260/2242 SATA and PCIe x2 SSD support) | |
| - 4 x SATA 6Gb/s connectors | |
| USB | Chipset: |
| - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| Internal I/O Connectors | |
| 1 x 24-pin ATX main power connector | |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x system fan header | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x RGB LED strip header | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 1 x USB 2.0/1.1 header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |
| Back Panel Connectors | |
| 1 x PS/2 keyboard/mouse port | |
| 1 x HDMI port | |
| 2 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | |
| iTE® I/O Controller Chip | |
| H/W Monitoring | |
| Voltage detection | |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the fan you install. | |
| BIOS | 1 x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | |
| Support for APP Center | |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications. | |
| Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications. - @BIOS - Ambient LED - EasyTune - Smart Backup - System Information Viewer Support for Q-Flash |
| Support for Q-Flash | |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
