LGA1200 package: - 11th Gen Intel® Core™ i9/i7/i5 processors - 10th Gen Intel® Core™ i9/i7/i5/i3 processors - Intel® Pentium® / Celeron® processors L3 cache varies with CPU. (Refer to "CPU Support List" for more info.)
Chipset
Intel® H470 Express Chipset
Memory
- 11th Gen Intel® Core™ i9/i7/i5 processors: DDR4 3200/3000/2933/2666/2400/2133 MHz modules. - 10th Gen Intel® Core™ i9/i7 processors: DDR4 2933/2666/2400/2133 MHz modules. - 10th Gen Intel® Core™ i5/i3/Pentium®/Celeron® processors: DDR4 2666/2400/2133 MHz modules. - 2 x DDR4 DIMM sockets, up to 64 GB system memory. - Dual channel memory architecture. - Support for ECC/non-ECC Un-buffered DIMMs. - XMP support. (Refer to "Memory Support List" for more info.)
Onboard Graphics
Integrated Intel® HD Graphics: - 1 x HDMI (4096x2160@30Hz, HDMI 1.4, HDCP 2.3) - 1 x D-Sub (1920x1200@60Hz, 10th Gen CPUs only) Graphics specs depend on CPU.
Audio
Realtek® Audio CODEC, HD Audio. Supports 2/4/5.1/7.1 channels (configured via software).
LAN
Realtek® GbE LAN chip (1Gbps/100Mbps/10Mbps).
Expansion Slots
- CPU: 1 x PCIe x16 slot (PCIe 3.0, x16). - Chipset: 1 x PCIe x1 slot (PCIe 3.0, x1).
Storage Interface
- 1 x M.2 connector (SATA/PCIe 3.0 x4/x2 SSD support). - 4 x SATA 6Gb/s connectors. - RAID support: NVMe: RAID 0/1 (PCIe to M.2 adapter required). SATA: RAID 0/1/5/10.
USB
- 4 x USB 3.2 Gen 1 (2 rear, 2 internal header). - 6 x USB 2.0/1.1 (4 rear, 2 internal header).
Internal I/O Connectors
- 24-pin ATX power, 8-pin ATX 12V power. - CPU/system fan headers, RGB LED strip header. - M.2, SATA, front panel/audio headers. - USB 3.2 Gen 1 & USB 2.0/1.1 headers. - TPM, serial port, Clear CMOS jumper.

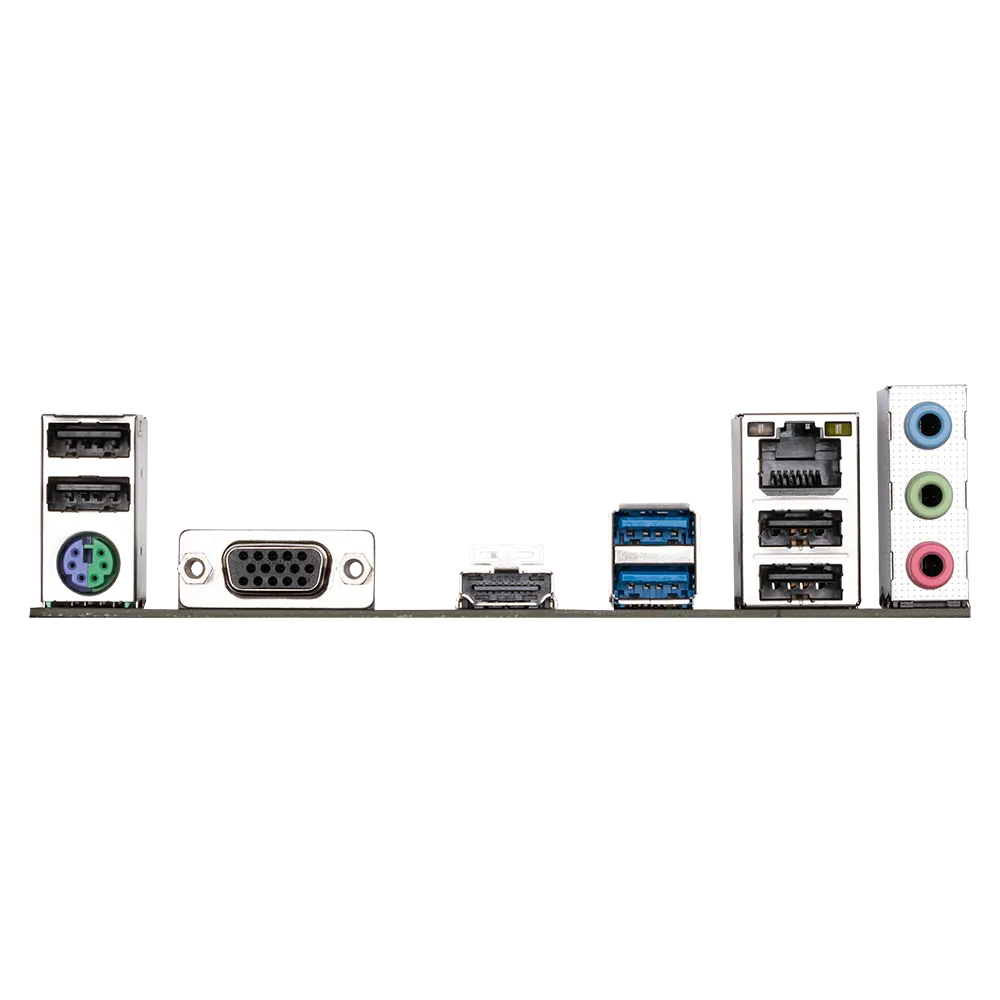

Back Panel Connectors
- PS/2 keyboard/mouse, D-Sub, HDMI. - 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1. - RJ-45, 3 x audio jacks.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage, temperature, fan speed detection. Fan fail warning, fan speed control (cooler dependent).
BIOS
1 x 128 Mbit flash, licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
Norton® Internet Security (OEM). LAN bandwidth management software.
Operating System
Windows 11/10 64-bit.
Form Factor
Micro ATX, 22.6cm x 18.5cm.
