Description
CPU
| Support for IntelÆ Coreô i7 processors/IntelÆ Coreô i5 processors/IntelÆ Coreô i3 processors/IntelÆ PentiumÆ processors/IntelÆ CeleronÆ processors in the LGA1150 package |
| L3 cache varies with CPU |
Chipset
| IntelÆ H81 Express Chipset |
Memory
| 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. |
| Dual channel memory architecture |
| Support for DDR3 1600/1333 MHz memory modules |
| Support for non-ECC memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
Onboard Graphics
| Integrated Graphics Processor - IntelÆ HD Graphics support: |
| 1 x D-Sub port, supporting a maximum resolution of 1920x1200 |
| Maximum shared memory of 1 GB |
Audio
| RealtekÆ ALC887 codec |
| High Definition Audio |
| 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
LAN
| RealtekÆ GbE LAN chip (10/100/1000 Mbit) |
Expansion Slots
| 1 x PCI Express x16 slot, running at x16 |
| 1 x PCI Express x1 slot (The PCI Express slots conform to PCI Express 2.0 standard.) |
Storage Interface
Chipset:
|
USB
Chipset:
|
Internal I/O Connectors
| 1 x 24-pin ATX main power connector |
| 1 x 4-pin ATX 12V power connector |
| 2 x SATA 6Gb/s connectors |
| 2 x SATA 3Gb/s connectors |
| 1 x CPU fan header |
| 1 x system fan header |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x speaker header |
| 2 x USB 2.0/1.1 headers |
| 1 x chassis intrusion header |
| 1 x Clear CMOS jumper |

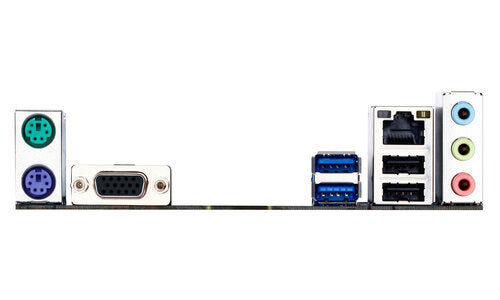

Back Panel Connectors
| 1 x PS/2 keyboard port |
| 1 x PS/2 mouse port |
| 1 x D-Sub port |
| 2 x USB 3.0/2.0 ports |
| 2 x USB 2.0/1.1 ports |
| 1 x RJ-45 port |
| 3 x audio jacks (Line In, Line Out, Mic In) |
I/O Controller
| iTEÆ I/O Controller Chip |
H/W Monitoring
| System voltage detection |
| CPU/System temperature detection |
| CPU/System fan speed detection |
| CPU/System overheating warning |
| CPU/System fan fail warning |
| CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS
| 1 x 32 Mbit flash |
| Use of licensed AMI EFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features
| Support for Q-Flash |
| Support for Xpress Install |
| Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker |
| Support for ON/OFF Charge |
Bundle Software
| NortonÆ Internet Security (OEM version) |
Operating System
| Support for Windows 10/8.1/8/7 |
Form Factor
| Micro ATX Form Factor; 19.0cm x 17.0cm |
