Description
Specifications
| Category | Details |
|---|---|

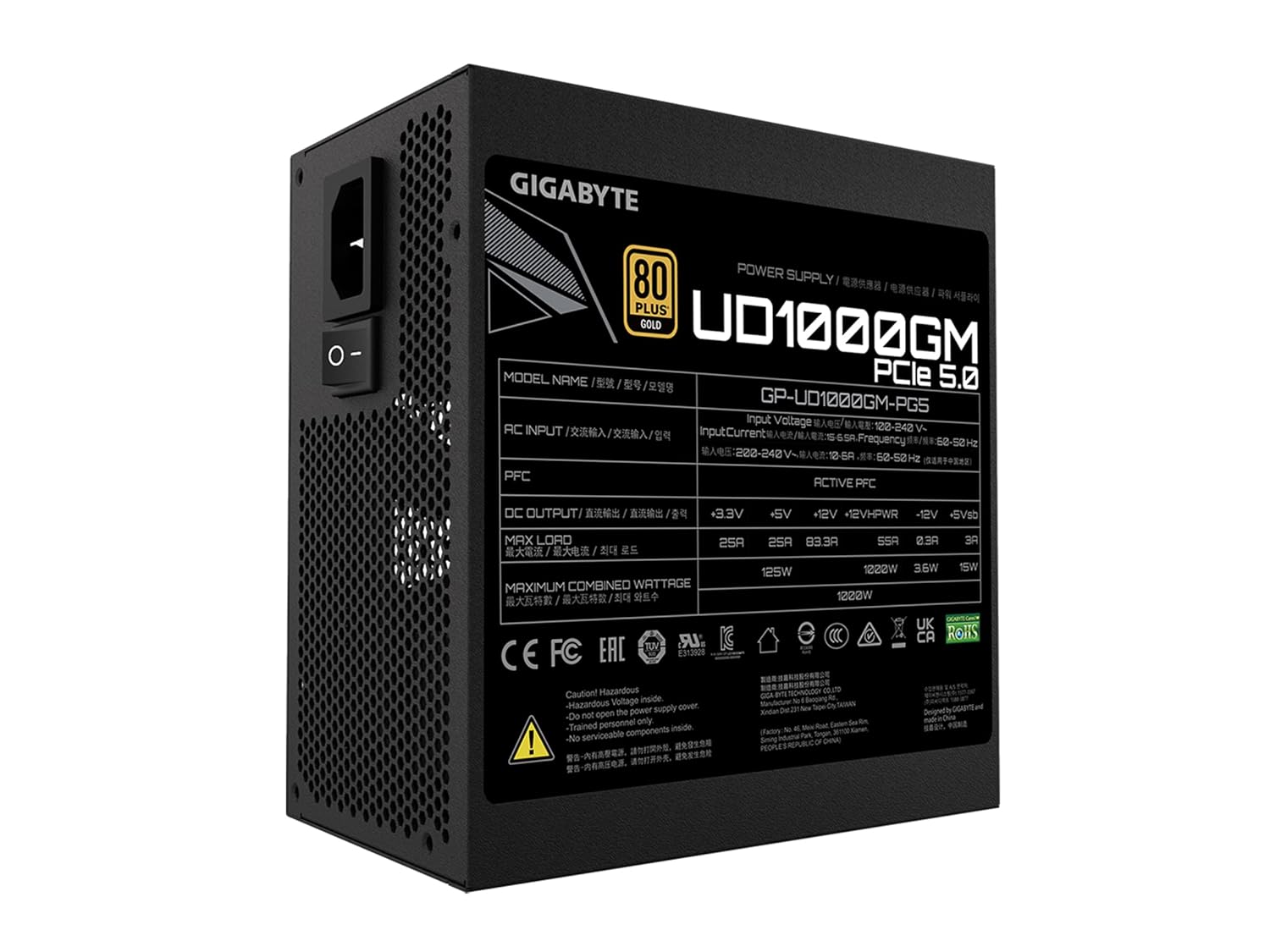

| Model | GP-UD1000GM |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240V AC (Full Range) |
| Input Current | 15-6.5A |
| Input Frequency | 50-60 Hz |
| Output Capacity | 1000W |
| Dimensions (L × W × H) | 150 × 140 × 86 mm |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS Rating | Gold |
| Efficiency | 90% at Typical Load |
| MTBF | >100,000 Hours |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | >16 ms |
| Cable Type | Flat, All Black |

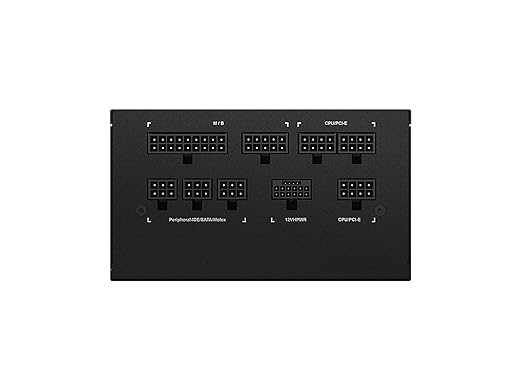

| Connectors | - 1 × ATX/MB 20+4 Pin (610mm) - 2 × CPU/EPS 4+4 Pin (600mm each) - 6 × PCI-e 6+2 Pin (600mm + 150mm × 3) - 8 × SATA (600mm + 150mm + 150mm + 150mm × 2) - 3 × 4-Pin Peripheral + 1 × 4-Pin Floppy (500mm + 120mm + 120mm + 150mm) |
