Specifications:
| Feature | Description |
|---|---|
| CPU | LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors. L3 cache varies with CPU. * Please refer to "CPU Support List" for more information. |
| Chipset | Intel® Z790 Express Chipset |
| Memory | Support for DDR5 up to 8266(O.C) MT/s. 4 x DDR5 DIMM sockets, supporting up to 256 GB (64 GB per DIMM). Dual channel memory architecture. Support for ECC and non-ECC Un-buffered DIMM modules. Support for Extreme Memory Profile (XMP) memory modules. |
| Onboard Graphics | Integrated Graphics Processor (Intel® HD Graphics): - 1 x USB Type-C® (USB 3.2 Gen 2 + DisplayPort) - 4096x2304@60 Hz. - 1 x USB Type-C® (USB 2.0 + DisplayPort) - 1920x1080@30 Hz. - 1 x HDMI - 4096x2160@60 Hz (HDMI 2.1 + HDCP 2.3). * Graphics specifications depend on CPU or graphics card support. |
| Audio | Realtek® ALC1220-VB CODEC. High Definition Audio: 2/4/5.1/7.1-channel. Support for S/PDIF Out and DSD audio (via back panel). |
| LAN | Realtek® 5GbE LAN chip (5/2.5/1 Gbps and 100 Mbps). |
| Wireless | MediaTek Wi-Fi 7 MT7927 (rev. 1.0), Intel® Wi-Fi 7 BE200 (rev. 1.1), or Qualcomm® Wi-Fi 7 QCNCM865 (rev. 1.2). Bluetooth 5.3. Support for 11be 320MHz wireless standard. * Wi-Fi 7 features require Windows 11 SV3. |
| Expansion Slots | CPU: - 1 x PCIe x16 slot (PCIe 5.0), running at x16. Chipset: - 1 x PCIe x16 slot (PCIe 4.0), running at x4. - 1 x PCIe x16 slot (PCIe 3.0), running at x4. |
| Storage | CPU: - 2 x M.2 slots (PCIe 5.0/4.0). Chipset: - 3 x M.2 slots (PCIe 4.0, PCIe/SATA). - 4 x SATA 6Gb/s connectors. RAID 0, 1, 5, 10 for NVMe and SATA storage. |
| USB | Chipset: - 2 x USB Type-C® (USB 3.2 Gen 2x2). - 1 x USB Type-C® (USB 3.2 Gen 2). - 2 x USB 3.2 Gen 2 Type-A. - 4 x USB 3.2 Gen 1. - 4 x USB 2.0/1.1. Internal headers for additional ports. |

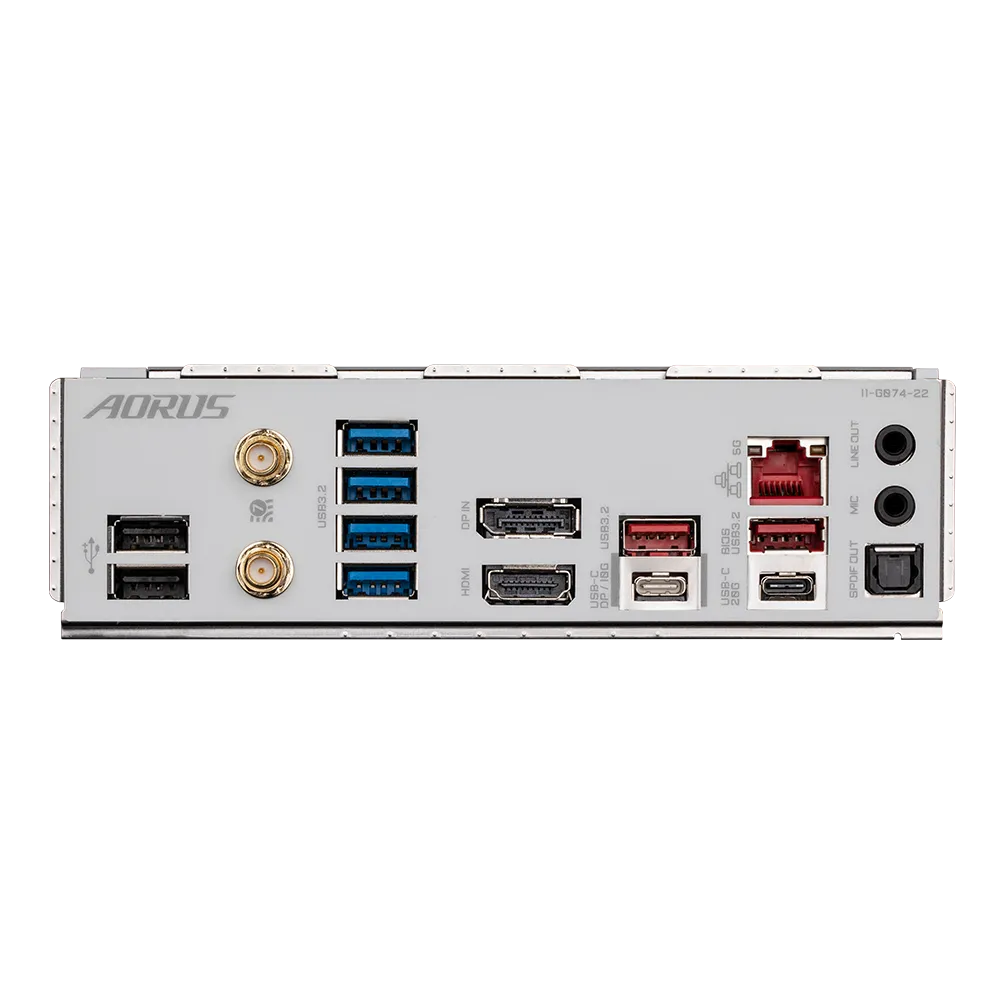

| Back Panel | - 2 x USB 2.0/1.1. - 4 x USB 3.2 Gen 1. - 2 x USB 3.2 Gen 2 Type-A. - 1 x USB Type-C® (USB 3.2 Gen 2x2). - HDMI, DisplayPort In, RJ-45, S/PDIF, 2 x audio jacks. |
| Form Factor | ATX, 30.5cm x 24.4cm. |
