Specifications:
| Category | Details |
|---|---|
| CPU | LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors L3 cache varies with CPU (Refer to "CPU Support List" for more details) |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 14th and 13th Generation Intel® Core™ i9/i7 Processors: Support for DDR5 7600(O.C.) to 4400 MT/s 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors: Support for DDR5 4800/4400 MT/s 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) Dual channel memory architecture Support for ECC/Non-ECC Un-buffered DIMM and XMP memory modules |
| Onboard Graphics | Integrated Graphics Processor - Intel® HD Graphics support: 1 x HDMI port (Max Resolution: 4096x2160@60Hz, HDMI 2.1, HDCP 2.3) 1 x DisplayPort (Max Resolution: 4096x2304@60Hz, DP 1.2, HDCP 2.3) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Intel® Wi-Fi 6E AX211 / Realtek® Wi-Fi 6E RTL8852CE Support for Bluetooth 5.3 Support for 2.4/5/6 GHz frequency bands |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 slot Chipset: 1 x PCIe 4.0 x4 slot 1 x PCIe 3.0 x1 slot 2 x PCIe 3.0 x1 slots |
| Storage Interface | CPU: 1 x M.2 (PCIe 4.0 x4/x2) Chipset: 2 x M.2 (PCIe 4.0 x4/x2 and SATA) 4 x SATA 6Gb/s connectors RAID 0, 1, 5, 10 support |
| USB | Back Panel: 1 x USB Type-C® (USB 3.2 Gen 2) 1 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 2 x USB 2.0 Internal: 1 x USB Type-C® (USB 3.2 Gen 1) 1 x USB 3.2 Gen 1 header 2 x USB 2.0 headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power 2 x 8-pin ATX 12V power 3 x system fan headers 1 x CPU fan/water cooling pump header 3 x M.2 connectors 4 x SATA 6Gb/s connectors 2 x Thunderbolt add-in card connectors |

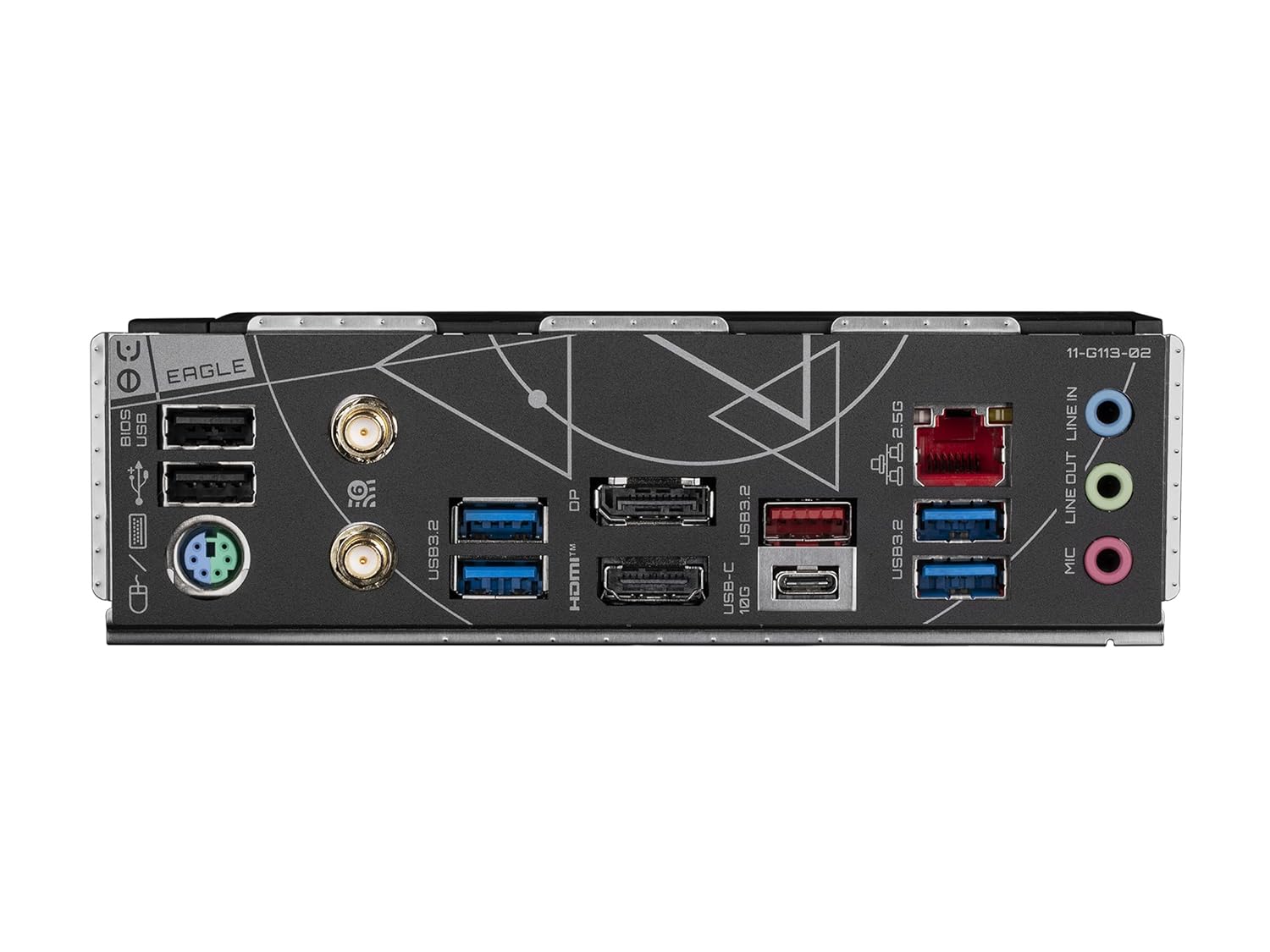

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x USB Type-C® (USB 3.2 Gen 2) 1 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| BIOS | 256 Mbit flash, AMI UEFI BIOS |
| Form Factor | ATX (30.5cm x 24.4cm) |
