LGA1851 socket: Support for Intel® Core™ Ultra Processors
Chipset
Intel® Z890 Express Chipset
Memory
DDR5 9200(O.C.) / 9066(O.C.) / 8933(O.C.) / 8800(O.C.) and more, up to 256 GB 4 x DDR5 DIMM sockets, ECC/non-ECC support, XMP memory modules
Onboard Graphics
Integrated Intel® HD Graphics - 1 x USB4® USB Type-C® (DisplayPort 2.1, 3840x2160@144Hz) - 1 x DisplayPort (DisplayPort 2.1, 3840x2160@144Hz)
Audio
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip
Wireless
MediaTek Wi-Fi 7 MT7925 (802.11be), Bluetooth 5.4 Realtek® Wi-Fi 7 RTL8922AE (802.11be), Bluetooth 5.4
Expansion Slots
CPU: 1 x PCIe 5.0 x16 (graphics card/NVMe SSD) Chipset: 2 x PCIe 4.0 x4
Storage
CPU: 1 x M.2 PCIe 5.0, 1 x M.2 PCIe 4.0 Chipset: 2 x M.2 PCIe 4.0, 4 x SATA 6Gb/s RAID 0/1/5/10 support
USB Ports
- 1 x USB4® USB Type-C® (back panel) - 1 x USB Type-C® (internal, USB 3.2 Gen 2) - 2 x USB 3.2 Gen 2 Type-A (back panel) - 5 x USB 3.2 Gen 1 (3 back, 2 internal) - 8 x USB 2.0 (4 back, 4 internal)
Internal Connectors
- 1 x 24-pin ATX main power, 2 x 8-pin ATX 12V - 4 x M.2 connectors, 4 x SATA 6Gb/s - USB headers, RGB/ARGB headers, fan/water pump headers, and more

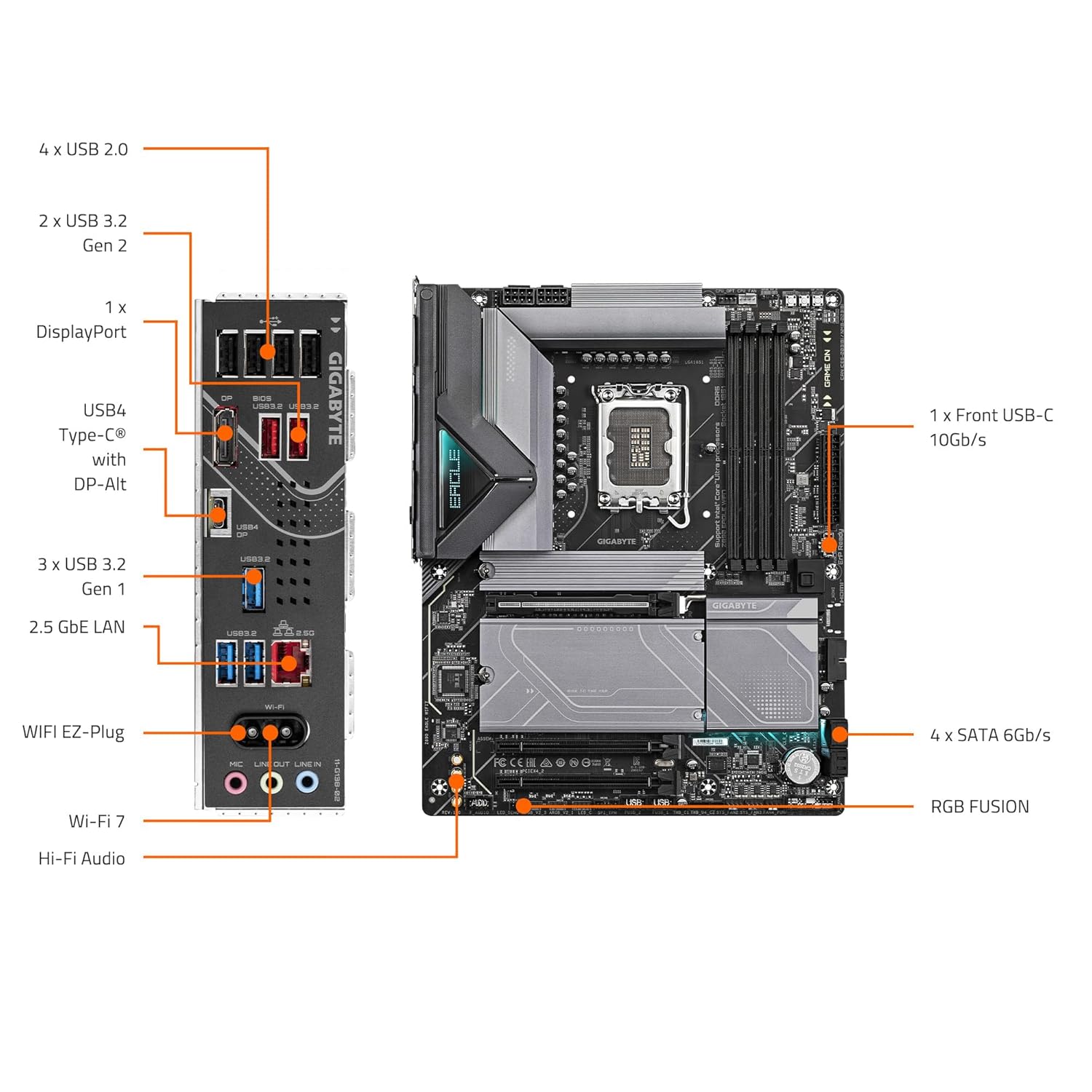

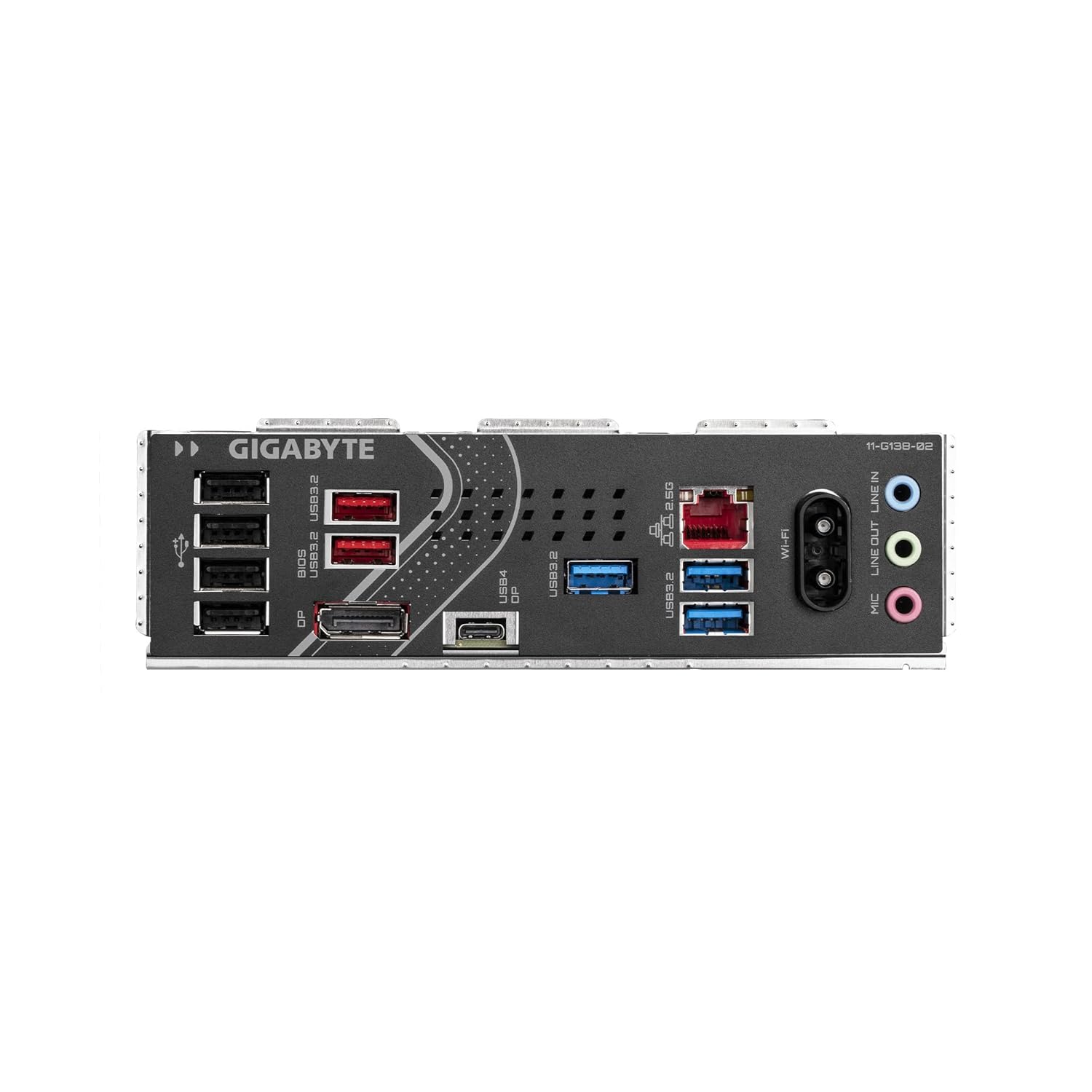

Back Panel
- 1 x USB4® USB Type-C®, 2 x USB 3.2 Gen 2 Type-A - 3 x USB 3.2 Gen 1, 4 x USB 2.0 - 1 x DisplayPort, 2 x antenna connectors - 1 x RJ-45, 3 x audio jacks
BIOS
AMI UEFI BIOS, Q-Flash, Q-Flash Plus
Operating System
Support for Windows 11 64-bit
Form Factor
ATX (30.5cm x 24.4cm)
Unique Features
GIGABYTE Control Center (GCC), Norton® Internet Security, LAN management
