FAN-HYTE-Q60-BW
hyte
FAN-HYTE-Q60-BW
Guaranteed safe & Secure checkout
Checking availability...
Location Restricted This product is only available for orders within Hyderabad.
Description
Features:

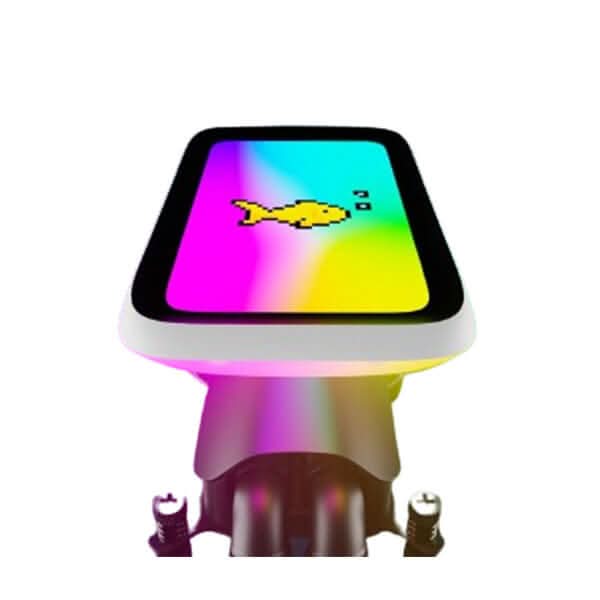

5 inch Ultraslim IPS Display:
720 x 1280 resolution, 60Hz refresh rate, and 300 nits of brightness for an incredibly crisp and smooth visual experience delivered to your physical world with real life depth
42-Pixel qRGB Array:
Brings your system to life, deeply soaking it in mesmerizingly saturated color
Double-Hinged Floating Spout:
Rises above and takes aim at your attention with 90 degrees of adjustable swivel
Dual Harmonic Pumps:
Adjustable 2,000 - 4,500 RPM circulate liquid with silenced acoustics and groundbreaking efficiency, effortlessly taming even the hottest of CPUs
Ginormous Heat Exchanger:
240mm smol and 52mm THICC, this short king cuts above the competition with class leading thermal performance, utilizing a parallel dual-pass design to maximize both cooling capacity and efficiency
32mm THICC FP12 Fans:
Dynamic adjustable 0 - 3,000 RPM fan speed with Fiberglass reinforced Liquid Crystal Polymer supercharges the fan blades, delivering a monstrous 105.8 CFM airflow and 8.14 mm-H2O static pressure
Nexus Link Primary Node:
Utilizes HYTE’s revolutionary new digital hardware interface for sequential lighting and cooling control with both thermal and positioning sensor data over a single cable, capable of supporting up to 34 devices across 2 channels with Nexus Link AmpScale
Luxury Product Experience:
Full compatibility across a range of AMD and Intel sockets, concealed cable harness for a clean look, seamless OTA updates, and 6-year warranty for piece of mind
Specifications:
| Model: | FAN-HYTE-Q60-BW |
| Colour: | Black & White |
| CPU Compatibility: |
*Optional brackets, please contact support |
| Heat Exchanger Dimensions: | 120 x 288 x 52 mm |
| Heat Exchanger Material: | Aluminum |
| Heat Exchanger Technology: | Parallel Dual Pass |
| Cold Plate Dimensions: | 56 x 56 x 1.5 mm |
| Cold Plate Material: | Copper |
| Cold Plate Technology: | Micro-Skived Fin |
| Magnetic Interchangeable Cold Plate Cover: | Anodized Aluminum |
| Tube Length: | 400 mm |
| Tube Material: | CIIR Rubber with Nylon Sleeving |
| Total CPU Block + LCD Screen Height: | 105 mm |
| Fans: | THICC FP12 x 2 |
| Fan Dimensions: | 120 x 120 x 32 mm |
| Fan Speed: | 0 – 3,000 RPM |
| Air Flow: | 105.8 CFM |
| Static Pressure: | 8.14 mm-H2O |
| Noise Level: | <10.0* - 47.3 dBA - *Measuring below 10 dBA was not possible in our test chamber due to the noise floor |
| Bearings: | Fluid Dynamic Bearing |
| Fan Blade Material: | Fiberglass Reinforced Liquid Crystal Polymer (LCP) |
| Fan Frame Material: | Polycarbonate |
| Fan Connector: | Nexus Link Type-M |
| Nexus-Link Channels: | 1x Type-C, 1x Type-M |
| Maximum Devices – Single Channel: | 18 |
| Maximum Devices – All Channels: | 34 |
| Maximum Current – Single Channel: | 8A/12V |
| Maximum Current – All Channels: | 15A/12V |
| Maximum PSU Power Draw: | Up to 180W depending on the number of connected Nexus Link devices |
| LCD Size: | 5 Inches |
| LCD Mounting Orientation: | Portrait Only |
| LCD Resolution: | 720 x 1280 (293 PPI) |
| LCD Panel Type: | IPS |
| LCD Hinge: | Double-Hinged Floating Spout |
| LCD Refresh Rate: | 60 Hz |
| LCD Brightness: | 300 nits |
| Bias Lighting: | 42-Pixel qRGB Array |
| Logo Lighting: | 4-Pixel qRGB Array |
| Pump RPM: | 2,000 – 4,500 RPM |
| Pump Bearing: | Ceramic |
| Pump Impeller Diameter: | 24 mm |
| Coolant Operation Temperatures: | -10 to 60 C |
| Processor: | Quad-Core 64-bit ARM Cortex |
| Speed: | 1.3 GHz |
| RAM: | 2GB DDR4 @2666 MT/s |
| Storage: | 32GB eMMC |
| Graphics Engine: | 500 MHz |
| Co-Processor: | 32-Bit ARM Cortex-M4 |
| Input Connections: | USB 2.0 Header, PWM, 6-Pin PCIe Power |
| Included Accessories: | Intel Mounting Kit + AMD Mounting Kit + Fan Screws |
| Thermal Paste: | Yes, Pre-Applied |
| Nexus Powered: | Yes |
| Warranty: | 3 Years |
