Description
About:
Enhanced In Every Dimension

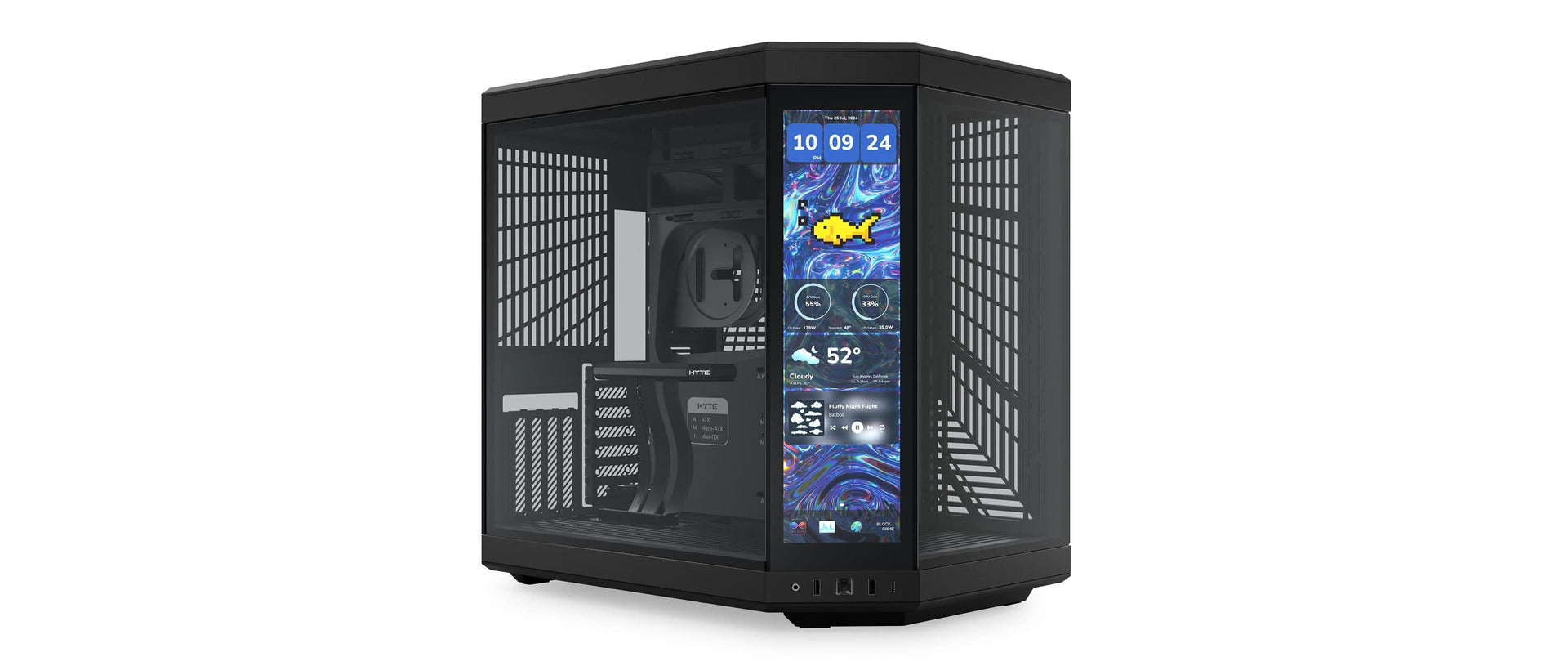

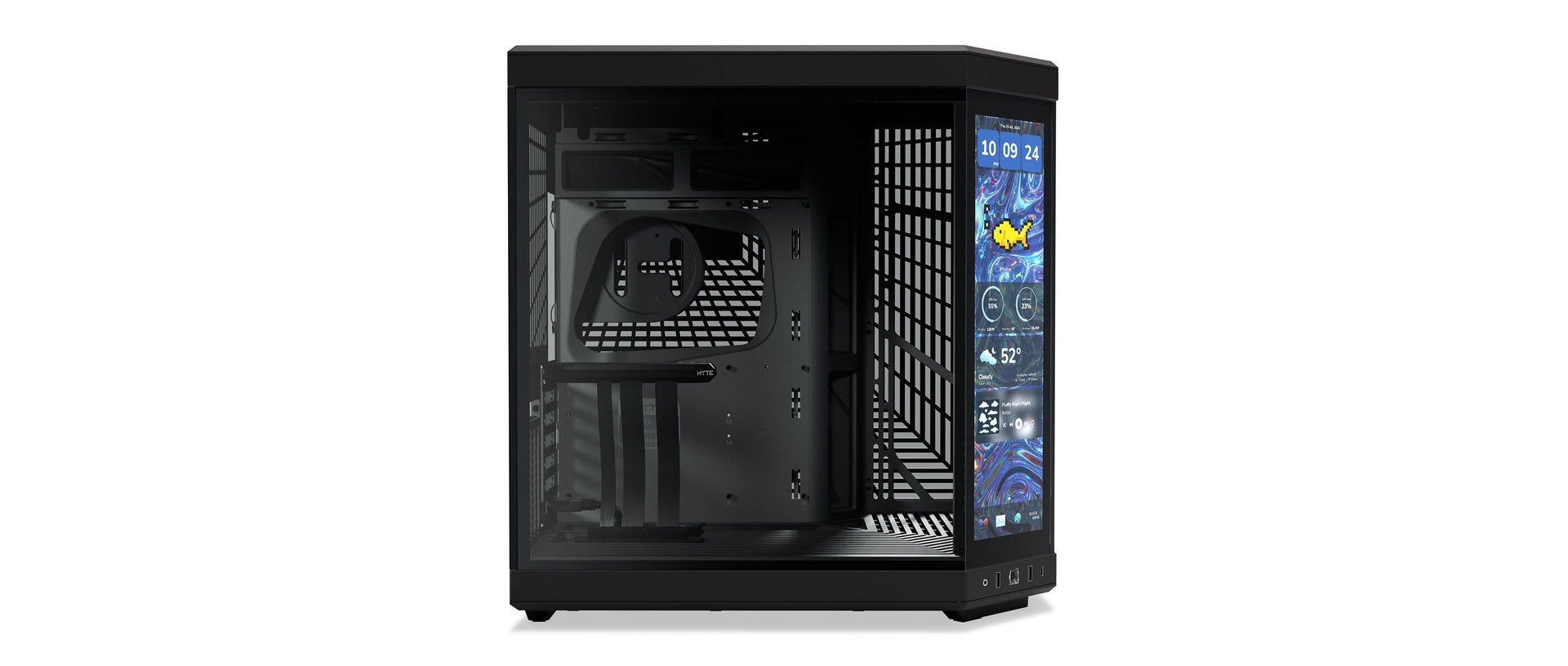

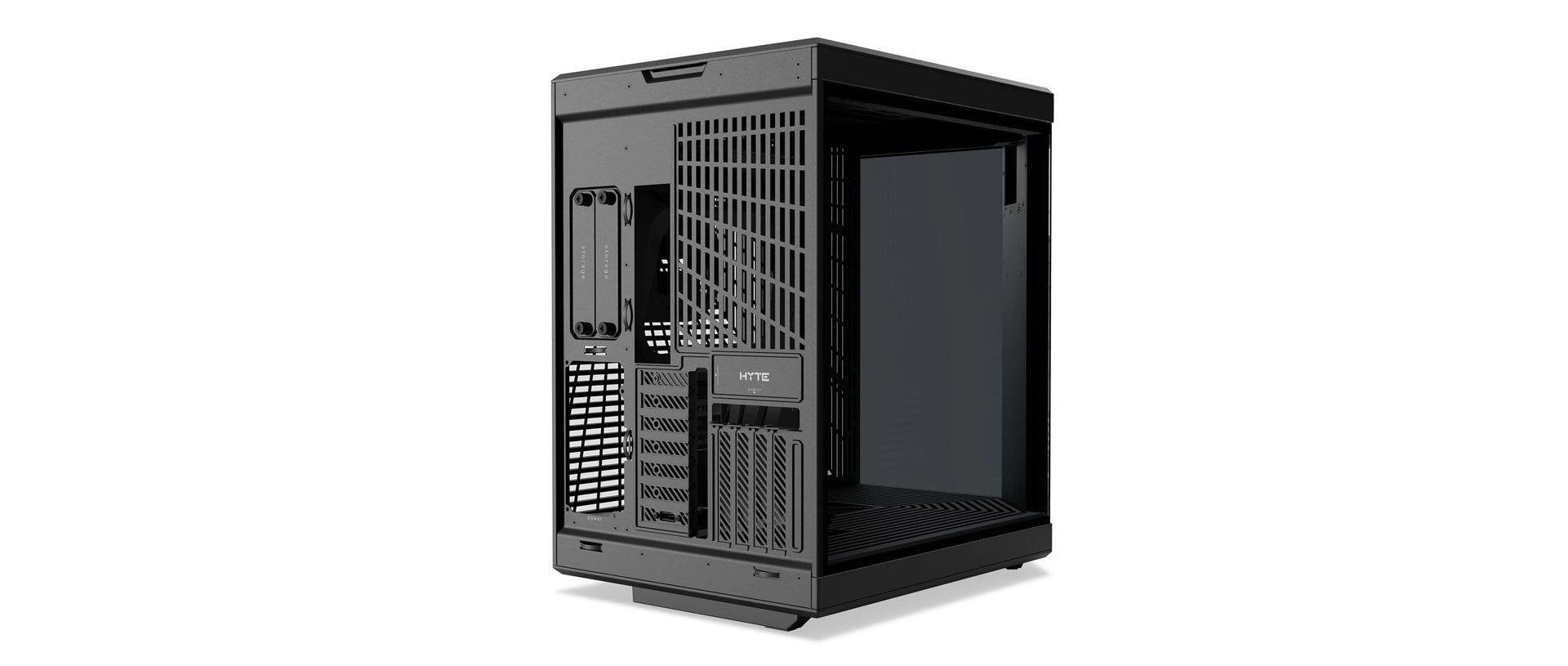

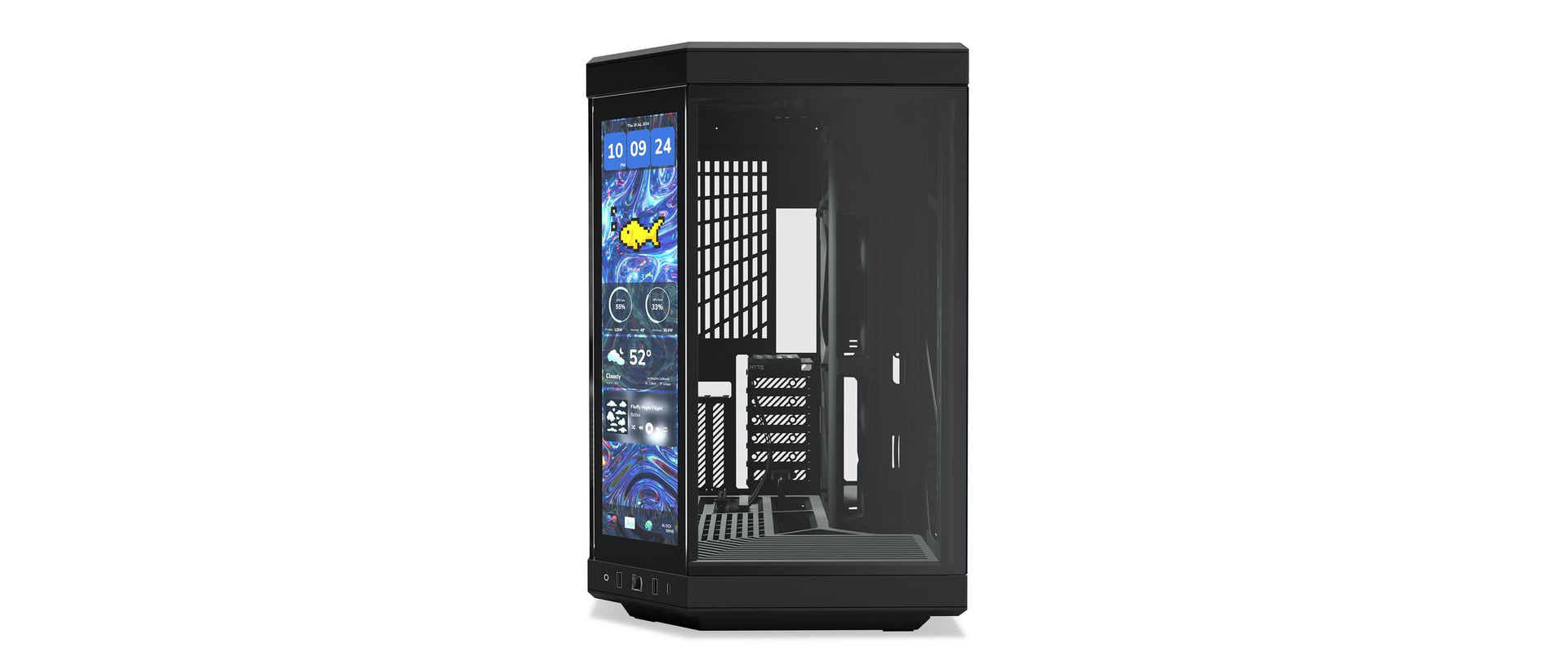

Y70 is an upgraded dual chamber ATX mid tower modern aesthetic case that delivers next gen gaming experiences with massive 4 slot vertical graphics and unlocks maximum performance via ginormous cooling capacity. All while celebrating your favorite hardware by showing off your PC the way it was meant to be seen.
Note: Please be aware that all HYTE.com pre-orders will be shipped and fulfilled through the USA. For international customers, we recommend checking with your local distributors first, as they may have faster fulfillment due to shipping times.
Product Features:
Mesmerizing 14.9" Integrated IPS Touchscreen (Y70 Touch Infinite Only)
At a 682 x 2560 (2.5K) resolution and 60Hz refresh rate, this capacitive IPS touchscreen delivers an insanely crisp and buttery smooth visual experience with 10-point multi-touch capability, unlocking a magnitude of possibilities and extensive screen customization powered by HYTE Nexus software. Our bigger, brighter, 3rd generation panel features a larger 14.9" display with a 43% higher brightness for a more immersive user experience. All in a single package integrated into the case chassis structure, pioneering meaningful digital interaction with the best display ever in a case.
Spilt Milk Has Never Looked So Good (Milky Y70's Only)
Soft and creamy colors soak Y70 in a sweet & delicious fresh style. Strawberry Milk, Blueberry Milk, and Taro Milk flavors have arrived! Milky canopies are included for uninterrupted visual flow.
Massive 4 Slot Vertical Graphics
Y70 grows GPU support to 4 slots with additional airflow space between the edge of the card and the glass. This means you can fit even the largest and most powerful of graphics cards into your build with ease. Additionally, the cold floor cooling down below can house up to a trio of 120mm or duo of 140mm fans up to 32mm thick to direct fresh airflow straight into the GPU.
Included Luxury PCIE 4.0 Riser Cable
Included with the case is a luxury PCIE 4.0 x 16 riser with a color-matched canopy for uninterrupted visual flow that'll make for a painless GPU installation and build process. It also allows for a plethora of half-height PCIE cards to sit behind the throne of the vertical graphics.
Ginormous Cooling Capacity
A spacious interior makes room for up to a 360mm long & 125mm thick radiator on the side and adjustable top bracket that can house another 360mm radiator up to 68mm thick up above. Working together with the cold floor cooling at the bottom and spot for an additional fan at the rear of the case, Y70 has a total capacity of 10 fans in a fully populated chassis. With over 180mm of clearance to the side glass, air and water cooling enthusiasts alike will appreciate the flexibility afforded to them by the chassis to create the most robust cooling configurations possible.
Unified Modern Aesthetic
With 4 unique colorways, Y70 puts your build front and center with a beautifully crafted 3-piece panoramic glass which serves as a window into the heart of your PC. The dual chamber interior layout keeps the front looking great while giving you plenty of space to manage cables in the back, especially with the help of our seamless L-shaped molded rubber grommet, meticulously placed cable routing channels & tie-down points, and reusable Velcro straps. All easily accessible with tool-less top and side panels alongside floating storage sleds that eject from the rear of the case for intuitive drive maintenance.
Specifications:
| Feature | Details |
|---|---|
| Type | Dual Chamber Mid-Tower ATX Case |
| Exterior Dimensions | 470 x 320 x 470 mm |
| Volume (L) | 70.7 |
| Motherboard Sizes | ITX, mATX, ATX, EATX |
| Expansion Slots | 7 half + 4 full height |
| Riser Cable Included | Yes, PCIE 4.0 x 16 |
| I/O | 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo Jack |
| Dust Filters | Top, Side, Bottom |
| Top Fans | 3x 120 mm / 2x 140 mm |
| Top Radiator | 120-360, 140-280 @ 68 mm thick |
| Rear Fans | 1x 120/140 mm |
| Rear Radiator | 1x 120/140 mm |
| Side Fans | 3x 120 mm / 2x 140 mm |
| Side Radiator | 120-360, 140-280 @ 125 mm thick |
| Bottom Fans | 3x 120 mm / 2x 140 mm @ 32 mm thick |
| Max Video Card Length | 422 mm |
| Max Video Card Thickness | 105 mm |
| Max CPU Cooler Height | 180 mm |
| Max PSU Length | 235 mm |
| Storage | 2x 3.5" HDD or 4x 2.5" SSD |
| 3rd Generation Display | 14.9” 682 x 2560 (2.5K) 60Hz 10-Point Multi-Touch Capacitive IPS Touchscreen - 178 PPI - 0.007mm Dot Pitch - 500 nits - 1000:1 Contrast Ratio - 80 Degree Viewing Angle - 30ms Pixel Response Time |
| 2nd Generation Display | 14.5” 688 x 2560 (2.5K) 60Hz 5-Point Multi-Touch Capacitive Touchscreen - 183 PPI - 0.006mm Dot Pitch - 350 nits - 1500:1 Contrast Ratio - 89 Degree Viewing Angle - 20ms Pixel Response Time |
| 1st Generation Display | 14.1” 1100 x 3840 (4K) 60Hz 10-Point Multi-Touch Capacitive Touchscreen - 283 PPI - 0.008mm Dot Pitch - 300 nits - 1200:1 Contrast Ratio - 85 Degree Viewing Angle - 30ms Pixel Response Time |
| Powered By Nexus (Y70 Touch Infinite & Y70 Touch Only) | Yes, Nexus Touch |
| Warranty | 3 Years |
| SKU (Non-Touch) | CS-HYTE-Y70-WW / CS-HYTE-Y70-BW / CS-HYTE-Y70-BR / CS-HYTE-Y70-B / CS-HYTE-Y70-SM / CS-HYTE-Y70-TM / CS-HYTE-Y70-BM |
| SKU (Touch) | CS-HYTE-Y70TTI-WW / CS-HYTE-Y70TTI-WB / CS-HYTE-Y70TTI-BB / CS-HYTE-Y70TTI-RB |
