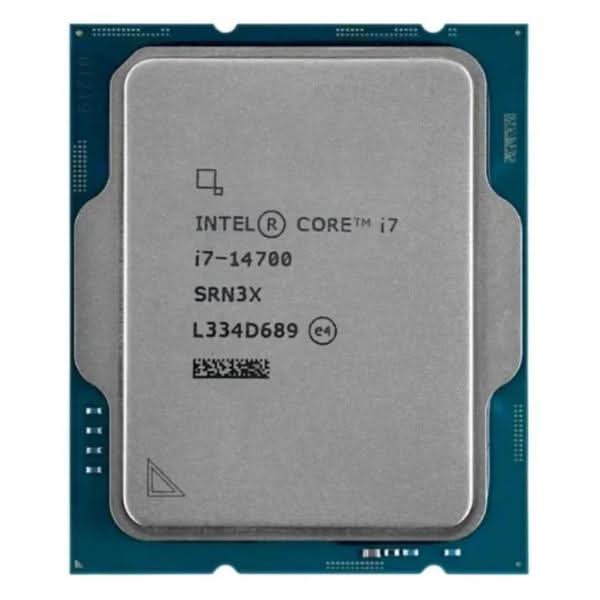

Intel Core i7-14700 LGA1700 Desktop OEM Processor

Essentials

Product Collection: Intel Core i7 Processors (14th gen)

Code Name: Products formerly Raptor Lake

Vertical Segment: Desktop

Processor Number: i7-14700

Lithography: Intel 7

Use Conditions: PC/Client/Tablet, Workstation

CPU Specifications

Total Cores: 20

# of Performance-cores: 8

# of Efficient-cores: 12

Total Threads: 28

Max Turbo Frequency: 5.4 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency ‡: 5.4 GHz

Performance-core Max Turbo Frequency: 5.3 GHz

Efficient-core Max Turbo Frequency: 4.2 GHz

Performance-core Base Frequency: 2.1 GHz

Efficient-core Base Frequency: 1.5 GHz

Cache: 33 MB Intel® Smart Cache

Total L2 Cache: 28 MB

Processor Base Power: 65 W

Maximum Turbo Power: 219 W

Supplemental Information

Embedded Options Available: Yes

Memory Specifications

Max Memory Size (dependent on memory type): 192 GB

Memory Types: Up to DDR5 5600 MT/s or Up to DDR4 3200 MT/s

Max # of Memory Channels: 2

Max Memory Bandwidth: 89.6 GB/s

ECC Memory Supported ‡: Yes

GPU Specifications

Processor Graphics ‡: Intel® UHD Graphics 770

Graphics Base Frequency: 300 GHz

Graphics Max Dynamic Frequency: 1.6 GHz

Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units: 32

Max Resolution (HDMI)‡: 4096 x 2160 @ 60Hz

Max Resolution (DP)‡: 7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡: 5120 x 3200 @ 120Hz

DirectX* Support: 12

OpenGL* Support: 4.5

OpenCL* Support: 3.0

Multi-Format Codec Engines: 2

Intel® Quick Sync Video: Yes

Intel® Clear Video HD Technology: Yes

# of Displays Supported ‡: 4

Device ID: 0xA780

Expansion Options

Direct Media Interface (DMI) Revision: 4.0

Max # of DMI Lanes: 8

Scalability: 1S Only

PCI Express Revision: 5.0 and 4.0

PCI Express Configurations ‡: Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes: 20

Package Specifications

Sockets Supported: FCLGA1700

Max CPU Configuration: 1

Thermal Solution Specification: PCG 2020C

TJUNCTION: 100°C

Package Size: 45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator: 3.0

Intel® Thread Director: Yes

Intel® Deep Learning Boost (Intel® DL Boost): Yes

Intel® Speed Shift Technology: Yes

Intel® Turbo Boost Max Technology 3.0 ‡: Yes

Intel® Turbo Boost Technology ‡: 2.0

Intel® Hyper-Threading Technology ‡: Yes

Intel® 64 ‡: Yes

Instruction Set: 64-bit

Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States: Yes

Enhanced Intel SpeedStep® Technology: Yes

Thermal Monitoring Technologies: Yes

Intel® Volume Management Device (VMD): Yes

Security & Reliability

Intel® Standard Manageability (ISM) ‡: Yes

Intel® Control-Flow Enforcement Technology: Yes

Intel® AES New Instructions: Yes

Secure Key: Yes

Intel® OS Guard: Yes

Execute Disable Bit ‡: Yes

Intel® Boot Guard: Yes

Mode-based Execute Control (MBEC): Yes

Intel® Virtualization Technology (VT-x) ‡: Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes

Intel® VT-x with Extended Page Tables (EPT) ‡: Yes

Warranty

3 Years
